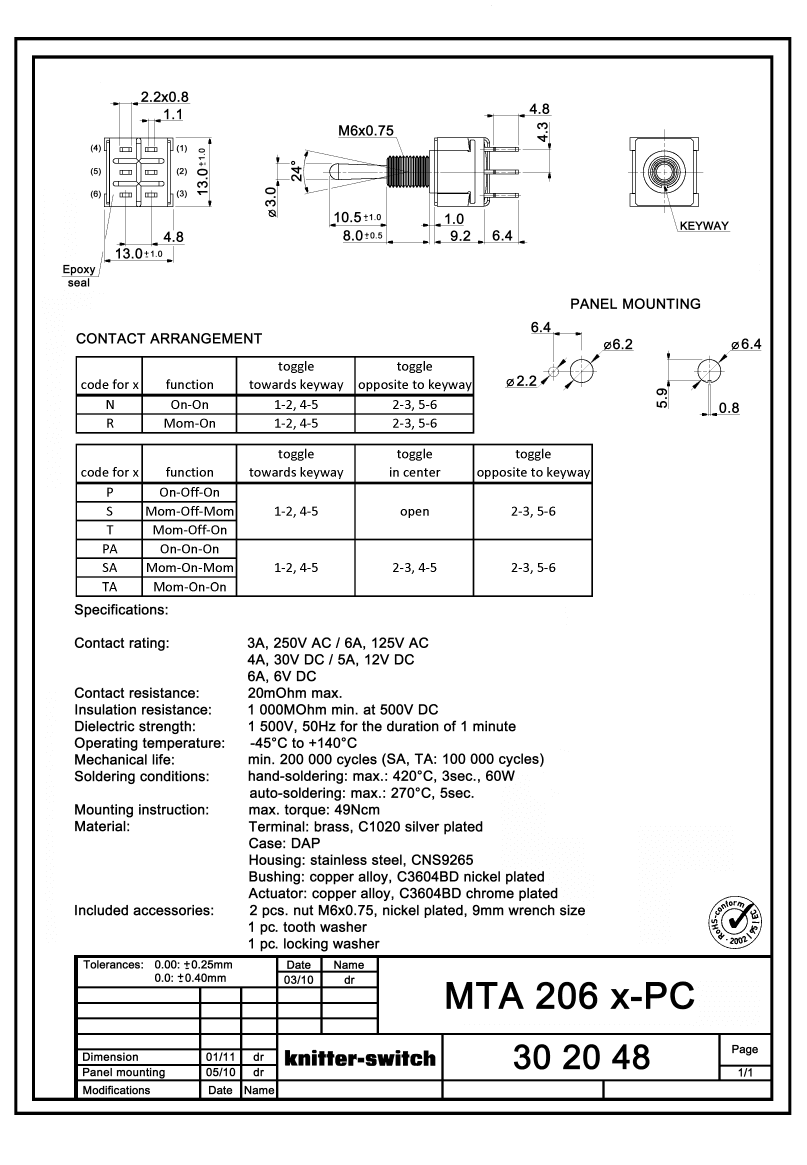

MTA206PA-PC: DescriptionToggle Switch, DPDT, On-on-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size202KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

MTA206PA-PC Overview

Toggle Switch, DPDT, On-on-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount

MTA206PA-PC Parametric

Parameter Name	Attribute value
Maker	Knitter-switch
Reach Compliance Code	compliant
Actuator angle	24 deg
Executor completed	CHROME
Actuator length	0.413 inch
Actuator material	COPPER ALLOY
Actuator type	TOGGLE
body width	13.0048 mm
body height	10.1854 mm
Body length or diameter	13.0048 mm
Nozzle length	0.314 inch
Casing type	M6X0.75
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	4 A
Contact (DC) maximum rated R load	4A@30VDC
Contact function	ON-ON-ON
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1500VRMS V
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	MTA
Installation features	PANEL MOUNT
Maximum operating temperature	140 °C
Minimum operating temperature	-45 °C
seal	EPOXY
Solderability	HAND
surface mount	NO
Switch action	HORIZONTAL
switch function	DPDT
Switch type	TOGGLE SWITCH
Terminal length	0.252 inch
Terminal material	BRASS
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

MTA206PA-PC Related Products

	MTA206PA-PC	MTA206S-PC	MTA206SA-PC	MTA206N-PC	MTA206P-PC	MTA206R-PC	MTA206TA-PC	MTA206T-PC
Description	Toggle Switch, DPDT, On-on-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount	Toggle Switch, DPDT, (on)-off-(on), Momentary, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount	Toggle Switch, DPDT, (on)-on-(on), Momentary, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount	Toggle Switch, DPDT, On-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount,	Toggle Switch, DPDT, On-off-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount	Toggle Switch, DPDT, (on)-on, Momentary, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount	Toggle Switch, DPDT, (on)-on-on, Momentary, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount	Toggle Switch, DPDT, (on)-off-on, Momentary, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount
Maker	Knitter-switch	Knitter-switch	Knitter-switch	Knitter-switch	Knitter-switch	Knitter-switch	Knitter-switch	Knitter-switch
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Actuator angle	24 deg	24 deg	24 deg	24 deg	24 deg	24 deg	24 deg	24 deg
Executor completed	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME
Actuator length	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch
Actuator material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Actuator type	TOGGLE	TOGGLE	TOGGLE	TOGGLE	TOGGLE	TOGGLE	TOGGLE	TOGGLE
body width	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm
body height	10.1854 mm	10.1854 mm	10.1854 mm	10.1854 mm	10.1854 mm	10.1854 mm	10.1854 mm	10.1854 mm
Body length or diameter	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm
Nozzle length	0.314 inch	0.314 inch	0.314 inch	0.314 inch	0.314 inch	0.314 inch	0.314 inch	0.314 inch
Casing type	M6X0.75	M6X0.75	M6X0.75	M6X0.75	M6X0.75	M6X0.75	M6X0.75	M6X0.75
Contact (AC) maximum rated R load	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC
Maximum contact current (AC)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Maximum contact current (DC)	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Contact (DC) maximum rated R load	4A@30VDC	4A@30VDC	4A@30VDC	4A@30VDC	4A@30VDC	4A@30VDC	4A@30VDC	4A@30VDC
Contact function	ON-ON-ON	(ON)-OFF-(ON)	(ON)-ON-(ON)	ON-ON	ON-OFF-ON	(ON)-ON	(ON)-ON-ON	(ON)-OFF-ON
Contact resistance	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Dielectric withstand voltage	1500VRMS V	1500VRMS V	1500VRMS V	1500VRMS V	1500VRMS V	1500VRMS V	1500VRMS V	1500VRMS V
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	MTA	MTA	MTA	MTA	MTA	MTA	MTA	MTA
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C
seal	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY
Solderability	HAND	HAND	HAND	HAND	HAND	HAND	HAND	HAND
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	HORIZONTAL	MOMENTARY	MOMENTARY	HORIZONTAL	HORIZONTAL	MOMENTARY	MOMENTARY	MOMENTARY
switch function	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Terminal length	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch
Terminal material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
