MTA206PAG datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> MTA206PAG

Preview

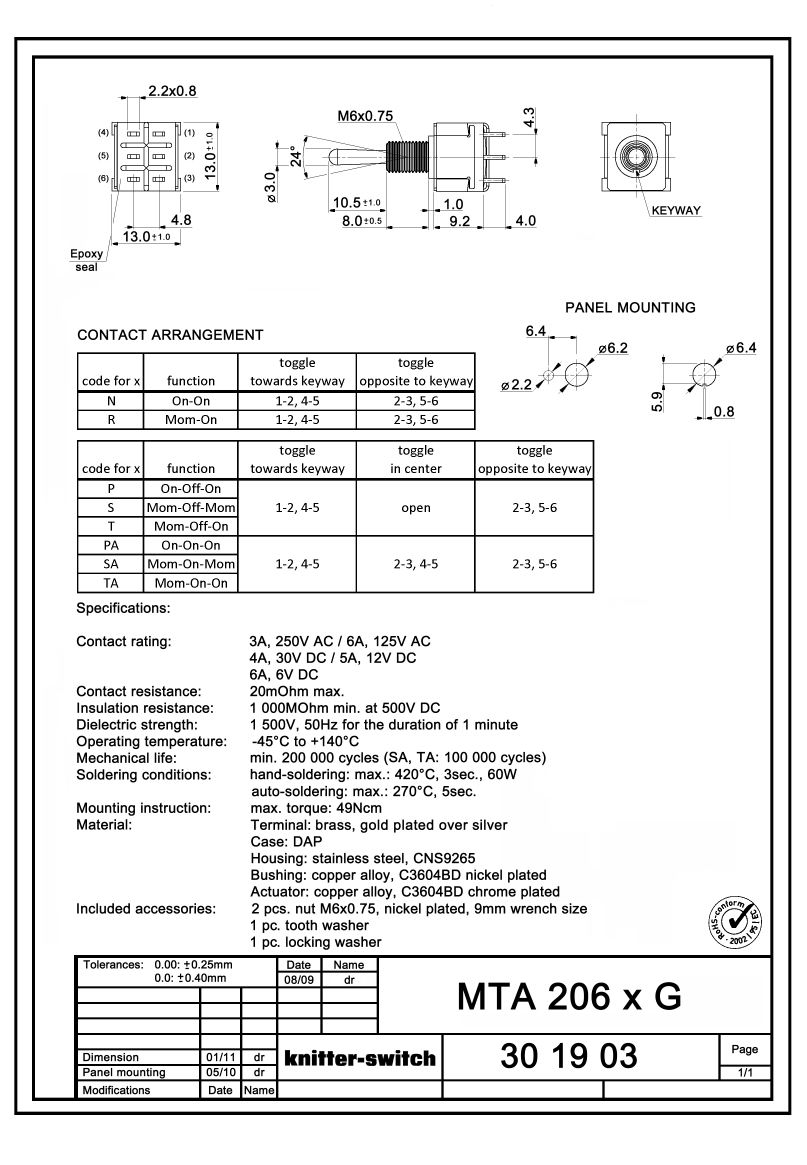

MTA206PAG: DescriptionToggle Switch, DPDT, On-on-on, Horizontal, 6 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size201KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

MTA206PAG Overview

Toggle Switch, DPDT, On-on-on, Horizontal, 6 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight

MTA206PAG Parametric

Parameter Name	Attribute value
Maker	Knitter-switch
Reach Compliance Code	compliant
Actuator angle	24 deg
Executor completed	CHROME
Actuator length	0.413 inch
Actuator material	COPPER ALLOY
Actuator type	TOGGLE
body width	13.0048 mm
body height	10.2108 mm
Body length or diameter	13.0048 mm
Nozzle length	0.315 inch
Casing type	M6X0.75
Contact function	ON-ON-ON
Contact resistance	0.02 mΩ
Dielectric withstand voltage	1500VAC V
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	MTA
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	140 °C
Minimum operating temperature	-45 °C
PCB hole count	6
seal	EPOXY
Solderability	HAND
surface mount	NO
Switch action	HORIZONTAL
switch function	DPDT
Switch type	TOGGLE SWITCH
Terminal length	0.157 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

MTA206PAG Related Products

	MTA206PAG	MTA206NG	MTA206SAG	MTA206RG	MTA206TG	MTA206TAG	MTA206SG
Description	Toggle Switch, DPDT, On-on-on, Horizontal, 6 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, DPDT, On-on, Horizontal, 6 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, DPDT, (on)-on-(on), Momentary, 6 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, DPDT, (on)-on, Momentary, 6 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, DPDT, (on)-off-on, Momentary, 6 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, DPDT, (on)-on-on, Momentary, 6 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, DPDT, (on)-off-(on), Momentary, 6 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Actuator angle	24 deg	24 deg	24 deg	24 deg	24 deg	24 deg	24 deg
Executor completed	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME
Actuator length	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch
Actuator material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Actuator type	TOGGLE	TOGGLE	TOGGLE	TOGGLE	TOGGLE	TOGGLE	TOGGLE
body width	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm
body height	10.2108 mm	10.2108 mm	10.2108 mm	10.2108 mm	10.2108 mm	10.2108 mm	10.2108 mm
Body length or diameter	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm
Nozzle length	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch
Casing type	M6X0.75	M6X0.75	M6X0.75	M6X0.75	M6X0.75	M6X0.75	M6X0.75
Contact function	ON-ON-ON	ON-ON	(ON)-ON-(ON)	(ON)-ON	(ON)-OFF-ON	(ON)-ON-ON	(ON)-OFF-(ON)
Contact resistance	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	MTA	MTA	MTA	MTA	MTA	MTA	MTA
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C
PCB hole count	6	6	6	6	6	6	6
seal	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY
Solderability	HAND	HAND	HAND	HAND	HAND	HAND	HAND
surface mount	NO	NO	NO	NO	NO	NO	NO
Switch action	HORIZONTAL	HORIZONTAL	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Terminal length	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
Terminal material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	Knitter-switch	-	Knitter-switch	Knitter-switch	Knitter-switch	Knitter-switch	Knitter-switch
