OP44EZ datasheet, PDF - EEWORLD Datasheet

OP44EZ: DescriptionOperational Amplifier, 1 Func, 1200uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size667KB，11 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric View All

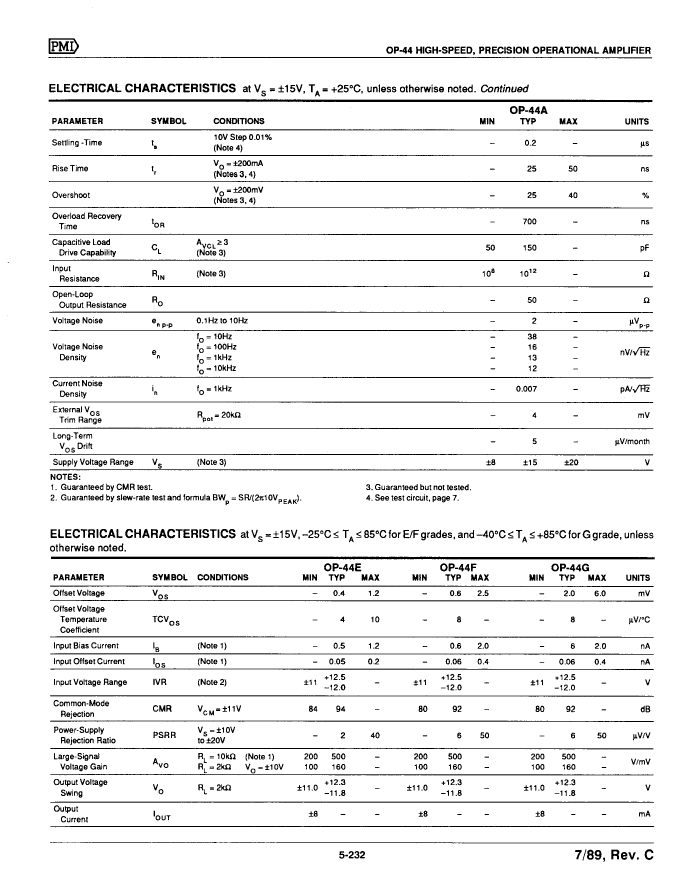

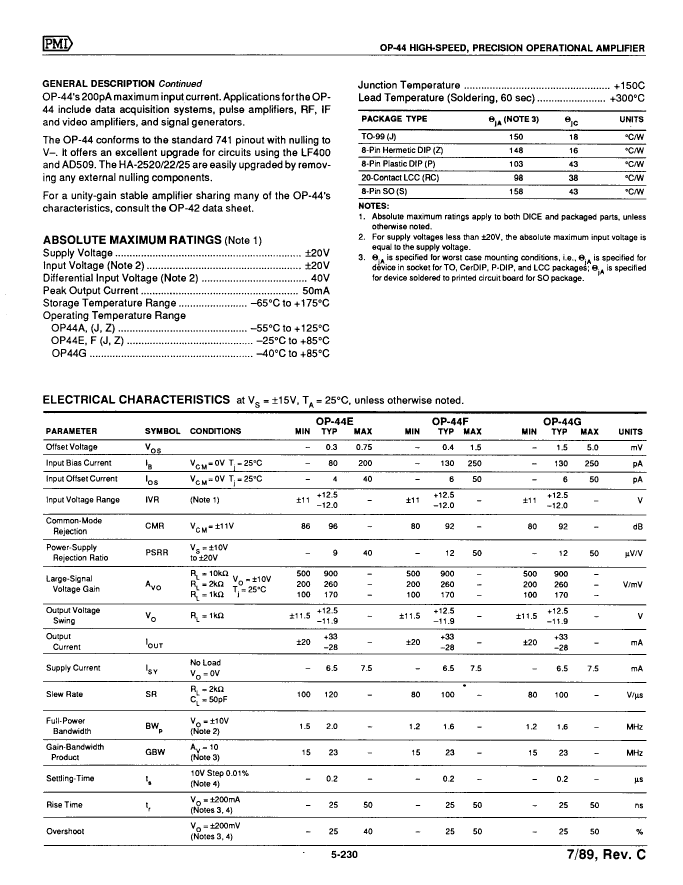

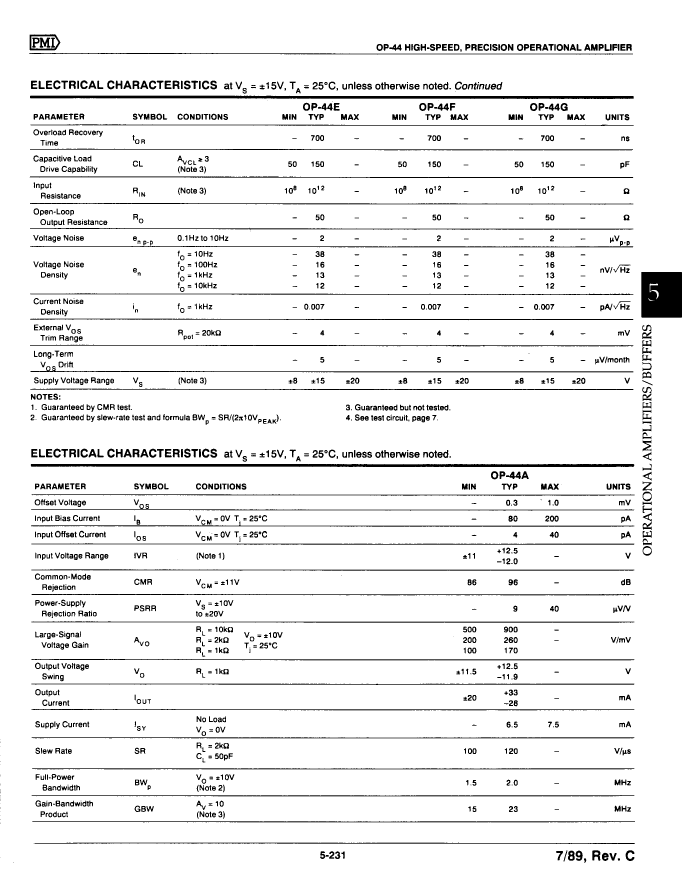

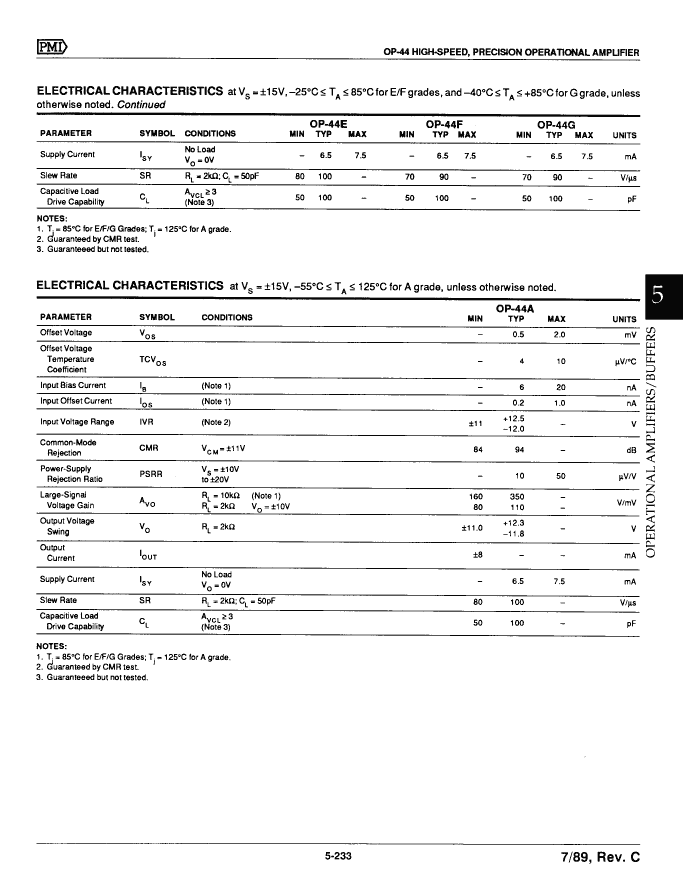

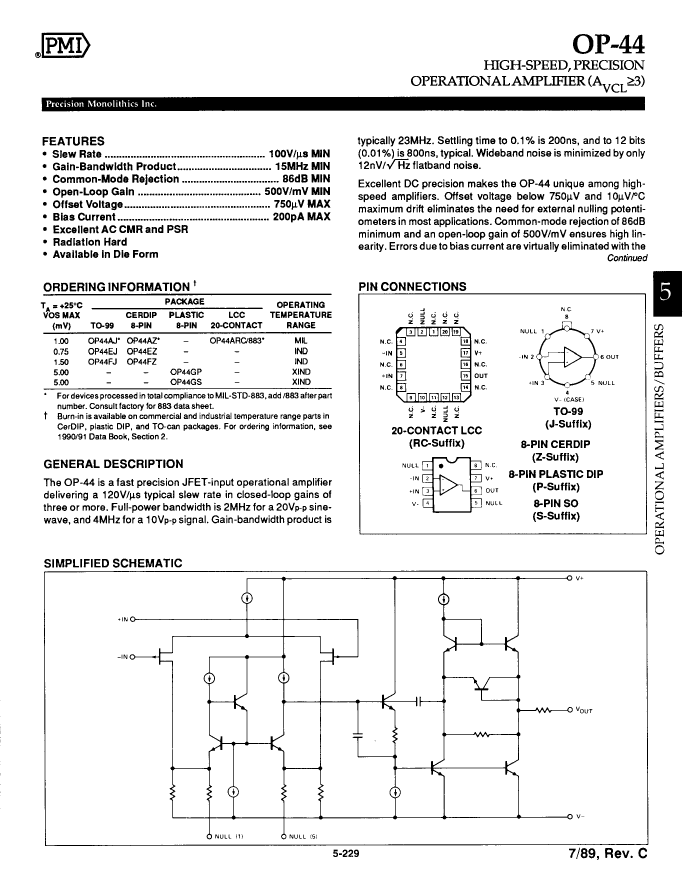

OP44EZ Overview

Operational Amplifier, 1 Func, 1200uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Precision Monolithics Inc
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0012 µA
Maximum bias current (IIB) at 25C	0.0002 µA
Nominal Common Mode Rejection Ratio	94 dB
frequency compensation	YES (AVCL>=3)
Maximum input offset voltage	1200 µV
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	80 V/us
Nominal slew rate	100 V/us
Maximum slew rate	7.5 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	23000 kHz
Minimum voltage gain	100000
