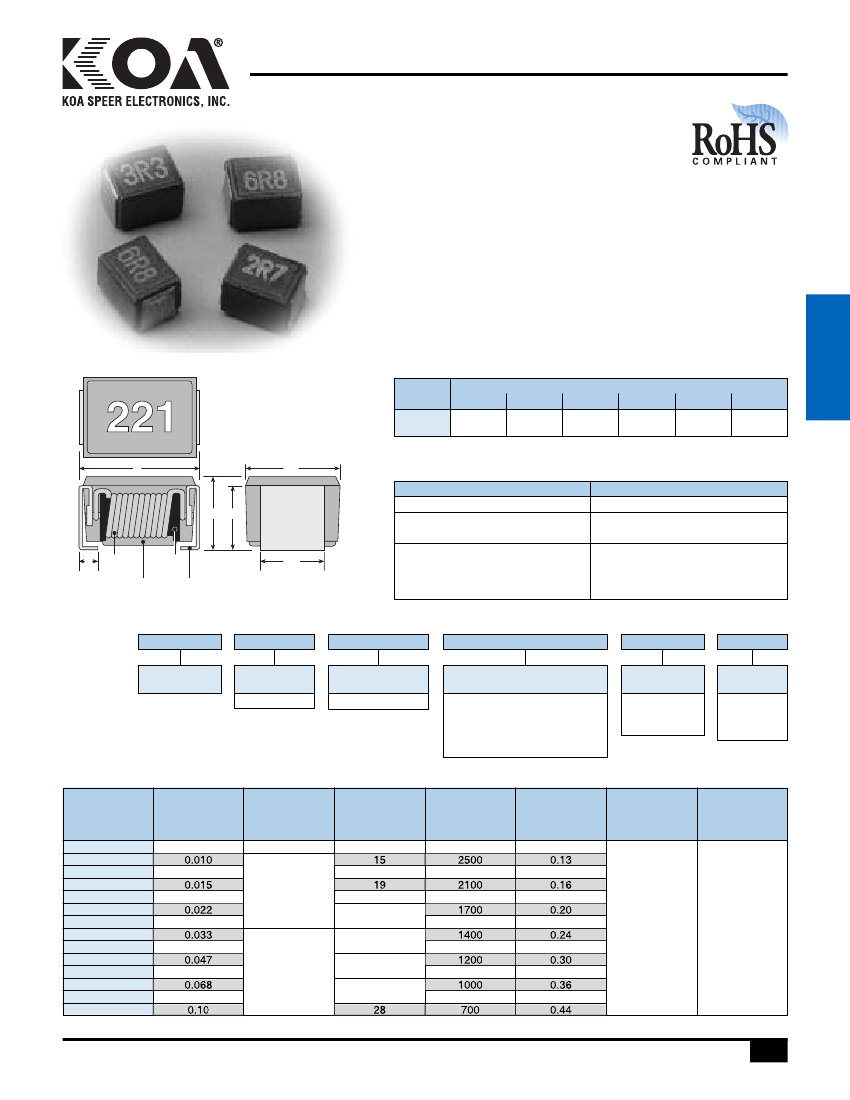

KL32
1210 molded wirewound inductor
EU
features
UL94V0 molded epoxy case
Operating temperature: -40°C ~ +100°C
1210 size - surface mount style
High Q value achieved by wirewound structure
Marking: Black body color with white marking
Products with lead-free terminations meet
EU RoHS requirements
•
AEC-Q200 Qualified
dimensions and construction
Type
KL32
L
W1
Dimensions
inches
(mm)
t
W2
h
d
•
•
•
•
•
•
.126±.008 .098±.008 .067±.004 .087±.008 .075±.004 .02 nominal
(3.2±0.2) (2.5±0.2) (1.7±0.1) (2.2±0.2) (1.9±0.1) (.5 nominal)
L
W1
Inductance Marking
Value
0.005µH - 0.082µH
0.10µH - 8.2µH
Code
005 - 082
R10 - 8R2
R indicates decimal point.
100 - 331
1st two figures are significant,
the last figure indicates the
number of zeros to follow.
t
h
d
Magnet
Wire
Ferrite
Core
Electrode
W2
10µH - 330µH
Molded
Resin
ordering information
New Part #
KL
Type
32
Size
1210 size
For further information on packaging,
please refer to Appendix A.
T
Termination
Material
T: Sn
TE
Packaging
TE: 7" embossed plastic
TED: 10" embossed plastic
(TE: 2,000 pieces/reel)
(TED: 4,000 pieces/reel
101
Nominal
Inductance
Reference
inductance
marking chart
J
Tolerance
J: ±5%
K: ±10%
M:±20%
applications and ratings
Part
Designation
KL32TTE005*
KL32TTE010*
KL32TTE012*
KL32TTE015*
KL32TTE018*
KL32TTE022*
KL32TTE027*
KL32TTE033*
KL32TTE039*
KL32TTE047*
KL32TTE056*
KL32TTE068*
KL32TTE082*
KL32TTER10*
Inductance
(µH)
0.005
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
Inductance
Tolerance
M: ±20%
Quality
Factor
Minimum
11
15
17
19
21
23
25
J: ±5%
K: ±10%
M: ±20%
26
27
28
Self Resonant
Frequency
Minimum
(MHz)
2700
2500
2300
2100
1900
1700
1500
1400
1300
1200
1100
1000
900
700
DC
Resistance
Maximum
(Ω)
0.12
0.13
0.14
0.16
0.18
0.20
0.22
0.24
0.27
0.30
0.33
0.36
0.40
0.44
Allowable
DC Current
Maximum
(mA)
Measured
Frequency
(MHz)
K: ±10%
M: ±20%
450
100
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
1/03/13
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
213
inductors
KL32
1210 molded wirewound inductor

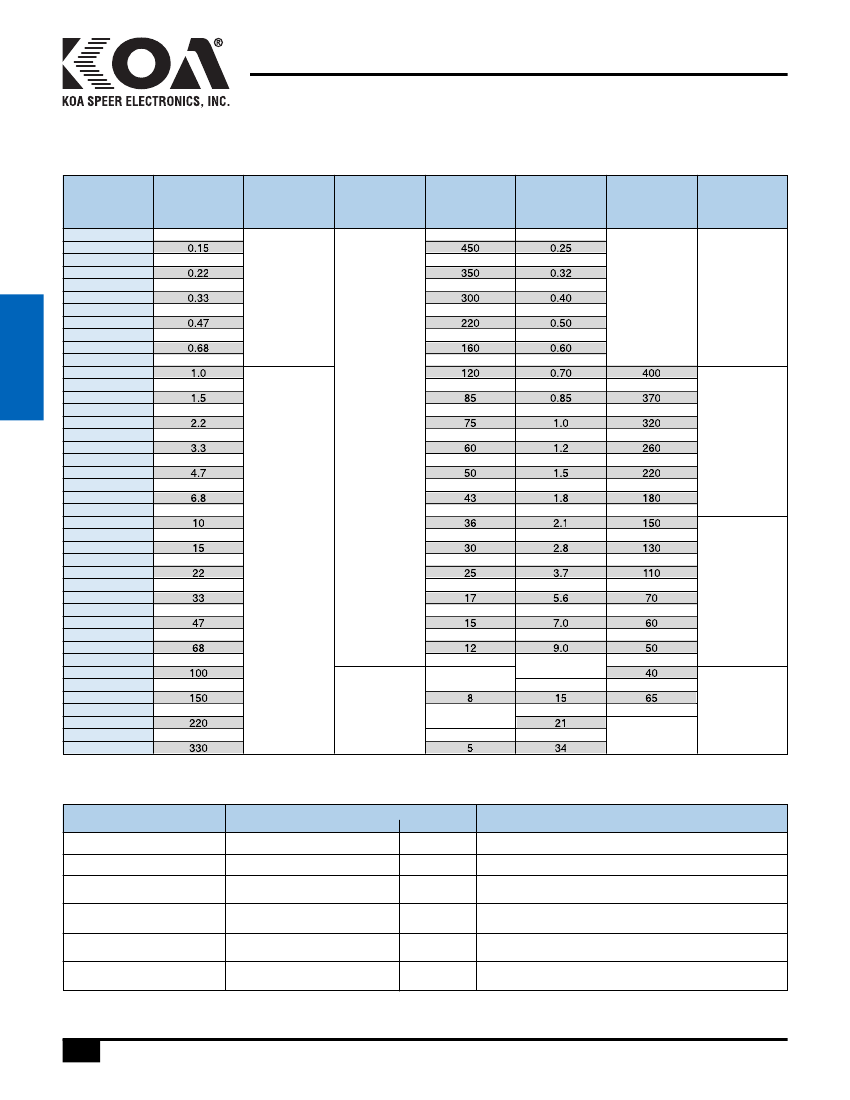

applications and ratings
(continued)
Part
Designation
Inductance
(µH)
Inductance
Tolerance
Quality
Factor
Minimum
Self Resonant
Frequency
Minimum
(MHz)
500
450
400
350
320
300
250
220
180
160
140
120
100
85
80
75
70
60
55
50
47
43
40
36
33
30
27
25
20
17
16
15
13
12
11
10
8
20
7
6
5
DC
Resistance
Maximum
(Ω)
0.22
0.25
0.28
0.32
0.36
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.85
0.90
1.0
1.1
1.2
1.3
1.5
1.6
1.8
2.0
2.1
2.5
2.8
3.3
3.7
5.0
5.6
6.4
7.0
8.0
9.0
10
11
15
17
21
28
34
Allowable
DC Current
Maximum
(mA)
Measured
Frequency
(MHz)
KL32TTER12*
0.12
KL32TTER15*
0.15
KL32TTER18*
0.18
KL32TTER22*
0.22
KL32TTER27*
0.27
KL32TTER33*
0.33
KL32TTER39*
0.39
KL32TTER47*
0.47
KL32TTER56*
0.56
KL32TTER68*
0.68
KL32TTER82*
0.82
KL32TTE1R0*
1.0
KL32TTE1R2*
1.2
KL32TTE1R5*
1.5
KL32TTE1R8*
1.8
KL32TTE2R2*
2.2
KL32TTE2R7*
2.7
KL32TTE3R3*
3.3
KL32TTE3R9*
3.9
KL32TTE4R7*
4.7
KL32TTE5R6*
5.6
KL32TTE6R8*
6.8
KL32TTE8R2*
8.2
KL32TTE100*
10
KL32TTE120*
12
KL32TTE150*
15
KL32TTE180*
18
KL32TTE220*
22
KL32TTE270*
27
KL32TTE330*
33
KL32TTE390*
39
KL32TTE470*
47
KL32TTE560*
56
KL32TTE680*
68
KL32TTE820*
82
KL32TTE101*
100
KL32TTE121*
120
KL32TTE151*
150
KL32TTE181*
180
KL32TTE221*
220
KL32TTE271*
270
KL32TTE331*
330
* Add tolerance character (J, K, M)
J: ±5%
K: ±10%
M: ±20%
450
25.2
inductors
30
J: ±5%
K: ±10%
M: ±20%
400
390
370
350
320
290
260
250
220
200
180
170
150
140
130
120
110
80
70
65
60
55
50
45
40
70
65
60
50
7.96
2.52
0.796
Performance Characteristics
Parameter
Resistance to Soldering Heat
Heat Shock
Low Temperature Operation
High Temperature Exposure
Moisture Exposure
Resistance to Solvent
Requirements Maximum
∆
L/L
Limit
Typical
∆
L/L: ±3%
∆
L/L: ±5%
∆
L/L: ±5%,
∆
Q/Q: ±20%
∆
L/L: ±5%,
∆
Q/Q: ±30%
∆
L/L: ±5%,
∆
Q/Q: ±30%
No damage and marking
shall be legible
∆
L/L: ±1.5%
∆
L/L: ±1.1%
260°C ± 5°C, 10s ± 1s
-25°C (1 hour)/ +100°C (1 hour) 100 cycles
Test Method
∆
L/L: ±0.9%
-40°C ± 2°C, 1000h
∆
Q/Q: ±5.0%
∆
L/L: ±0.8%
100°C ± 2°C, 1000h
∆
Q/Q: ±5.0%
∆
L/L: ±1.3%
40°C ± 2°C, 90%~95%RH, 1000h
∆
Q/Q: ±5.2%
—
Accordance with MIL-STD-202F Method 215
For complete environmental specifications, please refer to www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
1/02/14
214
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
