N74ALVT16821DGG datasheet, PDF

Datasheet> All Categories > logic> logic> N74ALVT16821DGG

N74ALVT16821DGG: DescriptionIC ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, Bus Driver/Transceiver; Categorylogic logic; File Size241KB，13 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

N74ALVT16821DGG Overview

IC ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, Bus Driver/Transceiver

N74ALVT16821DGG Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	TSSOP,
Reach Compliance Code	unknown
series	ALVT
JESD-30 code	R-PDSO-G56
length	14 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Maximum supply current (ICC)	7 mA
propagation delay (tpd)	3.5 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm

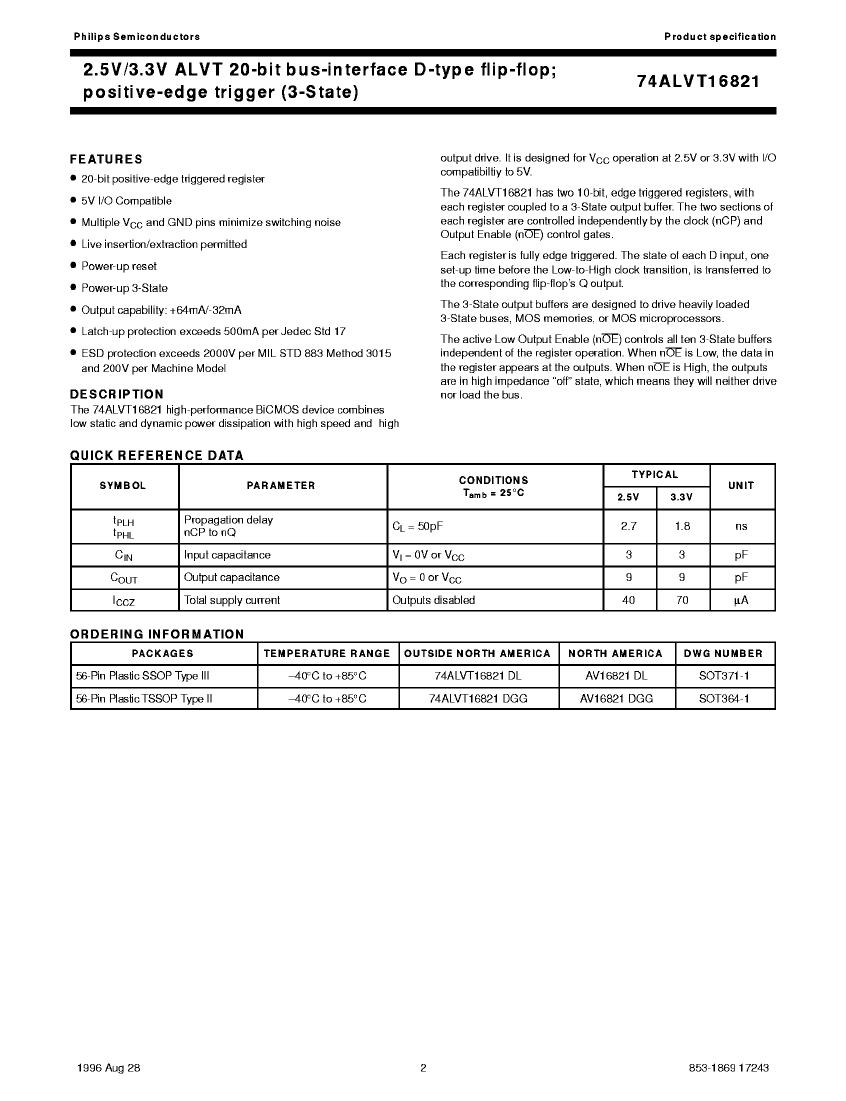

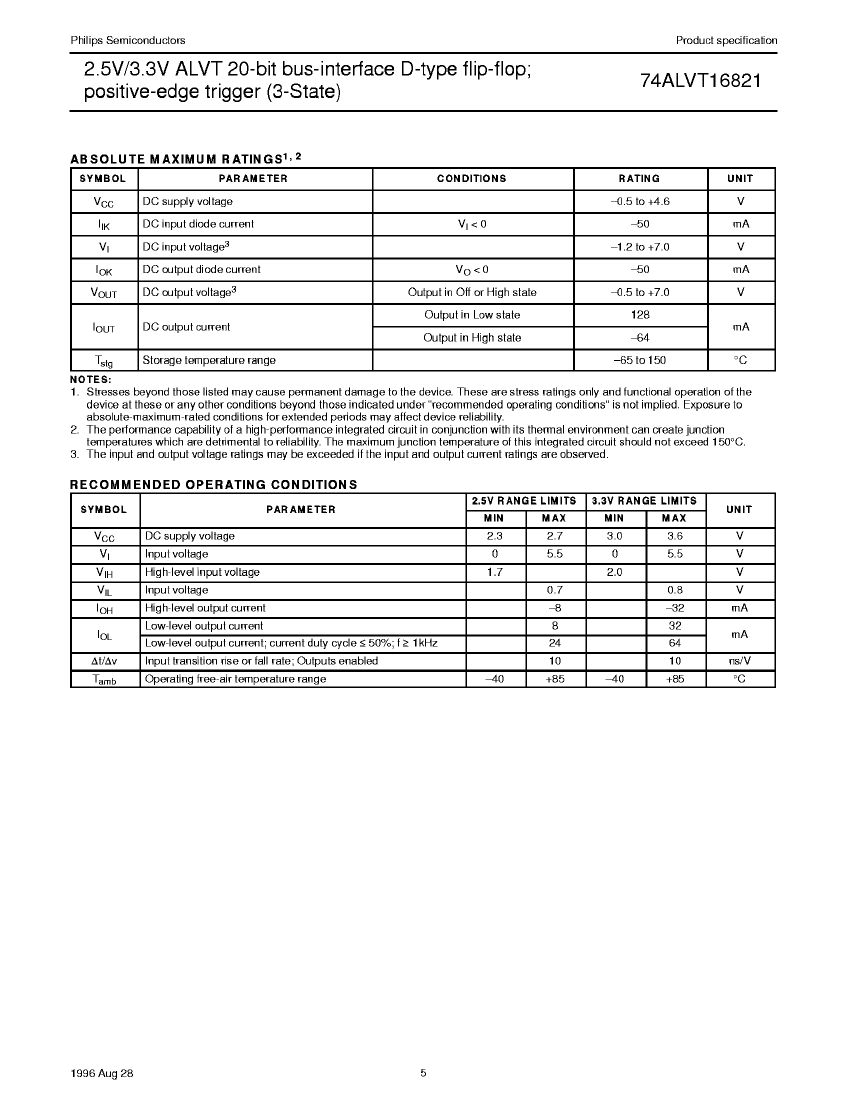

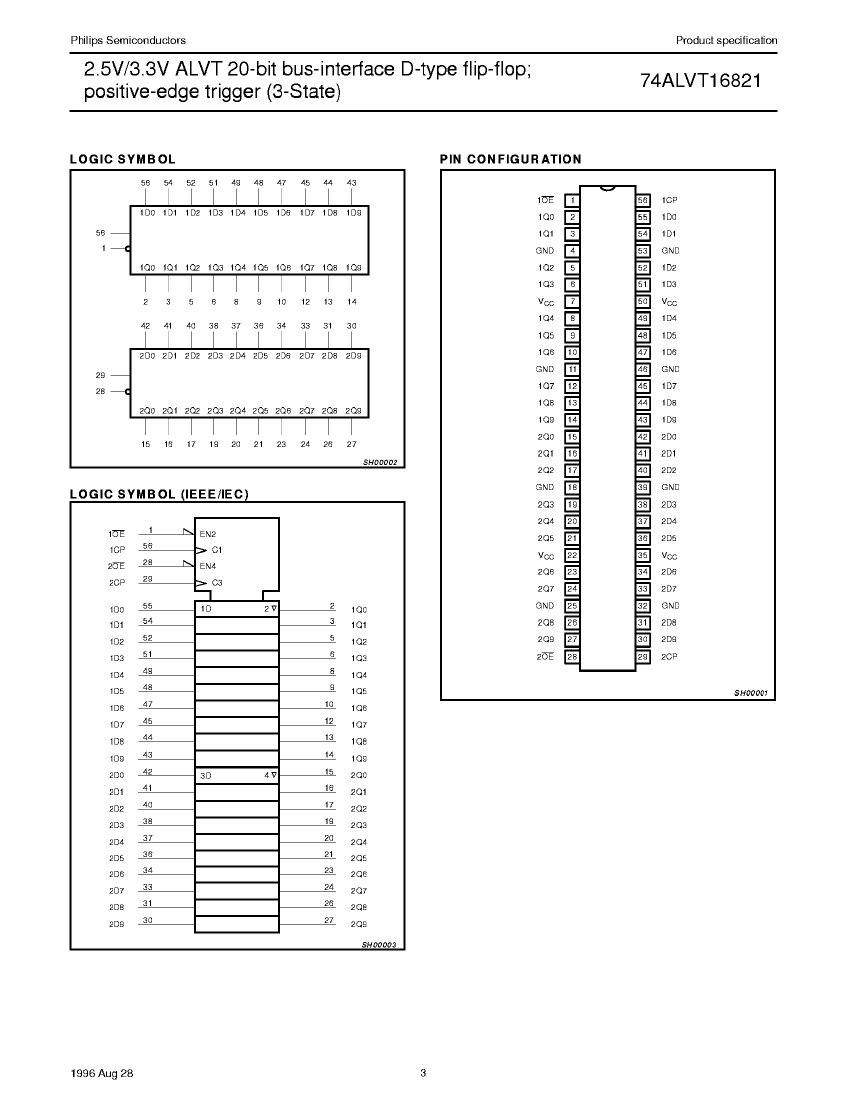

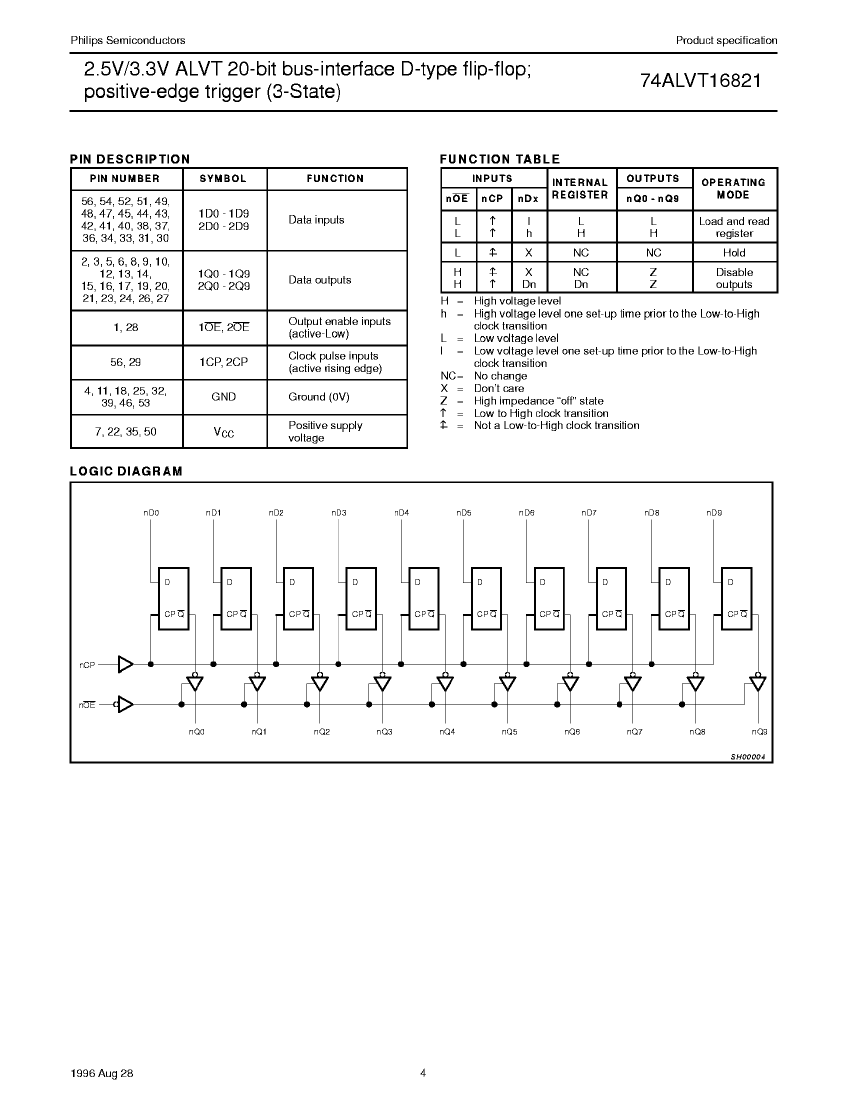

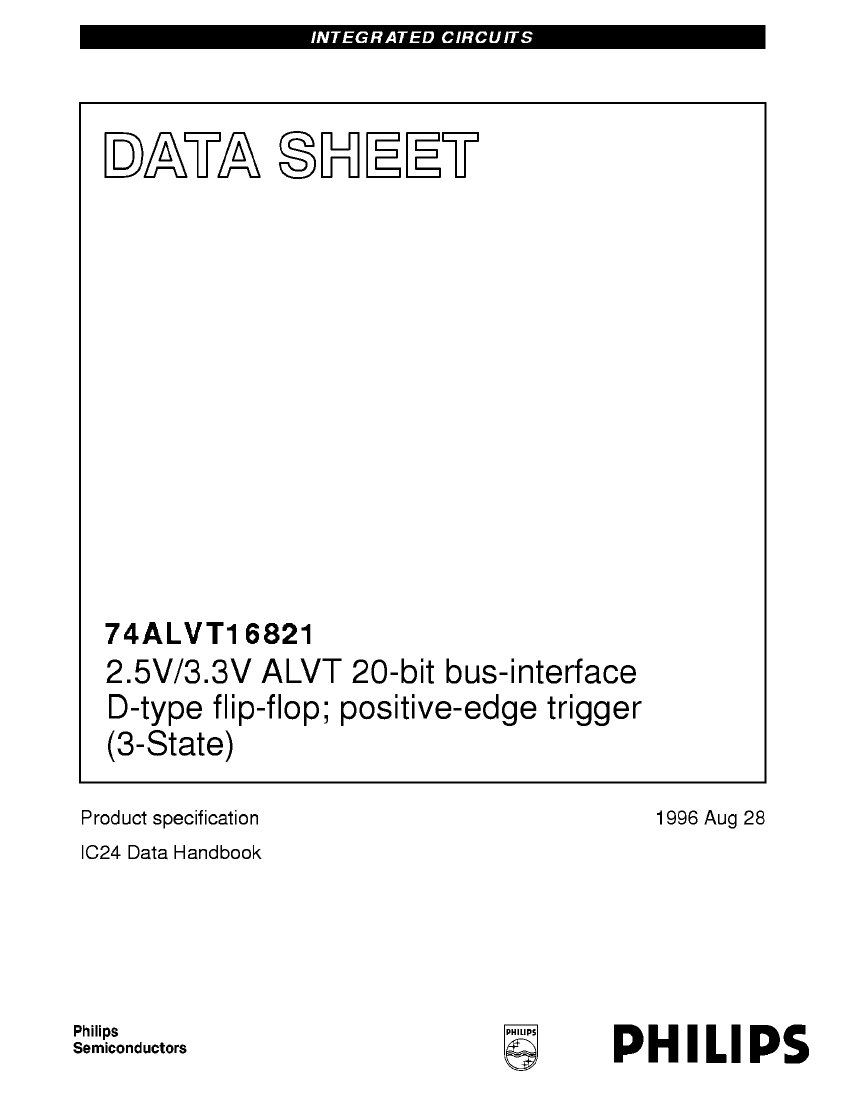

Preview

Download Datasheet

View All

N74ALVT16821DGG Related Products

	N74ALVT16821DGG	N74ALVT16821DL-T	N74ALVT16821DL	N74ALVT16821DGG-T
Description	IC ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, Bus Driver/Transceiver	IC ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, Bus Driver/Transceiver	IC ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, Bus Driver/Transceiver	IC ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, Bus Driver/Transceiver
Maker	NXP	NXP	NXP	NXP
package instruction	TSSOP,	SSOP,	SSOP,	TSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown
series	ALVT	ALVT	ALVT	ALVT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
length	14 mm	18.425 mm	18.425 mm	14 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	10	10	10
Number of functions	2	2	2	2
Number of ports	2	2	2	2
Number of terminals	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Maximum supply current (ICC)	7 mA	7 mA	7 mA	7 mA
propagation delay (tpd)	3.5 ns	3.5 ns	3.5 ns	3.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	2.8 mm	2.8 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	2.3 V	2.3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	6.1 mm	7.5 mm	7.5 mm	6.1 mm
