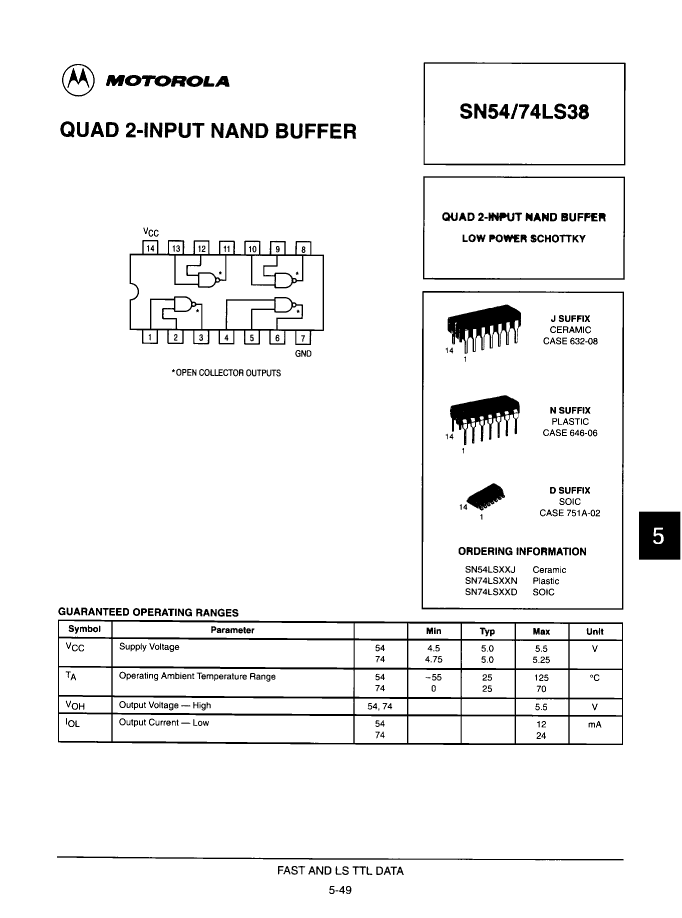

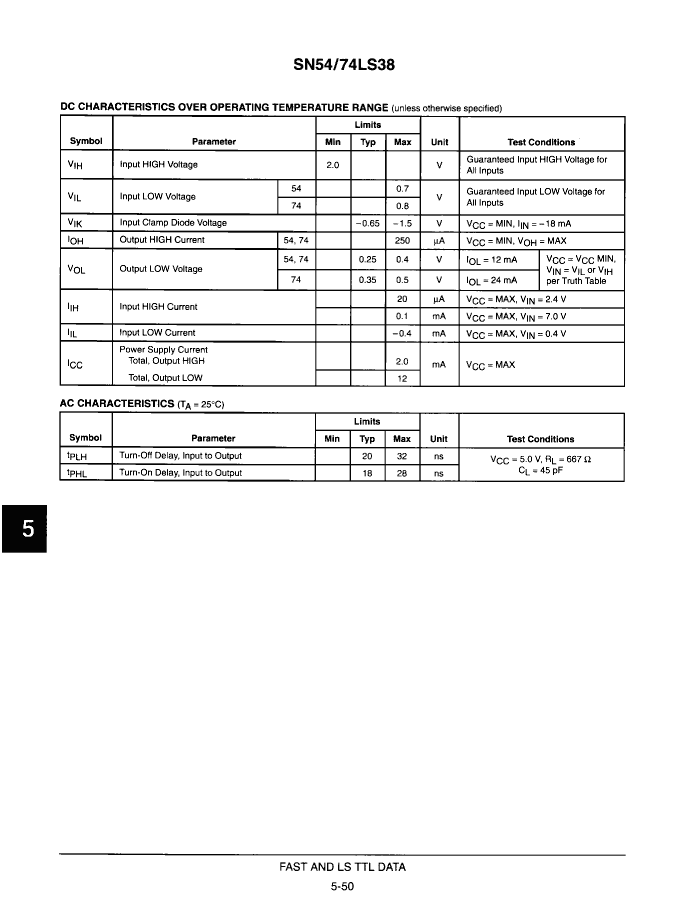

SN74LS38DR2

Description
NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOIC-14
Categorylogic    logic
File Size33KB,2 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

SN74LS38DR2 Overview

NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOIC-14

SN74LS38DR2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionSOP,
Reach Compliance Codeunknown
Other featuresIOH = 250UA @ VOH = 5.5V; IOL = 24MA @ VOL = 0.5V
seriesLS
JESD-30 codeR-PDSO-G14
JESD-609 codee0
length8.65 mm
Load capacitance (CL)45 pF
Logic integrated circuit typeNAND GATE
Number of functions4
Number of entries2
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristicsOPEN-COLLECTOR
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum supply current (ICC)12 mA
propagation delay (tpd)28 ns
Certification statusNot Qualified
Maximum seat height1.75 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
width3.9 mm
