PCT2-112-03-L-D-03-RA datasheet, PDF

Datasheet> All Categories > The connector> The connector> PCT2-112-03-L-D-03-RA

PCT2-112-03-L-D-03-RA: DescriptionRectangular Power Connector, 27 Contact(s), Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size299KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PCT2-112-03-L-D-03-RA Overview

Rectangular Power Connector, 27 Contact(s), Male, Solder Terminal, ROHS COMPLIANT

PCT2-112-03-L-D-03-RA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	POWER CONTACTS ORDER SEPERATELY
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PCT2
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	27

Preview

Download Datasheet

View All

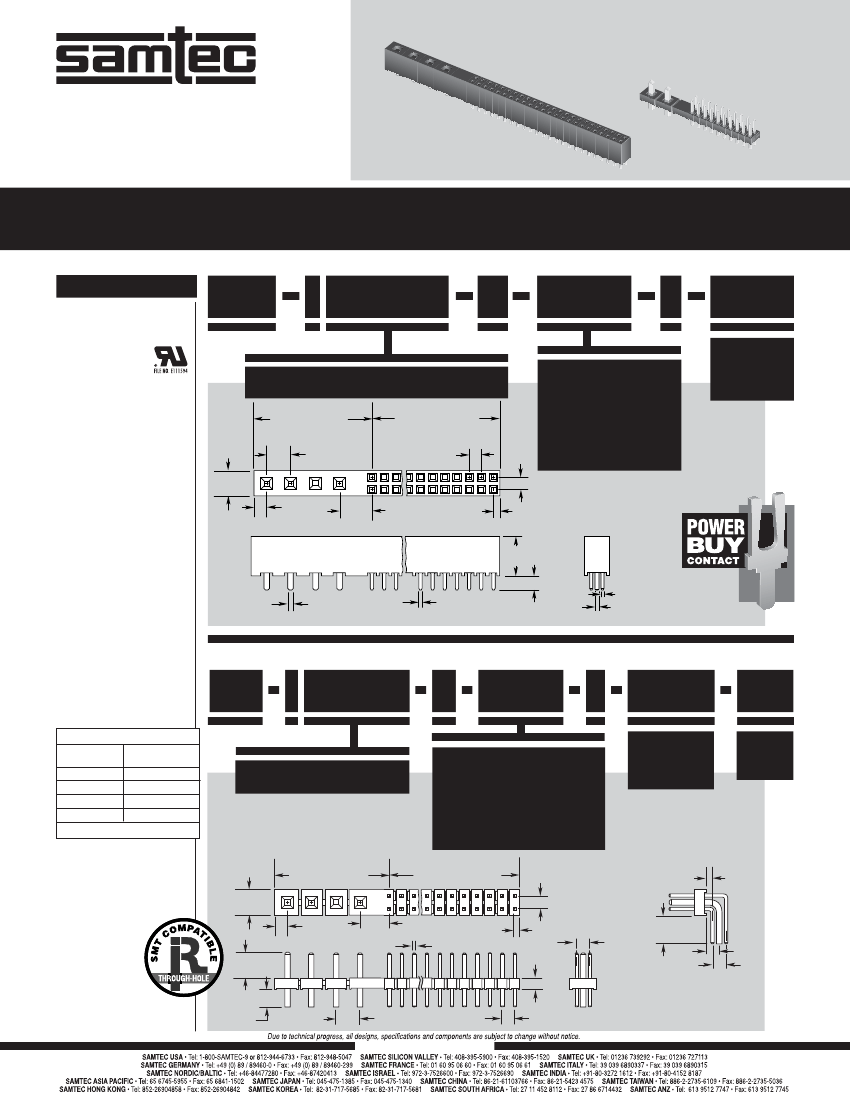

F-209 SUPPLEMENT

PCT2–110–03–L–D–02

PCS2–124–01–L–D–04

POWER/2

SIGNAL COMBO

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?PCS2

or www.samtec.com?PCT2

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material :

BeCu

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ"

(1,27µm) Ni on signal pins;

Sn over 50µ" (1,27µm) Ni

on power pins

Operating Temp Range:

-55°C to +105°C with Tin

-55°C to +125°C with Gold

Contact Resistance:

10 mΩ max

Insertion Depth:

(2,62mm) .103" to

(5,03mm) .198" with

(0,38mm) .015" wipe

Max Cycles:

100 with 10µ" (0,25µm) Au

Insertion Force:

(Single contact only)

28oz (7,78N) avg per

power contact plus

1.8oz (0,50N) avg per

signal contact

Withdrawal Force:

(Single contact only)

20oz (5,56N) avg per

power contact plus

1.0oz (0,28N) avg per

signal contact

Voltage Rating:

500 VAC

RoHS Compliant:

Yes

CURRENT RATING

AMBIENT

TEMP

20°C

40°C

60°C

75°C

PCT2/PCS2

15.6A

14.0A

12.0A

8.4A

PCS2, PCT2

SERIES

NO. POWER

PINS

PCS2

Mates with:

PCT2

NO. SIGNAL

PINS PER ROW

SIGNAL PIN

PLATING

01 thru 39

(No. Power Positions –1)

x (5,08).200

+(7,76) .306

(5,08)

.200

(3,99)

.157

(2,54)

.100

(5,220)

.2055

(1,15)

.045

(No. Signal Positions –1)

x (2,00).0787

+(1,15) .045

(2,00)

.0787

(2,00)

.0787

–L

= 10µ" (0,25µm)

Gold on contact area,

Matte Tin on tail

thru

–F

= Gold ﬂash on contact area,

Matte Tin on tail

(6,35)

.250

(0,25)

.010

(2,29)

.090

(1,14)

.045

(0,51)

.020

(0,64)

.025

PCT2

NO. SIGNAL

PINS PER ROW

SIGNAL PIN

PLATING

NO. POWER

PINS

TAIL

OPTION

Mates with:

PCS2

01 thru 39

–L

= 10µ" (0,25µm) Gold on

contact area, Matte Tin on tail

thru

–RA

=Right

Angle

–F

= Gold ﬂash on contact area,

Matte Tin on tail

4 POWER PINS POWERED

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

(No. Power Positions –1)

x (5,08) .200

+ (7,76) .306

(3,94)

.155

(2,54)

.100

(0,50) .020 SQ

(4,00)

.1575

(No. Signal Positions –1)

x (2,00) .0787

+(1,00) .0394

(2,00)

.0787

(1,27)

.050

(5,220) .2055

(1,00)

.0394

(1,50)

.059

(2,00)

.0787

(3,04)

.120

(2,00)

.0787

(2,30)

.090

–RA

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(2,71)

.107

(5,08) .200

(2,00) .0787

WWW.SAMTEC.COM
