38-A144C1000: DescriptionPotential Motor Starting Relay 1-pole, 35A, Normally Closed AC Coil; File Size231KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet View All

38-A144C1000 Overview

Potential Motor Starting Relay 1-pole, 35A, Normally Closed AC Coil

Preview

Download Datasheet

View All

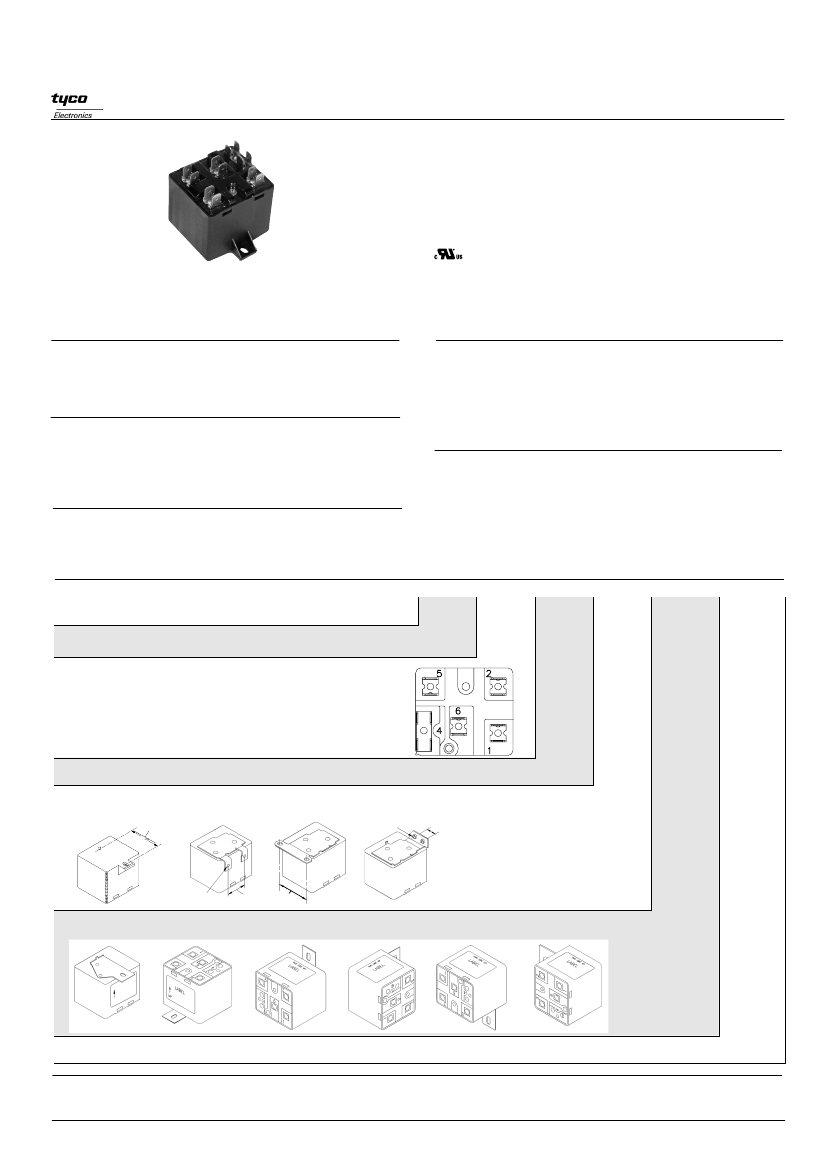

Catalog 1308242

Issued 3-03

PRODUCTS UNLIMITED

series

Potential Motor Starting Relay

1-pole, 35A, Normally Closed

AC Coil

File E83865

Users should thoroughly review the technical data before selecting a product part

number. It is recommended that users also seek out the pertinent approvals files of

the agencies/laboratories and review them to ensure the product meets the

requirements for a given application.

Features

• Single-pole, normally closed relay used extensively in HVAC applications.

• Variety of mounting positions and brackets.

• Convenient 0.250” (6.35 mm) quick connect terminals.

• Custom-built to meet customer requirements.

Coil Data @ 25°C

Voltage:

130, 170, 214, 256, 336, 395, 420 and 495 VAC, 60 Hz.

Nominal Sealed Power:

5 VA).

Insulation Class:

UL Class B (130°C).

Duty Cycle:

Continuous.

Contact Data @ 25°C

Arrangements:

Normally-Closed.

Materials:

Silver cadmium oxide.

Maximum Rating:

35A inductive @ 277VAC, 0.5 power factor (Break only.)

Expected Life:

750,000 ops, mechanical.

250,000 ops., breaking rated load.

Mechanical Data

Termination:

0.250” (6.35 mm) quick connects (single or dual, model

dependent). Terminals #4 & #6 are dummies for customer

convenience.

Mounting Position:

Each model is calibrated for its specified mounting

position. Pick-up voltage may vary if relay is mounted

in positions other than specified.

Weight:

5.76 oz. (163.8 g) approximately

Initial Dielectric Strength

Initial Breakdown Voltage:

1,554 VAC @ 60 Hz. between live parts and

exposed non-current carrying metal parts.

Ordering Information

Typical Part No.

-A

144

000

1. Series:

38 = 1-pole, normally-closed, potential motor starting relay

2. Wiring and Terminal Type (number of QCs at given base locations):

A = 2 @ loc. 1, 2 @ loc. 2, 4 @ loc. 3, 2 @ loc. 5 and 2 @ loc. 6.

D = 2 @ loc. 1, 2 @ loc. 2, 4 @ loc. 3, 2 @ loc. 5 and 0 @ loc. 6.

M = 2 @ loc. 1, 2 @ loc. 2, 2 @ loc. 3, 2 @ loc. 5 and 0 @ loc. 6.

R = 1 @ loc. 1, 2 @ loc. 2, 0 @ loc. 3, 1 @ loc. 5 and 0 @ loc. 6.

S = 1 @ loc. 1, 2 @ loc. 2, 0 @ loc. 3, 2 @ loc. 5 and 0 @ loc. 6.

T = 2 @ loc. 1, 2 @ loc. 2, 0 @ loc. 3, 2 @ loc. 5 and 0 @ loc. 6.

Y = 1 @ loc. 1, 2 @ loc. 2, 4 @ loc. 3, 2 @ loc. 5 and 0 @ loc. 6.

3. Coil Rating and Calibration:

000-999 = See table on following page for details.

4. Mounting Bracket Style:

C, D, F or J = See drawings below for details.

1.59

(40.39)

#8-32

UNC-2B THD.

.500

(12.7)

#8-32

UNC-2B THD.

1.00

(25.4)

1.563

(39.7)

5. Mounting Position:

1, 2, 3, 4, 5 & 6 = See drawings below for details. NOTE: Devices calibrated in specified mounting position only.

6. Customer ID Suffix:

000-999 = Factory assigned customer ID

Standard part numbers listed below are more likely to be available from stock.

Custom parts only.

Dimensions are shown for

Dimensions are in inches over

(millimeters) unless otherwise

specified.

Specifications and availability

subject to change.

www.tycoelectronics.com

Technical support:

Refer to inside back cover.

818

reference purposes only.
