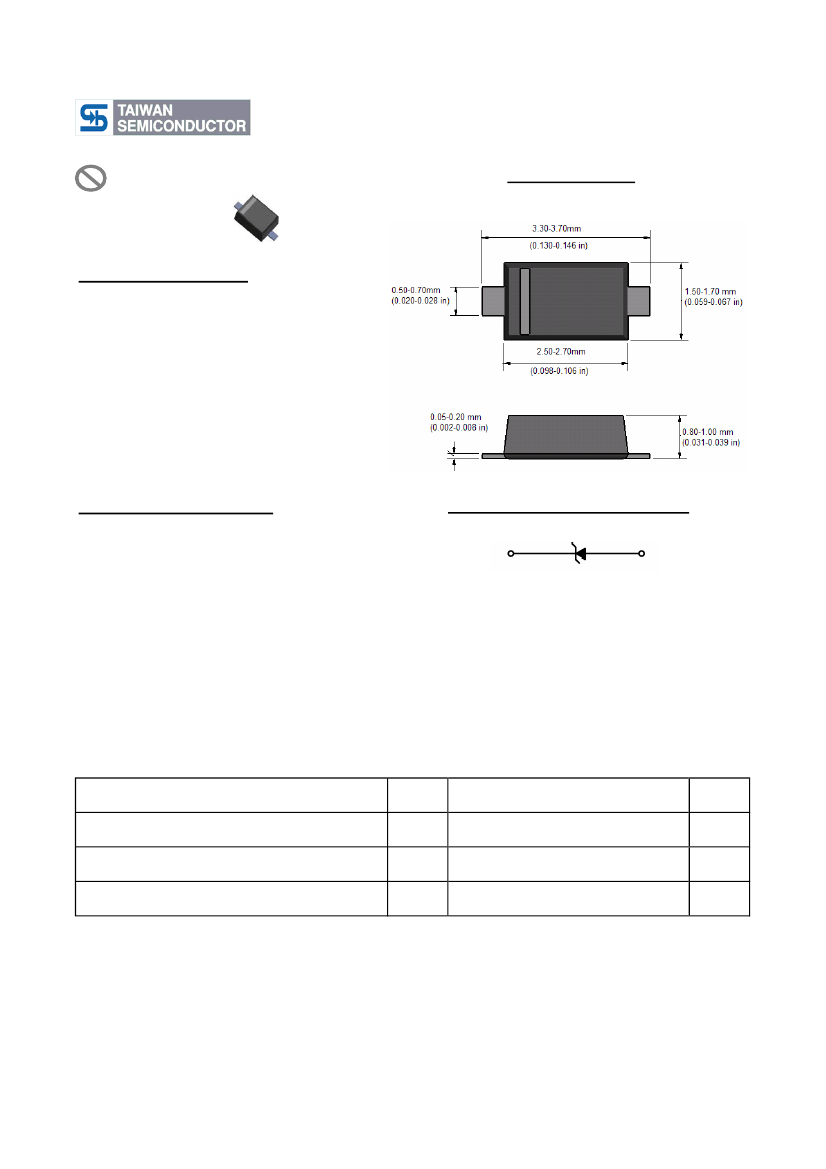

MMSZ2V4 - MMSZ75V
500mW Surface Mount Zener Voltage Regulator
Pb
RoHS
COMPLIANCE
SOD-123 Flat lead
Features
Wide Zener Voltage Range Selection 2.4V to 75V
VZ Tolerance Selection of ±2%(X series)
Flat Lead SOD-123 Small Outline Plastic Package
Surface Device Type Mounting
Moisture Sensitivity Level 1
Clip Bonding Construction, Good Thermal Capability
RoHS Compliant & Matte Tin(Sn) Lead Finish
Green compound with suffix "G" on packing code
& prefix "G" on datecode.
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-O rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode.
High temperature soldering guaranteed: 260oC/10 seconds
/.375”,(9.5mm) lead lengths at 5 lbs., (2.3kg) tension
Weight: 0.012 gram
Dimensions in inches and (millimeters
ELECTRICAL SYMBOL
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Power Dissipation
Operating Temperature Range
Storage Temperature Range
Symbol
Value
500
-65 to +150
-65 to +150
Units
P
D
T
OPR
T
STG
mW
O
C
C
O
Notes: These ratings are limiting values above which the serviceability of the diode may be impaired
Page : 1 of 2
Version : A08
