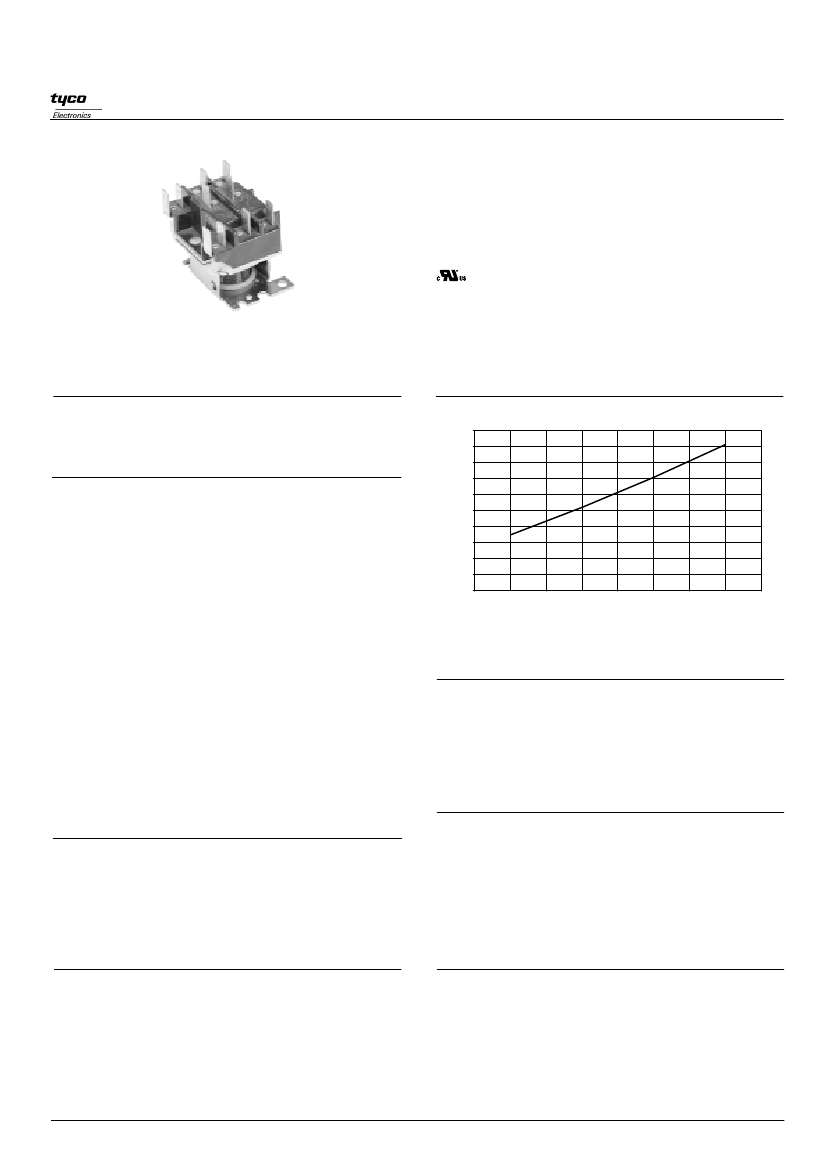

Catalog 1308242
Issued 3-03 (PDF Rev. 3-04)
PRODUCTS UNLIMITED
9100
series
Power Relay
1- and 2-pole, 3-12 FLA
AC or DC Coil
File E75492
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that users also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• Single- or double-pole relay used extensively in HVAC applications.
• Multi-positional mounting without affecting operation.
• Convenient 0.250” (6.35 mm) quick connect terminals.
Coil Temperature Rise Above Ambient
100
Coil Temperature Rise (C)
90
80
70
60
50
40
30
20
10
0
80
100
120
% Of Nominal Coil Voltage
130
Contact Data @ 25°C
Arrangements:
1 Form A (SPST-NO), 1 Form B (SPST-NC), 1 Form C
(SPDT), 2 Form A (DPST-NO), 2 Form B (DPST-NC), 2 Form
C (DPDT) or 1 Form A + 1 Form B (SPST-NO+SPST-NC).
Materials:
Silver, Fine Silver and Gold Alloy.
Maximum Ratings:
Silver (Power) Contacts
All Forms:
3/4 HP @ 125/250VAC;
12 FLA, 60 LRA, 15A resistive @ 125VAC;
6 FLA, 35 LRA, 15A resistive @ 250/277VAC;
3 FLA, 18 LRA, 12.5A resistive @ 480VAC;
3 FLA, 14 LRA @ 600VAC;
Form A only: 25A @ 277VAC, resistive.
Fine Silver and Gold Alloy (Pilot) Contacts
All Forms:
1/10 HP @ 125/250VAC;
3A @ 277VAC;
125VA @ 125VAC.
Expected Life:
1 million ops., mechanical.
250,000 ops., at rated resistive loads.
100,000 ops., at rated inductive loads.
Operate Data @ 25°C
Must Operate Voltage:
Approximately 85% of AC nominal coil voltage.
Approximately 75% of DC nominal coil voltage.
Environmental Data
Temperature Range:
Storage and Operating: -40°C – +65°C.
Initial Dielectric Strength
Initial Breakdown Voltage:
2,200 VAC @ 60 Hz. between live parts and
exposed non-current carrying metal parts.
Coil Data @ 25°C
Voltage:
12 & 24 VDC; 24-277 VAC, 50/60 Hz.
Max. Sealed Power:
9.5 VA (AC coils.); 5.75 W (DC coils).
Nominal Inrush Power:
21.5 VA (AC coils.); 5.75 W (DC coils).
Insulation Class:
UL Class B (130°C).
Duty Cycle:
Continuous.
Mechanical Data
Termination:
0.250” (6.35 mm) quick connects. Dual terminals on the coil
are standard.
Weight:
6.08 oz. (173 g) approximately
Dimensions are shown for
816
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
Catalog 1308242
Issued 3-03 (PDF Rev. 3-04)
PRODUCTS UNLIMITED
Ordering Information
Typical Part No.
1. Series:
9100 = 1- or 2-pole, 3-12 FLA relay
2. Pole Configuration:
2 = Two-pole
3 = Single-pole (1,2,3 omitted)
4 = Single-pole (4,5,6 omitted)
3. Contact Configuration – Poles 4, 5, 6:
1 = 1 Form A (SPST-NO), Silver Contacts.
2 = 1 Form B (SPST-NC), Silver Contacts.
3 = 1 Form C (SPDT), Silver Contacts
4 = 1 Form A (SPST-NO), Fine Silver Contacts.
5 = 1 Form B (SPST-NC), Fine Silver Contacts.
6 = 1 Form C (SPDT), Fine Silver Contacts
4. Contact Configuration – Poles 1, 2, 3:
1 = 1 Form A (SPST-NO), Silver Contacts.
2 = 1 Form B (SPST-NC), Silver Contacts.
3 = 1 Form C (SPDT), Silver Contacts
4 = 1 Form A (SPST-NO), Fine Silver Contacts.
5 = 1 Form B (SPST-NC), Fine Silver Contacts.
6 = 1 Form C (SPDT), Fine Silver Contacts
5. Coil Voltage (50/60 Hz.):
B = 12VDC
Q = 24VAC
C = 24VDC
P = 100VAC
6. Customer ID Suffix:
999 = Standard Model
7 = 1 Form A (SPST-NO), Gold Alloy Contacts.
8 = 1 Form B (SPST-NC), Gold Alloy Contacts.
9 = 1 Form C (SPDT), Gold Alloy Contacts
0 = 4, 5, 6 Omitted
B
9100
-2
3
3
Q
999
7 = 1 Form A (SPST-NO), Gold Alloy Contacts.
8 = 1 Form B (SPST-NC), Gold Alloy Contacts.
9 = 1 Form C (SPDT), Gold Alloy Contacts
T = 120VAC
S = 200VAC
U = 208/240VAC
N = 240VAC
V = 277VAC
QS = 24VAC, low VA
000-998 = Factory assigned customer ID
Standard part numbers listed below are more likely to be available from stock.
9100-233Q999
9100-233T999
9100-233U999
Outline Dimensions
2.01
(51.05)
.095
(2.41)
1.81
(45.97)
.15
(3.81)
.22
(5.59)
.495
(12.57)
1.830
(46.48)
.550
(13.97)
.145
(3.68)
.203 DIA
(5.16)
.195
(4.95)
.710
(19.03)
2.365
(60.1)
2.110
(53.6)
.16
(4.06)
1.64
(41.66)
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
817
