BZW06‐5V8/376,
BZW06‐5V8B/376B
High‐reliability discrete products
and engineering services since 1977
Transil Diodes
DO‐15
FEATURES:
•
•
Available as “HR” (high reliability) screened per MIL‐PRF‐19500, JANTX level. Add “HR” suffix to base part number
Available Non‐RoHS (standard) or RoHS compliant (add PBF suffix)
MAXIMUM RATINGS
Parameter
Peak pulse power dissipation
T
J
= initial = T
amb
(1)
Symbol
P
PP
P
I
FSM
T
J
, T
stg
T
L
R
thj‐l
R
thj‐a
Value
600
1.7
100
‐65 to +175
230
60
100
Unit
Watts
Watts
Amps
°C
°C
°C/W
°C/W
Power dissipation on infinite heatsink
T
amb
= 75°C
Non repetitive surge peak forward current for unidirectional types
t
p
= 10ms, T
J
initial = T
amb
Operating and storage temperature range
Maximum lead temperature for soldering during 10s; 5mm from case
Thermal resistance, junction to leads
Thermal resistance, junction to ambient on printed circuit L
Lead
= 10mm
Note 1: For a surge greater than the maximum values, the diode will fail in short‐circuit.
ELECTRICAL CHARACTERISTICS
Maximum
reverse leakage
current
I
RM
@ V
RM
Unidirectional
BZW06‐5V8
BZW06‐6V4
BZW06‐8V5
BZW06‐10
BZW06‐13
BZW06‐15
BZW06‐19
BZW06‐20
BZW06‐23
BZW06‐26
BZW06‐28
BZW06‐31
BZW06‐33
BZW06‐40
BZW06‐48
BZW06‐58
Bidirectional
BZW06‐5V8B
BZW06‐6V4B
BZW06‐6V5B
BZW06‐10B
BZW06‐13B
BZW06‐15B
BZW06‐19B
BZW06‐20B
BZW06‐23B
BZW06‐26B
BZW06‐28B
BZW06‐31B
BZW06‐33B
BZW06‐40B
BZW06‐48B
BZW06‐58B
µA
1000
500
10
5
5
1
1
1
1
1
1
1
1
1
1
1
Volts
5.8
6.4
8.5
10.2
12.8
15.3
18.8
20.5
23.1
25.6
28.2
30.8
33.3
40.2
47.8
58.1
Volts
6.45
7.13
9.5
11.4
14.3
17.1
20.9
22.8
25.7
28.5
31.4
34.2
37.1
44.7
53.2
64.6
Minimum
breakdown
voltage @ test
current
(2)
V
BR
@ I
R
mA
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
clamping
voltage @ I
PP
V
C
@ I
PP
10/1000µs
Volts
10.5
11.3
14.5
16.7
21.2
25.2
30.6
33.2
37.5
41.5
45.7
49.9
53.9
64.8
77.0
92.0
Amps
57.0
53.0
41.0
36.0
28.0
24.0
19.6
18.0
16.0
14.5
13.1
12.0
11.1
9.3
7.8
6.5
Maximum
clamping
voltage @ I
PP
V
C
@ I
PP
8/20µs
Volts
13.4
14.5
18.6
21.7
27.2
32.5
39.3
42.8
48.3
53.5
59.0
64.3
69.7
84
100
121
Amps
298
276
215
184
147
123
102
93
83
75
68
62
57
48
40
33
Maximum
voltage
temperature
coefficient
(3)
α
T
10 /°C
5.7
6.1
7.3
7.8
8.4
8.8
9.2
9.4
9.6
9.7
9.8
9.6
10.0
10.1
10.3
10.4
‐4
Typical
capacitance
(4)
Part number
C
pF
4000
3700
2800
2300
1900
1600
1350
1250
1150
1075
1000
950
900
800
700
625
Rev. 20130708
BZW06‐5V8/376,
BZW06‐5V8B/376B
High‐reliability discrete products
and engineering services since 1977
Transil Diodes
DO‐15

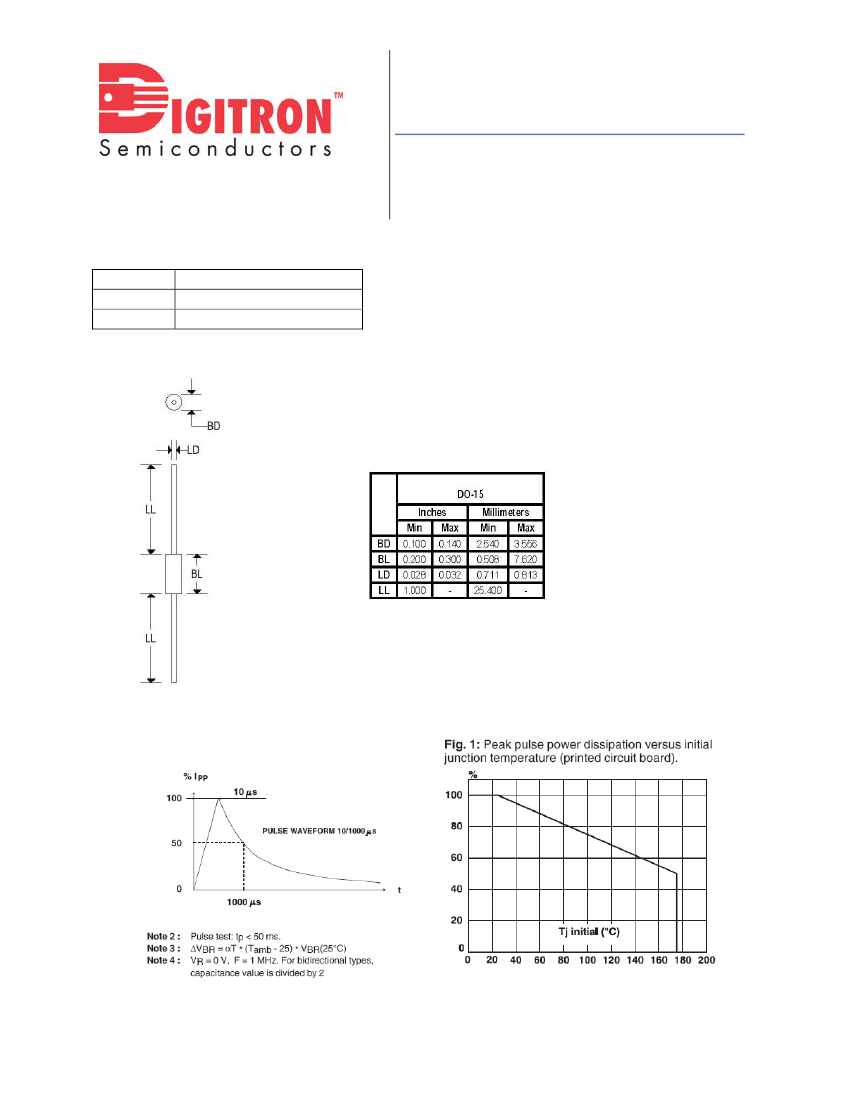

MECHANICAL CHARACTERISTICS
Case
Marking
Polarity
DO‐15
Alpha‐numeric
Cathode band
Rev. 20130708
