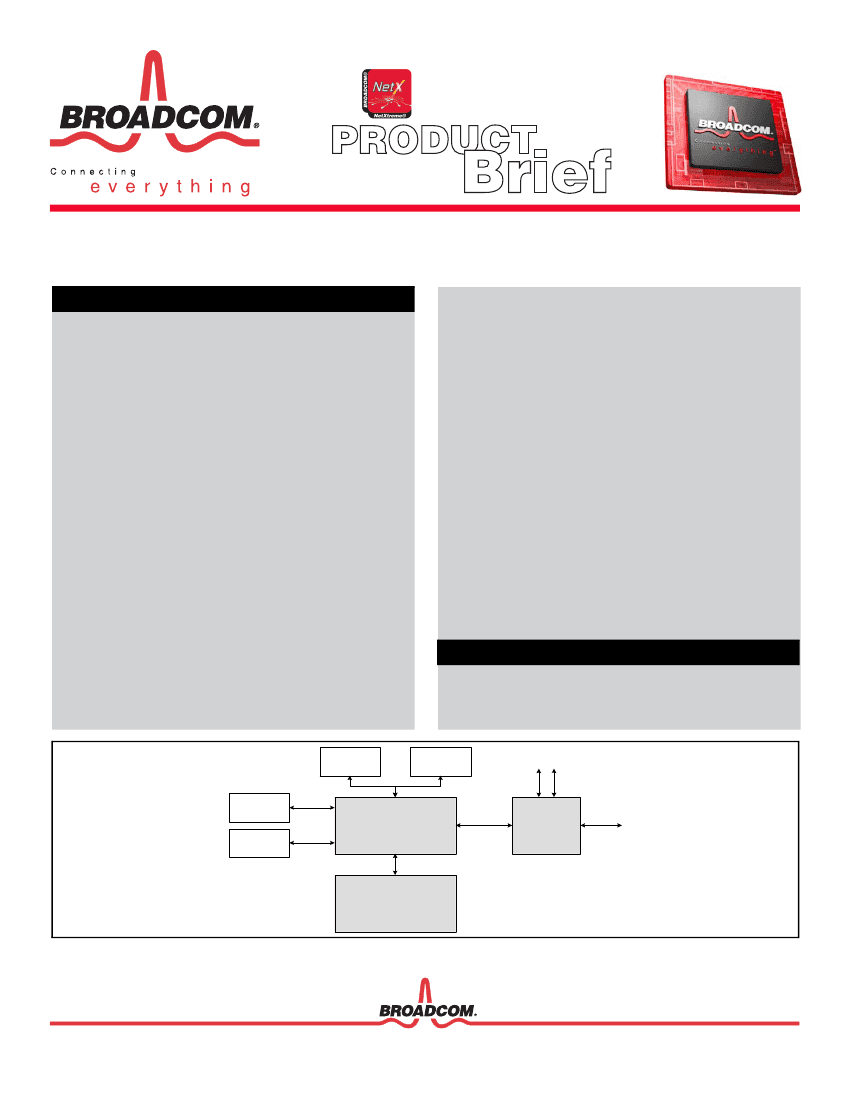

BCM5714
®
PCI EXPRESS
®
TO PCI-X
®
I/O BRIDGE WITH INTEGRATED
DUAL GIGABIT ETHERNET PORTS
FEATURES
•
•
•
•
•
Dual Gigabit Ethernet
PCI Express
®
to PCI-X
®
bridge
Dual integrated 1.25 Gbps SerDes interface
Dual 1000BASE-X MACs
•
Power management, ACPI 1.1a compliant in multiple
Media Access Controller
-
Integrated high-speed RISC cores
-
56 KB receive and 22 KB transmit buffers
-
CPU task offload features (TCP, IP, UDP checksum, and
Microsoft
®
Large Send Offload)
•
TCP segmentation, IP fragmentation, and reassembly
•
Robust manageability
-
PXE 2.0 remote boot
-
Universal Management Port interface for high-speed system
management traffic
-
IPMI compliant server management interface
-
Out-of-Box Wake-on LAN (OOB WOL)
-
Statistic gathering (SNMP MIB II, Ethernet-like MIB, Ethernet
MIB) (802.3x, clause 30)
-
Comprehensive diagnostic and configuration software suite
-
SMBus 2.0 controller
power modes
•
Advanced Features
-
Priority queuing—802.1p layer 2 priority encoding
-
Virtual LANs—802.1q VLAN tagging and support for up
to 64 VLANs
-
Jumbo frames (9 KB)
-
802.3x flow control
-
Link aggregation—802.3ad, GEC/FEC, and Smart Load
Balancing
-
Failover
•
Performance features
-
CPU task offload
-
Adaptive interrupts
-
PCI-X split transaction
-
Configurable, non-symmetric host interface access
•
484-pin PBGA package
•
Power
-
Rails—1.2V core, 2.5V I/O, and 3.3V I/O
-
Peak power dissipation of 5.0W
-
Average power dissipation of 3.0W
•
0.13 µm CMOS technology
APPLICATIONS
-
Highly integrated LAN on Motherboard (LOM) designs
-
Blade Servers
-
Rack Optimized Servers
Processor
Processor
SerDes
DDR
PCI
Express
PCI-X
Memory Controller
DDR
BCM5714S
Southbridge
System Block Diagram
OVERVIEW
The BCM5714S device is a highly integrated communication and
storage bridge for entry-level servers and embedded applications. The
primary applications are UP and DP servers featuring PCI Express
connectivity for I/O expansion.
The primary features of the BCM5714S are:
•
Dual Gigabit NIC ports
•
One full 64-bit/133-MHz PCI-X 1.0 bus
•
Host interface of PCI Express
•
Integrated SerDes
The BCM5714S connects to server chip sets with an x4 PCI Express
interface and provides an independent PCI-X 1.0 bus for peripheral
connectivity. The x4 PCI Express interface is a flexible design and
supports x1 and x2 PCI Express connectivity as well. The PCI-X bus is
64 bits wide and runs at 133 MHz.
As an integrated I/O bridge that provides a high performance data flow
path between the PCI-E host interface and the integrated I/O sub system,
the PCI-X bus provides high-performance I/O expansion within the
system, and the Gigabit Ethernet interfaces provide high performance
network interfaces to the external world. The 64-bit PCI-X bus segment
operates at 33 MHz, 66 MHz, 100 MHz, and 133 MHz. The Gigabit
Ethernet Interface represents Broadcom's fourth generation of server
controllers with fully integrated SerDes transceivers.
The PCI-X Bridge also has the following features:
•
Allows concurrency between the PCI Express and the PCI-X buses
•
Eight deep PCI Express-to-PCI-X memory write posting (PCI
Express-to-PCI-X transactions)
•
Four deep PCI Express-to-PCI-X non-posted request queue (PCI
Express-to-PCI-X transactions)
•
Caching with a 16-deep, 32-byte I/O cache for PCI to main memory
transactions for each PCI bus
•
Support write-through caching protocol
•
Supports up to 14 outstanding split transactions (PCI-X-to-main
memory transactions)
•
Eight-deep PCI-X-to-PCI Express request queue (PCI-X-to-main
memory transactions)
•
Parity protection on the PCI-X bus in a conventional PCI and PCI-X
mode1
•
Optional ECC protection on the PCI-X bus in PCI-X mode1
•
Three programmable regions each for PCI-X memory, and one
region for I/O
•
VGA-compatible addressing support
•
Multiple I/O APIC support
•
Peer-to-peer transfer support
•
Integrated PCI-X bus arbitration that supports up to four PCI-X bus
masters
•
PCI-X bus error reporting
•
RAS features
