Surface Mount
Frequency Mixer
Level 7 (LO Power +7 dBm)
50 to 1000 MHz
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power
IF Current
-40°C to 85°C
-55°C to 100°C
50mW
40mA

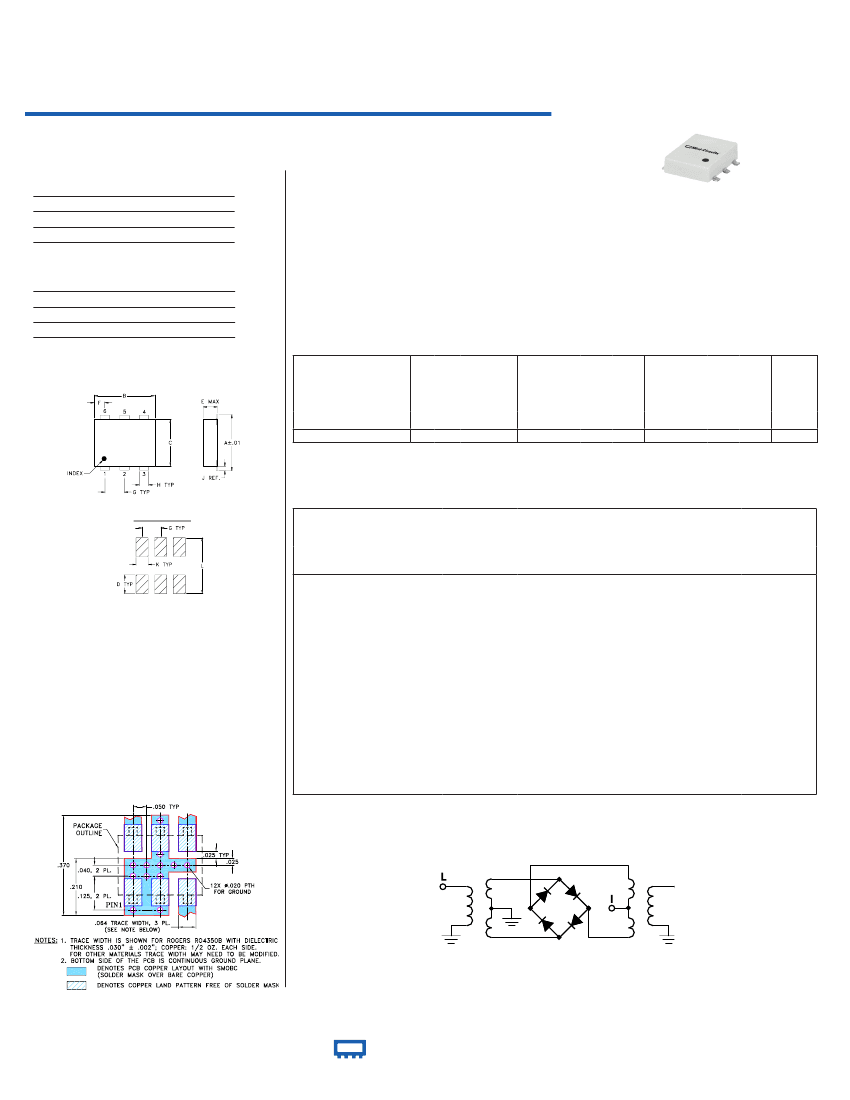

ADE-12
Features
•
•
•
•
•
Permanent damage may occur if any of these limits are exceeded.
low conversion loss, 7.0 dB typ.
excellent IP3, 17 dBm typ.
low profile package
aqueous washable
protected by U.S. Patent 6,133,525
Generic photo used for illustration purposes only
CASE STYLE: CD541
Pin Connections
LO
RF
IF
GROUND
6
4
3
1,2,5
Applications
• cellular
• VHF/UHF
Electrical Specifications
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
50-1000
DC-1000
1 dB COMP.: +1 dBm typ.
Outline Drawing
CONVERSION LOSS
(dB)
Mid-Band
m
—
X
7.0
σ
0.15
Total
Range
Max. Max.
8.0
9.0
LO-RF ISOLATION
(dB)
L
Typ.
40
Min.
25
Typ.
33
U
Min.
22
Typ.
44
LO-IF ISOLATION
(dB)
L
Min.
26
Typ.
37
U
Min.
20
IF
IP3
at center
band
(dBm)
Typ.
17
L = low range [f
L
to 10 f
L
]
U = upper range [f
U
/2 to f
U
]
m= mid band [2f
L
to f
U
/2]
Typical Performance Data
PCB Land Pattern
Frequency
(MHz)
Conversion
Loss
(dB)
LO
LO
+7dBm
7.27
7.27
7.18
7.18
7.19
7.23
7.08
7.04
6.94
6.85
6.90
6.93
6.96
6.84
6.85
6.87
6.92
6.87
6.85
6.91
Isolation
L-R
(dB)
LO
+7dBm
51.50
49.70
48.90
47.70
46.30
43.40
41.00
39.30
37.90
37.00
36.70
36.50
35.60
35.80
35.30
34.70
34.70
34.70
34.70
35.60
Isolation
L-I
(dB)
LO
+7dBm
46.30
44.50
43.90
42.50
41.80
39.00
37.40
35.50
35.20
34.20
33.60
33.20
33.90
34.80
34.80
37.00
37.00
36.10
28.40
25.60
VSWR
RF Port
(:1)
LO
+7dBm
2.68
2.65
2.68
2.68
2.76
2.68
2.55
2.61
2.68
2.61
2.61
2.55
2.65
2.80
2.84
2.80
2.84
3.06
3.26
3.44
VSWR
LO Port
(:1)
LO
+7dBm
1.39
1.41
1.42
1.41
1.43
1.41
1.42
1.40
1.39
1.35
1.30
1.27
1.27
1.25
1.21
1.21
1.22
1.17
1.23
1.26
RF
50.00
70.00
80.00
100.00
117.86
185.71
253.57
321.43
389.29
457.14
500.00
525.00
592.86
660.71
728.57
796.43
800.00
864.29
932.14
1000.00
Suggested Layout,
Tolerance to be within ±.002
½
80.00
100.00
110.00
130.00
147.86
215.71
283.57
351.43
419.29
487.14
530.00
555.00
622.86
690.71
758.57
826.43
830.00
894.29
962.14
1030.00
Outline Dimensions (
inch
)
mm
A
.272
6.91
H
.030
0.76
B
.310
7.87
J
.026
0.66
C
.220
5.59
K
.065
1.65
D
.100
2.54
L
.300
7.62
E
.082
2.08
F
.055
1.40
G
.100
2.54
wt
grams
0.15
Demo Board MCL P/N: TB-02
Suggested PCB Layout (PL-051)
Electrical Schematic
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
REV. F
M158496
ADE-12
ED-6103/1
DJ/TD/CP/AM
200420
Page 1 of 2

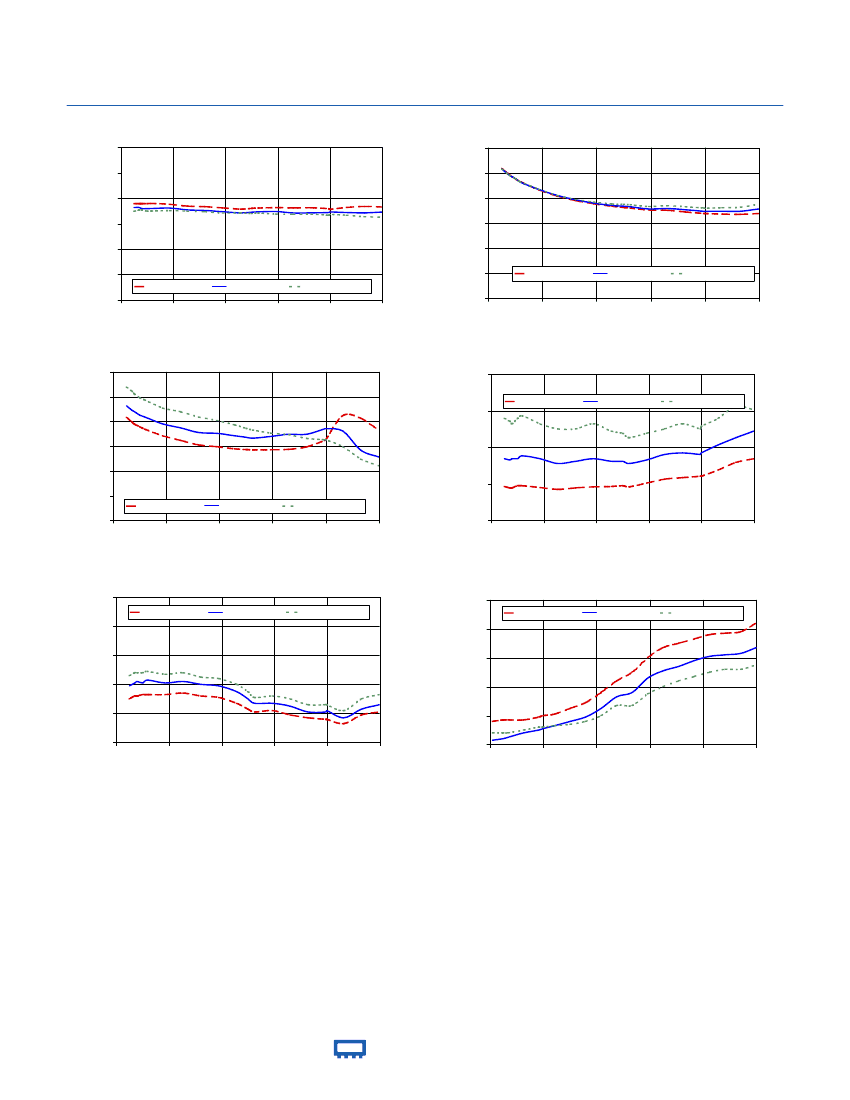

Performance Charts
12.0
CONVERSION LOSS (dB)
10.0
at IF Freq of 30 MHz
ADE-12
60
50
ISOLATION (dB)
40
30
20
10
0
1000
ADE-12
CONVERSION LOSS
ADE-12
L-R ISOLATION
8.0
6.0
4.0
2.0
0.0
LO=+4 dBm
0
200
LO=+7 dBm
LO=+10 dBm
800
LO=+4 dBm
0
200
LO=+7 dBm
LO=+10 dBm
800
1000
400
600
FREQUENCY (MHz)
400
600
FREQUENCY (MHz)
ADE-12
RF VSWR
60
50
ISOLATION (dB)
40
30
20
10
0
0
ADE-12
L-I ISOLATION
5.0
4.0
VSWR
3.0
2.0
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
LO=+4 dBm
200
LO=+7 dBm
400
600
LO=+10 dBm
800
1000
1.0
0
200
400
600
FREQUENCY (MHz)
ADE-12
IF VSWR
800
1000
FREQUENCY (MHz)
ADE-12
LO VSWR
2.0
1.8
VSWR
1.6
1.4
1.2
1.0
0
200
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
2.0
1.8
VSWR
1.6
1.4
1.2
1.0
0
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
400
600
FREQUENCY (MHz)
800
1000
200
400
600
FREQUENCY (MHz)
800
1000
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
Page 2 of 2
