24IMR40-24-2

Description
DC-DC Regulated Power Supply Module, 1 Output, 48W, Hybrid
CategoryPower/power management    The power supply circuit
File Size117KB,3 Pages
ManufacturerBel
Websitehttp://www.belfuse.com
Download Datasheet Parametric View All

24IMR40-24-2 Overview

DC-DC Regulated Power Supply Module, 1 Output, 48W, Hybrid

24IMR40-24-2 Parametric

Parameter NameAttribute value
Brand NamePower-One
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instruction, MODULE,7LEAD,3.25
Reach Compliance Codecompli
ECCN codeEAR99
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage36 V
Minimum input voltage18 V
Nominal input voltage24 V
JESD-30 codeR-XDMA-P8
JESD-609 codee0
Maximum load regulation2%
Number of functions1
Output times1
Number of terminals8
Maximum operating temperature50 °C
Minimum operating temperature-10 °C
Maximum output current2 A
Maximum output voltage24.48 V
Minimum output voltage23.52 V
Nominal output voltage24 V
Package body materialUNSPECIFIED
Encapsulate equivalent codeMODULE,7LEAD,3.25
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formPIN/PEG
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output48 W
Fine-tuning/adjustable outputNO
Base Number Matches1

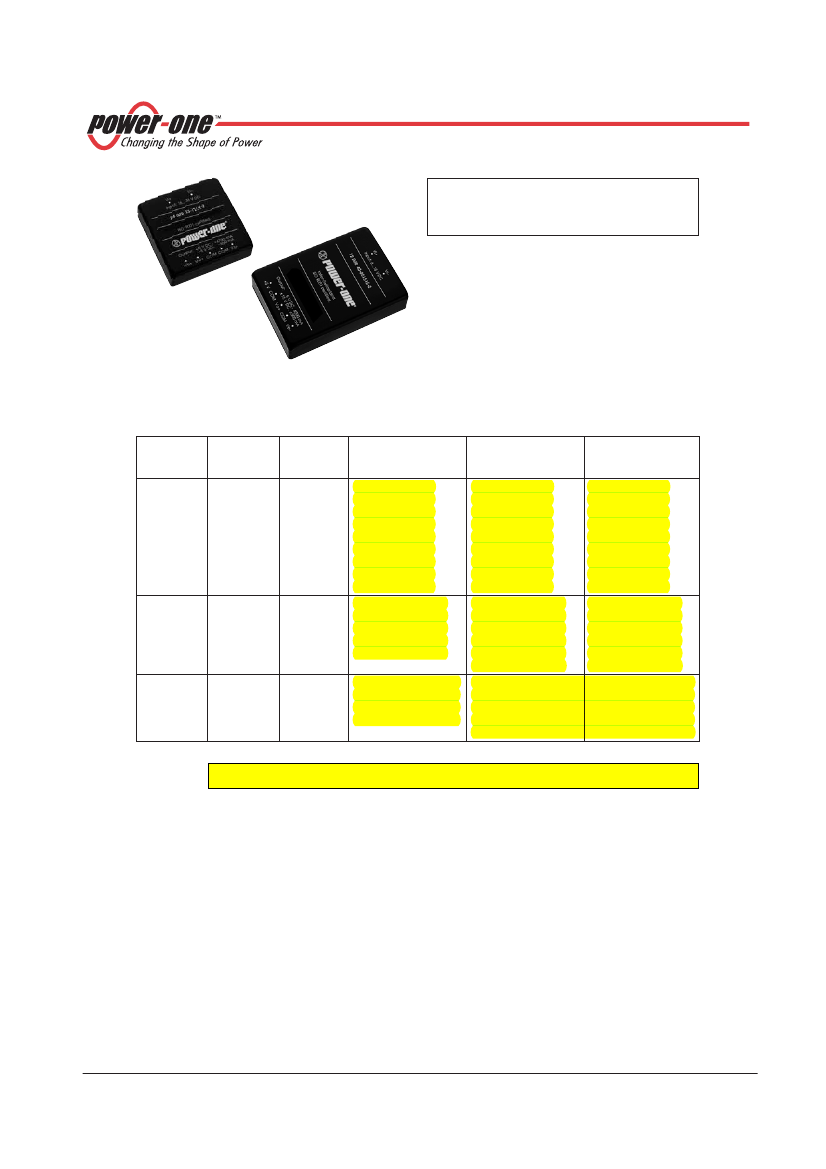

IMR 25 - 40 Series Data Sheet
25 - 40 Watt DC-DC Converters
Input voltage range up to 72 V DC
1, 2 or 3 outputs up to 30 V DC
1500 V DC I/O electric strength test voltage
• Low cost
• Short circuit protection
• Efficiency up to 82%
Model Selection
Output 1
Output 2
Output 3
V
o nom
I
o nom
V
o nom
I
o nom
V
o nom
I
o nom
[V DC] [A] [V DC] [A] [V DC] [A]
3.3
6.5
-
-
-
-
3.3
10
-
-
-
-
5
5
-
-
-
-
5
8
-
-
-
-
12
2.1
-
-
-
-
12
3.5
-
-
-
-
15
1.7
-
-
-
-
15
3
-
-
-
-
24
2
-
-
-
-
+5
4.7
–5
0.3
-
-
+5
8
–5
0.5
-
-
+12 1.8
–12 0.3
-
-
+12
3
–12 0.5
-
-
+15 1.4
–15 0.3
-
-
+15
2
–15 0.5
-
-
+5
4
+12 0.3
–12 0.3
+5
6
+12 0.5
–12 0.5
+5
3.5
+15 0.3
–15 0.3
+5
6
+15 0.5
–15 0.5
+5
12
–5
0.5
+12 0.5
Type
Input voltage
9 - 18 V DC
12 IMR 25-03-2
12 IMR 40-03-2
12 IMR 25-05-2
12 IMR 40-05-2
12 IMR 25-12-2
12 IMR 40-12-2
12 IMR 25-15-2
12 IMR 40-15-2
12 IMR 40-24-2
12 IMR 25-0505-2
12 IMR 40-0505-2
12 IMR 25-1212-2
12 IMR 40-1212-2
12 IMR 25-1515-2
-
12 IMR 25-051212-2
12 IMR 40-051212-2
12 IMR 25-051515-2
12 IMR 40-051515-2
-
Type
Input voltage
18 - 36 V DC
24 IMR 25-03-2
24 IMR 40-03-2
24 IMR 25-05-2
24 IMR 40-05-2
24 IMR 25-12-2
24 IMR 40-12-2
24 IMR 25-15-2
24 IMR 40-15-2
24 IMR 40-24-2
24 IMR 25-0505-2
24 IMR 40-0505-2
24 IMR 25-1212-2
24 IMR 40-1212-2
24 IMR 25-1515-2
24 IMR 40-1515-2
24 IMR 25-051212-2
24 IMR 40-051212-2
24 IMR 25-051515-2
24 IMR 40-051515-2
24 IMR 40-050512-2
Type
Input voltage
36 - 72 V DC
48 IMR 25-03-2
48 IMR 40-03-2
48 IMR 25-05-2
48 IMR 40-05-2
48 IMR 25-12-2
48 IMR 40-12-2
48 IMR 25-15-2
48 IMR 40-15-2
48 IMR 40-24-2
48 IMR 25-0505-2
48 IMR 40-0505-2
48 IMR 25-1212-2
48 IMR 40-1212-2
48 IMR 25-1515-2
48 IMR 40-1515-2
48 IMR 25-051212-2
48 IMR 40-051212-2
48 IMR 25-051515-2
48 IMR 40-051515-2
48 IMR 40-050512-2
Model numbers highlighted in yellow or shaded are not recommended for new designs.
REV. JUN
08,
2004
Page 1 of 3
