71BT36-01-1-05N-F datasheet, PDF

71BT36-01-1-05N-F: DescriptionRotary Switch, 5 Positions, Maintained, 36 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size700KB，7 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric View All

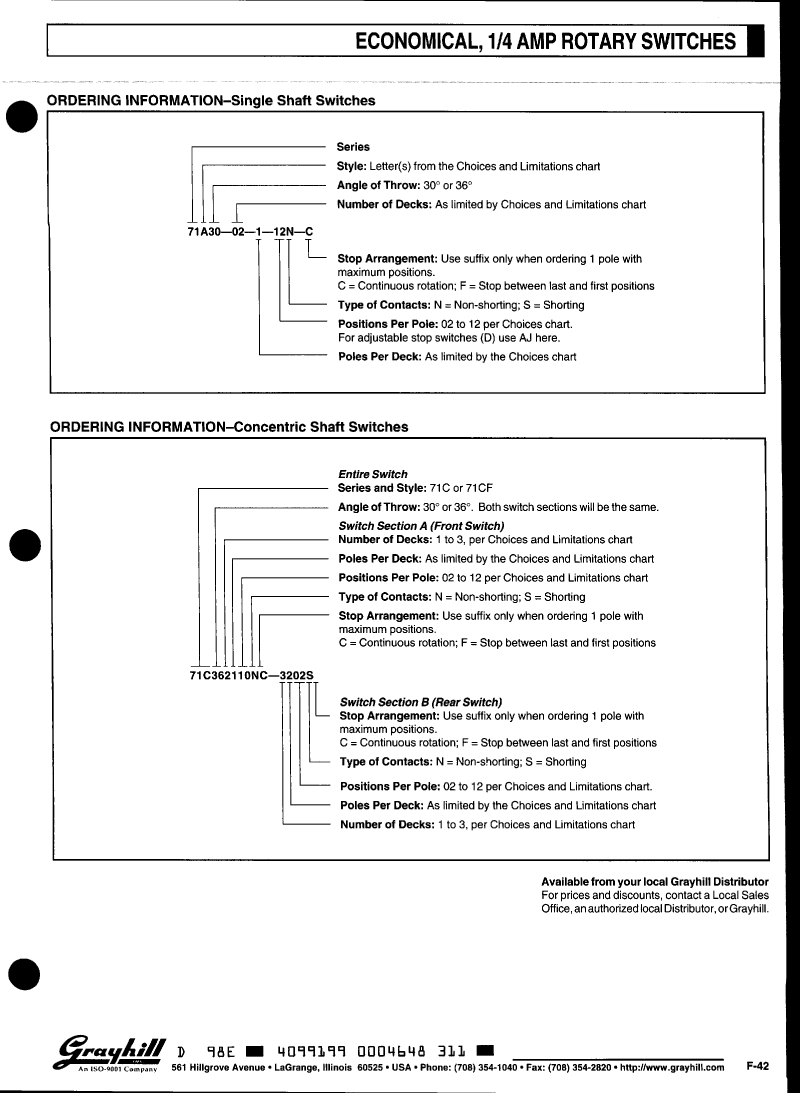

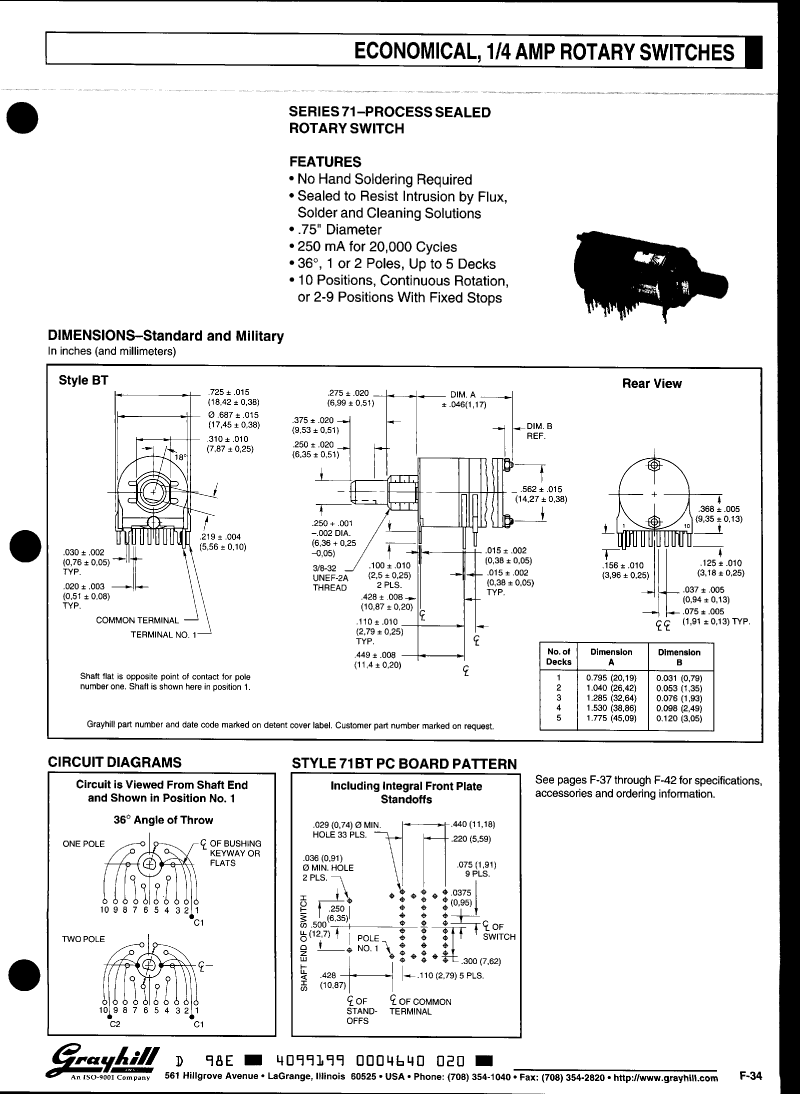

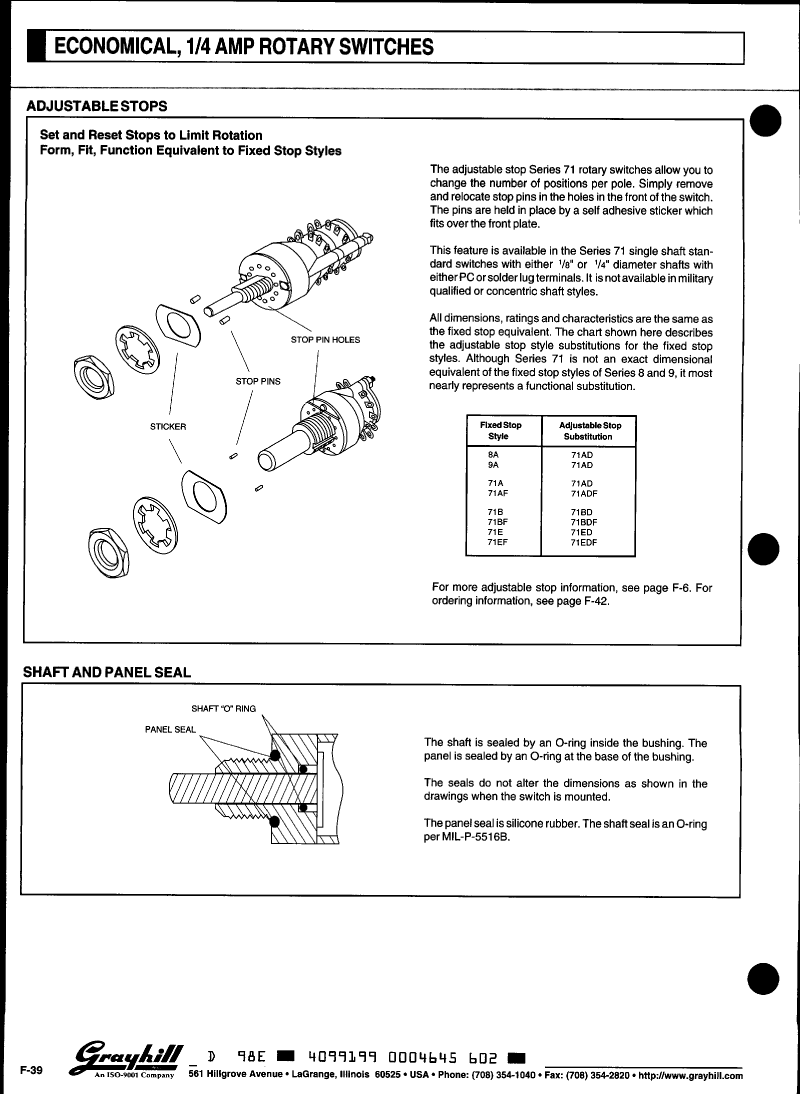

71BT36-01-1-05N-F Overview

Rotary Switch, 5 Positions, Maintained, 36 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-right Angle

Parameter Name	Attribute value
Maker	Grayhill
Reach Compliance Code	compliant
Actuator length	0.375 inch

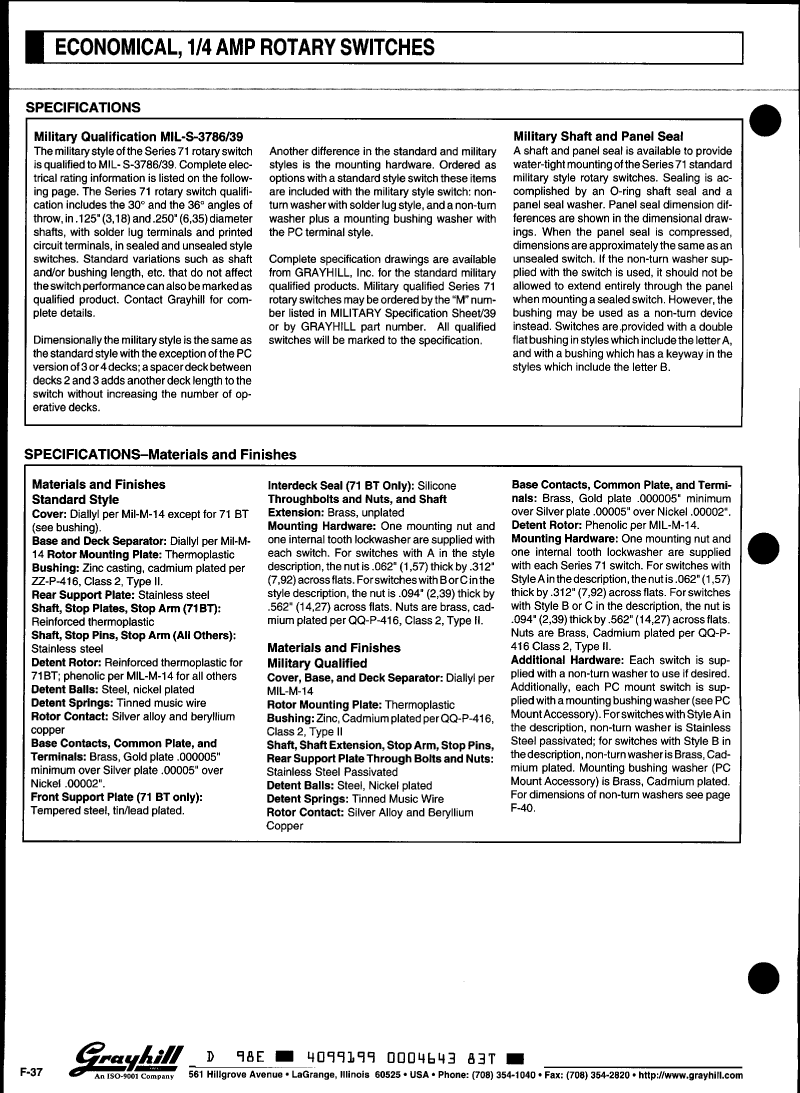

Actuator material	STEEL PASSIVATED
Actuator type	ROTARY SHAFT
body height	20.193 mm
Body length or diameter	17.4498 mm
Casing diameter	0.375 inch
Nozzle length	0.275 inch
Casing type	3/8-32
center contact material	BERYLLIUM COPPER
Center contact plating	SILVER

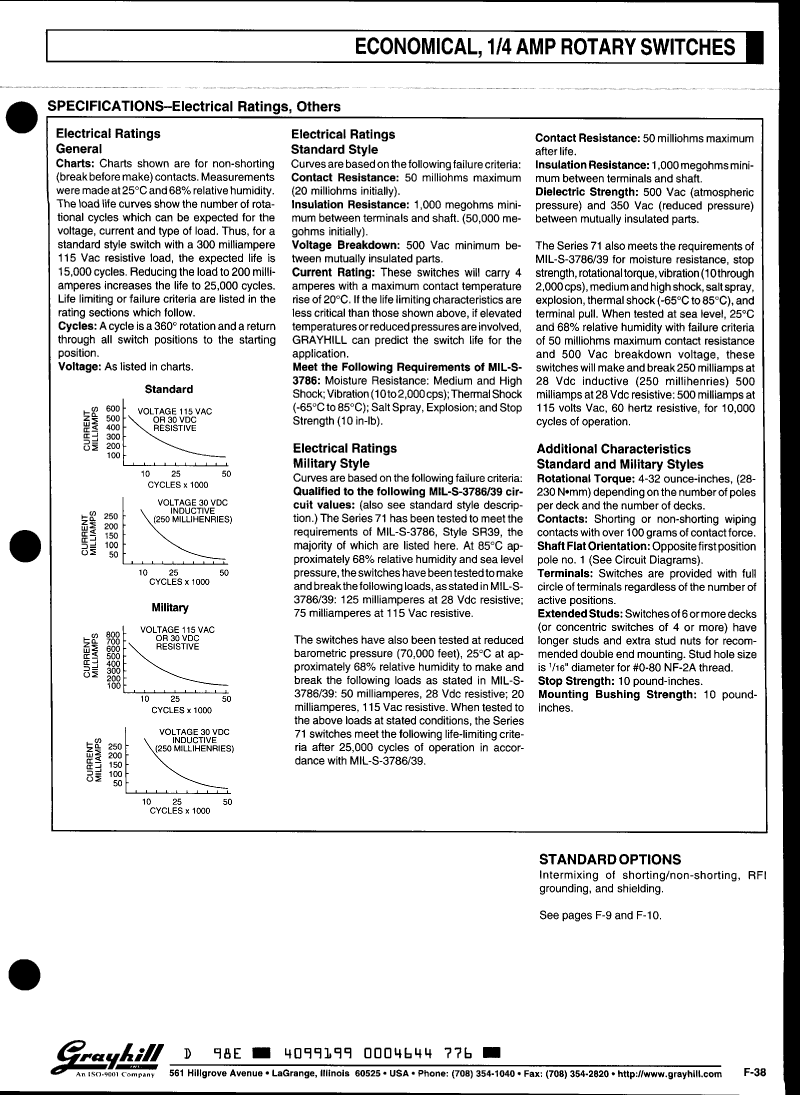

Contact (AC) maximum rated R load	0.3A@115VAC
Maximum contact current (AC)	0.3 A
Contact resistance	0.05 mΩ
Maximum contact voltage (AC)	115 V
Dielectric withstand voltage	500VAC V
Electrical life	15000 Cycle(s)
End contact material	BRASS
End contact plating	GOLD
Graduation angle	36 deg
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	71
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	5
PCB hole count	36
surface mount	NO
Switch action	MAINTAINED
Switch type	ROTARY SWITCH
Terminal length	0.125 inch
Terminal material	BRASS
Termination type	SOLDER
