Part Number

Search

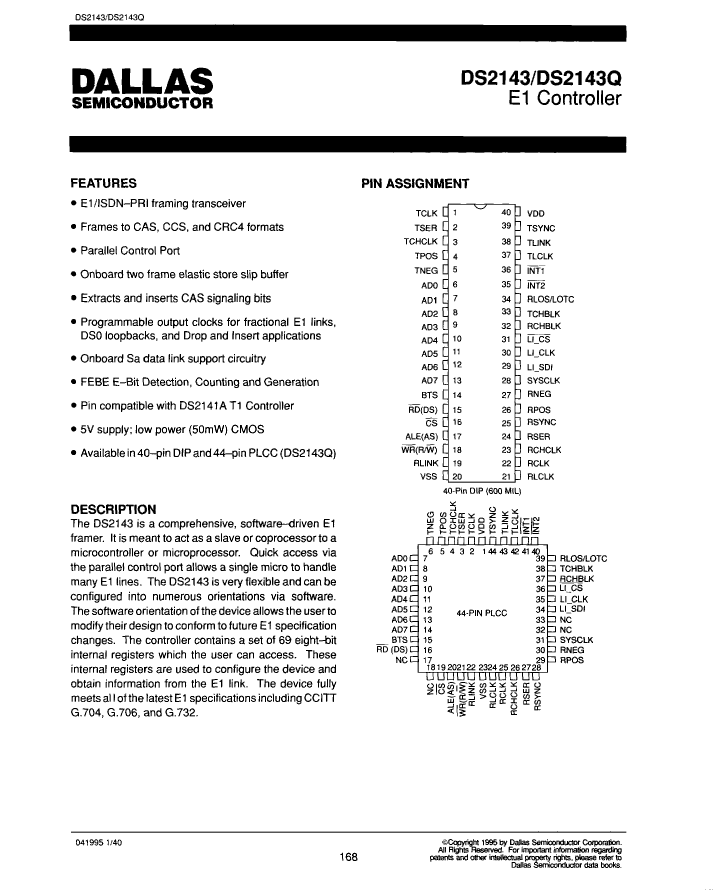

DS2143N

Description
Framer, CMOS, PDIP40,
CategoryWireless rf/communication    Telecom circuit
File Size1MB,40 Pages
ManufacturerDALLAS
Websitehttp://www.dalsemi.com
Download Datasheet Parametric Compare View All

DS2143N Online Shopping

Suppliers Part Number Price MOQ In stock
DS2143N - - View Buy Now

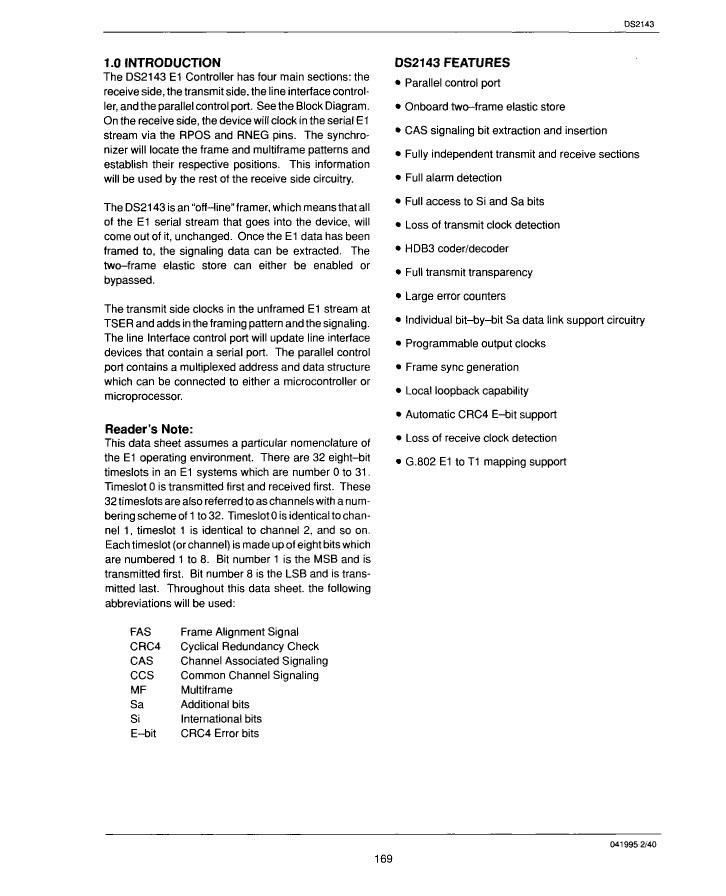

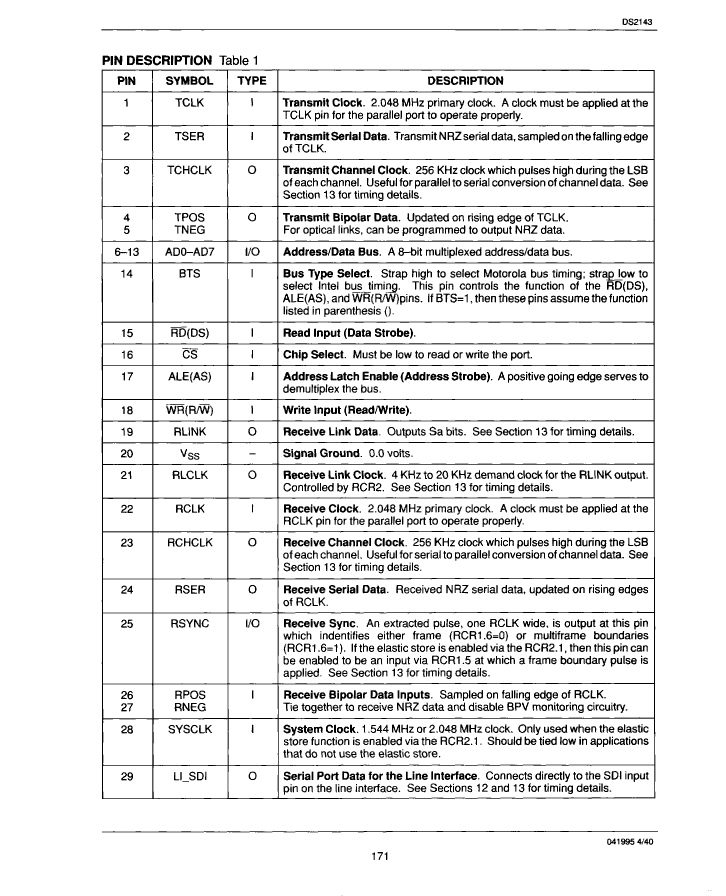

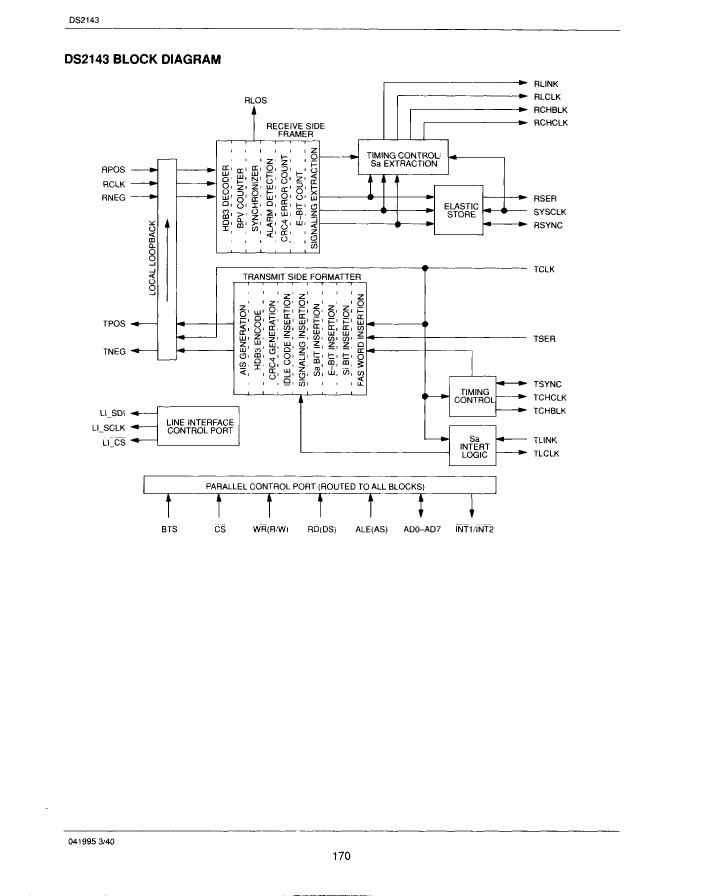

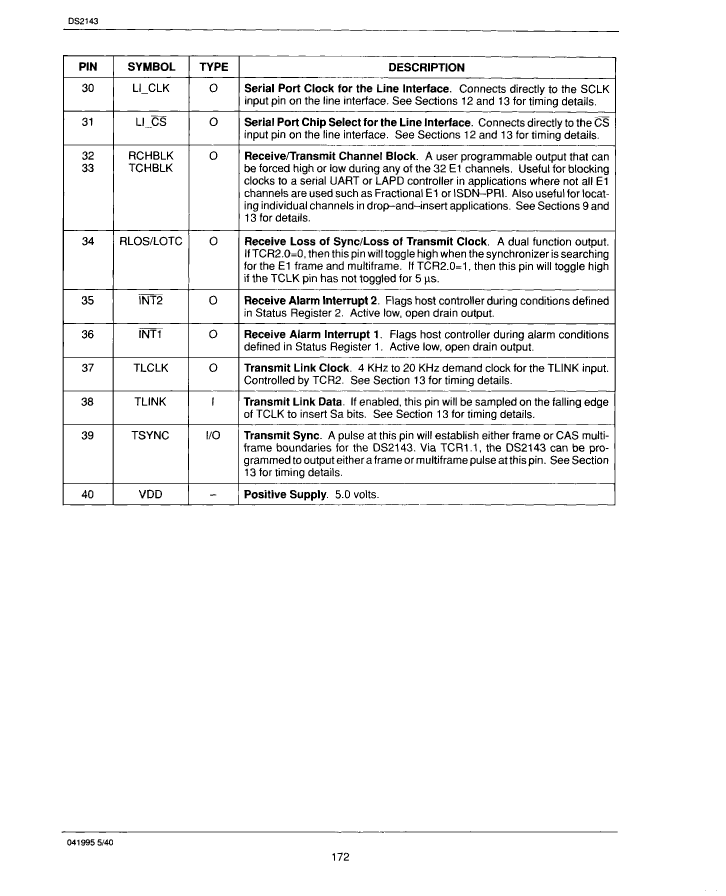

DS2143N Overview

Framer, CMOS, PDIP40,

DS2143N Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDALLAS
Reach Compliance Codeunknown
Carrier typeCEPT PCM-30/E-1
JESD-30 codeR-PDIP-T40
JESD-609 codee0
Number of functions1
Number of terminals40
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP40,.6
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Certification statusNot Qualified
Nominal supply voltage5 V
surface mountNO
technologyCMOS
Telecom integrated circuit typesFRAMER
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

DS2143N Related Products

DS2143N DS2143QN
Description Framer, CMOS, PDIP40, Framer, CMOS, PQCC44,
Is it Rohs certified? incompatible incompatible
Maker DALLAS DALLAS
Reach Compliance Code unknown unknown
Carrier type CEPT PCM-30/E-1 CEPT PCM-30/E-1
JESD-30 code R-PDIP-T40 S-PQCC-J44
JESD-609 code e0 e0
Number of functions 1 1
Number of terminals 40 44
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP QCCJ
Encapsulate equivalent code DIP40,.6 LDCC44,.7SQ
Package shape RECTANGULAR SQUARE
Package form IN-LINE CHIP CARRIER
power supply 5 V 5 V
Certification status Not Qualified Not Qualified
Nominal supply voltage 5 V 5 V
surface mount NO YES
technology CMOS CMOS
Telecom integrated circuit types FRAMER FRAMER
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE J BEND
Terminal pitch 2.54 mm 1.27 mm
Terminal location DUAL QUAD
