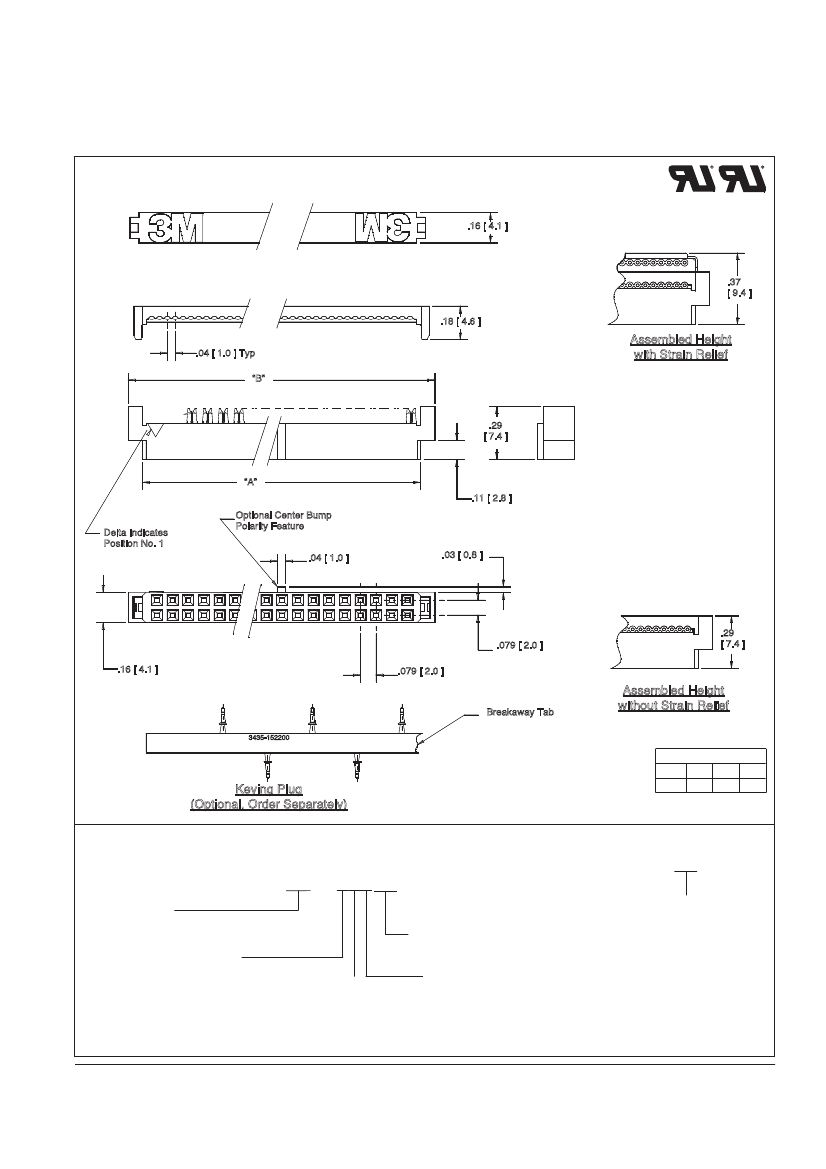

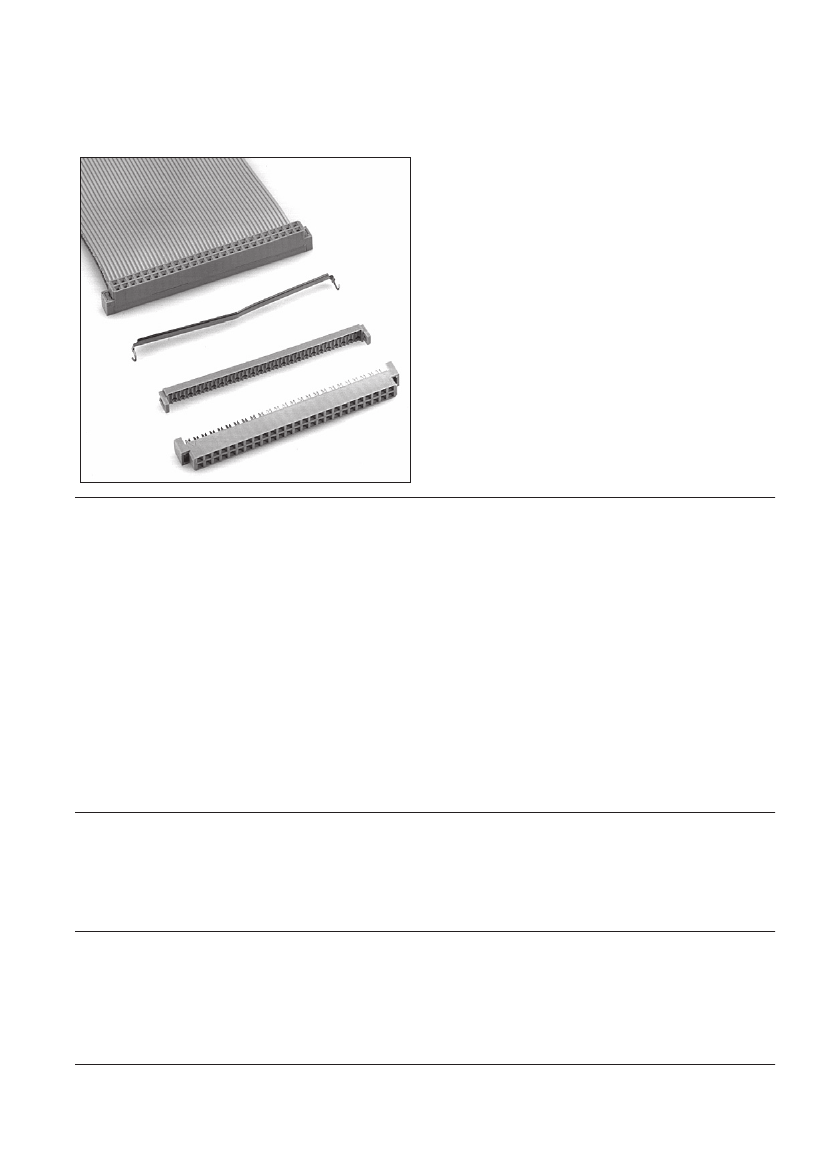

3M
™

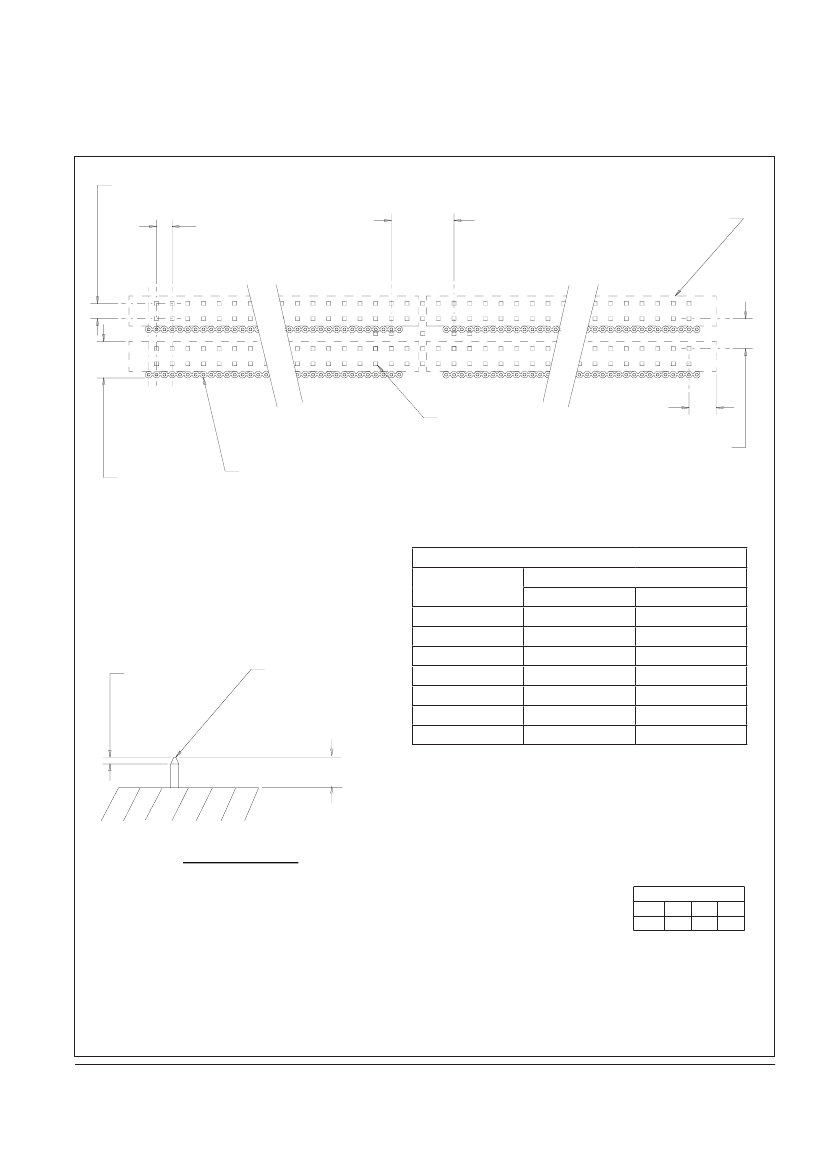

Pak 20 Wiremount Socket
2 mm × 2 mm for 1 mm Pitch Cable
•
•
•
•
•
•
•
1522 Series
Industry standard compatible
Mates with Pak 20 (2 mm x 2 mm) grid pin strips
Low profile
Preassembled covers
Available with or without strain relief
Available with optional centerbump polarity feature
See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3mconnector.com for compliance information
(RIA E1 & C1 apply)
Date Modified: April 15, 2010
TS-0523-C
Sheet 1 of 3
Physical
Insulation:
Flammability: UL 94V-0
Color: Gray
Material: Glass Filled Polyester (PBT)
Contact:
Underplating and U-Slot: 50 -150 μ” [ 1.27-3.81 μm ] Nickel - QQ-N-290, Class 2
Wire Accommodation: 28 AWG Stranded
Wiping Area: Gold, MIL-G-45204, Type II, Grade C
Plating:
Material:
Copper Alloy
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Note:The location and thickness of the contact plating is determined by the part number. Refer to ordering information.
Electrical
Current Rating:
1A
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1,000 V
RMS
at Sea Level
Environmental
UL File No.: E68080
Temperature Rating:
-55°C to +105°C
RoHS = Directive 2002/95/EC,
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 20 Wiremount Socket
2 mm × 2 mm for 1 mm Pitch Cable
C
.16 [ 4.1 ]
1522 Series
.37
[ 9.4 ]
.18 [ 4.6 ]
.04 [ 1.0 ] Typ
“B”
Assembled Height
with Strain Relief
.29
[ 7.4 ]
“A”
.11 [ 2.8 ]
Delta Indicates
Position No. 1
Optional Center Bump
Polarity Feature
.04 [ 1.0 ]
.03 [ 0.8 ]
.079 [ 2.0 ]
.16 [ 4.1 ]
.079 [ 2.0 ]
.29
[ 7.4 ]
Breakaway Tab
3435-152200
Assembled Height
without Strain Relief
Inch
(mm)
Tolerance Unless Noted
.0
.00
.000
Keying Plug
(Optional, Order Separately)
Inch
±
.1
±
.01
±
.005
[ ] Dimensions for
Reference only
Ordering Information
Socket
1522XX - 0XXXXX
Contact Quantity:
(See Table 1)
0 = Preassembled Closed Cover,
on even row side
1 = Preassembled Open Cover
2 = Preassembled Closed Cover,
on odd row side
Strain Relief
3448-1522XX
RIA (E1 & C1 Apply)
Contact Quantity
(See Table 1)
Plating
GB = 30 μ” [ 0.76 μm ] Avg Gold
GG = 15 μ” [ 0.38 μm ] Avg Gold
0 = No Polarization
1 = Center Bump
0 = No Strain Relief
3 = With Strain Relief
Keying Plug
3435-152200
Order Separately
Application Tools: 3640 press (or equivalent), 3443-118 locator plate, 3442-9 platen
TS-0523-C
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 20 Wiremount Socket
2 mm × 2 mm for 1 mm Pitch Cable
.079 ± .002
[ 2.00 ]
.079 ± .002
[ 2.00 ]
.31 Min
[ 7.9 ]
1522 Series
Space Occupied
by Socket
.020 ± .001 Typ
[ 0.50 ]
Square or Round
(See Note 1)
.19 Min
[ 4.8 ]
Space for
Cable Exit
.14
[ 3.6 ]
.16 Min
[ 4.1 ]
Table 1
Contact
Quantity
10
12
.018 Min
[ 0.5 ]
See Note 2
Dimensions
A
.45 [ 11.4 ]
.53 [ 13.4 ]
.84 [ 21.3 ]
1.08 [ 27.4 ]
1.63 [ 41.4 ]
1.79 [ 45.5 ]
2.03 [ 51.3 ]
B
.59 [ 15.0 ]
.67 [ 17.0 ]
.99 [ 25.1 ]
1.22 [ 31.0 ]
1.77 [ 45.0 ]
1.93 [ 49.0 ]
2.17 [ 55.0 ]
20
26
40
44
50
.080 Min
[ 2.0 ]
Mating Pin Detail
.0
Inch
Inch
(mm)
Tolerance Unless Noted
.00
.000
±
.1
±
.01
±
.005
[ ] Dimensions for
Reference only
TS-0523-C
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
the legal theory asserted.
3M Electronics Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S.A.
1-800-225-5373
www.3Mconnector.com
Please recycle. Printed in USA.
© 3M 2010. All rights reserved.
RIA-2217B-E
3M is a trademark of 3M Company.
