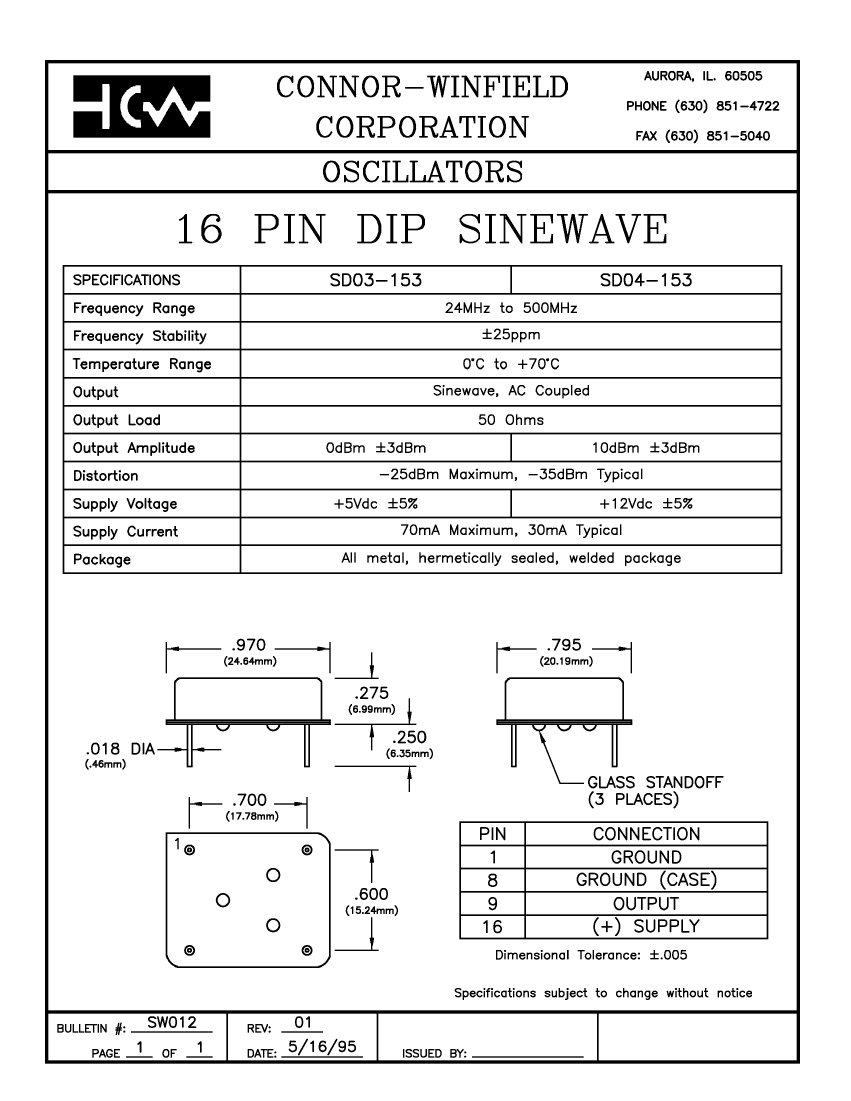

SD04-153-FREQ-OUT1 datasheet, PDF

SD04-153-FREQ-OUT1: DescriptionSine Output Oscillator, 24MHz Min, 500MHz Max, WELDED, HERMETICALLY SEALED, METAL, DIP-4; CategoryPassive components oscillator; File Size25KB，1 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

SD04-153-FREQ-OUT1 Overview

Sine Output Oscillator, 24MHz Min, 500MHz Max, WELDED, HERMETICALLY SEALED, METAL, DIP-4

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Connor-Winfield
Reach Compliance Code	unknown
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	SD04-153
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	500 MHz
Minimum operating frequency	24 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	SINE
Output impedance	50 Ω
Output level	2.0081 V
physical size	24.64mm x 20.19mm x 6.99mm
Nominal supply voltage	12 V
surface mount	NO

	SD04-153-FREQ-OUT1	SD03-153-FREQ-OUT1
Description	Sine Output Oscillator, 24MHz Min, 500MHz Max, WELDED, HERMETICALLY SEALED, METAL, DIP-4	Sine Output Oscillator, 24MHz Min, 500MHz Max, WELDED, HERMETICALLY SEALED, METAL, DIP-4
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
Frequency Adjustment - Mechanical	NO	NO
frequency stability	25%	25%
Manufacturer's serial number	SD04-153	SD03-153
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	24 MHz	24 MHz
Maximum operating temperature	70 °C	70 °C
Oscillator type	SINE	SINE
Output impedance	50 Ω	50 Ω
Output level	2.0081 V	0.6363 V
physical size	24.64mm x 20.19mm x 6.99mm	24.64mm x 20.19mm x 6.99mm
Nominal supply voltage	12 V	5 V
surface mount	NO	NO
