Bussmann
®
Fusetron
®
Dual-Element, Time-Delay Fuses
Class RK5 – 250 Volt
Dimensional Data
2"
(± 0.31)
.56" (± 0.008)
1
/
10
A
FRN-R
⁄Ω¡º-60A
to 30A
3"
(± 0.31)
.81" (± 0.008)
35A to 60A
Catalog Symbol:
FRN-R
Current-Limiting
Dual-Element, Time-Delay – 10 seconds (minimum) at 500%
rated current
Ampere Rating:
⁄Ω¡º
to 60 Amperes
Voltage Rating:
250 Volts AC (or less)
Interrupting Rating:
200,000A RMS Sym.
DC Ratings: 20,000 AIC @ 125 VDC
Agency Approvals:
UL Listed, Std. 248-12, Class RK-5, Guide JDDZ, File E4273
CSA Certified, C22.2 No. 248.12, Class 1422-01, File 53787
Catalog Numbers
FRN-R-⁄Ω
¡º
FRN-R-⁄Ω
•
FRN-R-⁄fiΩ
¡ºº
FRN-R-¤Ω
¡º
FRN-R-⁄Ω
¢
FRN-R-‹Ω
¡º
FRN-R-›Ω
¡º
FRN-R-⁄Ω
™
FRN-R-flΩ
¡º
FRN-R-°Ω
¡º
FRN-R-1
FRN-R-1⁄Ω
•
FRN-R-1⁄Ω
¢
FRN-R-1›Ω
¡º
FRN-R-1⁄Ω
™
FRN-R-1flΩ
¡º
FRN-R-1°Ω
¡º
FRN-R-2
FRN-R-2⁄Ω
¢
FRN-R-2⁄Ω
™
FRN-R-2°Ω
¡º
FRN-R-3
FRN-R-3
¤Ω¡º
FRN-R-3⁄Ω
™
FRN-R-4
FRN-R-4⁄Ω
™
FRN-R-5
FRN-R-5
flꭧ
FRN-R-6
FRN-R-6⁄Ω
¢
FRN-R-7
FRN-R-7⁄Ω
™
FRN-R-8
FRN-R-9
FRN-R-10
FRN-R-12
FRN-R-15
FRN-R-17⁄Ω
™
FRN-R-20
FRN-R-25
FRN-R-30
FRN-R-35
FRN-R-40
FRN-R-45
FRN-R-50
FRN-R-60
—
—
General Information:
• Provides motor overload, ground fault and short-circuit
protection.
• Helps protect motors against burnout from overloads.
• Helps protect motors against burnout from single phasing
on three phase systems.
• Simplifies and improves blackout prevention (selective
coordination).
• Dual-element fuses can be applied in circuits subject
to temporary motor overloads and surge currents to
provide both high performance short-circuit and
overload protection.
• The overload element provides protection against low level
overcurrent of overloads and will hold an overload which is
five times greater than the ampere rating of the fuse for a
minimum of ten seconds.
Fuse Reducers For Class R Fuses
Equipment
Fuse Clips
60A
100A
200A
Desired Fuse
(Case) Size
30A
30A
60A
60A
Catalog Number
(Pairs) 250V
No. 263-R
No. 213-R
No. 216-R
No. 226-R
Fuseblocks for Class R Fuses
(Clip Retaining Spring Standard, Suffix “R”)
Basic
Catalog
Poles Number
1
R25030-1
2
3
1
2
3
R25030-2
R25030-3
R25060-1
R25060-2
R25060-3
Terminal
Screw w/
—
Pres.
Plate
SR
PR
SR
SR
SR
SR
SR
PR
PR
—
—
—
Type (Suffix No.)
⁄Ω¢∑
Box Lug w/
—
Clip
Quick-
CU only Connect
CR
COR
QR
CR
CR
CR
CR
CR
COR
COR
COR
COR
COR
QR
QR
—
—
—
Carton Quantity and Weight
Ampere
Ratings
0–15
17.5–30
35–60
*Weight per carton.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 VAC, 75-1500 VDC). Refer to BIF document #8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Carton
Qty.
10
10
10
Weight*
Lbs.
0.40
0.50
1.00
Kg.
0.181
0.227
0.453
Amps
⁄Ω¡º
to
30
31
to
60
9-7-99
SB99013
Rev. A
Form No. FRN-R
⁄Ω¡º-60
Page 1 of 3
BIF Doc #1019
Bussmann
®
Fusetron
®
Dual-Element, Time-Delay Fuses
Class RK5 – 250 Volt

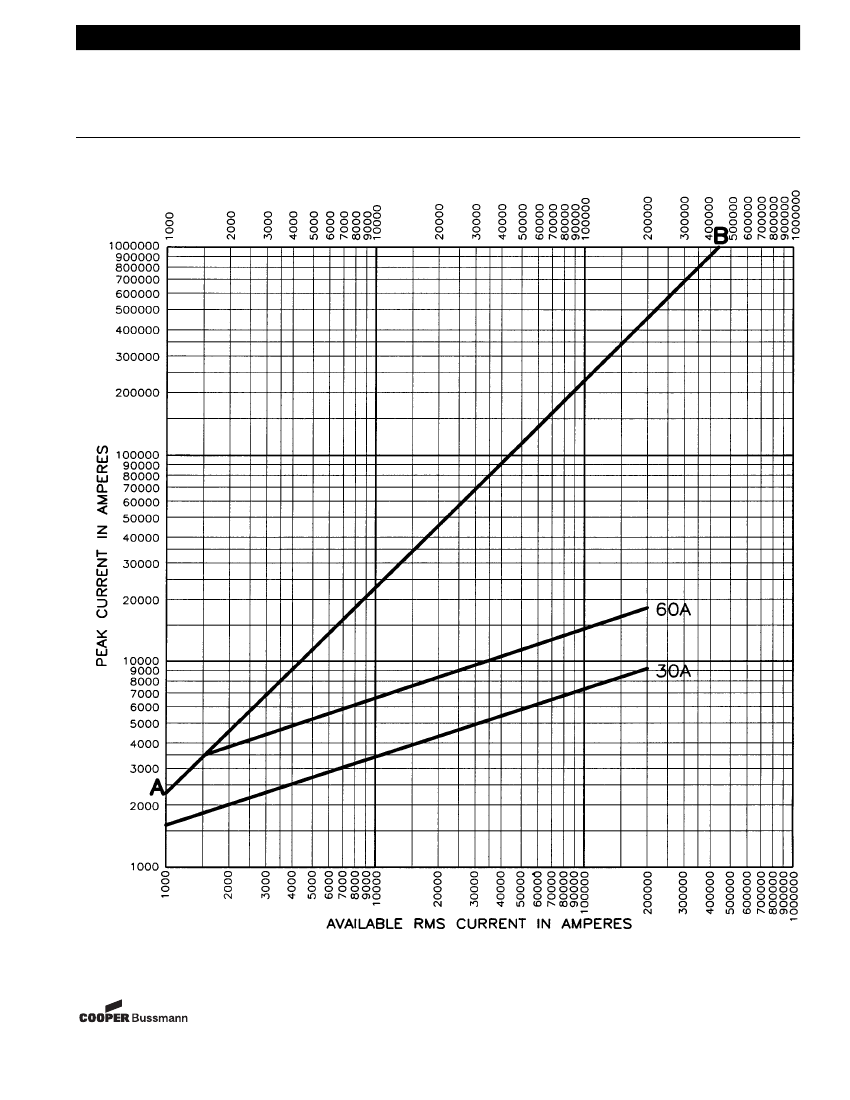

Current-Limitation Curve
