LH28F320BFHG-PTTLZ3 datasheet, PDF

LH28F320BFHG-PTTLZ3: DescriptionFlash, 2MX16, 80ns, PBGA48, 8 X 8 MM, 0.75 MM PITCH, PLASTIC, CSP, FBGA-48; Categorystorage storage; File Size1MB，36 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric View All

LH28F320BFHG-PTTLZ3 Overview

Flash, 2MX16, 80ns, PBGA48, 8 X 8 MM, 0.75 MM PITCH, PLASTIC, CSP, FBGA-48

Parameter Name	Attribute value
Maker	SHARP
package instruction	8 X 8 MM, 0.75 MM PITCH, PLASTIC, CSP, FBGA-48
Reach Compliance Code	unknown
Maximum access time	80 ns
JESD-30 code	S-PBGA-B48
length	8 mm
memory density	33554432 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of terminals	48
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2MX16
Package body material	PLASTIC/EPOXY
encapsulated code	TFBGA
Package shape	SQUARE
Package form	GRID ARRAY, THIN PROFILE, FINE PITCH
Parallel/Serial	PARALLEL
Programming voltage	1.8 V
Certification status	Not Qualified
Maximum seat height	1.05 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.75 mm
Terminal location	BOTTOM
type	NOR TYPE
width	8 mm

P

RELIMINARY

P

RODUCT

S

PECIFICATIONS

®

Integrated Circuits Group

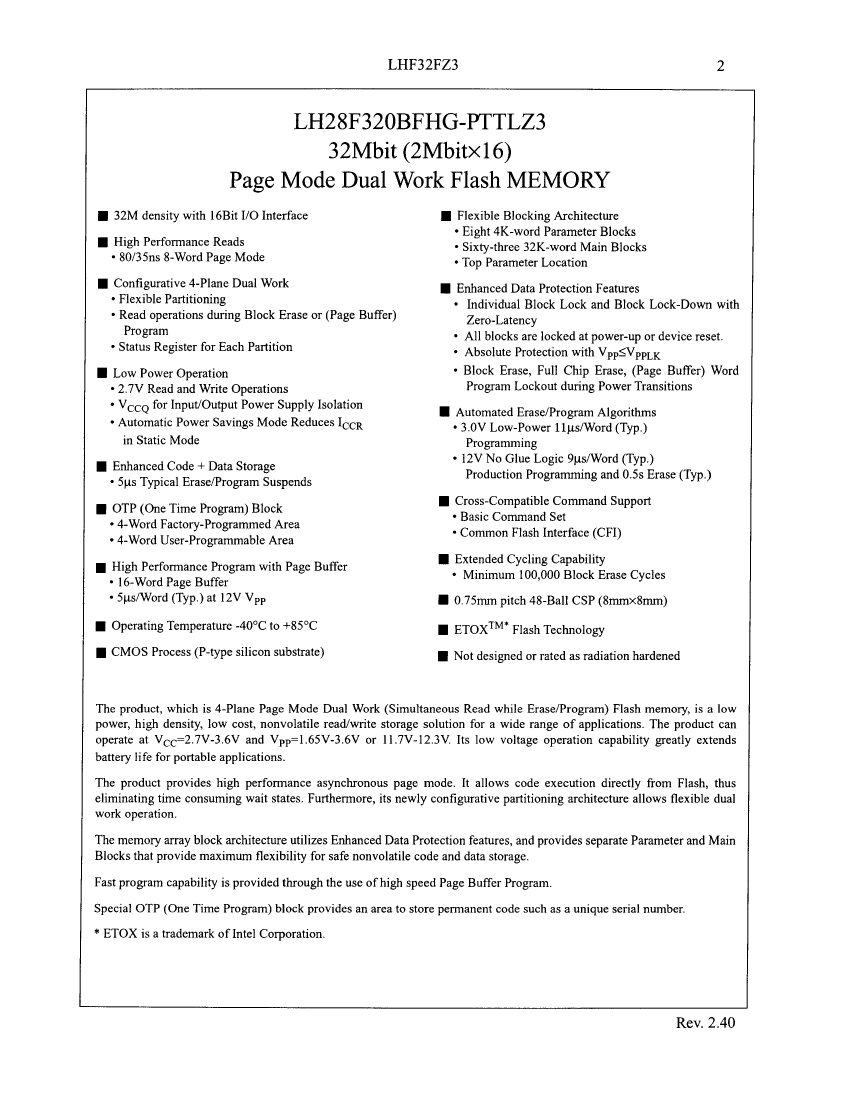

LH28F320BFHG-PTTLZ3

Flash Memory

32M (2M × 16)

(Model No.: LHF32FZ3)

Spec No.: FM016018

Issue Date: June 27, 2001
