NCR53CF90B-168PLCC datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> NCR53CF90B-168PLCC

NCR53CF90B-168PLCC: DescriptionSCSI Bus Controller, CMOS, PQCC68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size296KB，17 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric Compare View All

NCR53CF90B-168PLCC Overview

SCSI Bus Controller, CMOS, PQCC68

NCR53CF90B-168PLCC Parametric

Parameter Name	Attribute value
Maker	LSC/CSI
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A991.A.2
Other features	PARITY CHECKING TO SCSI BUS
Address bus width	4
maximum clock frequency	40 MHz
Maximum data transfer rate	10 MBps
Drive interface standards	X3.131
External data bus width	8
JESD-30 code	S-PQCC-J68
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	BUS CONTROLLER, SCSI

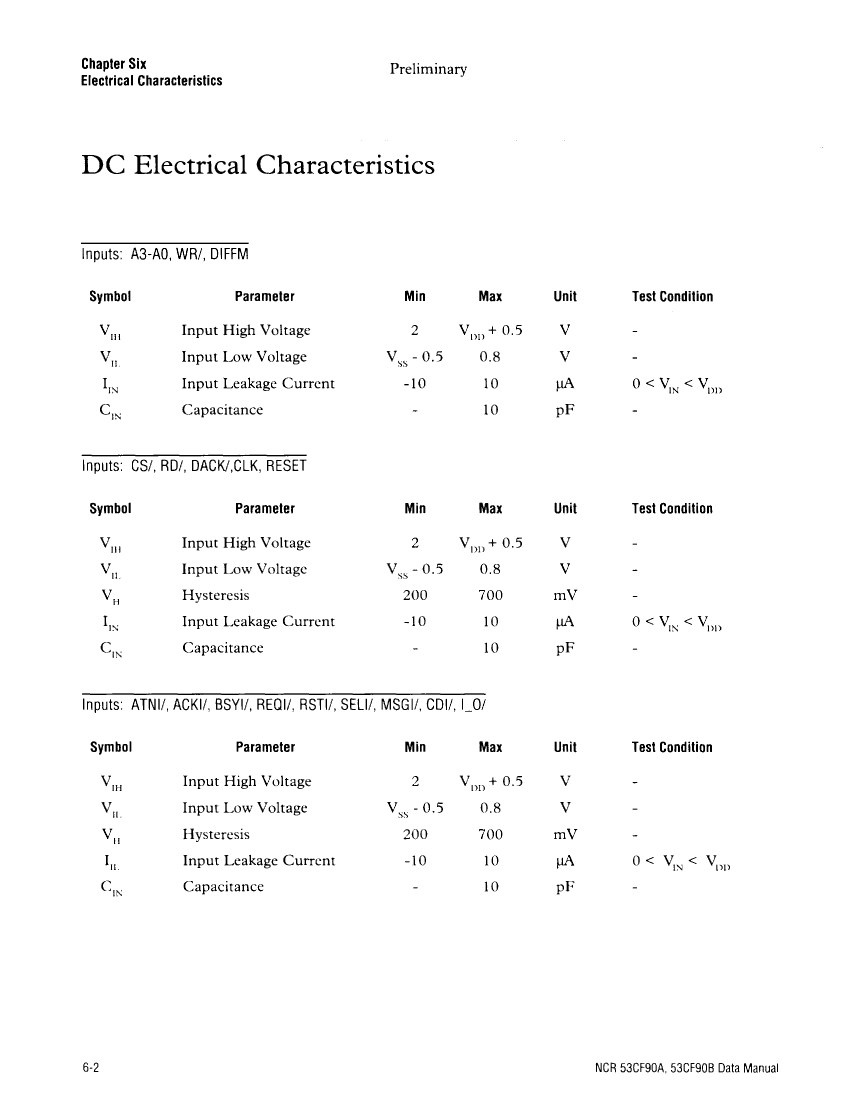

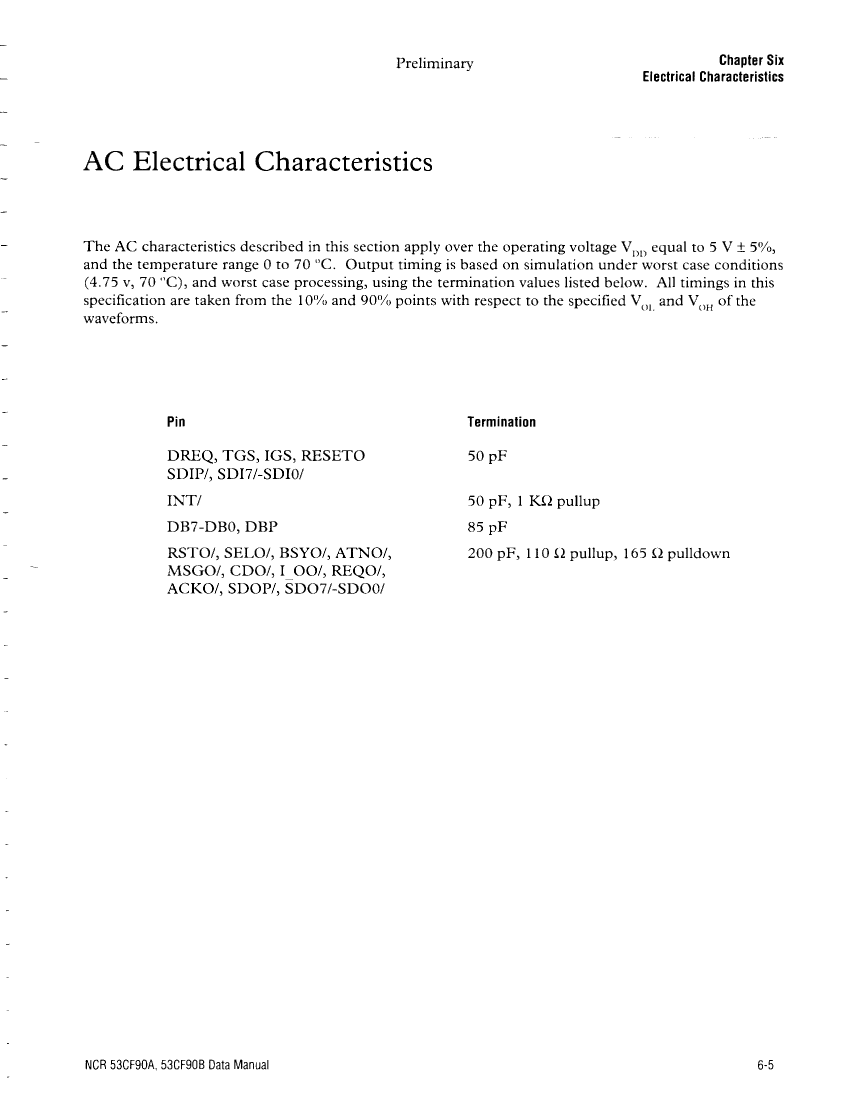

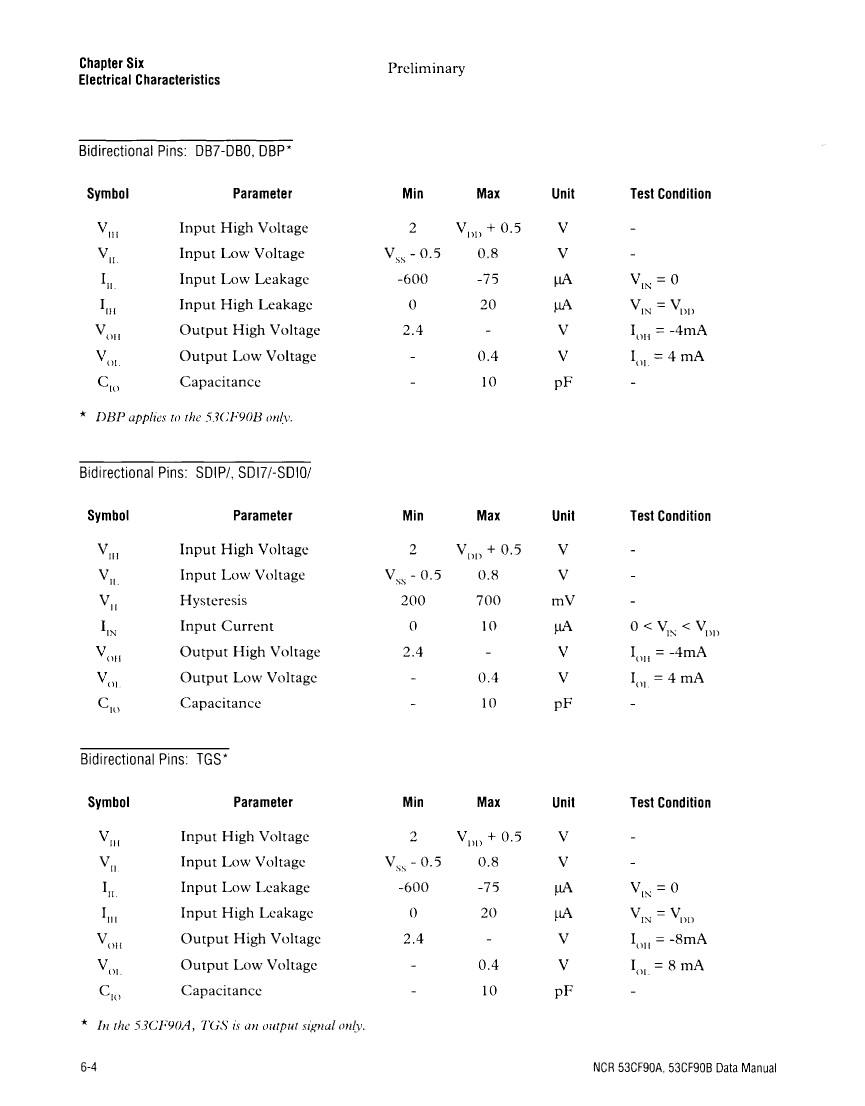

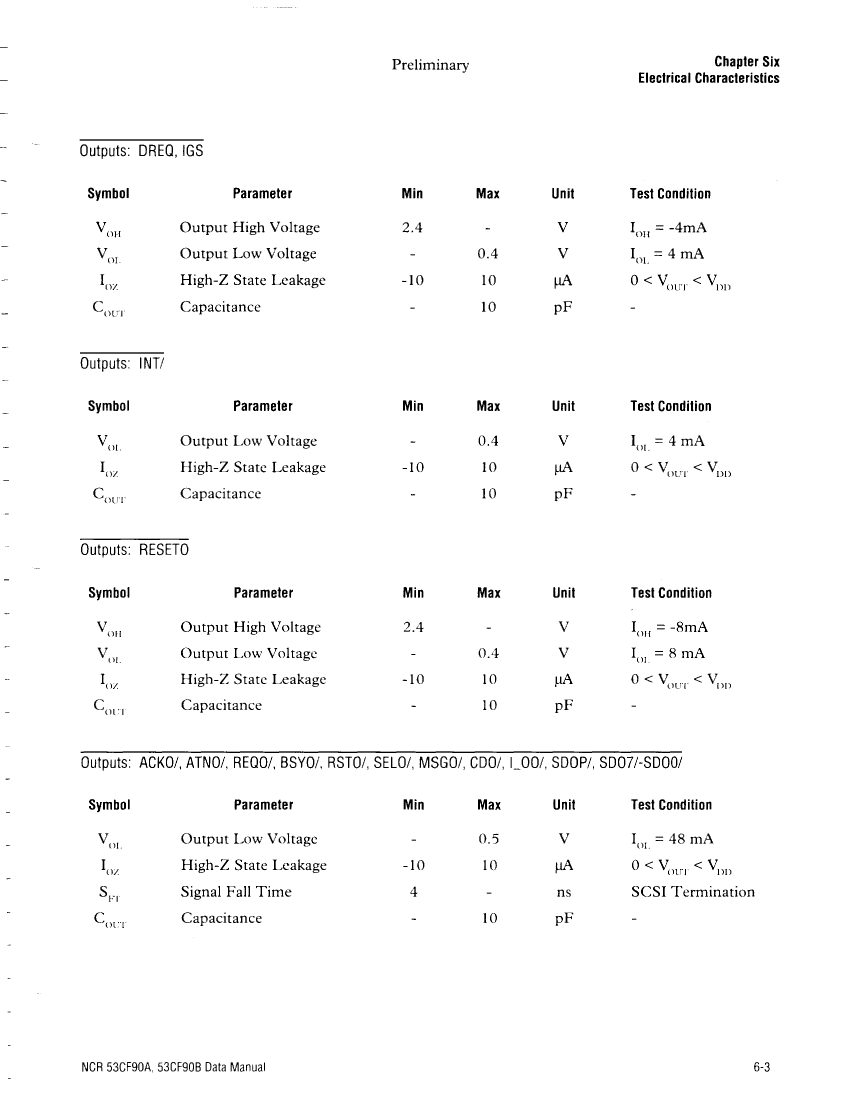

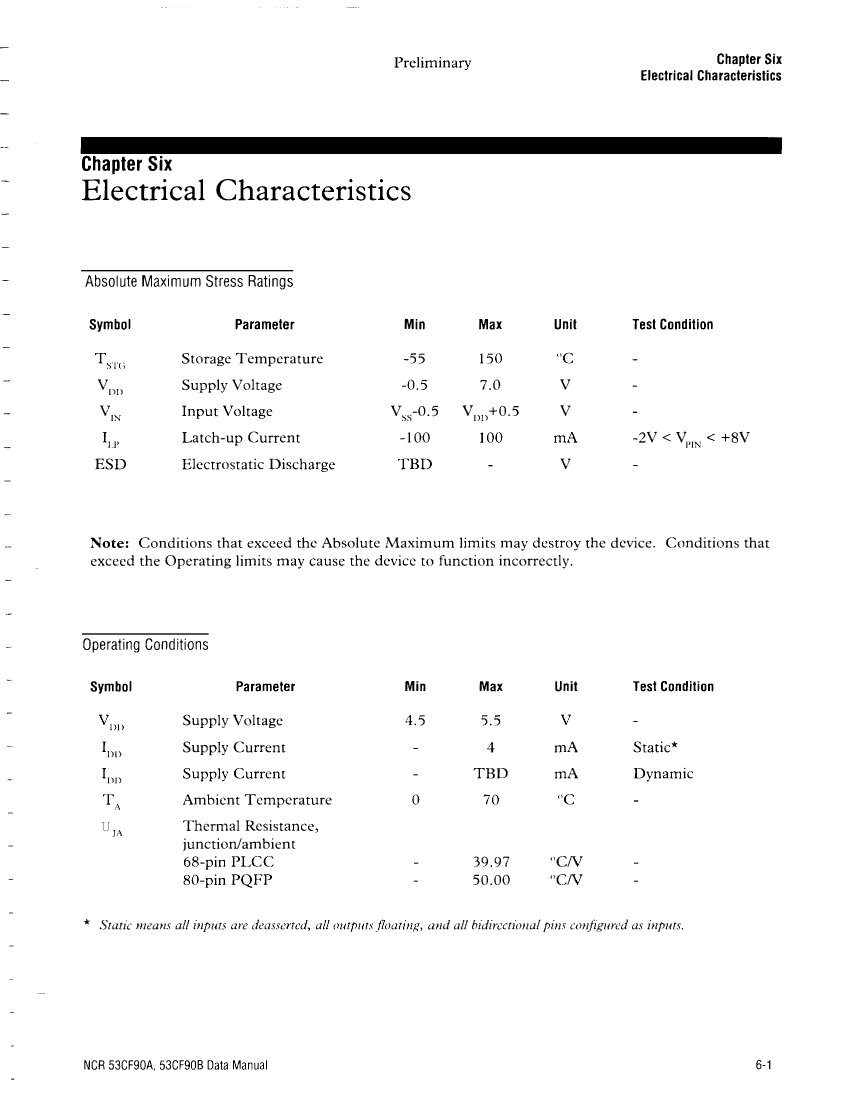

Preview

Download Datasheet

View All

NCR53CF90B-168PLCC Related Products

	NCR53CF90B-168PLCC	NCR53CF90B-180QFP	NCR53CF90A-180QFP	SYM53CF90A-168PLCC	SYM53CF90B-180QFP	SYM53CF90A-180QFP	NCR53CF90A-168PLCC	SYM53CF90B-168PLCC
Description	SCSI Bus Controller, CMOS, PQCC68	SCSI Bus Controller, CMOS, PQFP80	SCSI Bus Controller, CMOS, PQFP80	SCSI Bus Controller, CMOS, PQCC68	SCSI Bus Controller, CMOS, PQFP80	SCSI Bus Controller, CMOS, PQFP80	SCSI Bus Controller, CMOS, PQCC68	SCSI Bus Controller, CMOS, PQCC68
Maker	LSC/CSI	LSC/CSI	LSC/CSI	LSC/CSI	LSC/CSI	LSC/CSI	LSC/CSI	LSC/CSI
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2
Address bus width	4	4	4	4	4	4	4	4
maximum clock frequency	40 MHz	40 MHz	40 MHz	40 MHz	40 MHz	40 MHz	40 MHz	40 MHz
Maximum data transfer rate	10 MBps	10 MBps	10 MBps	10 MBps	10 MBps	10 MBps	10 MBps	10 MBps
Drive interface standards	X3.131	X3.131	X3.131	X3.131	X3.131	X3.131	X3.131	X3.131
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	S-PQCC-J68	R-PQFP-G80	R-PQFP-G80	S-PQCC-J68	R-PQFP-G80	R-PQFP-G80	S-PQCC-J68	S-PQCC-J68
Number of terminals	68	80	80	68	80	80	68	68
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	GULL WING	GULL WING	J BEND	GULL WING	GULL WING	J BEND	J BEND
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	BUS CONTROLLER, SCSI	BUS CONTROLLER, SCSI	BUS CONTROLLER, SCSI	BUS CONTROLLER, SCSI	BUS CONTROLLER, SCSI	BUS CONTROLLER, SCSI	BUS CONTROLLER, SCSI	BUS CONTROLLER, SCSI
