LH28F800SGHR-L100 datasheet, PDF

Datasheet> All Categories > storage> storage> LH28F800SGHR-L100

LH28F800SGHR-L100: DescriptionFlash, 512KX16, 100ns, PDSO48, 12 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-48; Categorystorage storage; File Size1MB，48 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH28F800SGHR-L100 Overview

Flash, 512KX16, 100ns, PDSO48, 12 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-48

LH28F800SGHR-L100 Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	12 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-48
Reach Compliance Code	unknown
Maximum access time	100 ns
Other features	USER SELECTABLE 3.3V VCC
JESD-30 code	R-PDSO-G48
memory density	8388608 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of terminals	48
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Programming voltage	3 V
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	MOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
type	NOR TYPE

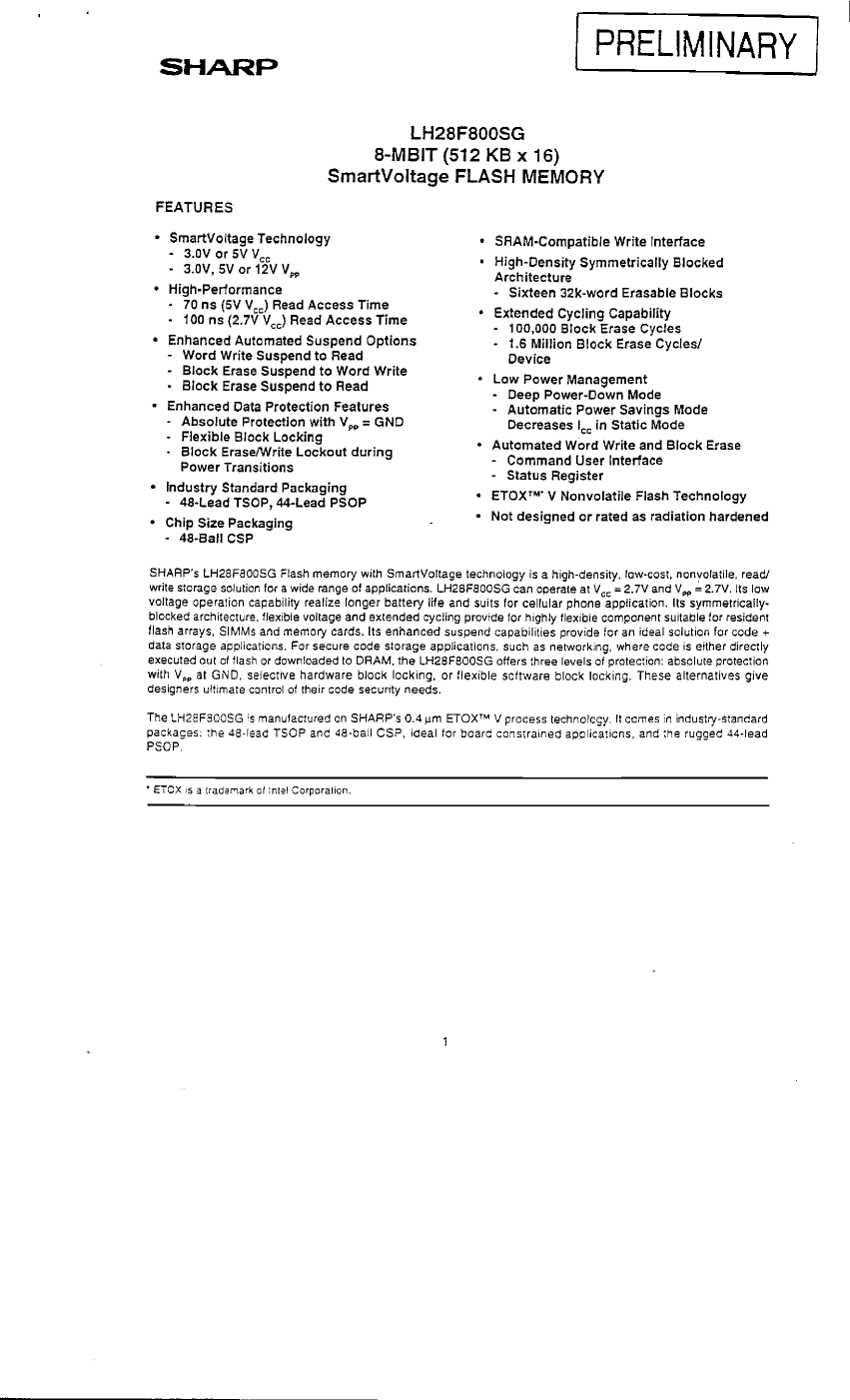

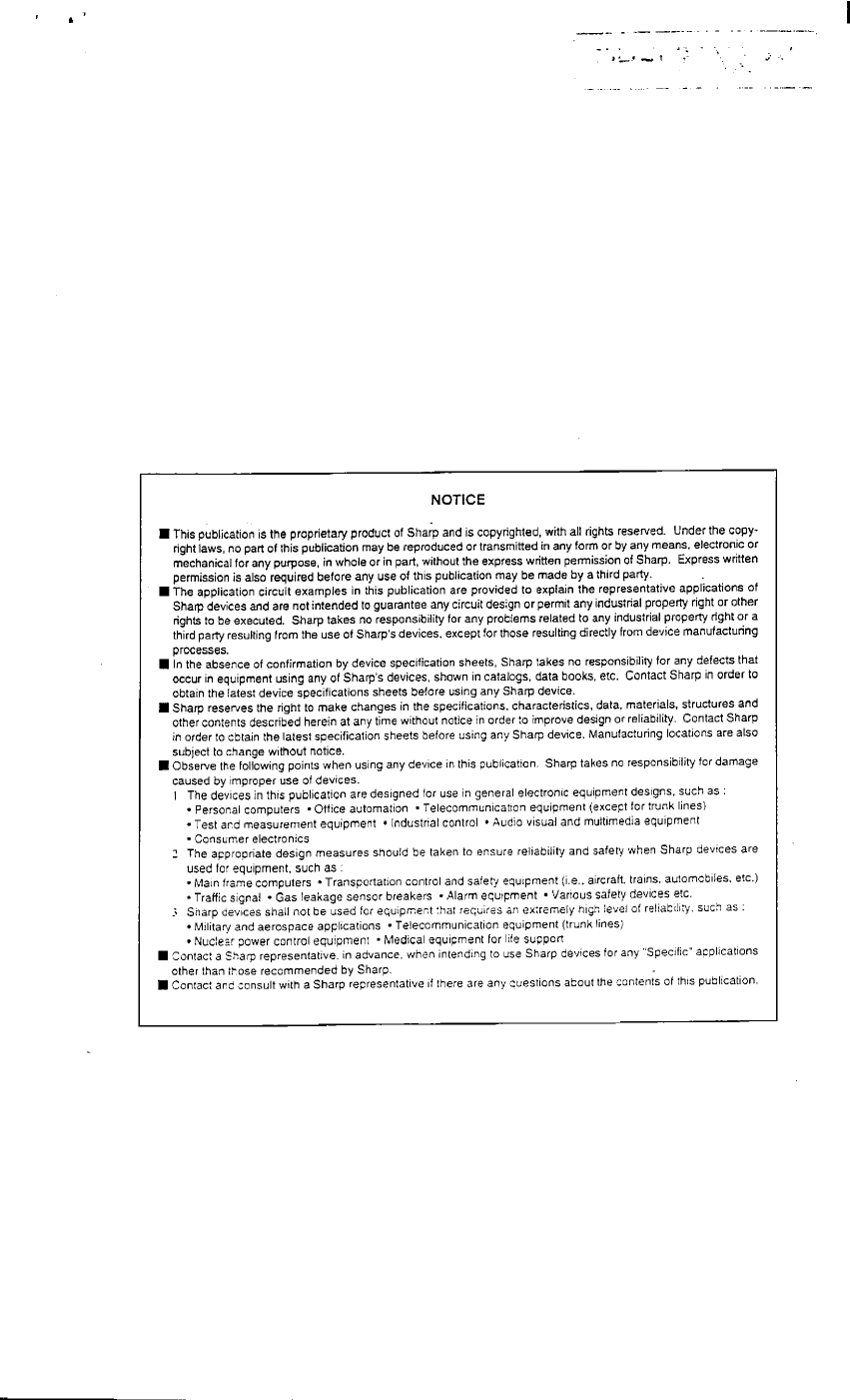

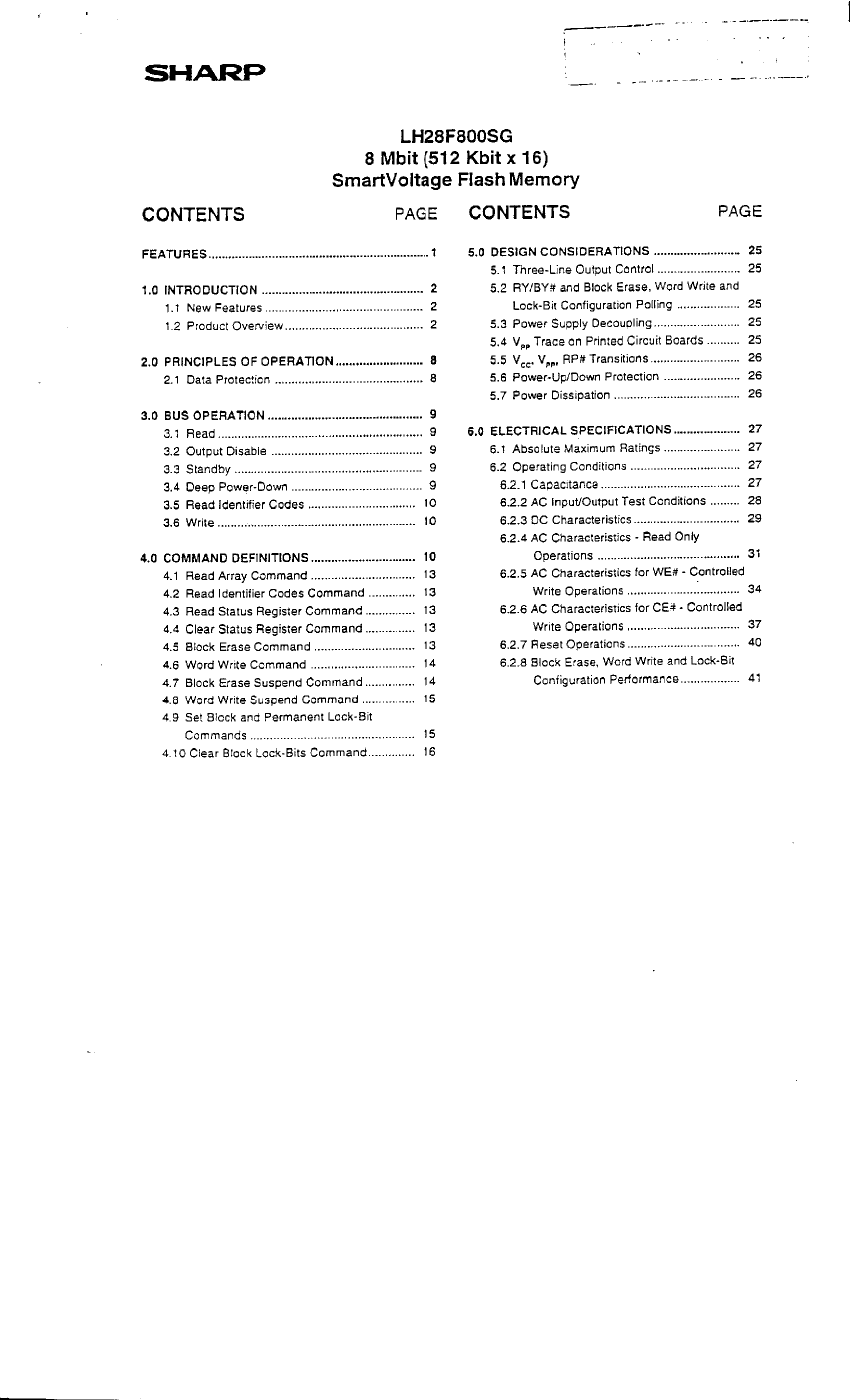

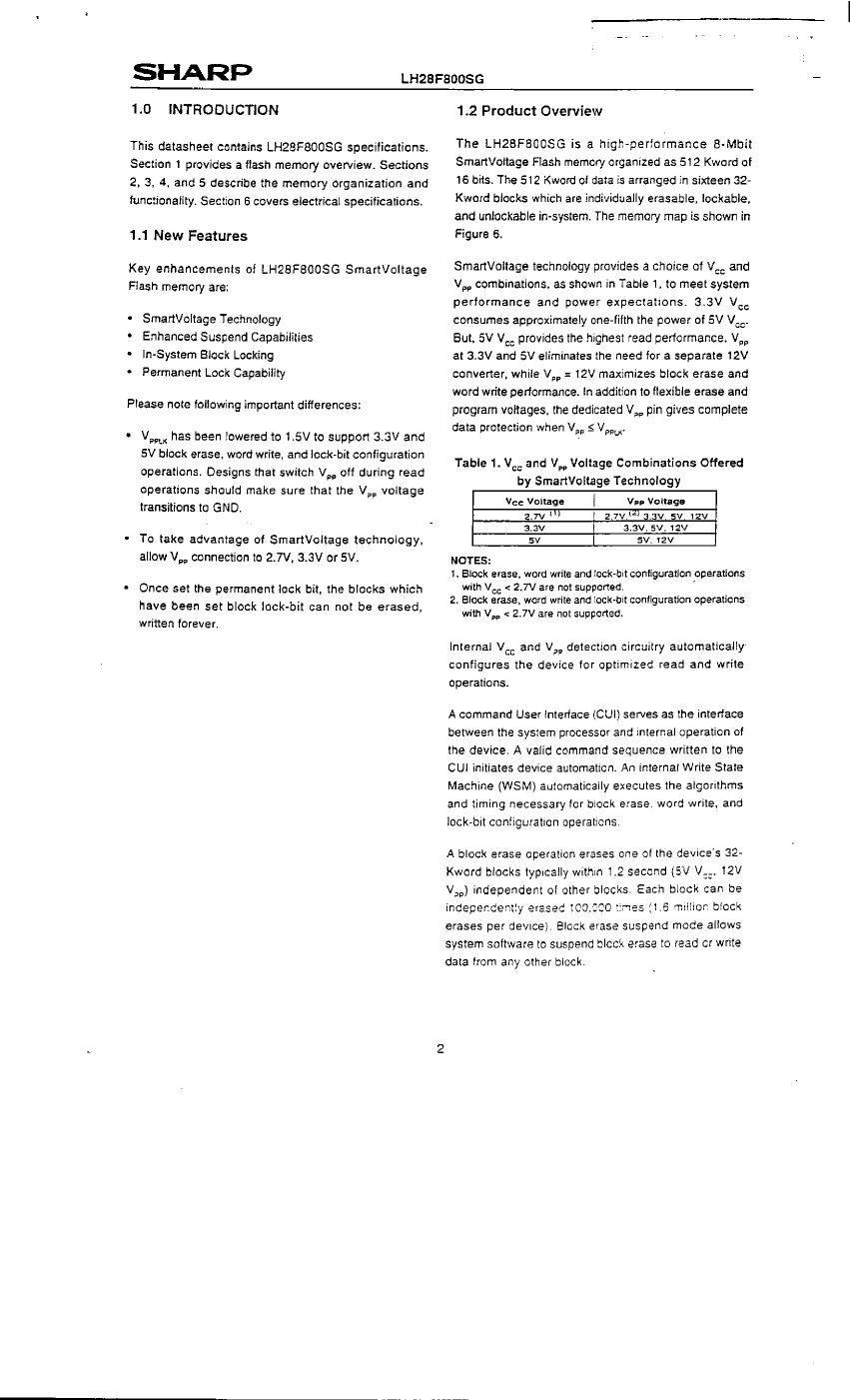

Preview

Download Datasheet

View All

LH28F800SGHR-L100 Related Products

	LH28F800SGHR-L100	LH28F800SGB-L100	LH28F800SGHE-L100	LH28F800SGHB-L100	LH28F800SGHN-L100	LH28F800SGR-L100	LH28F800SGE-L100	LH28F800SGN-L100	LH28F800SGHN-L70
Description	Flash, 512KX16, 100ns, PDSO48, 12 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-48	Flash, 512KX16, PBGA48, 8 X 8 MM, 0.80 MM PITCH, PLASTIC, CSP-48	Flash, 512KX16, 100ns, PDSO48, 12 X 20 MM, 1.20 MM HEIGHT, TSOP-48	Flash, 512KX16, 100ns, PBGA48, 8 X 8 MM, 0.80 MM PITCH, PLASTIC, CSP-48	Flash, 512KX16, 100ns, PDSO44, 28.20 X 16 MM, PLASTIC, SOP-44	Flash, 512KX16, 100ns, PDSO48, 12 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-48	Flash, 512KX16, 100ns, PDSO48, 12 X 20 MM, 1.20 MM HEIGHT, TSOP-48	Flash, 512KX16, PDSO44, 28.20 X 16 MM, PLASTIC, SOP-44	Flash, 512KX16, 80ns, PDSO44, 28.20 X 16 MM, PLASTIC, SOP-44
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	12 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-48	8 X 8 MM, 0.80 MM PITCH, PLASTIC, CSP-48	12 X 20 MM, 1.20 MM HEIGHT, TSOP-48	8 X 8 MM, 0.80 MM PITCH, PLASTIC, CSP-48	28.20 X 16 MM, PLASTIC, SOP-44	12 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-48	12 X 20 MM, 1.20 MM HEIGHT, TSOP-48	28.20 X 16 MM, PLASTIC, SOP-44	28.20 X 16 MM, PLASTIC, SOP-44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC
JESD-30 code	R-PDSO-G48	S-PBGA-B48	R-PDSO-G48	S-PBGA-B48	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48	R-PDSO-G44	R-PDSO-G44
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	48	48	48	48	44	48	48	44	44
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C	85 °C	70 °C	70 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-	-	-	-40 °C
organize	512KX16	512KX16	512KX16	512KX16	512KX16	512KX16	512KX16	512KX16	512KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	BGA	SOP	BGA	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	GRID ARRAY	SMALL OUTLINE	GRID ARRAY	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	BALL	GULL WING	BALL	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	BOTTOM	DUAL	BOTTOM	DUAL	DUAL	DUAL	DUAL	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
Maximum access time	100 ns	-	100 ns	100 ns	100 ns	100 ns	100 ns	-	80 ns
