CORCOM Product Guide
High Frequency Power Line Filter or Power Entry Module
AQ Series
UL Recognized
CSA Certified
3VAQ8F
6VAQ8F
AQ Series

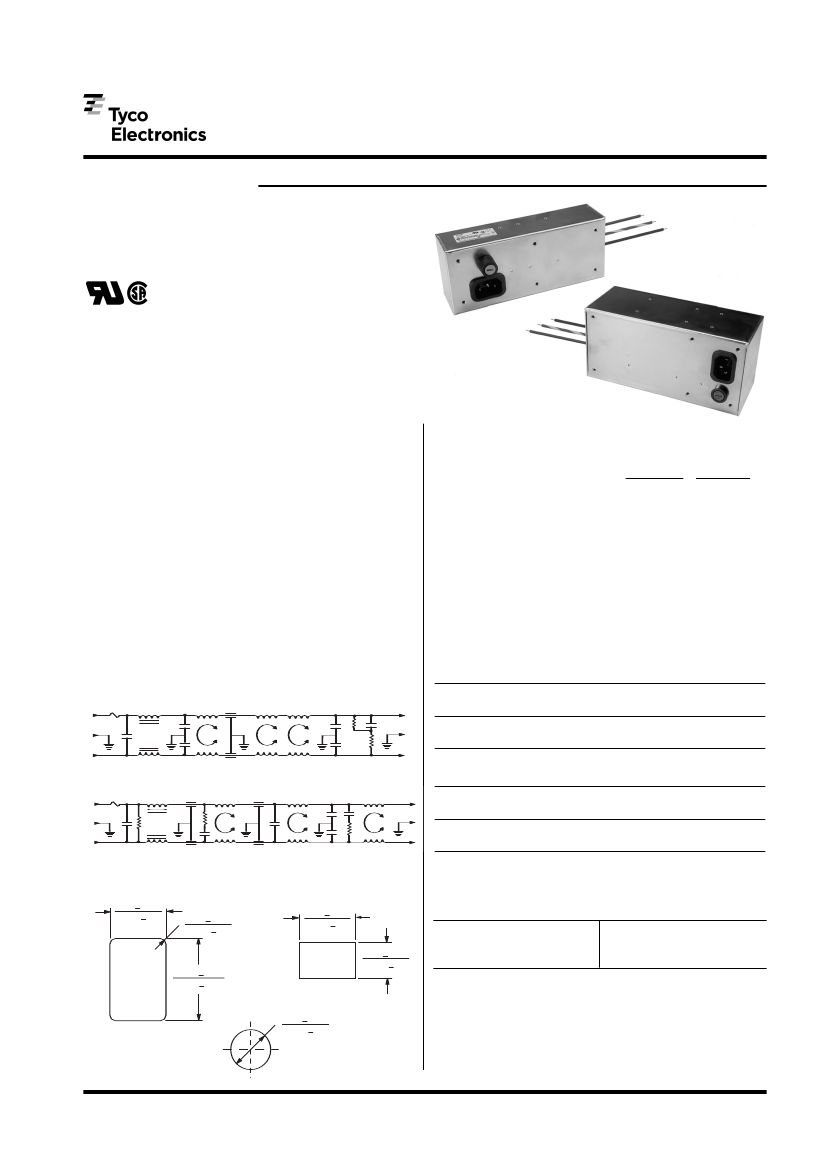

The AQ series high frequency filters provide a low cost
solution to the problem of power line noise at high
frequencies.
With UL Recognition and CSA Certification, the AQ series
is readily available to the customer who requires high
common and differential mode performance from 10KHz to
1GHz. Models with “F” suffix incorporate an IEC connector
and a fuseholder. Models with “S” suffix are supplied with
a switch.
The AQ series is ideal for applications where computers
are used to process secret or confidential information.
Specifications
Maximum leakage current, each line-to-ground
@ 120 VAC 60 Hz:
@ 250 VAC 50 Hz:
Hipot rating (one minute):
line-to-ground
line-to-line
Operating frequency:
Rated voltage (max.):
2250 VDC
1450 VDC
50/60 Hz
250 VAC
3A Models
1.2mA
2.3mA
6A Models
.7mA
1.2mA
Electrical Schematics
3A Models
LINE
LOAD
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Rating .01
3A
6A
10
26
.1
80
59
Frequency-MHz
.5
1 10
50
88
80
88 100
80 100
100
100
100 300 1000
100
100
93
93
85
85
6A Models
LINE
LOAD
Line-to-line in 50 ohm circuit
Current
Rating .01
3A
6A
6
10
.1
51
65
Frequency-MHz
.5
1 10
50
78
86
88 100
95 100
100
100
100 300 1000
100
100
93
93
85
85
Resistor location for reference only.
Recommended Panel Cutouts
.910
+ .005
23.11
+ .13
.235
+ .005
R
5.969 + .13
.855
+ .005
21.72
+ .13
.620
+ .005
15.75 + .13
Part Numbers
3VAQ3
3VAQ8F
3VAQ8FS
6VAQ3
6VAQ8F
6VAQ8FS
1.295 + .005
32.89 + .13
.620
+ .005
Dia.
15.75 + .13
12
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
High Frequency Power Line Filter or Power Entry Module
(Continued)
AQ Series
RFI Power Line Filters

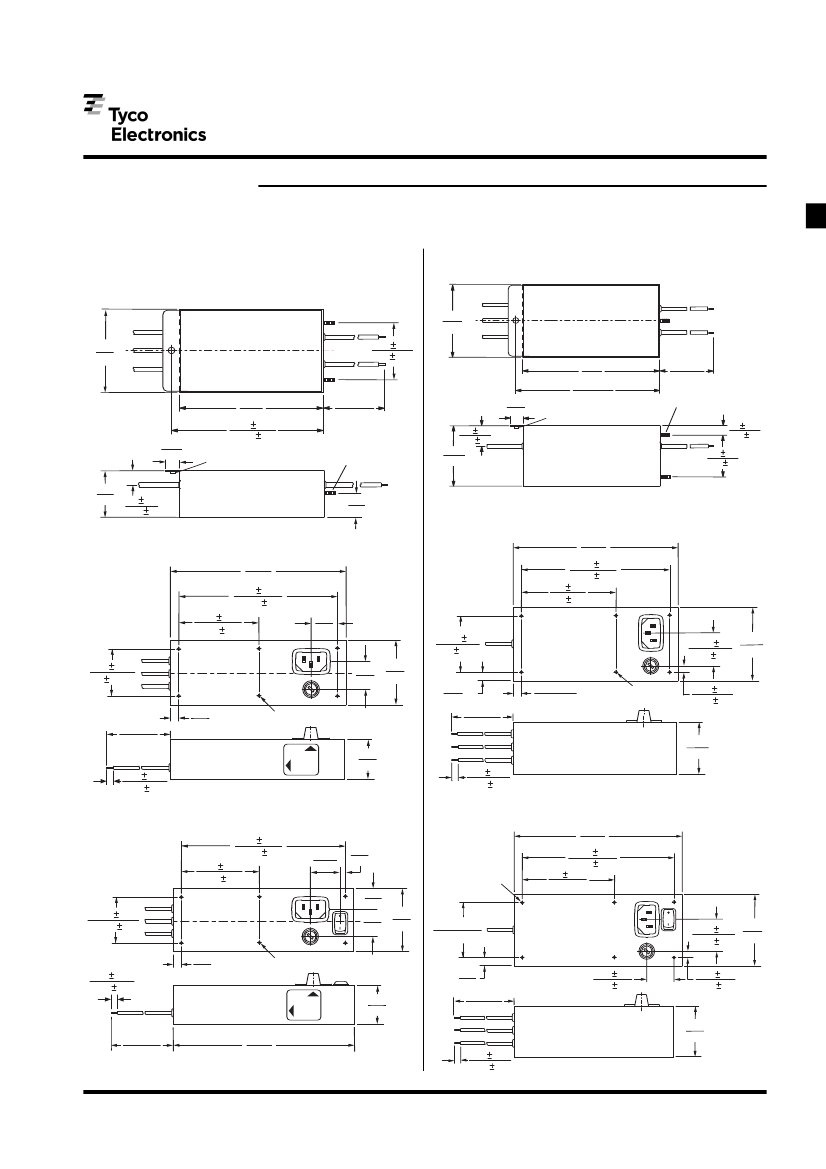

Case Styles and Dimensions
3VAQ3
6VAQ3
2.572 C
65.3 L
2.46
62.3
C
L
1.66 .015
42.1 .38
5.126
130.0
5.327±.015
135.0± .4
12.0 Min.
304.8
(5 places)
4.14
105.1
4.36 .015
111.4 .38
.515
13.08
#6-32
12.0 Min.
304.8
.515
13.08
1.0 0.1
(2 places)
25.4 .25
3.061
77.8
#6-32
#6-32 Thd.
(2 places)
.5 .01
12.7 .25
2.0 .01
50.8 .25
#6-32
1.98
40.1
.50 .02
12.7 .5
.78
19.8
6VAQ8F
3VAQ8F
5.96
152.0
5.06 .015
128.6 .38
2.35 .015
59.6 .38
6.457
164
5.68 .01
44.3 .25
4.0 .01
102 .25
.90
22.9
2.328 .01
59 .35
1.125 .01 3.062
28.6 .25 77.8
1.58 .015
40 .38
.411
ref
10.4
#6-32
(6) inserts
.958
24.3
2.48
63.0
.355
ref
9.02
12.0 Min.
305.0
.354±.010
ref
8.99±.25
#6-32
(6) inserts
.391 .01
9.93 .25
12.0 Min.
305.0
1.62
41.2
.375 .125
9.53 3.2
2.576
65.4
.375 .125
9.53 3.2
3VAQ8FS
5.39 .015
136.9 .38
2.35 .015
59.6 .38
1.058
26.9
.172
4.37
6VAQ8FS
7.125
181.0
6.347 .015
161.2 .38
4.0 .015
101.55
#6-32
(6) inserts
1.575 .015
40.01 .38
.411 ref
10.4
#6-32
(6) inserts
.44
11.2
.958
24.3
2.48
63.0
2.33 ±.015
59.0 ± .38
1.52 .01
38.5 .25
3.07
77.8
.375 .125
9.53 3.2
1.62
41.2
12.0 Min.
305.0
6.30
160.0
.364
9.25
12.0 Min.
304.8
1.12 .01
28.3 .25
.391 .01
9.93 .25
2.58
65.4
.375 .125
9.53 3.2
13
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
