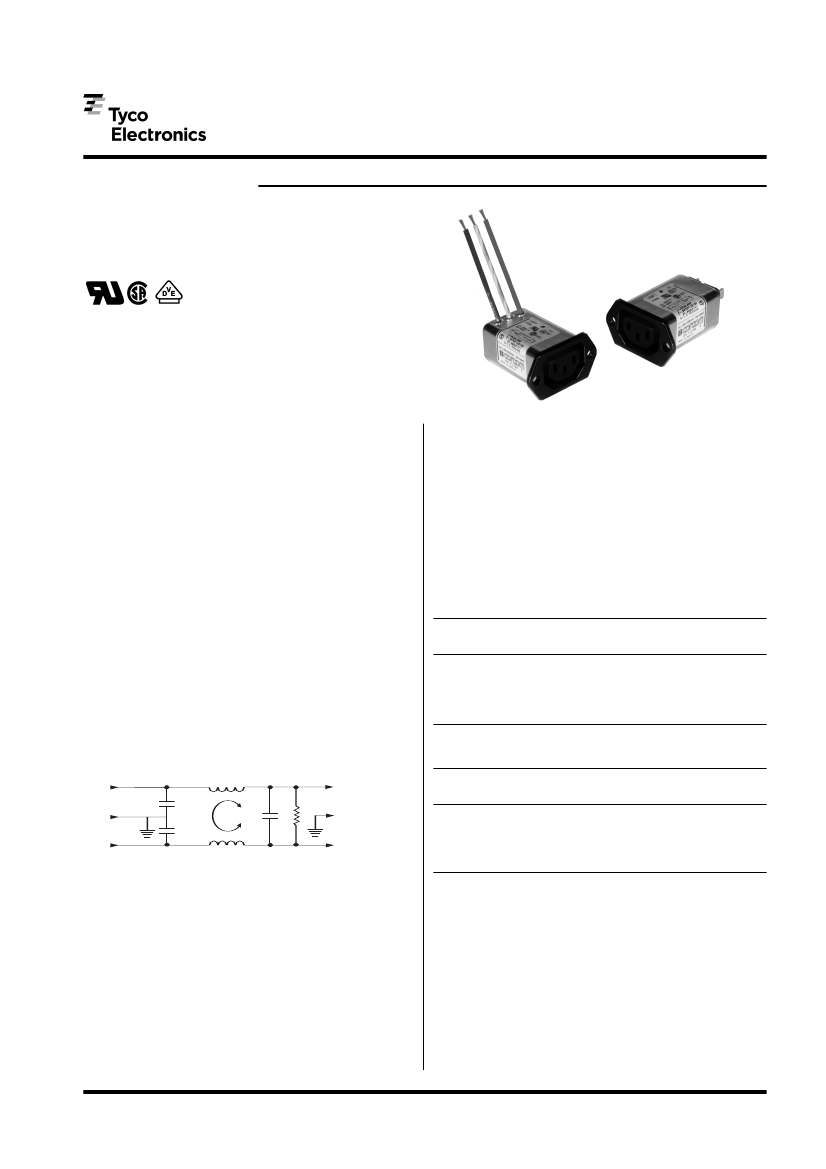

CORCOM Product Guide
Accessory Outlet Filter
EBF Series
UL Recognized
CSA Certified
VDE Approved
EBF4
EBF1
EBF Series
The EBF accessory outlet filters provides an innovative
means of connecting accessories while filtering noise
between a system and the accessories attached. These
filters provide enhanced performance utilizing common
mode inductance and differential mode capacitance for
attenuation of noise across the frequency range.
The filtered connector offers the additional advantage of
a grounded connection and features low leakage current
required for international usage.
Specifications
Maximum leakage current,each line-to-ground
@ 120 VAC 60 Hz:
@ 250 VAC 50 Hz:
Hipot rating (one minute):
line-to-ground
line-to-line
Operating frequency:
Rated voltage (max.):
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Rating
1A
3A
6A
10A
.05
23
10
1
1
.15
32
19
10
5
Frequency-MHz
.5
1
5
41
30
22
14
47
36
28
20
47
48
42
32
.25 mA
.50 mA
1500 VAC
1450 VDC
50/60 Hz
250 VAC
10
47
50
48
38
30
40
47
47
47
Electrical Schematic
LINE
ACCESSORY
OUTLET
Line-to-line in 50 ohm circuit
Current
Rating
1A
3A
6A
10A
.15
3
2
2
2
.5
14
11
10
10
Frequency-MHz
1
3
5
23
14
14
16
41
25
20
19
47
38
33
19
10
50
44
42
39
30
44
40
40
40
Resistor location for reference only.
28
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
Accessory Outlet Filter
(Continued)
EBF Series
RFI Power Line Filters
Case Styles
EBF1
0.126 Dia.
Case Dimensions
Part No.
EBF1
C
A
(max)
2.57
65.3
2.09
53.01
B
(max)
1.33
33.8
1.39
35.31
C
(max)
1.10
25.4
1.16
29.46
D
± .010
± .25
E
(max)
1.99
50.5
1.99
50.5
EBF4
1.575
40.01
1.575
40.01
D
E
Typical dimensions:
Terminals: .250 [6.35] (3)
Slot: .07 x .16 [1.8
x 4.1]
A
B
Holes: .07 [1.8] Dia.(2)
Mounting Holes: .132 [3.35] Dia. (2) with .236 Dia.
x 90˚ countersunk for #4 Flathead Screw
Part Numbers
01EBF1
03EBF1
06EBF1
10EBF1
01EBF4
03EBF4
06EBF4
10EBF4
EBF4
E
D
A
B
C
Wire 18 AWG 10" length
Recommended Panel Cutout
1.01*
25.7
.14
3.6
1.40
35.6
1.575 ± .004
40.0
±
0.1
Dia.
.20
5.1
* +.008
-.000
R Typ.
Front mount only
29
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
