LH53B8500D datasheet, PDF - EEWORLD Datasheet

LH53B8500D: DescriptionMASK ROM, 1MX8, 150ns, CMOS, PDIP42, 0.600 INCH, PLASTIC, DIP-42; Categorystorage storage; File Size150KB，8 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

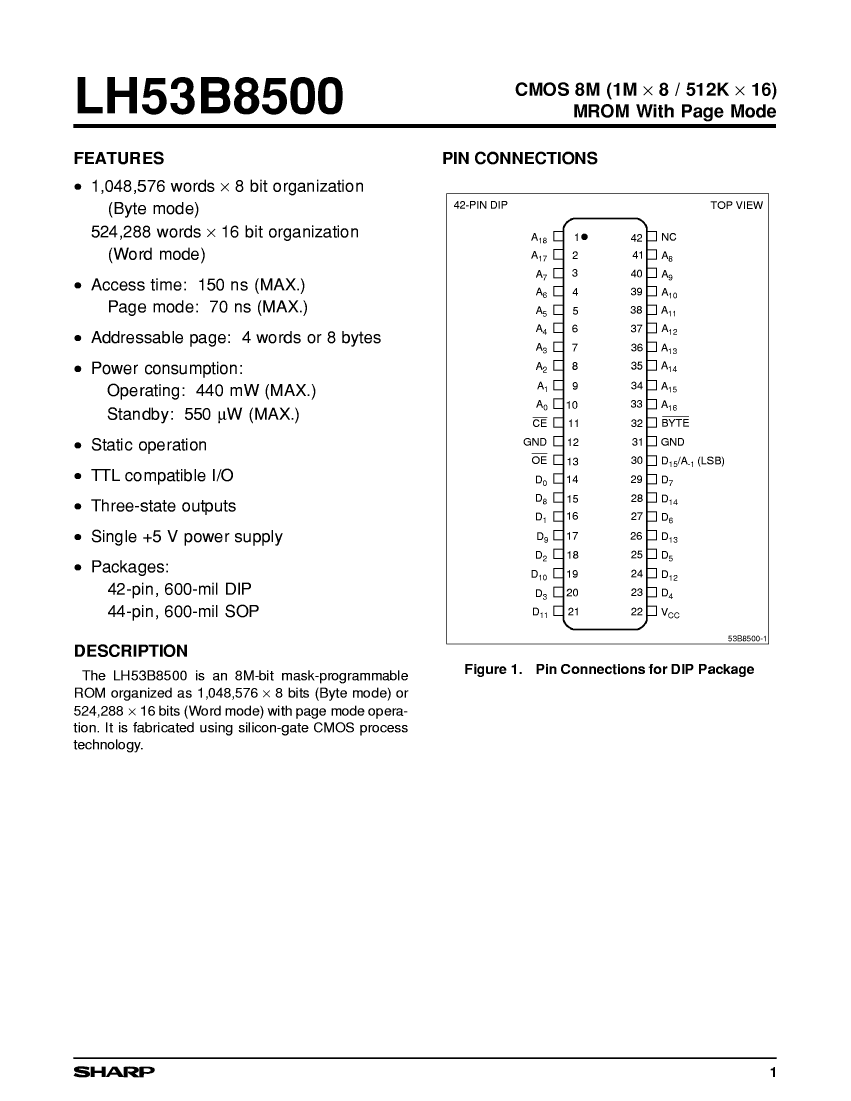

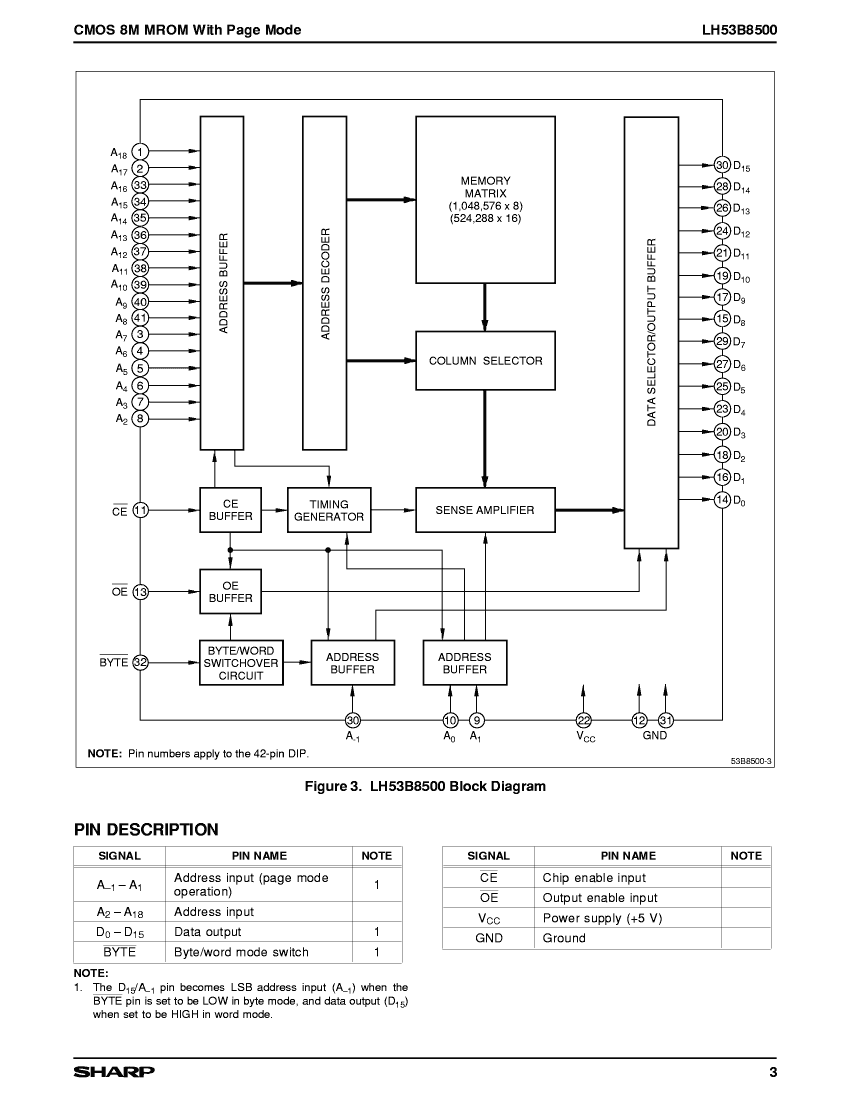

LH53B8500D Overview

MASK ROM, 1MX8, 150ns, CMOS, PDIP42, 0.600 INCH, PLASTIC, DIP-42

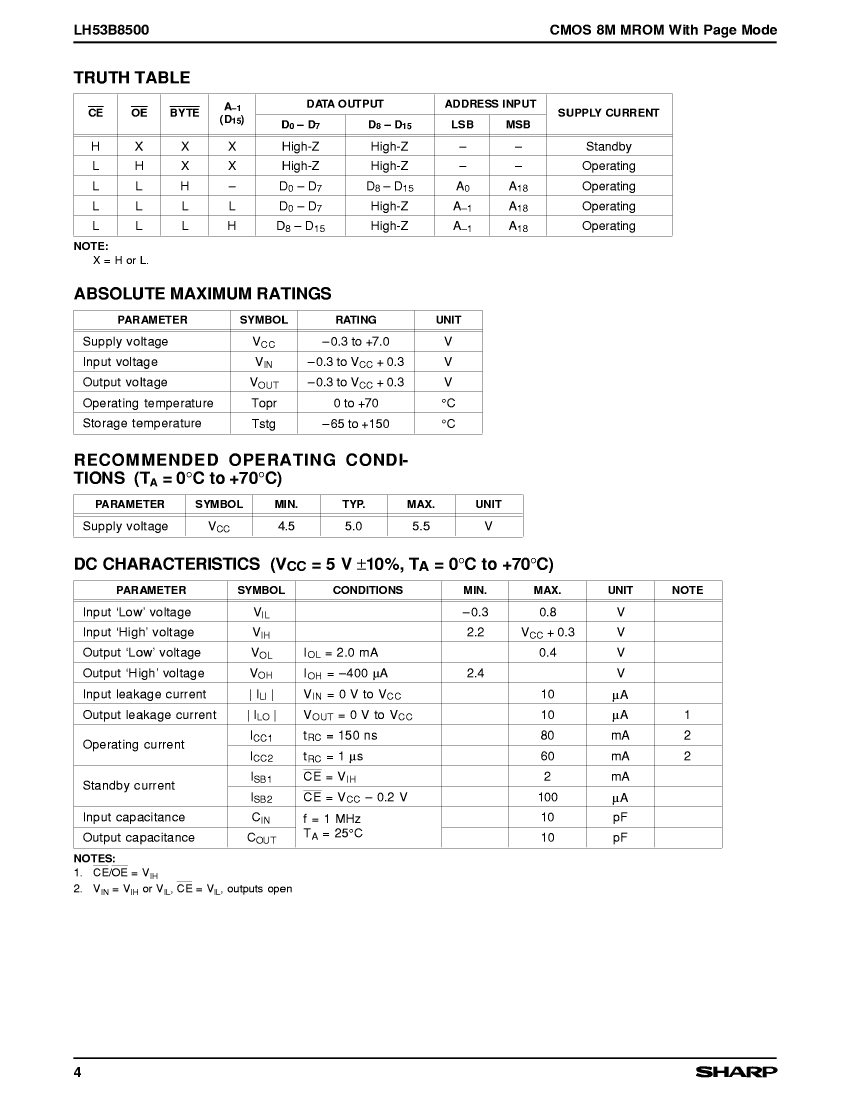

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	0.600 INCH, PLASTIC, DIP-42
Reach Compliance Code	unknown

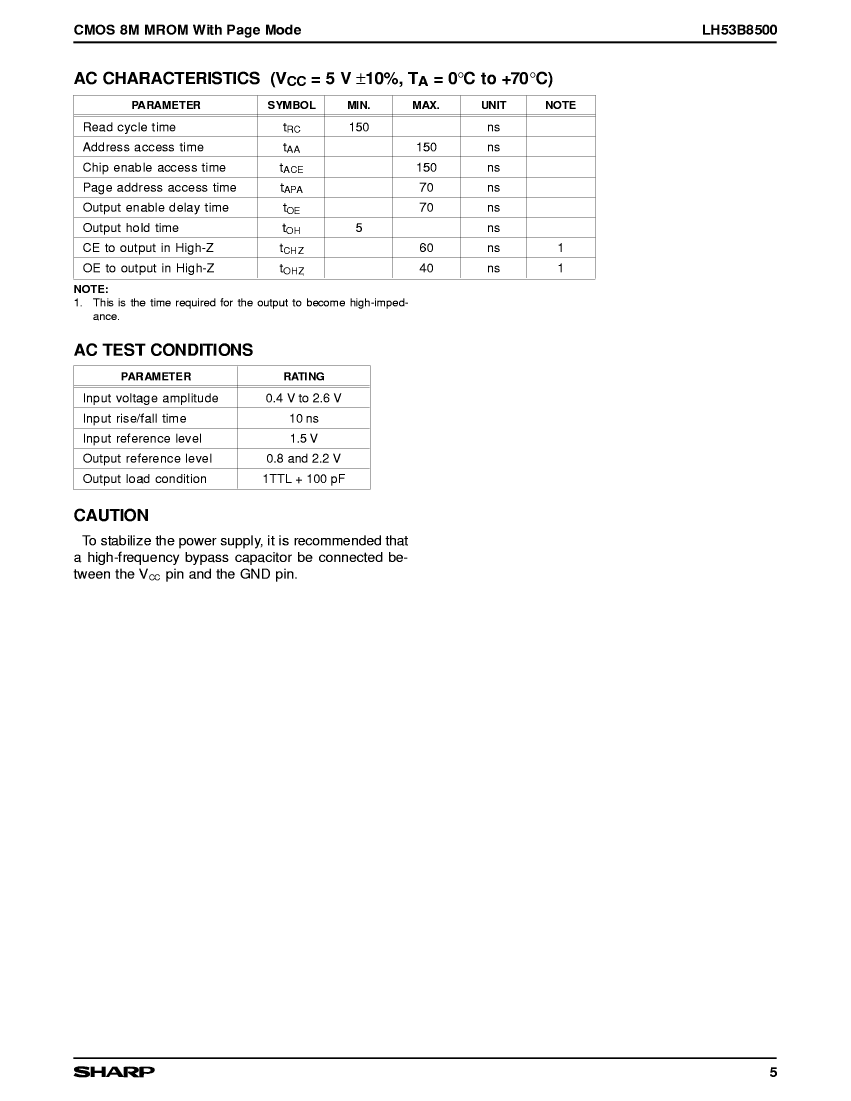

Maximum access time	150 ns
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
length	53.8 mm
memory density	8388608 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	42
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.4 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

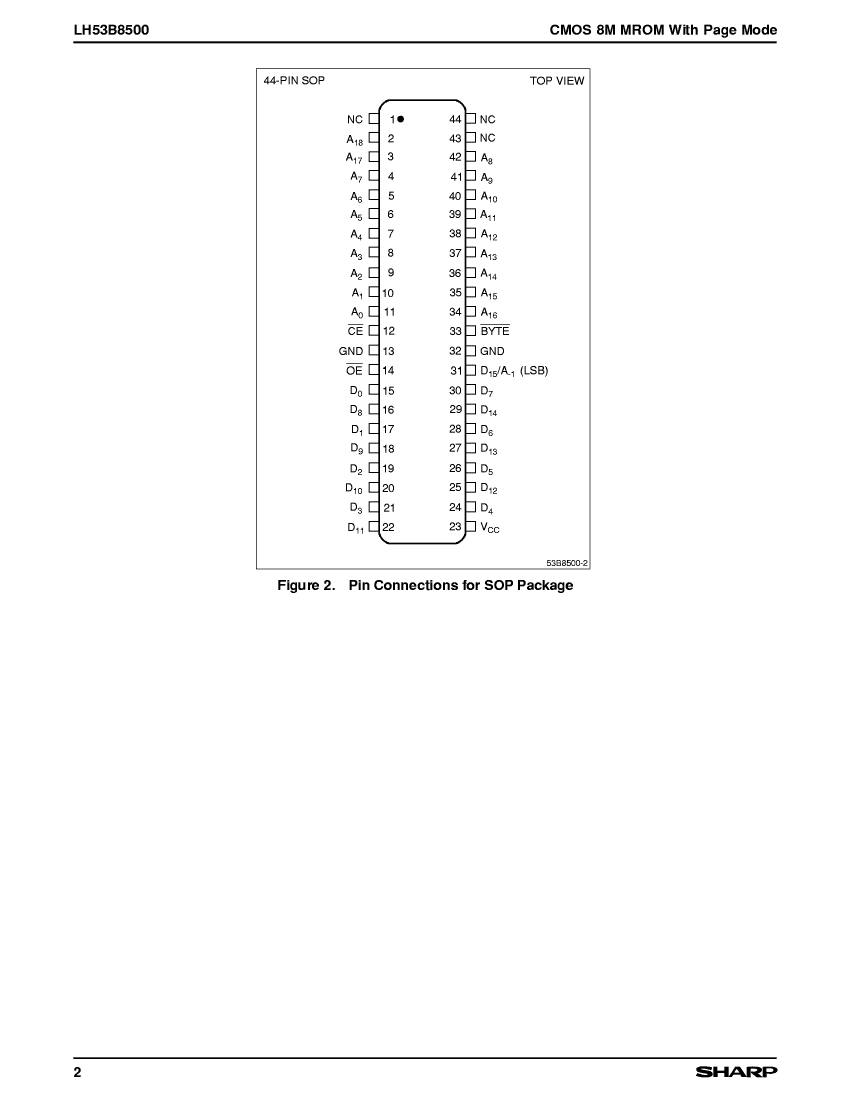

	LH53B8500D	LH53B8500N
Description	MASK ROM, 1MX8, 150ns, CMOS, PDIP42, 0.600 INCH, PLASTIC, DIP-42	MASK ROM, 1MX8, 150ns, CMOS, PDSO44, 0.600 INCH, PLASTIC, SOP-44
Is it Rohs certified?	incompatible	incompatible
Maker	SHARP	SHARP
package instruction	0.600 INCH, PLASTIC, DIP-42	0.600 INCH, PLASTIC, SOP-44
Reach Compliance Code	unknown	unknown
Maximum access time	150 ns	150 ns
JESD-30 code	R-PDIP-T42	R-PDSO-G44
JESD-609 code	e0	e0
length	53.8 mm	28.2 mm
memory density	8388608 bit	8388608 bit
Memory IC Type	MASK ROM	MASK ROM
memory width	8	8
Number of functions	1	1
Number of terminals	42	44
word count	1048576 words	1048576 words
character code	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	1MX8	1MX8
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.4 mm	3.25 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	13.2 mm
