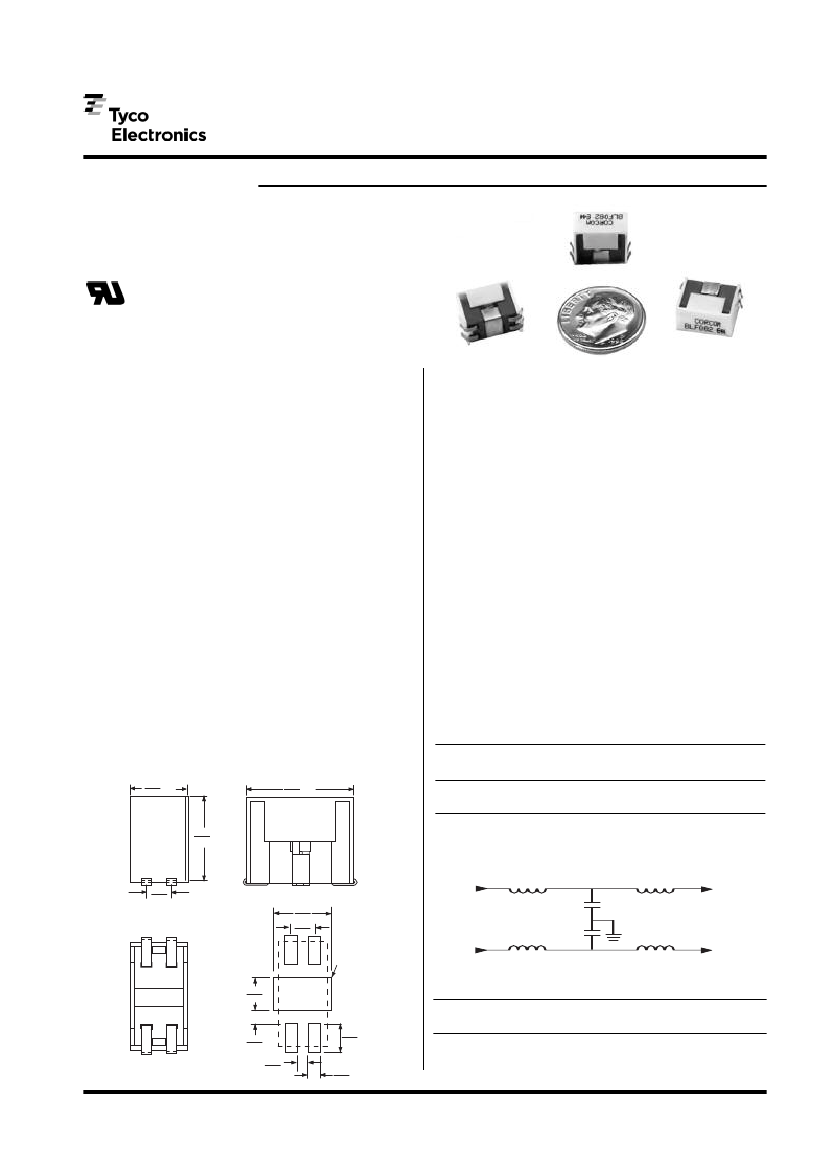

CORCOM Product Guide
Surface Mountable RFI Filters
BLF Series
BLF
UL Recognized
Specifications
Capacitors:
Type
Standard Value:
BLF820
BLF082
Standard Tolerance:
Ferrites:
Type:
Inductance:
Housing Material:
High resistivity, nickel zinc ceramic
2
µH
Glass-filled polyester (UL94V-0)
1000 VAC for
60 seconds
Monolithic ceramic chip
820pF
82pF
+/-20%
BLF Series
Tyco Electronics introduces a new line of surface
mountable RFI filters specifically designed to eliminate
noise on the signal line. These board level filters attenuate
noise on the signal line at the frequency range of 10 MHz
to 1000 MHz with maximum attenuation at 40 MHz to 400
MHz.
The U shaped ferrite features a parallel first and second leg
with a center leg surrounded by a grounding/shorting strap
and a capacitor for each line. This unique design
optimizes the filter performance by combining the elements
into one low profile single piece filter. Each filter acts on
two signal lines, but can be stacked as an array to allow
performance over multiple lines.
The BLF filter can withstand dielectric voltage of 1000 VAC
for 60 seconds, thereby allowing placement of this filter at
the optimal location, immediately behind the connector.
This placement allows immunity protection from signal line
interference as well as significant reduction of RFI
emissions. The filter can be used in conjunction with
unfiltered RJ jacks, ganged jacks, or with filtered modular
jacks for additional protection.
Dielectric Withstanding Voltage:
Line-to-line and line-to-ground
Ratings:
2.2 Amps max.
56.6 Volts max.
Pass Band
Minimum insertion loss in dB:
Differential mode in a 50 ohm circuit
at 1 MHz <1dB
at 5MHz < 6dB
Stop Band
Minimum insertion loss in dB:
Common mode in a 50 ohm circuit
Model
20
4
20
40
10
30
Frequency-MHz
70 100 150 300
16 20
40 50
25
40
40
31
500 700 1000
26
25
23
22
20
13
Dimensions
.25 Max.
6.35
.450 Max.
11.43
BLF082
BLF820
.375 Max.
9.53
Electrical Schematic
.100
2.54
Max.
Recommended Pad Layout
.265
6.73
.100
2.54
LINE
LOAD
Gnd Pad
.150
3.81
Part Numbers
.120
3.05
BLF820
BLF082
.047
1.19
(4 places)
.047
1.19
(2 places)
.050
1.27
174
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
