MN6400S: DescriptionADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP28, DOUBLE WIDTH, SIDE BRAZED, DIP-28; CategoryAnalog mixed-signal IC converter; File Size1MB，8 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MN6400S Overview

ADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP28, DOUBLE WIDTH, SIDE BRAZED, DIP-28

MN6400S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	16.25 µs
Converter type	ADC, PROPRIETARY METHOD
JESD-30 code	R-CDIP-T28
length	35.815 mm
Maximum linear error (EL)	0.0022%
Nominal negative supply voltage	-15 V
Number of analog input channels	2
Number of digits	16
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY, OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Sampling rate	0.05 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	4.699 mm
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

Preview

Download Datasheet

View All

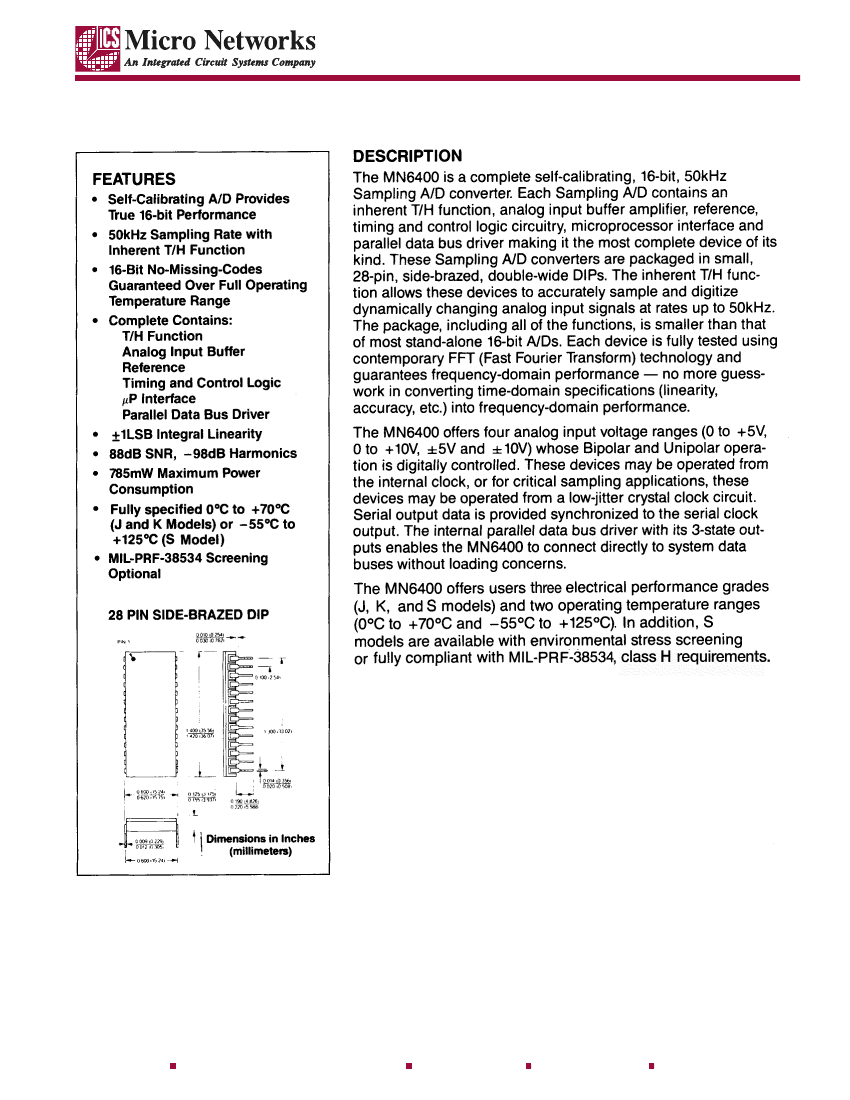

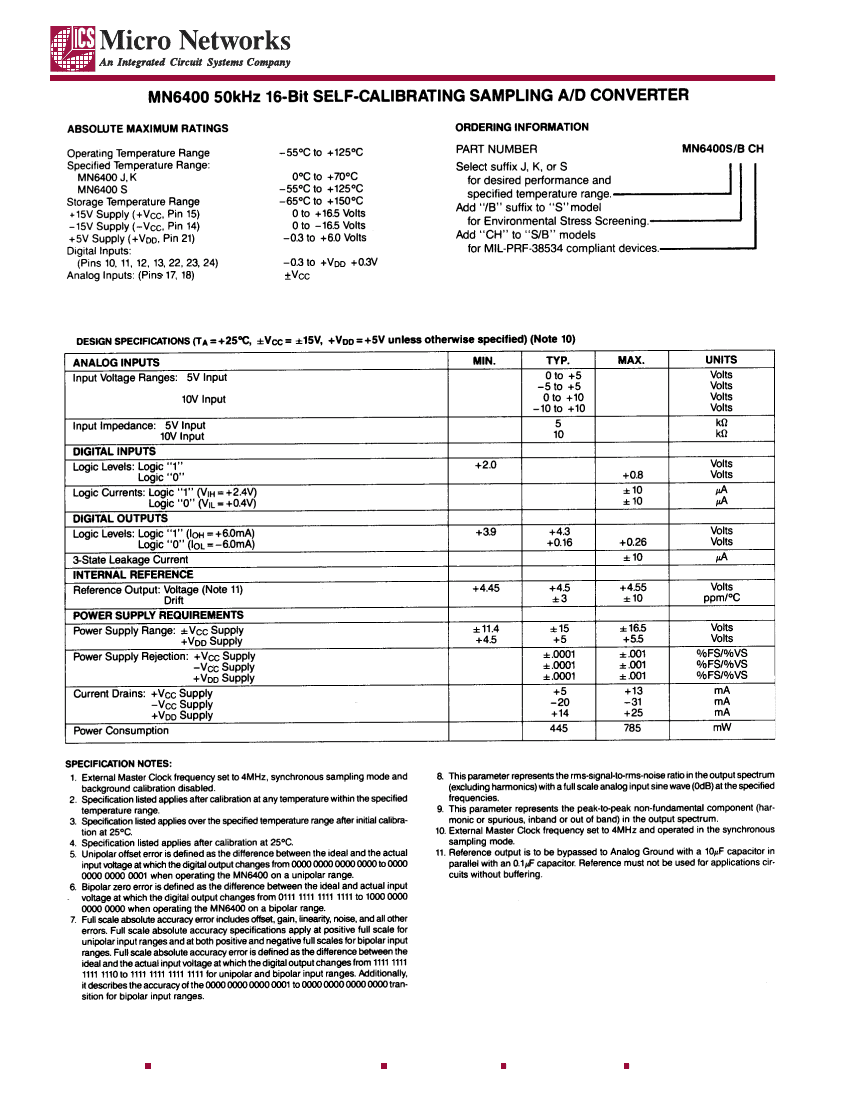

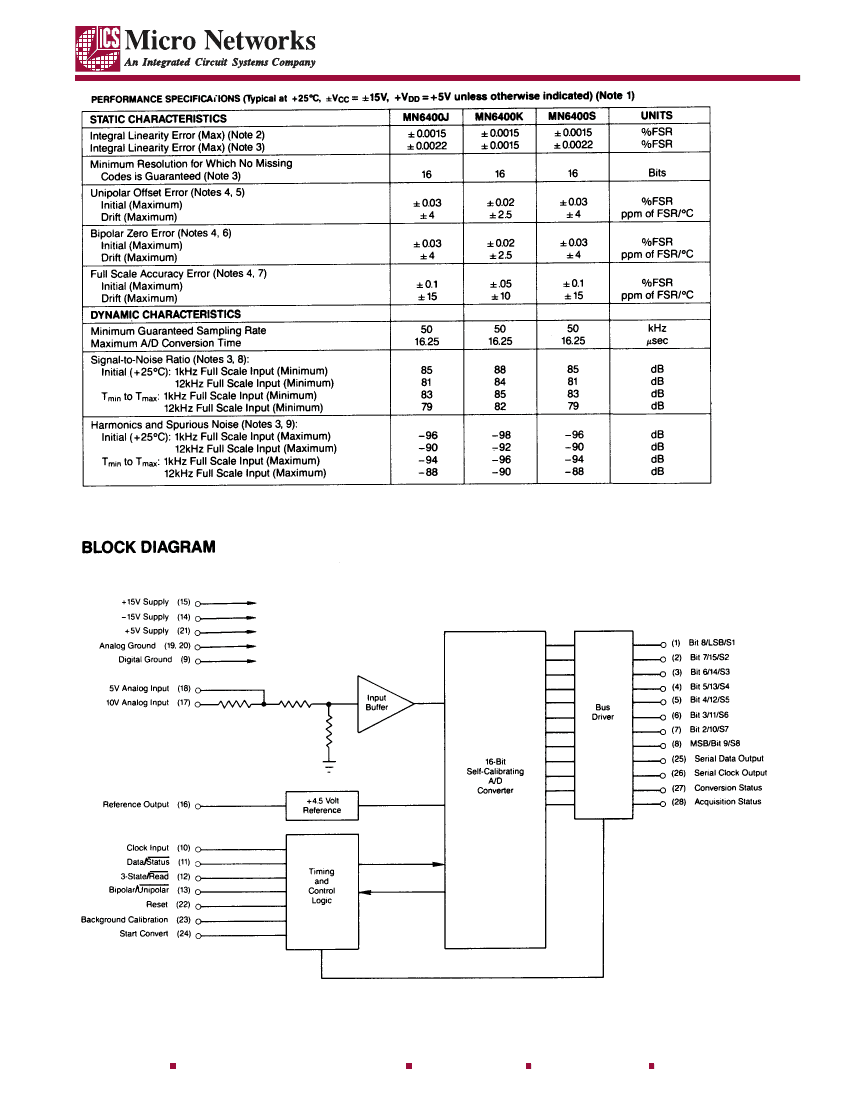

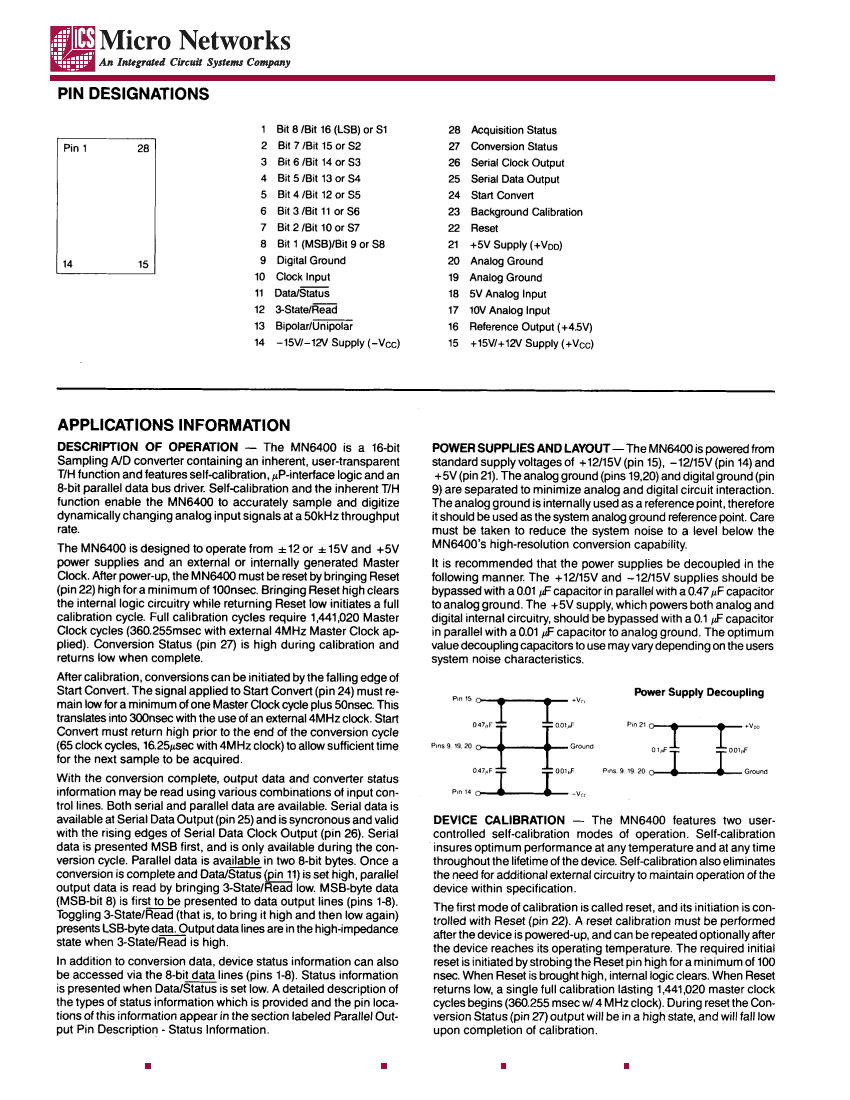

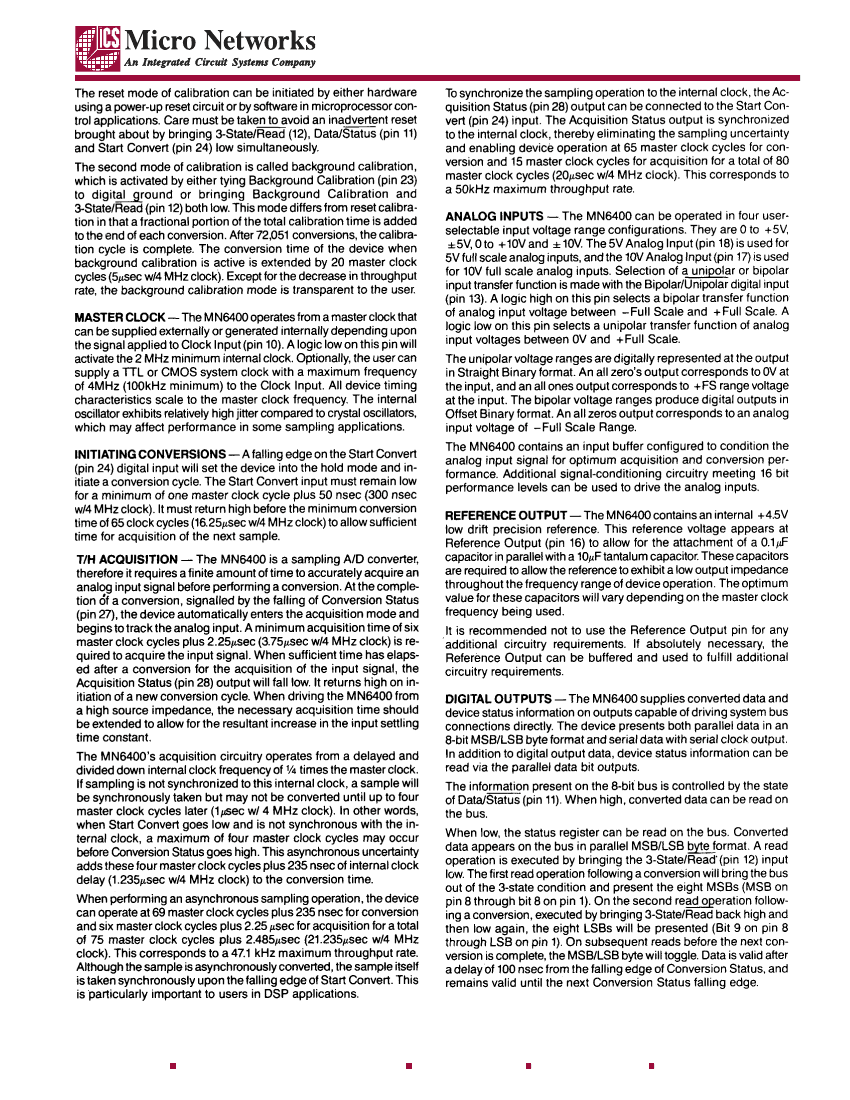

MN6400

50kHz, 16-bit Self-Calibrating

Sampling A/D Converter

Micro Networks

324 Clark Street Worcester, MA 01606

tel: 508-852-5400

1

fax: 508-852-8456

www.micronetworks.com

MN6400S Related Products

	MN6400S	MN6400K	MN6400J
Description	ADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP28, DOUBLE WIDTH, SIDE BRAZED, DIP-28	ADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP28, DOUBLE WIDTH, SIDE BRAZED, DIP-28	ADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP28, DOUBLE WIDTH, SIDE BRAZED, DIP-28
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6
Contacts	28	28	28
Reach Compliance Code	unknown	unknown	unknown
ECCN code	3A001.A.2.C	EAR99	EAR99
Maximum analog input voltage	10 V	10 V	10 V
Minimum analog input voltage	-10 V	-10 V	-10 V
Maximum conversion time	16.25 µs	16.25 µs	16.25 µs
Converter type	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD
JESD-30 code	R-CDIP-T28	R-CDIP-T28	R-CDIP-T28
length	35.815 mm	35.815 mm	35.815 mm
Maximum linear error (EL)	0.0022%	0.0015%	0.0022%
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of analog input channels	2	2	2
Number of digits	16	16	16
Number of functions	1	1	1
Number of terminals	28	28	28
Maximum operating temperature	125 °C	70 °C	70 °C
Output bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Sampling rate	0.05 MHz	0.05 MHz	0.05 MHz
Sample and hold/Track and hold	TRACK	TRACK	TRACK
Maximum seat height	4.699 mm	4.699 mm	4.699 mm
Nominal supply voltage	15 V	15 V	15 V
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm
