Datasheet> All Categories > Analog mixed-signal IC> converter> MN6450T

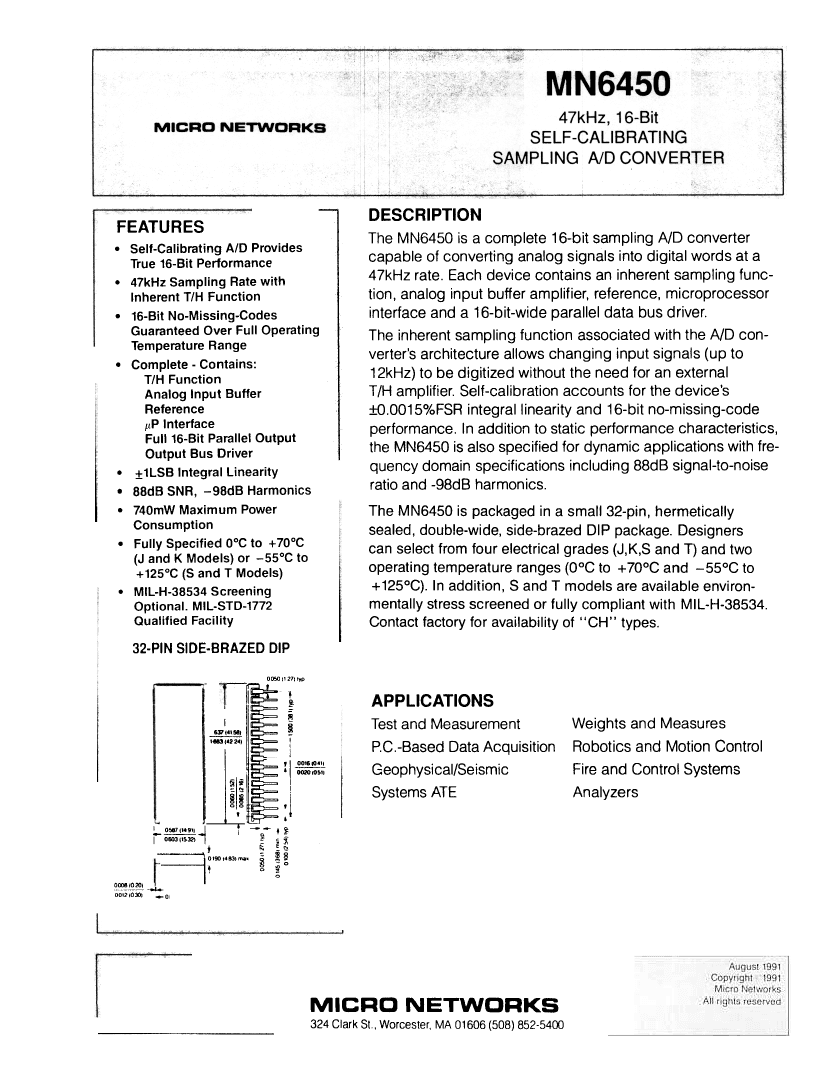

Preview

MN6450T: DescriptionADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP32, DOUBLE WIDTH, SIDE BRAZED, HERMETIC SEALED, DIP-32; CategoryAnalog mixed-signal IC converter; File Size2MB，8 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MN6450T Overview

ADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP32, DOUBLE WIDTH, SIDE BRAZED, HERMETIC SEALED, DIP-32

MN6450T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP32,.6
Contacts	32
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	16.25 µs
Converter type	ADC, PROPRIETARY METHOD
JESD-30 code	R-CDIP-T32
JESD-609 code	e0
length	41.91 mm
Maximum linear error (EL)	0.0015%
Nominal negative supply voltage	-15 V
Number of analog input channels	2
Number of digits	16
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY, OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Sampling rate	0.047 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	6.1 mm
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

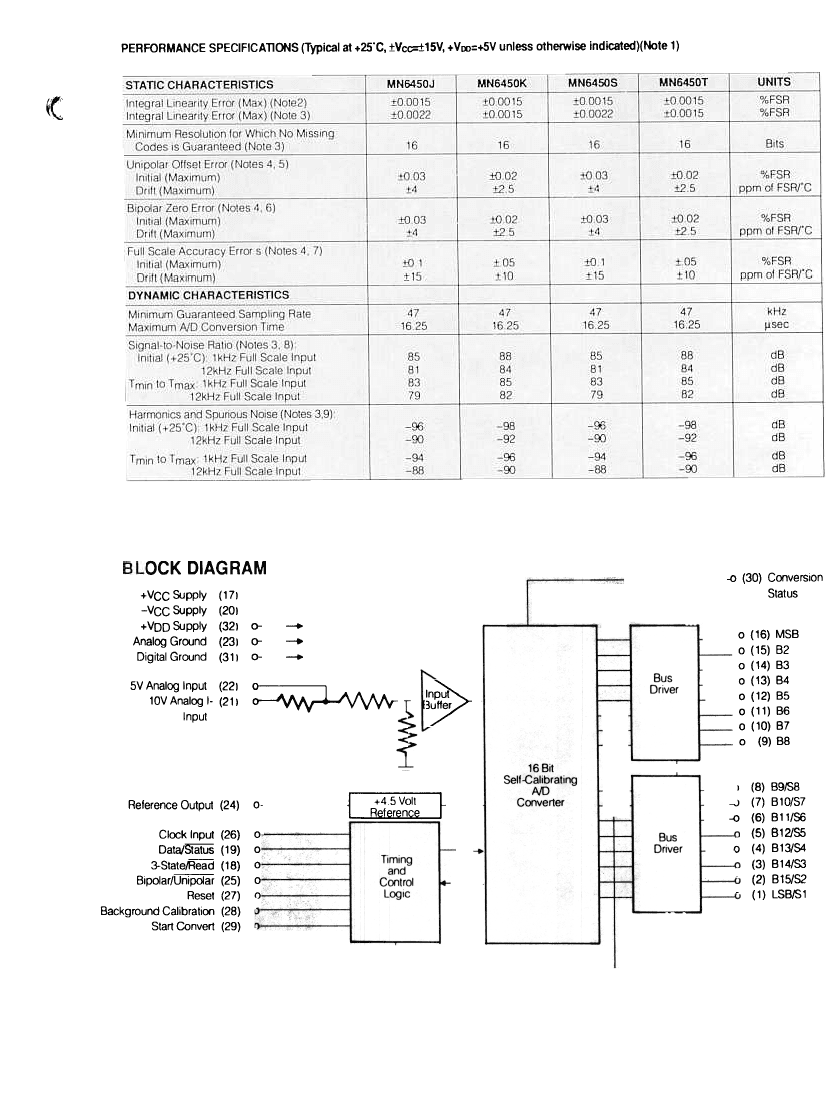

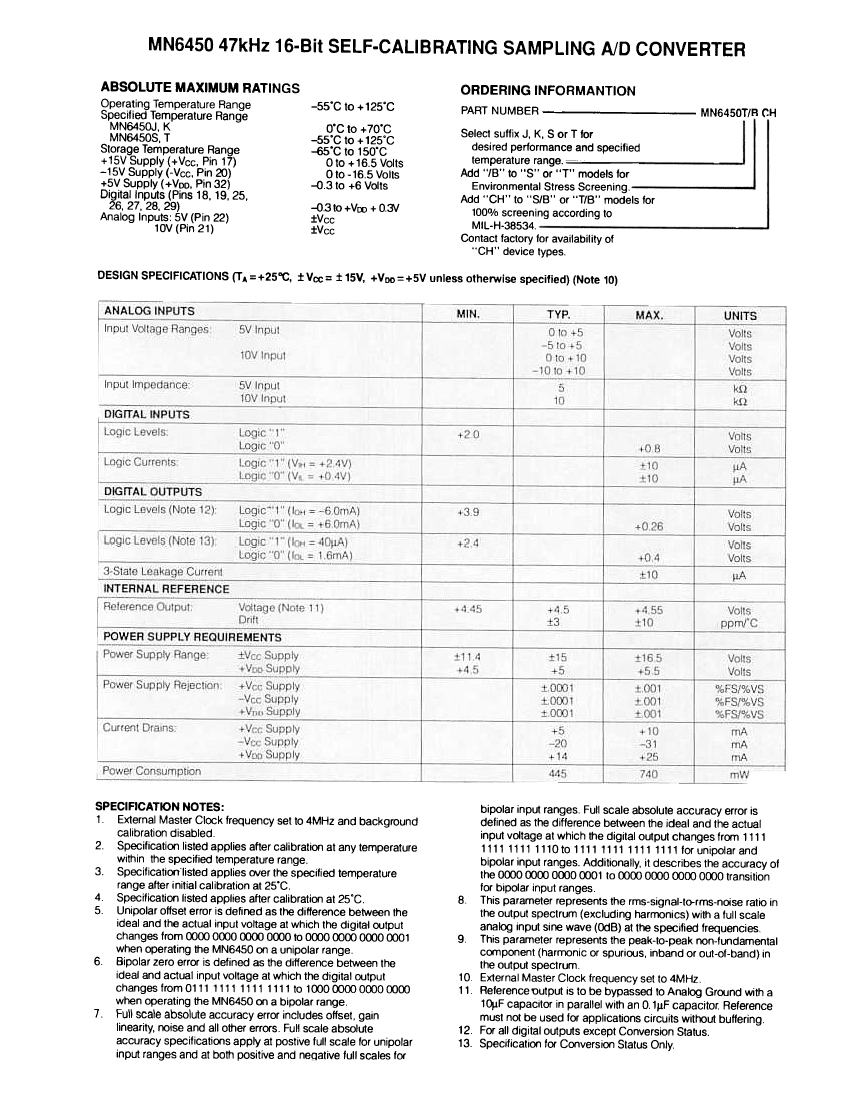

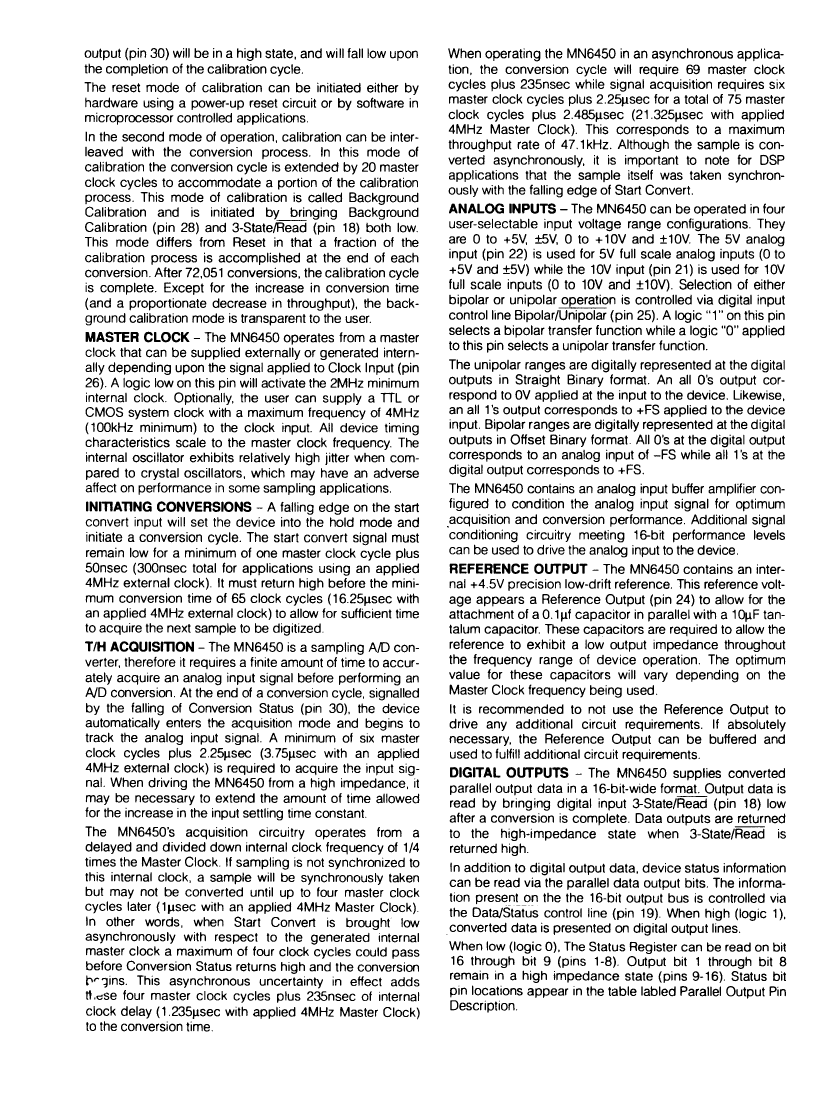

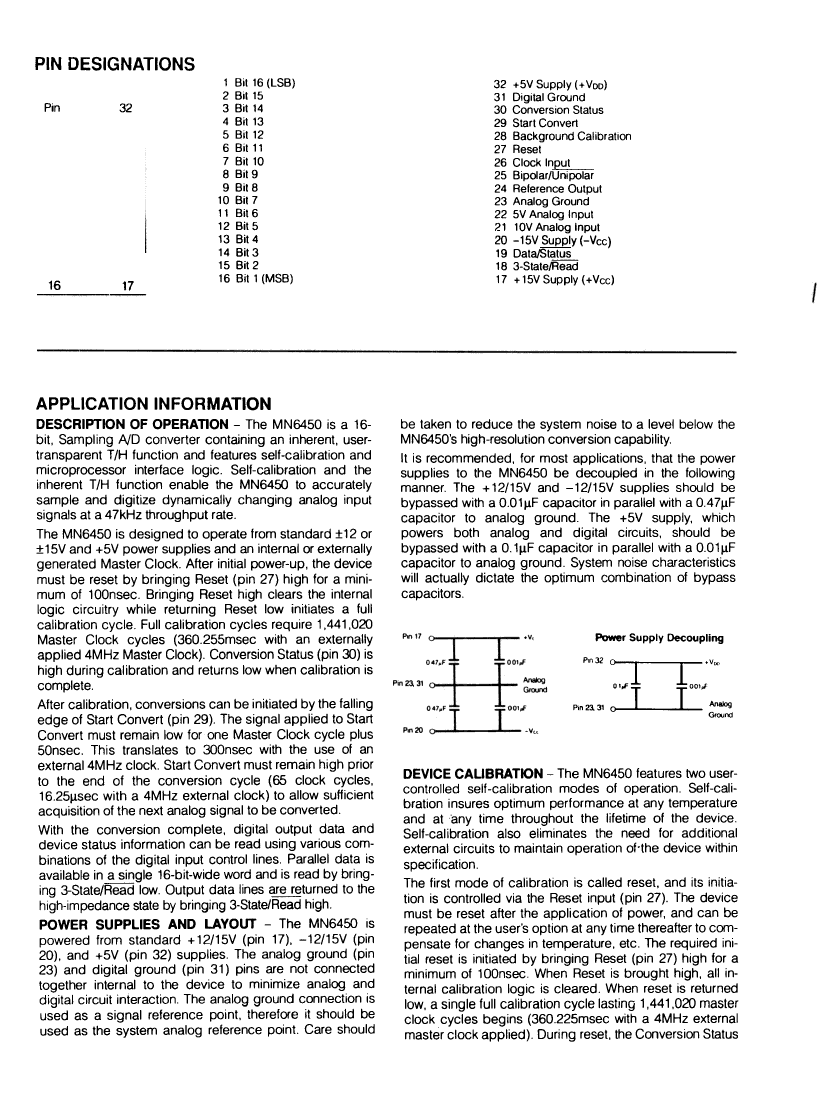

Preview

Download Datasheet

View All

MN6450T Related Products

	MN6450T	MN6450T/B	MN6450T/BCH
Description	ADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP32, DOUBLE WIDTH, SIDE BRAZED, HERMETIC SEALED, DIP-32	ADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP32, DOUBLE WIDTH, SIDE BRAZED, HERMETIC SEALED, DIP-32	ADC, Proprietary Method, 16-Bit, 1 Func, 2 Channel, Parallel, Word Access, Hybrid, CDIP32, DOUBLE WIDTH, SIDE BRAZED, HERMETIC SEALED, DIP-32
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6
Contacts	32	32	32
Reach Compliance Code	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	10 V	10 V	10 V
Minimum analog input voltage	-10 V	-10 V	-10 V
Maximum conversion time	16.25 µs	16.25 µs	16.25 µs
Converter type	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD
JESD-30 code	R-CDIP-T32	R-CDIP-T32	R-CDIP-T32
JESD-609 code	e0	e0	e0
length	41.91 mm	41.91 mm	41.91 mm
Maximum linear error (EL)	0.0015%	0.0015%	0.0015%
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of analog input channels	2	2	2
Number of digits	16	16	16
Number of functions	1	1	1
Number of terminals	32	32	32
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.6	DIP32,.6	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Sampling rate	0.047 MHz	0.047 MHz	0.047 MHz
Sample and hold/Track and hold	TRACK	TRACK	TRACK
Maximum seat height	6.1 mm	6.1 mm	6.1 mm
Nominal supply voltage	15 V	15 V	15 V
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm
Filter level	-	MIL-STD-883 Class B (Modified)	MIL-PRF-38534 Class H
