F512D5-5M20Y Overview

Interconnection Device, ROHS COMPLIANT

F512D5-5M20Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panduit
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

UICK

™

MTP* Interconnect Cable Assemblies –

Plenum (OFNP) Rated

SPECIFICATION SHEET

specifications

RoHS compliant MTP* interconnect cable assemblies shall

include one factory-terminated female MTP* 12-fiber connector

on each end of laser optimized OM3 fiber or OM1, OM2 or

OS1 fiber. Jacketed cable is compliant with NFPA 262 (OFNP)

flame rating. MTP* interconnect cable assemblies shall meet or

exceed the requirements of TIA/EIA-568-B.3. The MTP* 12-fiber

connector shall exceed the requirements of TIA/EIA-455-21A for

500 mating cycles. The MTP* connector finishing process shall

deliver uniform fiber height, low insertion loss and excellent

return loss performance across the 12-fiber interface.

UICK

™

Plenum (OFNP) Multimode

MTP* Interconnect Cable Assemblies

OM3 – 10G

™

50/125µm:

OM2 – 50/125µm:

OM1 – 62.5/125µm:

FX12D5-5M

‡

F512D5-5M

‡

F612D5-5M

‡

UICK

™

Plenum (OFNP) Singlemode

MTP* Interconnect Cable Assemblies

OS1 – 9/125µm:

F912D5-5M

‡

technical information

Standards

requirements:

MTP* connector exceeds TIA/EIA-455-21A: 1000 mating cycles

(multimode) and 500 mating cycles (singlemode)

Compliant with: TIA/EIA-568-B.3 and ISO/IEC 11801

IEC-61754-7 (International)

TIA-604-5 (FOCIS-5)

NFPA 262 (OFNP) flame rating

UICK

™

Optimized 10G

™

50/125µm

OM3 Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

FCXO-12-10Y

12 LC to 2 MTP* (24-fiber):

FCXO-24-10Y

6 SC to MTP* (12-fiber):

FCXO-12-3Y

UICK

™

10G

™

50/125µm OM3

Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

12 LC to 2 MTP* (24-fiber):

12 SC to MTP* (12-fiber):

6 SC to MTP* (12-fiber):

FCX-12-10Y

FCX-24-10Y

FCX-12-3SY

FCX-12-3Y

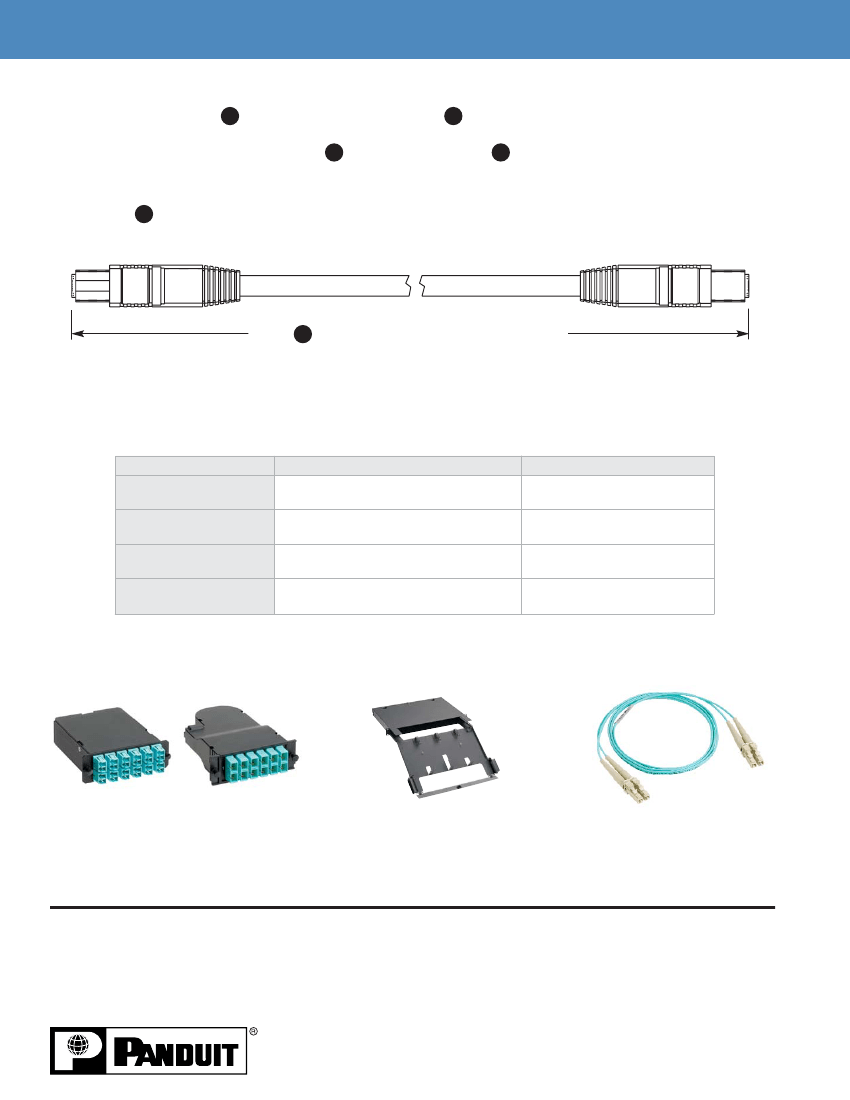

Insertion loss:

Return loss:

Per mated pair: 0.50dB typical; 0.75dB max. (multimode and singlemode)

20dB min. (multimode); 26dB min. (10G

™

multimode); 55dB min. (singlemode)

key features and benefits

High-density

12-fiber ribbon cable

Plenum rated jacket

MTP* 12-fiber connector

FOCIS-5 compliant

and backward compatible

MTP* mechanical design

Enables an easy and well organized high-density installation

with design flexibility and lower installation costs

Meets NFPA 262 (OFNP) flame rating for standard

compliant safety

Easily connects network segments to reduce deployment

time, improve reliability, and make maintenance easier

Assures performance with existing compliant MPO devices

for cost effective integration

Precision plug yields lower average insertion loss for

improved optical performance

Interface design improvements assure durability and reliability

Unique MTP* connector termination enhancements deliver

uniform fiber height across the 12-fiber interface

Helps optimize connector to connector mating resulting in low

insertion loss and excellent return loss performance

UICK

™

50/125µm OM2

Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

12 LC to 2 MTP* (24-fiber):

12 SC to MTP* (12-fiber):

6 SC to MTP* (12-fiber):

FC5-12-10Y

FC5-24-10Y

FC5-12-3SY

FC5-12-3Y

QuickNet

™

62.5/125µm OM1

Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

12 LC to 2 MTP* (24-fiber):

12 SC to MTP* (12-fiber):

6 SC to MTP* (12-fiber):

FC6-12-10Y

FC6-24-10Y

FC6-12-3SY

FC6-12-3Y

UICK

™

9/125µm OS1

Pre-Terminated MTP* Cassettes

6 LC to MTP* (12-fiber):

12 LC to 2 MTP* (24-fiber):

12 SC to MTP* (12-fiber):

6 SC to MTP* (12-fiber):

FC9-12-10Y

FC9-24-10Y

FC9-12-3SY

FC9-12-3Y

Proprietary polishing

process

Variety of fiber cable

configurations

Certified 10 GbE performance

Supports 10 GbE, multimode, and singlemode applications for

design flexibility

PTICOM

UICK

™

Rack Mount

Fiber Cassette Enclosures

1 RU enclosure:

2 RU enclosure:

4 RU enclosure:

PTI

-C

ORE

Riser (OFNR)

Fiber Optic Patch Cords

Duplex LC to LC:

Simplex SC to SC:

Duplex SC to SC:

PTI

-C

ORE

Plenum (OFNP)

Fiber Optic Patch Cords

F^E10-10M

‡

F^S3-3M

‡

F^D3-3M

‡

FCE1U

FCE2U

FCE4U

Test data supplied with each

cable assembly

10G

™

MTP* Interconnect Cable Assemblies are tested per

IEEE 802.3ae 10 GbE to support network transmission

speeds up to 10 Gb/s for link lengths up to 300 meters

at 850nm to assure high performance and reliability

Establishes a performance reference to streamline maintenance

and troubleshooting

applications

The

UICK

™

MTP* Interconnect Cable Assembly

is a component of the

UICK

™

Fiber Optic

Cabling System. Pre-terminated 12-fiber MTP*

interconnect cable assemblies are used in

high-density network applications to interconnect

pre-terminated cassettes in main distribution,

horizontal distribution, and equipment distribution

areas. The

UICK

™

System meets the demands

*MTP is a registered trademark of US Conec Ltd.

of Gigabit Ethernet, 10 Gigabit Ethernet, and high

speed Fibre Channel systems while maintaining

compatibility with Ethernet, Fast Ethernet, FDDI

and ATM. The high-density modular design fits into

PTICOM

UICK

™

Rack Mount Fiber Cassette

Enclosures to ensure efficient use of space and

rapid network deployment.

Duplex LC to LC:

Simplex SC to SC:

Duplex SC to SC:

F^PE10-10M

‡

F^PS3-3M

‡

F^PD3-3M

‡

^Substitute for fiber type: X (OM3 –

10G

™

50/125µm), 5 (OM2 – 50/125µm), 6 (OM1 –

62.5/125µm) and 9 (OS1 – 9/125µm).

‡Substitute for length in meters: 1 – 10, or

15 – 30 in increments of 5 meters. Contact

Customer Service for other available lengths

or male MTPs*.

w w w. p a n d u i t . c o m
