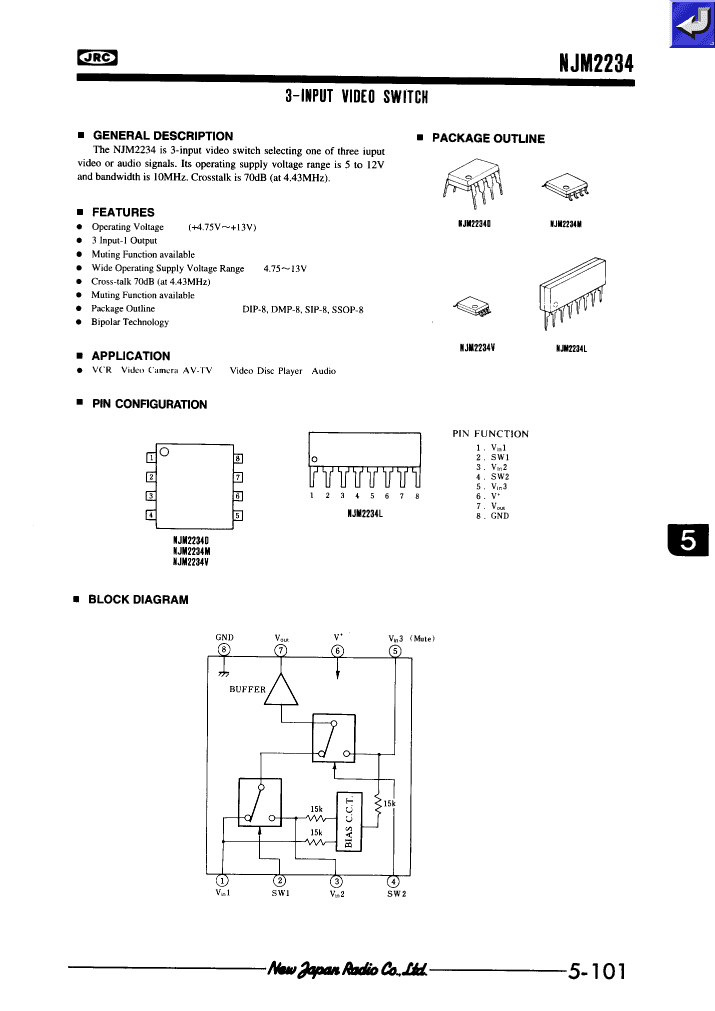

Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO8, DMP-8

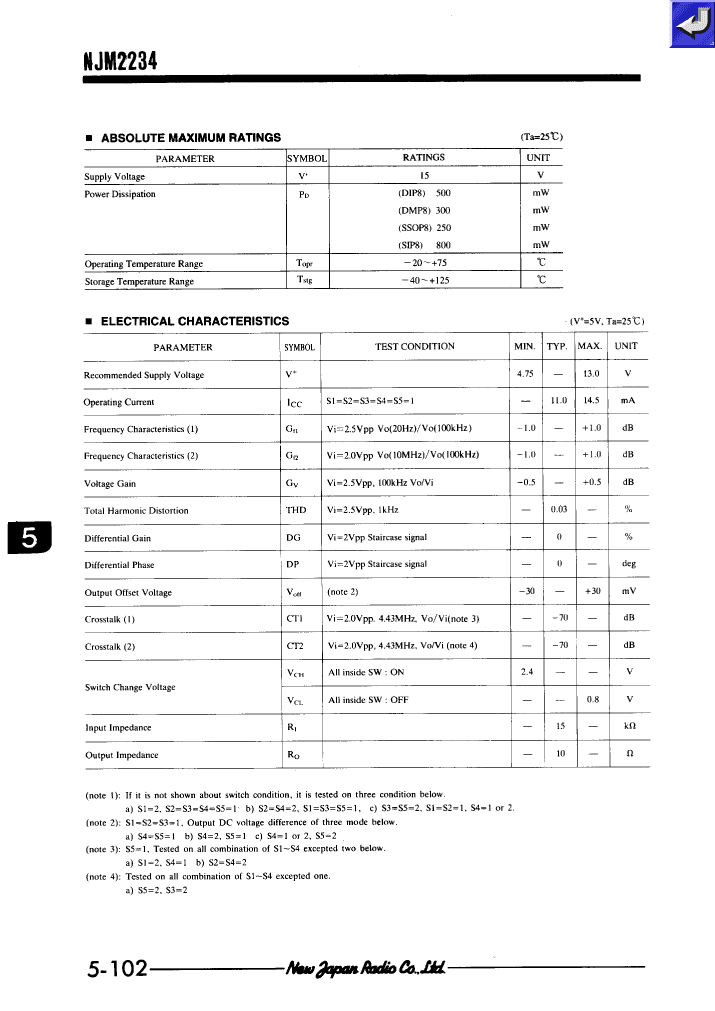

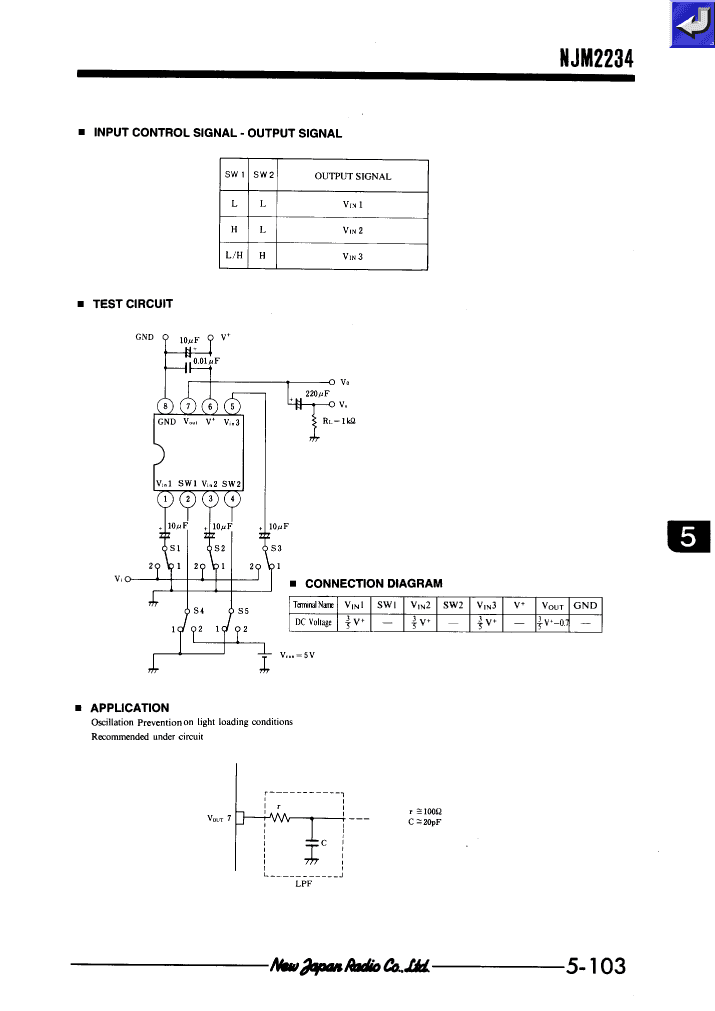

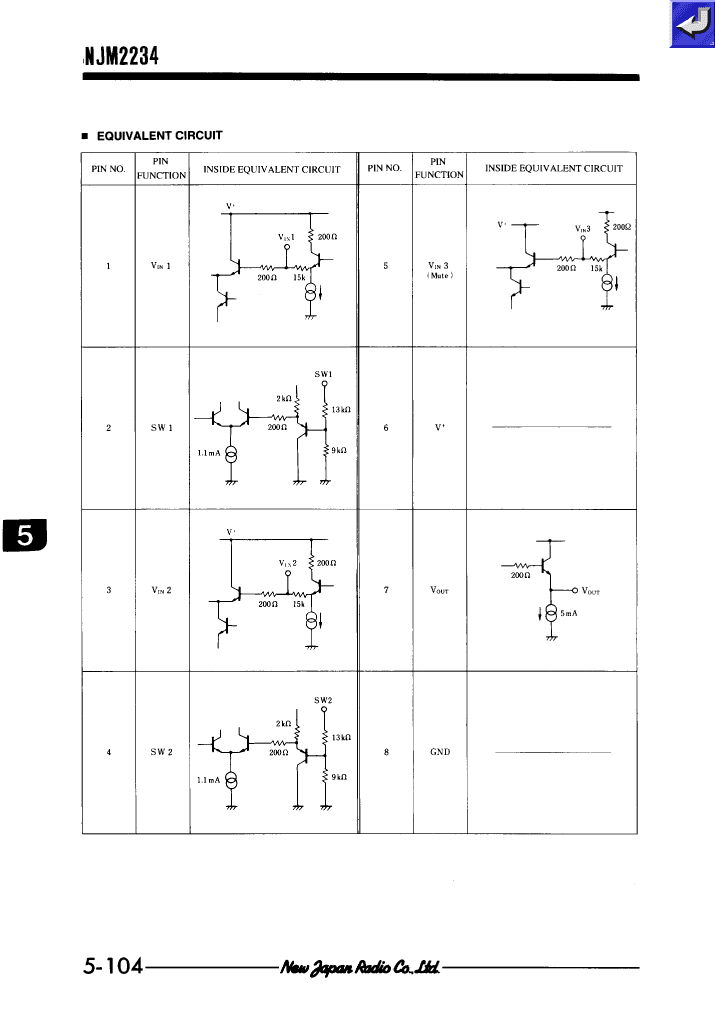

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | New Japan Radio Co., Ltd.. |
| Parts packaging code | SOIC |
| package instruction | DMP-8 |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| Analog Integrated Circuits - Other Types | VIDEO MULTIPLEXER |
| JESD-30 code | S-PDSO-G8 |
| JESD-609 code | e6 |
| length | 5 mm |
| Number of channels | 3 |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -20 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | SQUARE |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 |
| Certification status | Not Qualified |
| Maximum seat height | 2 mm |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Bismuth (Sn/Bi) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 5 mm |
| NJM2234M-(T1) | NJM2234M-(TE1) | NJM2234M-(TE2) | NJM2234M-(T2) | NJM2234M-(TE3) | NJM2234M-(TE4) | NJM2234V-(TE1) | NJM2234V-(T1) | NJM2234V-(TE2) | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO8, DMP-8 | Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO8, DMP-8 | Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO8, DMP-8 | Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO8, DMP-8 | Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO8, DMP-8 | Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO8, DMP-8 | Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO8, SSOP-8 | Video Multiplexer, PDSO8, SSOP-8 | Video Multiplexer, 1 Func, 3 Channel, BIPolar, PDSO8, SSOP-8 |
| Maker | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC |
| package instruction | DMP-8 | DMP-8 | DMP-8 | DMP-8 | DMP-8 | DMP-8 | SSOP-8 | SSOP-8 | SSOP-8 |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Analog Integrated Circuits - Other Types | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER |
| JESD-30 code | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | R-PDSO-G8 | R-PDSO-G8 | R-PDSO-G8 |
| JESD-609 code | e6 | e6 | e6 | e6 | e6 | e6 | e6 | e6 | e6 |
| length | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 4.4 mm | 4.4 mm | 4.4 mm |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP | SOP | SOP | LSSOP | LSSOP | LSSOP |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 1.45 mm | 1.45 mm | 1.45 mm |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Terminal surface | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | TIN BISMUTH | Tin/Bismuth (Sn/Bi) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 0.65 mm | 0.65 mm | 0.65 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 3.5 mm | 3.5 mm | 3.5 mm |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | - | Lead free |
| Is it Rohs certified? | conform to | incompatible | incompatible | conform to | incompatible | incompatible | incompatible | - | incompatible |
| Number of channels | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | 3 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Maximum operating temperature | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | - | 75 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | - | -20 °C |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 | 260 | 260 | 260 | 260 | - | 260 |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | - | 5 V |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | - | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | - | COMMERCIAL EXTENDED |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED |
| Humidity sensitivity level | - | 2 | 2 | - | 2 | 2 | 2 | - | 2 |
