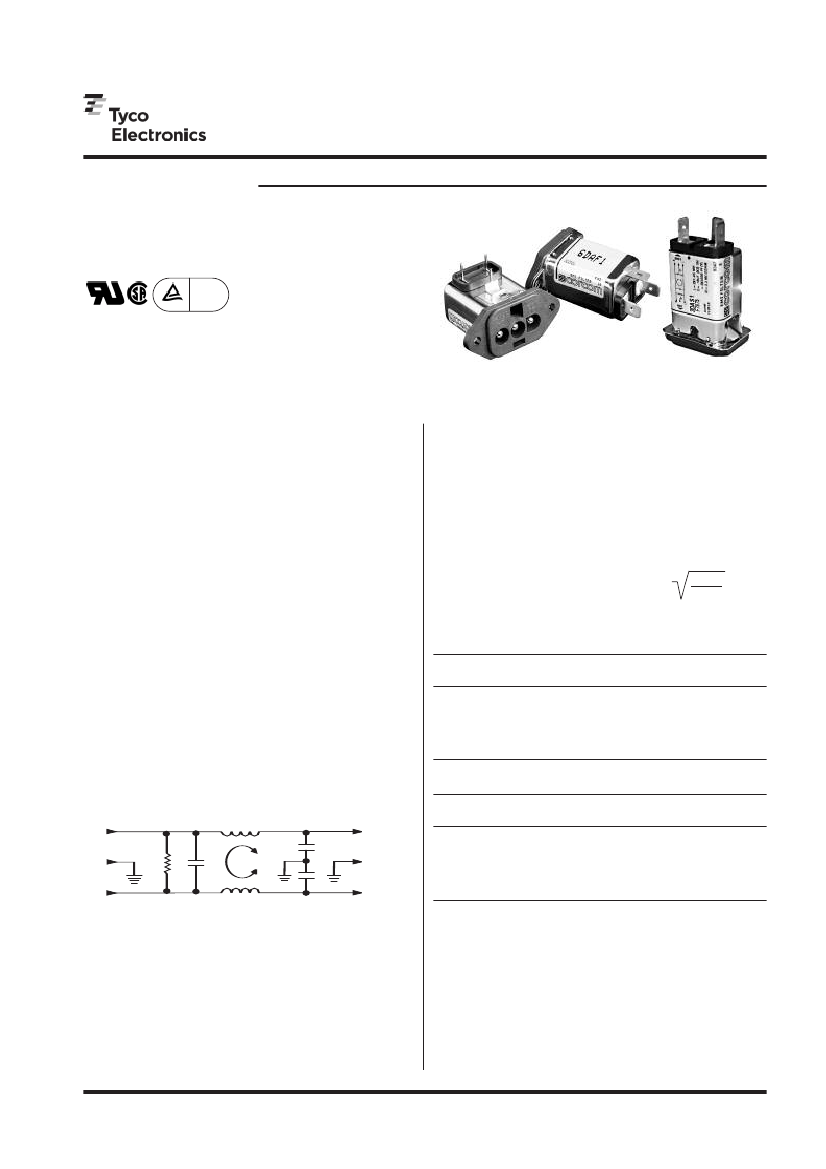

CORCOM Product Guide
Compact RFI Line Filter with DC Inlet Connector
DA Series
EN
60 950
UL Recognized
CSA Certified
TUV Approved
DAF1
DAFP
DAS1
DA Series
The DA Series filters were designed as general purpose
line filters for DC applications up to 125VDC. They are
compact with a 3-pin inlet connector. They are available in
3, 6, 10 and 15 amp versions. They are flange mount with
1/4” or PCB terminals.
The DA Series addresses the increasing need for DC rated
filters with a standard DC power inlet. It was designed and
first used for communication oriented customer premises
equipment and central office equipment, but is not
restricted to that. Any internal DC connection within larger
multi-component systems, or external DC connection
between user installed components which require filtering
will benefit. Some examples include desktop servers,
routers, switches, multiplexors, aggregators, concentrators,
process control equipment as well as DC powered
peripheral equipment.
The DA Series mates with a standard MOLEX connector
(HCS Series) which is readily available and better prevents
accidental connection to AC power.
Specifications
Hipot rating (one minute):
line-to-ground
line-to-line
Rated voltage (max):
Operating ambient temperature range
@ rated current Ir :
2250 VDC
1450 VDC
125 VDC
-10
˚
C to +55
˚
C
In an ambient, Ta, higher than +55
˚
C, the maximum
90 - Ta
operating current, Io, is as follows:
Io = Ir
35
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Frequency-MHz
Rating .05 .1 .15 .5 1
3
5
0
3A
0
6A
10A
15A
6
2
-
-
9
4
1
-
11 26 41 48 52
6 18 30 37 42
4 8 17 25 30
-
3 5 13 19
10 30 100 200
55
48
36
25
46 22 16
42 -
-
38 21 11
29 10 14
Line-to-line in 50 ohm circuit
Electrical Schematic
LINE
LOAD
Current
Frequency-MHz
Rating .05 .1 .15 .5 1
3
5
0
3A
0
6A
10A
15A
-
-
2
-
4
4
4
-
7
7
6
2
16
19
17
17
18
21
22
19
37
27
23
29
47
40
32
33
10 30 100 200
50
53
48
37
43 31 36
41 -
-
38 30 26
37 31 28
For higher amperage versions, contact Tyco Electronics.
148
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
Compact RFI Line Filter with DC Inlet Connector
(Continued)
DA Series

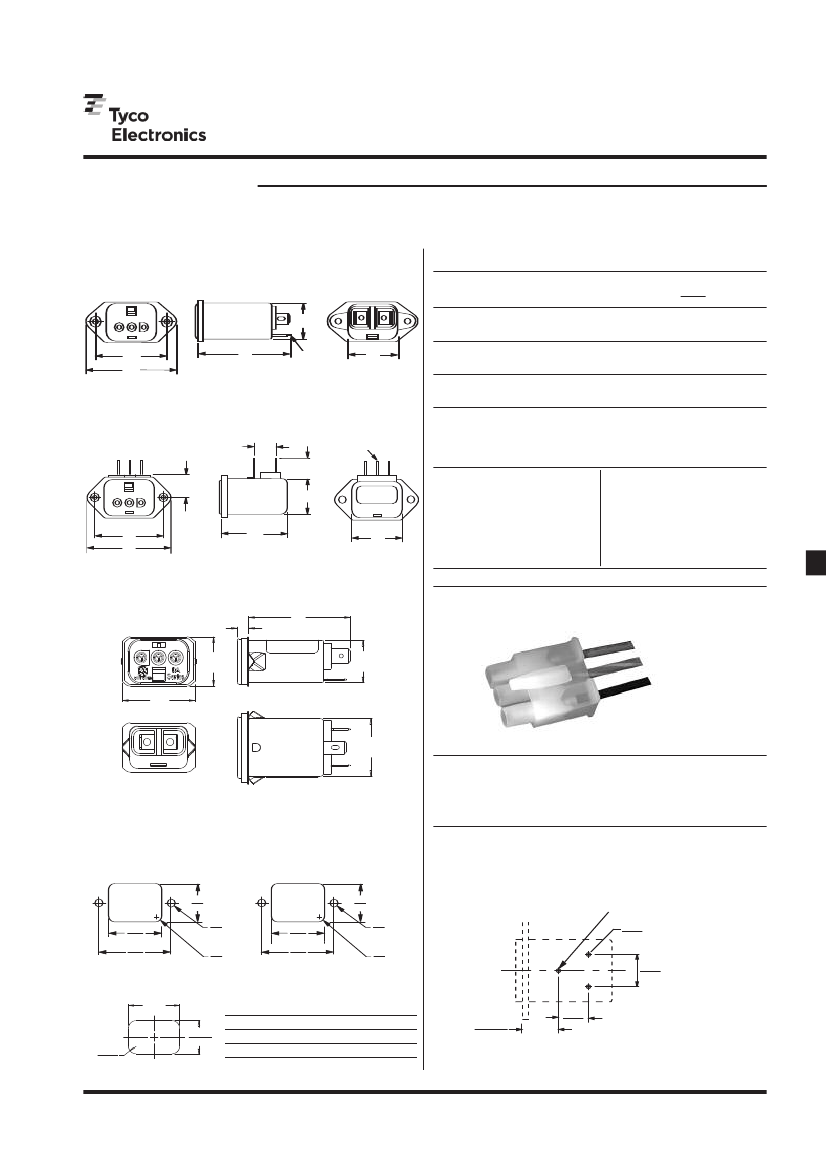

Case Styles
DAF1
Part No.
C
Case Dimensions
A
(max)
B
(max)
C
(max)
0.81
20.57
0.81
20.57
0.81
20.57
D
±.010
± .25
E
(max)
1.98
50.29
1.41
35.81
1.98
50.29
D
E
A
Ground
B
Typical dimensions:
Terminals: .250 [6.35] (3)
Slot: .07 x .16 [1.8
x 3.8]
(1)
Holes: .07 [1.8] Dia.(2)
2.15
1.12
54.61
28.45
1.98
1.10
DAS1
50.29
27.94
1.54
1.12
DAFP
39.12
28.45
*represents Max. dimension
DAF1
1.575
40.01
0.96*
24.38
1.575
40.01
DAFP
.551
.380 Max.
.537 Ref.
C
Ground
Part Numbers
3DAF1
3DAS1
3DAFP
6DAF1
6DAS1
6DAFP
DC Connector No.
10DAF1
10DAS1
10DAFP
15DAF1
15DAS1
15DAFP
GA310
D
E
A
B
Typical dimensions:
Mounting holes: .132 [3.35] Dia. (2) with .260 [6.60] Dia. x 90˚C countersunk for
#4 flathead screw.
Pin Size: .031 x .06 ± .003
DC Filters
DAS1
A
0.23 max.
Mating Connectors
Red
D
C
Green/Yellow
Black
E
B
CORCOM Part Number:
GA310
- Custom connector assembly with 3, 36” long 18
gauge wires to mate with DA Series filter
Rear View
Typical dimensions:
Terminals: .250 [6.35] (3)
Slot: .07 x .16 [1.8
x 3.8]
(1)
Holes: .07 [1.8] Dia.(2)
MOLEX Component Part Numbers:
03-12-1036
18-12-1222
Connector housing to mate with DA Series
Female Terminal (3 needed per housing)
Recommended Panel Cutout
DAF
PCB Layout
(board viewed from component side)
.820
20.8
.140 Dia. (2)
3.56
.900
22.9
.140 Dia. (2)
3.56
Ground
0.104 (3 holes)
2.64
1.200
30.48
1.575
40.01
1.200
30.48
1.575
40.01
.12
R
3.05
.234
R
5.94
Back Mount
Front Mount
0.520
13.21
DAS
"A"
0.815
20.70
R 0.188
4.78
(4x)
Panel Thickness
0.031 - 0.052 [.79
- 1.32]
0.046 - 0.068 [1.17
- 1.73]
A Dim.±.002
1.260 [32.00]
1.350 [34.29]
Center pin to panel
.685±.015
17.40±.38
0.551
13.99
149
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
