CORCOM Product Guide
Enhanced Performance (1-20 Amp) Compact RFI Filter IEC Connector Package
EEJ Series
10EEJ1
UL Recognized
CSA Certified
VDE Approved*
20EEJ8
20EEJ1
3EEJ1

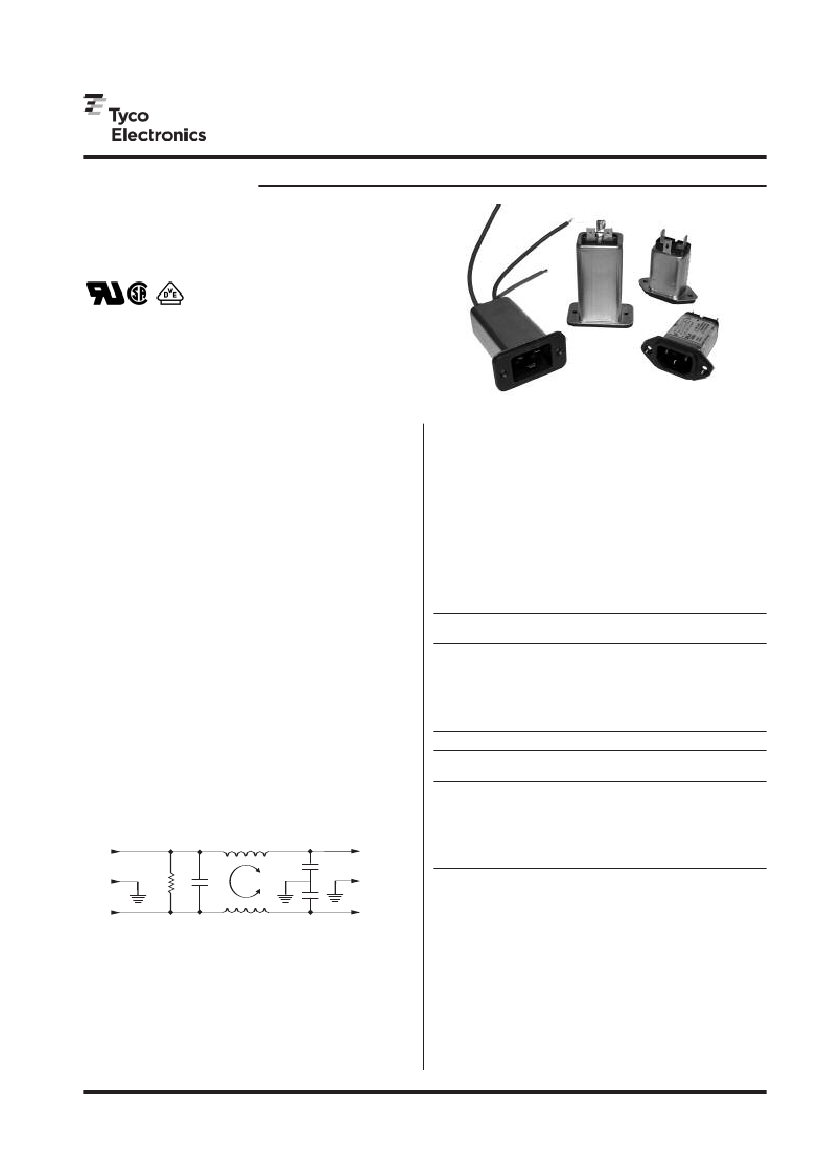

EEJ Series
The new EEJ series is the next generation of power inlet
filters. The 1-15 amp versions are flange mounted and
mechanically equivalent to the EEA/EEB series. The
performance has been enhanced to meet the needs for
more attenuation. The EEJ series also has an extended
metal flange around the socket for improved high
frequency EMI shielding as well as a larger contact
area for the panel ground.
The EEJ series also includes a 20 amp version that uses
the inlet IEC 320/C20. This product was designed to keep
up with the demand for higher current equipment.
Applications include higher current power supplies and
computing equipment, which consist of work stations,
base stations, servers, etc.
*15EEJ - VDE rated at 10 amps, 250 VAC
20EEJ - VDE rated at 16 amps, 250 VAC
Specifications
Maximum leakage current,each line-to-ground
@ 120 VAC 60 Hz:
@ 250 VAC 50 Hz:
Hipot rating (one minute):
line-to-ground
line-to-line
Operating frequency:
Rated voltage (max.):
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Frequency-MHz
Rating .01 .05 .1 .15 .5
1
01A
15
27 29 32 41
47
03A
-
10 15 20 30
39
06A
-
1
5
9 21
28
10A
-
1
4
7 14
18
15A
-
-
-
2 5
8
5 14
21
- 13
20A
-
Line-to-line in 50 ohm circuit
Current
Frequency-MHz
Rating .01 .05 .1 .15 .5
1
01A
-
-
5
8 19
27
03A
-
-
5
8 17
20
06A
-
-
5
8 17
21
10A
-
-
5
8 17
21
15A
-
-
5
8 17
23
5
2 17
25
-
-
20A
.22 mA
.38 mA
1500 VAC
1450 VDC
50/60 Hz
250 VAC
5
47
48
41
31
21
30
10
47
50
44
36
26
33
30
40
60
54
51
42
42
Electrical Schematic
LINE
LOAD
5
45
39
32
23
33
38
10
43
42
40
36
30
48
30
40
40
40
38
38
48
Line Cord
Resistor location for reference only.
Line Cord No. GA400:
7
1/2
foot, 3-conductor line cord to mate with EEJ series.
38
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
Enhanced Performance (1-20 Amp) Compact RFI Filter IEC Connector Package
(Continued)
EEJ Series
RFI Power Line Filters

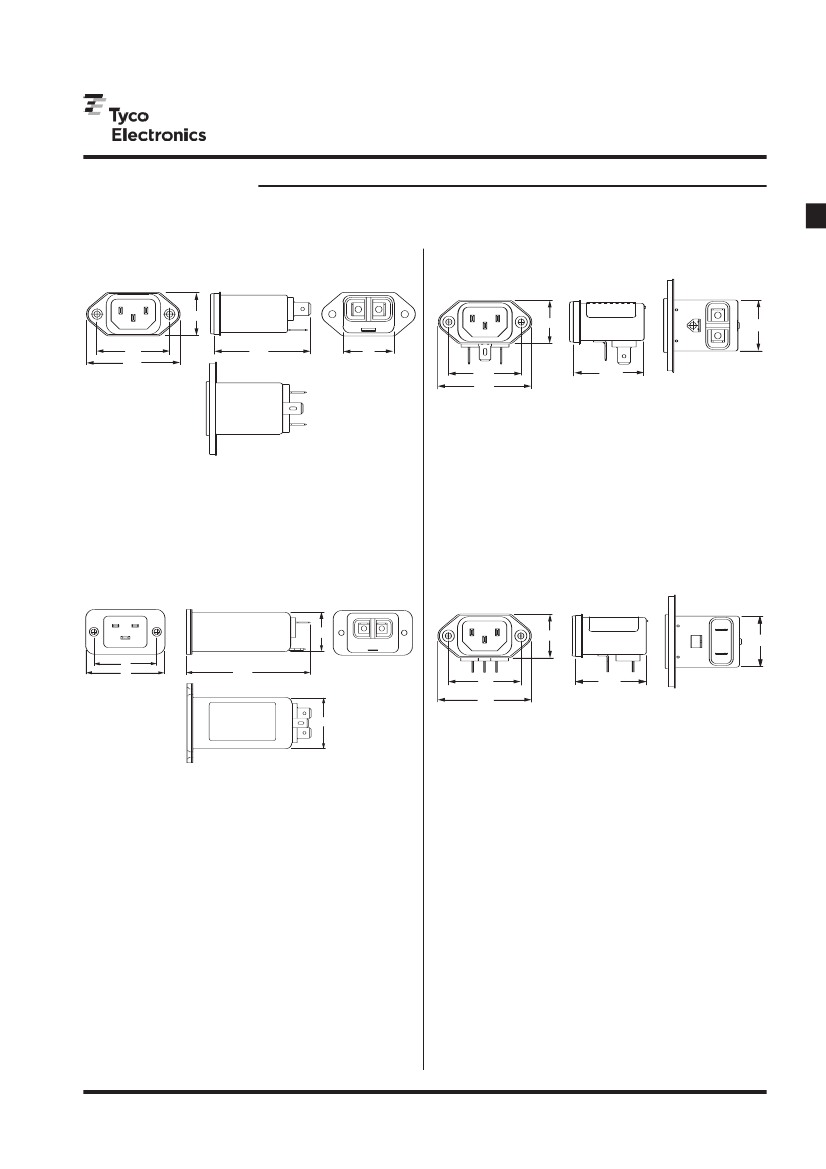

Case Styles
EEJ1
C
EEJ2
C
A
B
B
D
E
D
E
A
Typical Dimensions:
Terminals:
Holes:
Slot:
Typical Dimensions:
Terminals:
Holes:
Slot:
.250 [6.35] (3)
.07 [1.8] Dia. (2)
.07x.16 [1.8x4.1]
.250 [6.35] (3)
.07 [1.8] Dia. (2)
.07x.16 [1.8x4.1]
20EEJ1
C
EEJP
C
B
D
E
A
D
E
B
A
Typical Dimensions:
Mounting Holes:
.132 [3.35] Dia. (2) with .236 Dia. x 90° countersunk
for # 4 flathead screw
Typical Dimensions:
Terminals:
Holes:
Slot:
.250 [6.35] (3)
.07 [1.8] Dia. (2)
.07x.16 [1.8x4.1]
39
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
Enhanced Performance (1-20 Amp) Compact RFI Filter IEC Connector Package
(Continued)
EEJ Series

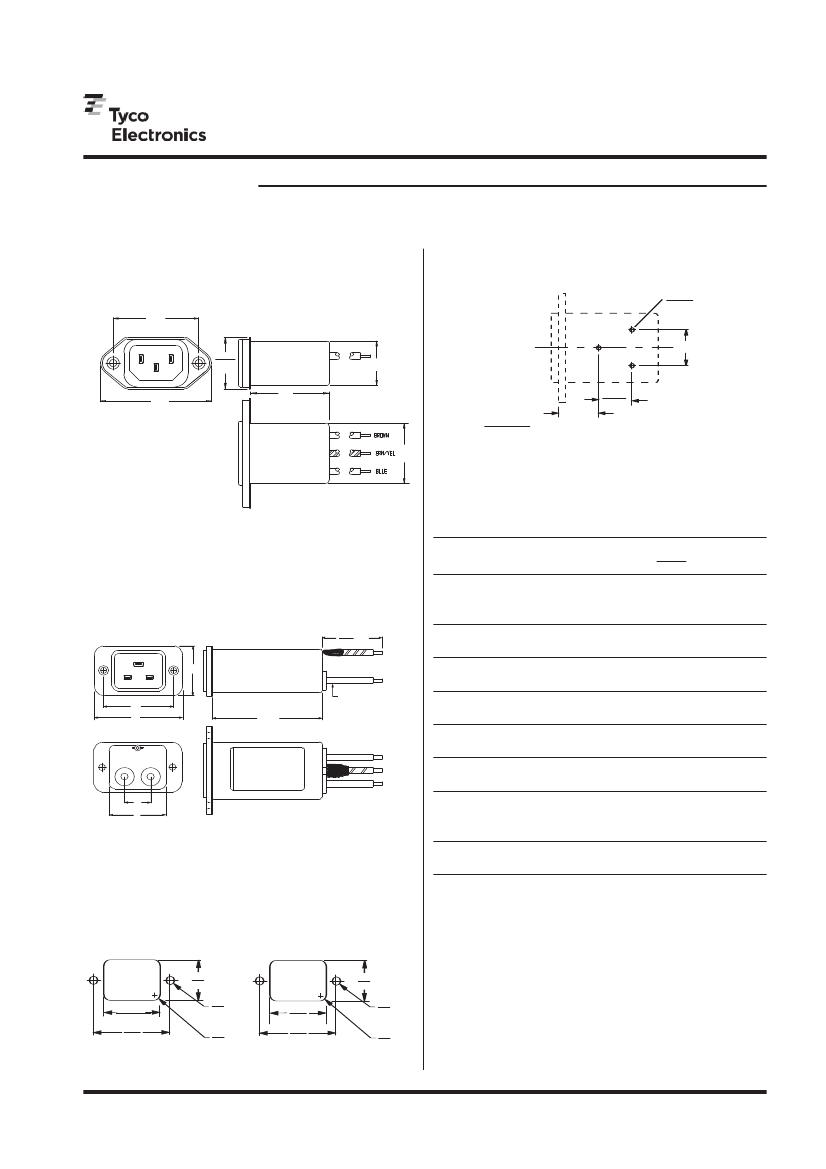

Case Styles
(continued)
EEJ8
D
1 to 15A EEJP PCB Layout
0.075
1.91
Dia.
0.96
24.39
max.
A
0.520 [13.21]
C
E
0.551
13.99
Center pin to panel
.685±.015
17.40±0.38
B
Typical Dimensions:
Wire Leads:
Case Dimensions
4.0 [101.6] Min.
1-15A, 18 AWG
20A, 14 AWG / UL1015
Part No.
A
B
C
(max) (max) (max)
D
± .015
± .388
E
F
(max) (ref)
—
20EEJ8
4.0 Min.
101.6
C
D
E
A
Wire, #14 AWG
UL1015 (3 places)
BLUE (NEUT)
GRN/YEL
BROWN (LINE)
F
B
Typical Dimensions:
Wire Leads:
4.0 [101.6] Min.
1-15A, 18 AWG /UL1015
20A, 14 AWG / UL1015
1EEJ1, 3EEJ1,
2.15
6EEJ1, 10EEJ1,
54.61
15EEJ1
3.13
20EEJ1
79.38
1EEJ2, 3EEJ2,
1.54
6EEJ2, 10EEJ2
39.12
1.79
15EEJ2
45.47
1EEJP, 3EEJP,
1.54
6EEJP
39.12
10EEJP,
1.79
15EEJP
45.47
1EEJ8, 3EEJ8,
1.54
6EEJ8, 10EEJ8,
39.12
15EEJ8
2.65
20EEJ8
67.31
1.13
0.96 1.580 2.04
28.70 24.38 40.00 51.76
1.37
34.79
1.13
28.70
1.13
28.70
1.13
28.70
1.13
28.70
1.13
28.70
1.18
29.99
0.96
24.38
0.96
24.38
0.96
24.38
0.96
24.38
1.650
42.01
1.580
40.00
1.580
40.00
1.580
40.00
1.580
40.00
2.09
53.00
2.04
51.76
2.04
51.76
2.04
51.76
2.04
51.76
—
—
—
—
—
—
0.81 1.580 2.04
20.7 40.00 51.76
1.35
1.18 1.650 2.09 .62
34.29 29.99 42.01 53.00 15.75
Recommended Panel Cutouts
.820
20.8
.140 Dia. (2)
3.56
.900
22.9
.140 Dia. (2)
3.56
1.14±.02
28.96±.51
1.575
40.01
1.200
30.48
1.575
40.01
.12
R
3.05
.234
R
5.94
Panel Cutout (front mount)
Tolerance ±.005 [0.13]
Panel Cutout (back mount)
Tolerance ±.005 [0.13]
40
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
Enhanced Performance (1-20 Amp) Compact RFI Filter IEC Connector Package
(Continued)
EEJ Series
RFI Power Line Filters
Recommended Panel Cutouts
1 to 15A EEJ
1.575
40.01
∅
Part Numbers
1EEJ1
1EEJ2
1EEJP
1EEJ8
1.575
40.01
3EEJ1
3EEJ2
3EEJP
.900
22.9
3EEJ8
6EEJ1
1.200
.234 R
30.48
6EEJ2
5.94
TYP.
6EEJP
6EEJ8
Insulating Boot (1-15 Amp)
*UL, CSA — 20 Amp; VDE — 16 Amp
0.140
3.56
2X
1.200
30.48
Front Mount
∅
.820
20.8
0.140
3.56
2X
0.12 R
3.05
TYP.
10EEJ1
10EEJ2
10EEJP
10EEJ8
15EEJ1
15EEJ2
15EEJP
15EEJ8
20EEJ1*
20EEJ8*
FA601
1.575
40.01
∅
1.575
40.01
0.140
3.56
2X
.820
20.8
1.200
30.48
.900
22.9
1.200
30.48
.234 R
5.94
TYP.
0.12 R
3.05
TYP.
Back Mount
20EEJ
1.654
42.0
∅
1.654
42.0
∅
.138
3.51
2X
1.055
26.8
1.370
34.8
Front Mount
.138
3.51
2X
1.300
33.0
.985
25.02
.125 R.
3.18
TYP.
.118 R.
3.0
TYP.
1.654
42.0
∅
1.654
42.0
.138
3.51
2X
1.300
33.0
1.055
26.8
1.370
34.8
.118 R.
3.0
TYP.
.985
25.02
.125 R.
3.18
TYP.
Back Mount
Notes:
1
2
3
4
Tolerance ± .005 [0.13]
Panel Thickness .031-.047 [.78-1.19]
EEJ1 and EEJ8 styles allow for front or back mounting
EEJ2 and EEJP allow for back mounting only
41
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
