CORCOM Product Guide
Power Entry Module with RFI Power Line Filter for General
or Medical Applications
L Series
UL Recognized
CSA Certified
VDE Approved
EDL4C/EHL4C
EDL1S/EHL1S
L Series
The L series power entry modules are compact units that
combine a multi-function power entry module and high per-
formance RFI filtering capabilities. They are available with
either a four-voltage selector or a DPST on/off switch. Both
variations can be specified with North American or
European fusing capabilities and are available in either
flange or snap-in mounting.
These filters are UL recognized, CSA certified, and VDE
approved. The L series modules offer a choice of filters for
general or medical applications.
EDL Models
The RFI filter is for general purpose applications where
line-to-line and line-to-ground noise must be controlled.
The filter is designed to meet the very low leakage
requirements of VDE portable equipment. They are
available in three current ratings.
EHL Models
This medical filter provides susceptibility protection
without the leakage current associated with line-to-ground
capacitors. Designed to allow equipment to meet UL544
for patient care and non-patient care equipment, the EHL
filter has a maximum leakage current of 2 µA at 120 VAC
60 Hz. See Appendix C for more information on medical
applications and UL standards.
Note: When using the models with an IEC connector,
remember that the leakage current of the companion line
cord, GA400, is more significant than that of the filter -
which may disqualify this line cord from use in patient care
applications.

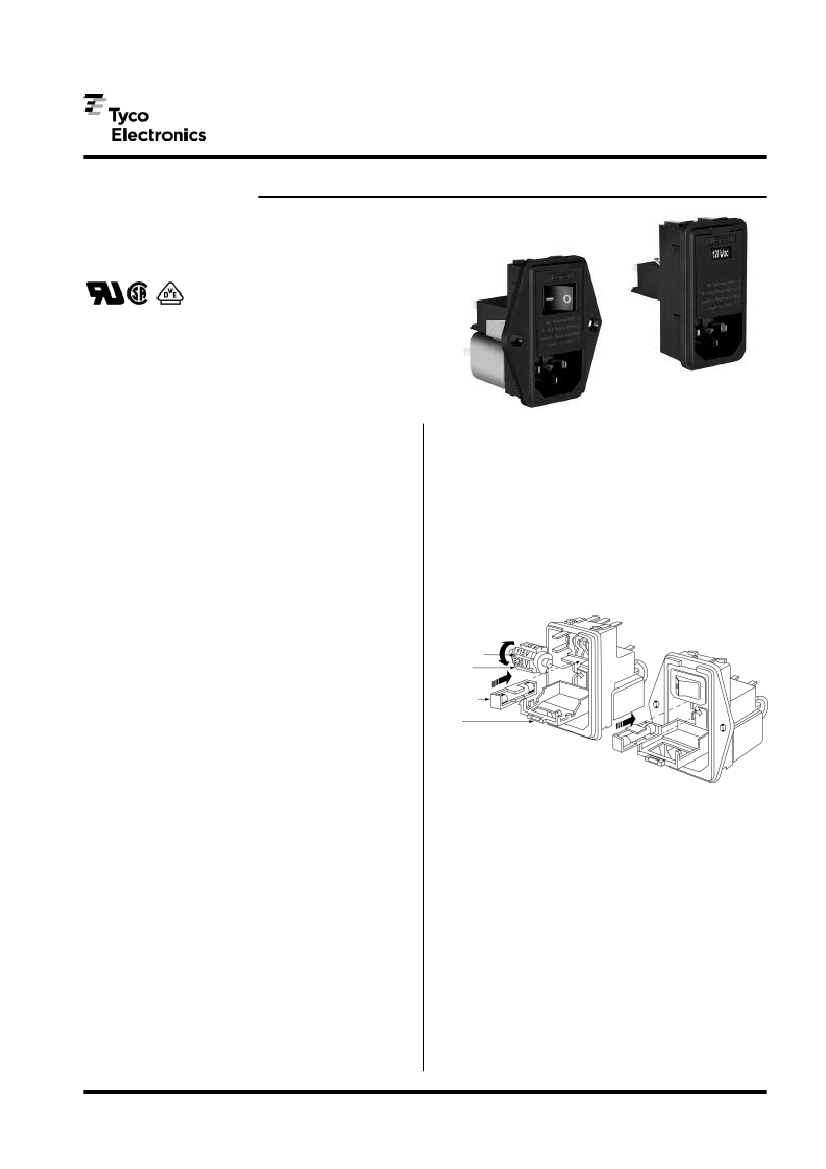

Voltage Selection
To change selected voltage: disconnect the power cord;
open cover using a small blade screwdriver or similar tool;
insert the tool into the voltage selection slot and remove
wheel from unit; select desired voltage; replace wheel into
unit and close cover,
making sure the selected voltage
appears in connector window.
Note: All models have North American or dual European fusing capability
and are available in either flange or snap-in mounting.
Voltage
selection
slot
4-Voltage
selection
wheel
Fuseholder
Cover
118
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
Power Entry Module with RFI Power Line Filter for General
or Medical Applications
(Continued)
L Series

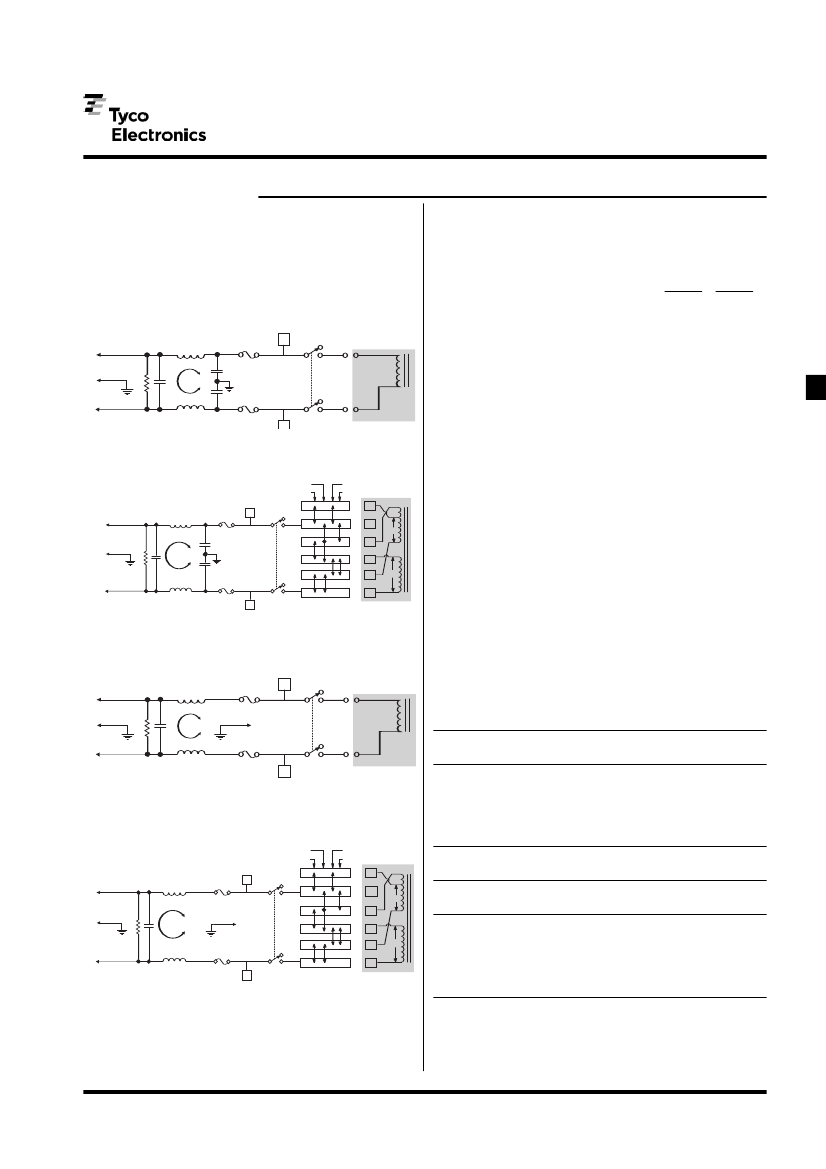

Electrical Schematics
DL Models (with switch)
Note 1
H
Note 2
On/Off
2
(1)
(2)
4
1
(1a)
(2a)
3
Specifications
Maximum leakage current, each line-to-ground:
EDL
EHL
Models Models
0.25 mA
2 µA
0.50 mA
5 µA
Neutral
Ground
Cutomer
Transformer
Primaries
@120 VAC 60 Hz:
@250 VAC 50 Hz:
Hipot rating (one minute):
line-to-ground
line-to-line
Operating frequency:
Operating voltages:
1S & 1SC Suffix (fixed):
4 & 4C Suffix (selectable):
Rated current:
2EDL & 2EHL
4EDL & 4EHL
6EL, 6EDL & 6EHL
Switch:
Hot
G
Device
1500
1450
1500
1450
Power Entry Modules
50/60 Hz
250 VAC Max.
100, 120, 220, 240 VAC
DL Models (with 4-voltage selection)
120V
100V
220V
240V
Cutomer
Transformer
Primaries
A
B
C
D
E
F
120V
20V
Hot
Note 1
G
Note 2
On/Off
A
B
C
D
E
A
B
C
D
E
F
100V
Ground
Neutral
F
H
2A
4A
6A
Double-insulated, rated
for 10,000 operations at full
load. 51 Amp inrush capability.
Accepts one .25" x 1.25" fuse
or two 5 x 20 mm fuses
110 [2.79] except for switch
.187 [4.8] for switch
Fuse (not included):
HL Models (with switch)
Note 2
On/Off
2
(1)
(2)
4
1
(1a)
(2a)
3
Neutral
Ground
Note 1
H
Customer
Transformer
Primaries
Terminals:
Minimum insertion loss in dB:
Hot
G
Device
HL Models (with 4-voltage selection)
Customer
120V
100V
220V
240V
Transformer
Primaries
A
B
C
D
E
F
120V
20V
Line-to-ground in 50 ohm circuit
Current
Frequency-MHz
.15
1
5
.05
Rating
EDL Models
2A
6
14
24
40
18
32
8
4A
2
6A
1
6
17
31
EHL Models
06A
3
8
15
18
Line-to-line in 50 ohm circuit
10
45
38
37
18
30
50
45
45
18
Hot
Note 1
G
Note 2
On/Off
A
B
C
D
E
A
B
C
D
E
F
100V
Ground
Neutral
F
H
Current
Rating
.05
EDL Models
2A
7
4A
6
6A
6
EHL Models
4
06A
Frequency-MHz
.5
1
3
16
14
15
14
21
18
20
20
23
23
25
28
5
37
26
24
32
10
47
45
45
38
30
50
47
50
42
Note 1:
Provision for dual European style fusing.
Note 2:
On/Off switch present only with "S" suffix.
Resistor location for reference only.
119
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
Power Entry Module with RFI Power Line Filter for General
or Medical Applications
(Continued)
Flange mounted version
L Series

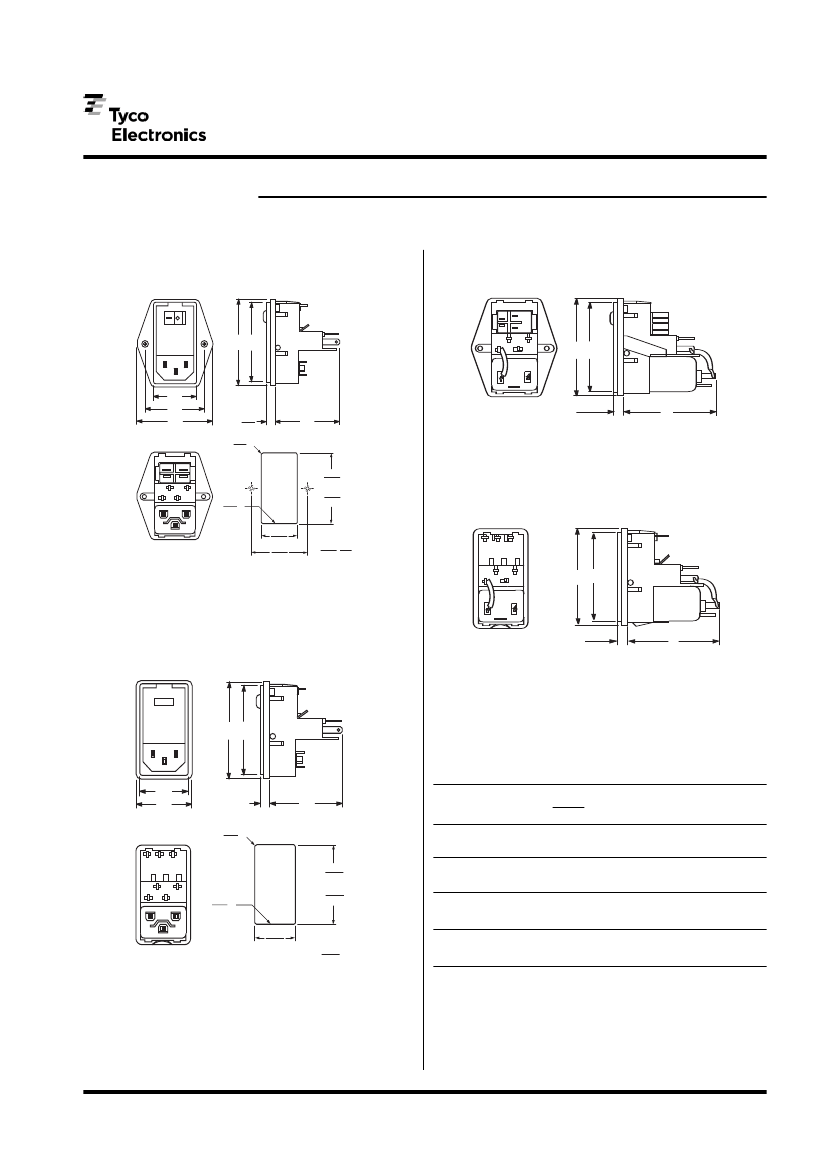

Case Styles — Unfiltered Models
