SDB101L
THRU
SDB107L
1.0 Amp Single Phase
Bridge Rectifier
50 to 1000 Volts
SDBL-1
-
B
Features
•
•
•
•
•
•
•
•
Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates
RoHS Compliant. See ordering information)
Epoxy meets UL 94 V-0 flammability rating
Moisure Sensitivity Level 1
Surface Mount
and Low Profile
Package
UL Recognized File # E165989
Halogen
free available upon request by adding suffix "-HF"
Maximum Ratings
Operating Temperature: -55°C to +150°C
Storage Temperature: -55°C to +150°C
MCC
Part
Number
SDB101L
SDB102L
SDB103L
SDB104L
SDB105L
SDB106L
SDB107L
Maximum
Recurrent
Peak Reverse
Voltage
50V
100V
200V
400V
600V
800V
1000V
Maximum
RMS
Voltage
35V
70V
140V
280V
420V
560V
700V
Maximum
DC
Blocking
Voltage
50V
100V
200V
400V
600V
800V
1000V
∼
+
∼
D
C
F
K
Device
Marking
SDB101
SDB102
SDB103
SDB104
SDB105
SDB106
SDB107
Notch in Case
A
G
E
H
DIMENSIONS
INCHES
MIN
MAX
.320
.335
.244
.256
.040
.060
.366
.413
.087
.095
.006
.013
.003
.013
.195
.205
.037
.047
MM
MIN
8.12
6.20
1.02
9.30
2.20
0.15
0.076
5.00
0.95
MAX
8.51
6.50
1.53
10.5
2.40
0.33
0.33
5.20
1.20
NOTE
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward
Current
Peak Forward Surge
Current
Maximum
Instantaneous
Forward Voltage
Maximum DC
Reverse Current At
Rated DC Blocking
Voltage
Typical Junction
Capacitance
Typical thermal
Resistance Per
Leg (Note 2 )
Notes:
I
F(AV)
I
FSM
1.0 A
30A
T
A
= 40°C
8.3ms, half sine
DIM
A
B
C
D
E
F
G
H
K
V
F
1.1V
I
FM
= 1.0A;
T
A
= 25°C
T
A
= 25°C
T
A
=
125°C
Measured at
1.0MHz, V
R
=4.0V
Suggested Solder Pad
Layout
.047”
I
R
10µA
0.5mA
25pF
40
o
C/W
15
o
C/W
.344”
.060”
C
J
R
θJA
R
θJL
.205”
+
-
Case Style
~
1.
High Temperature Solder Exemption Applied, see EU Directive Annex Notes 7
2.
Units mounted on P.C.B with 0.51x0.51"(13x13mm) copper pads
~
Revision:
A
www.mccsemi.com
1 of 3
2014/05/28

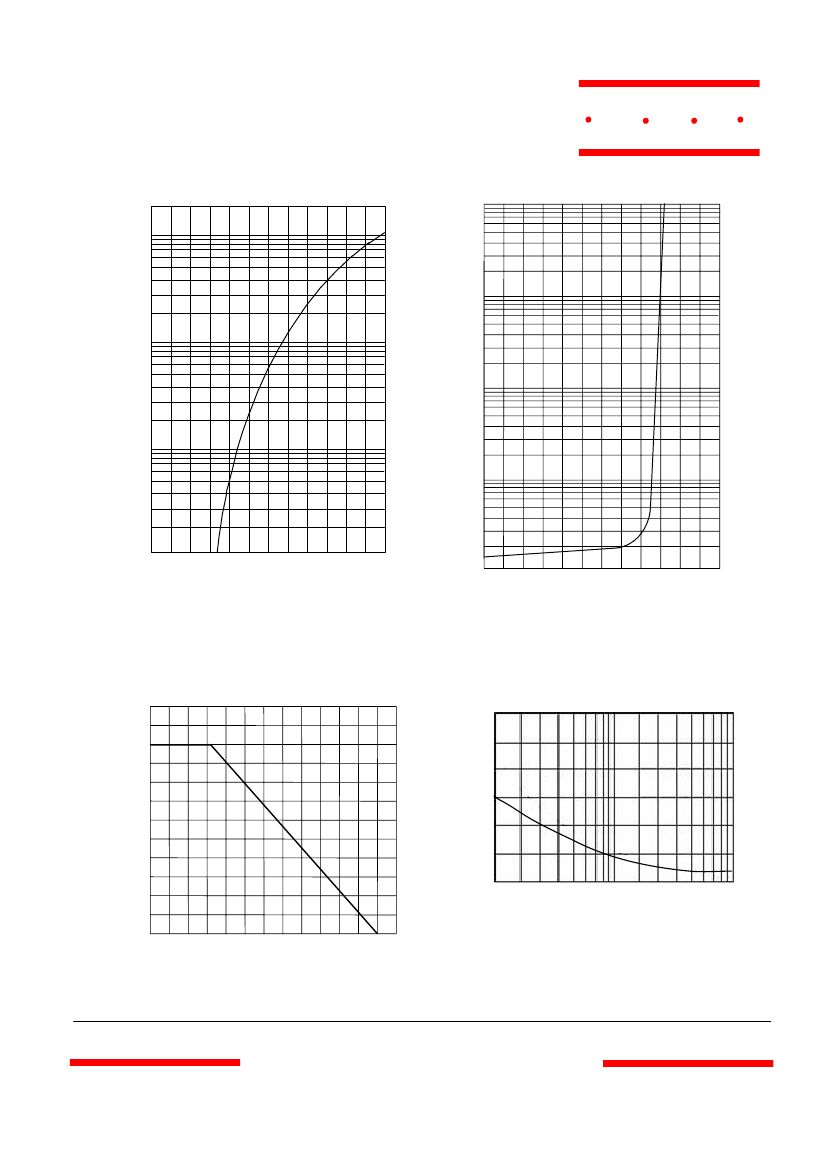

SDB101L thru SDB107L
Figure
1
Typical Forward
Characteristics
20
10
6
4
2
Amps
1
.6
.4
.2
.1
.06
.04
.02
.01
.4
.6
.8
Volts
Instantaneous Forward Current -
Amperesversus
Instantaneous Forward Voltage -
Volts
1.0
1.2
1.4
25°C
100
60
40
20
10
6
4
2
µAmps 1
.6
.4
.2
.1
.06
.04
.02
.01
20
40
60
MCC
Figure
2
Typical Reverse
Characteristics
TM
Mic Commercial
Components
ro
T
J
=25°C
80
Volts
100
120
140
Instantaneous Reverse Leakage Current -
MicroAmperes
ersus
v
Percent Of Rated Peak Reverse Voltage -
Volts
Figure 3
Forward Derating Curve
1.2
60
50
40
30
0.6
Amps
0.4
Amps
20
10
Figure
4
Peak Forward Surge
Current
1.0
0.8
0
0.2
Single Phase, Half Wave
60Hz Resistive or Inductive Load
0
0
25
50
75
100
125
150
1
2
4
6
8 10
Cycles
Peak Forward Surge Current -
Amperesversus
Number Of Cycles At 60Hz -
Cycles
20
40
60 80
100
Average Forward Rectified Current - Ambient Temperature -
qC
www.mccs
emi.com
Revision:
A
2 of 3
2014/05/28
MCC
Micro Commercial Components
TM
Ordering Information
Device
(Part Number)-TP
(Part Number)-BP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel;1.5Kpcs/Reel
Bulk;20Kpcs/Ctn
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp .
does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp .
and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited
below.
Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
www.mccsemi.com
Revision:
A
3 of 3
2014/05/28
