MC68661PA datasheet, PDF - EEWORLD Datasheet

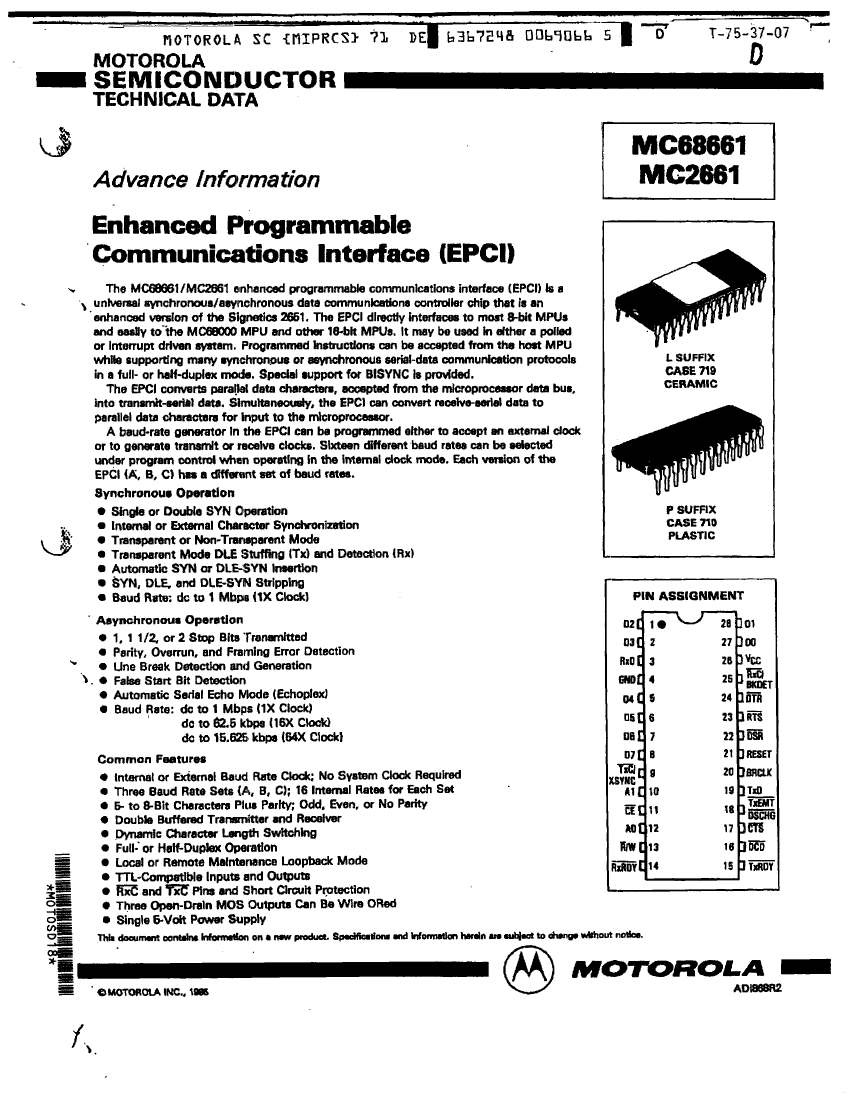

MC68661PA: Description1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP28, 710-02; CategoryThe embedded processor and controller Microcontrollers and processors; File Size941KB，15 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

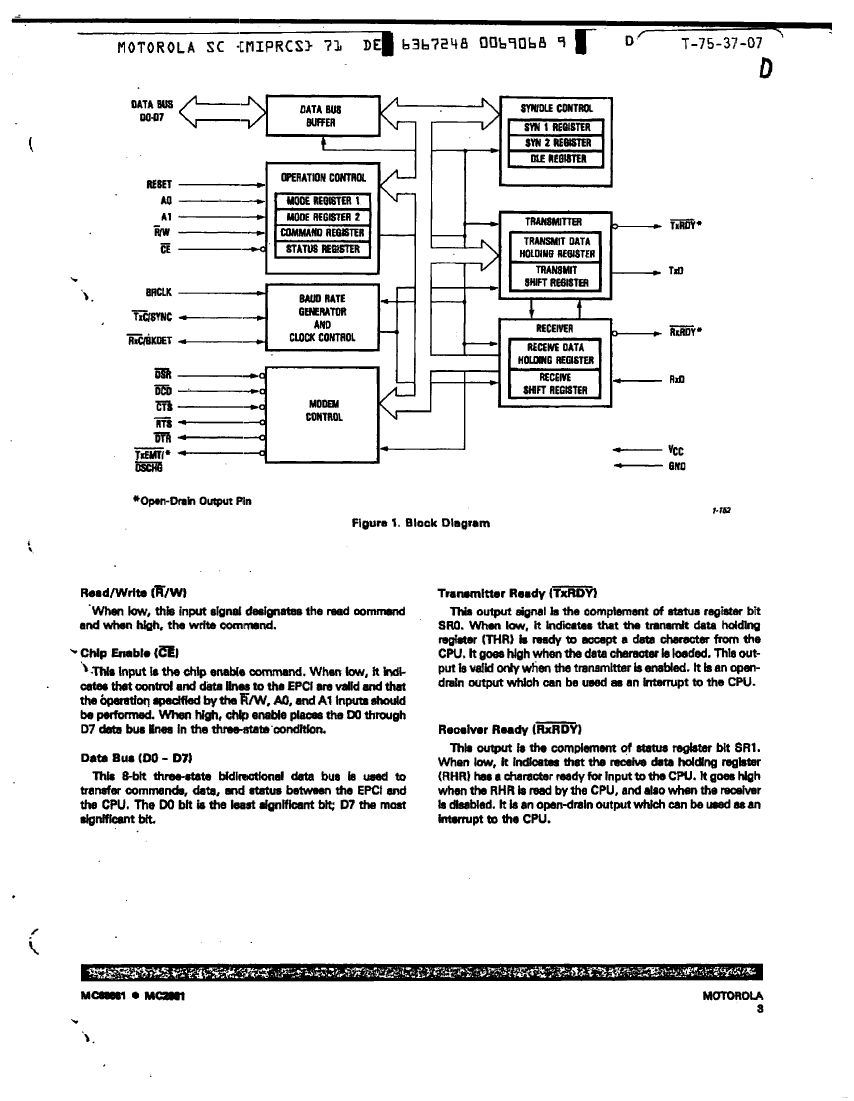

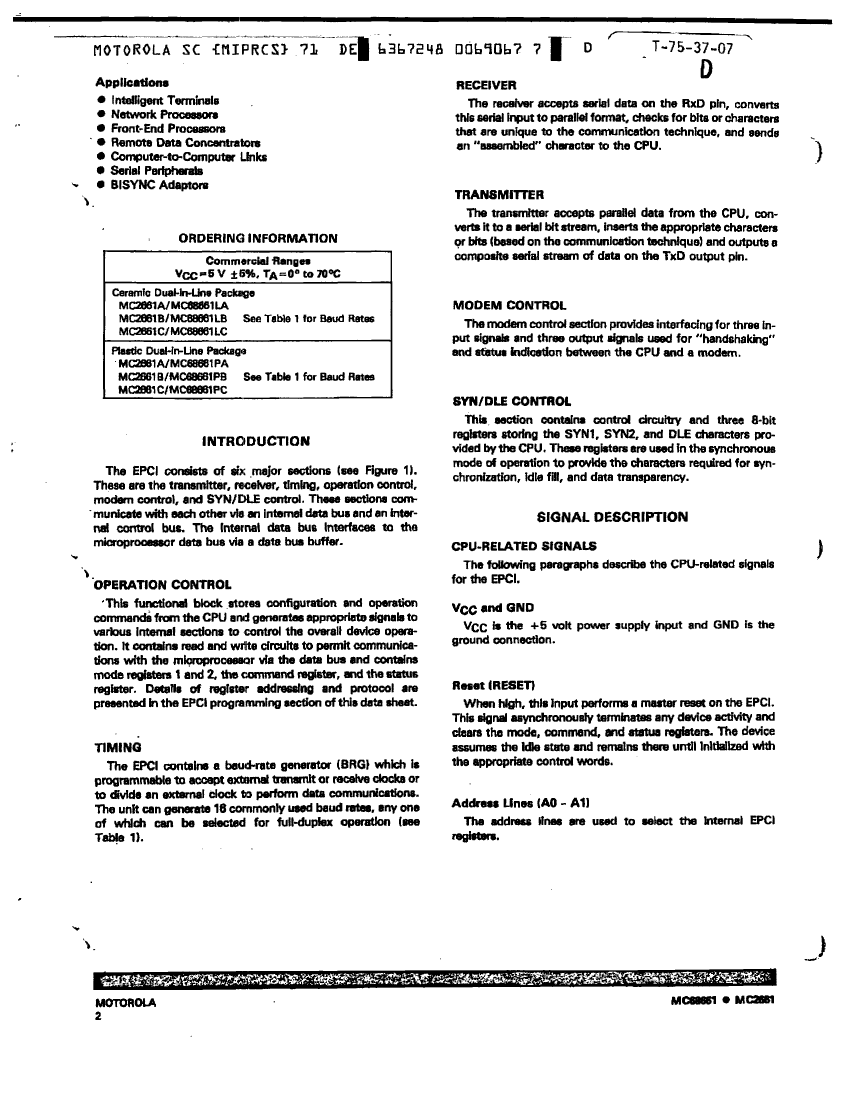

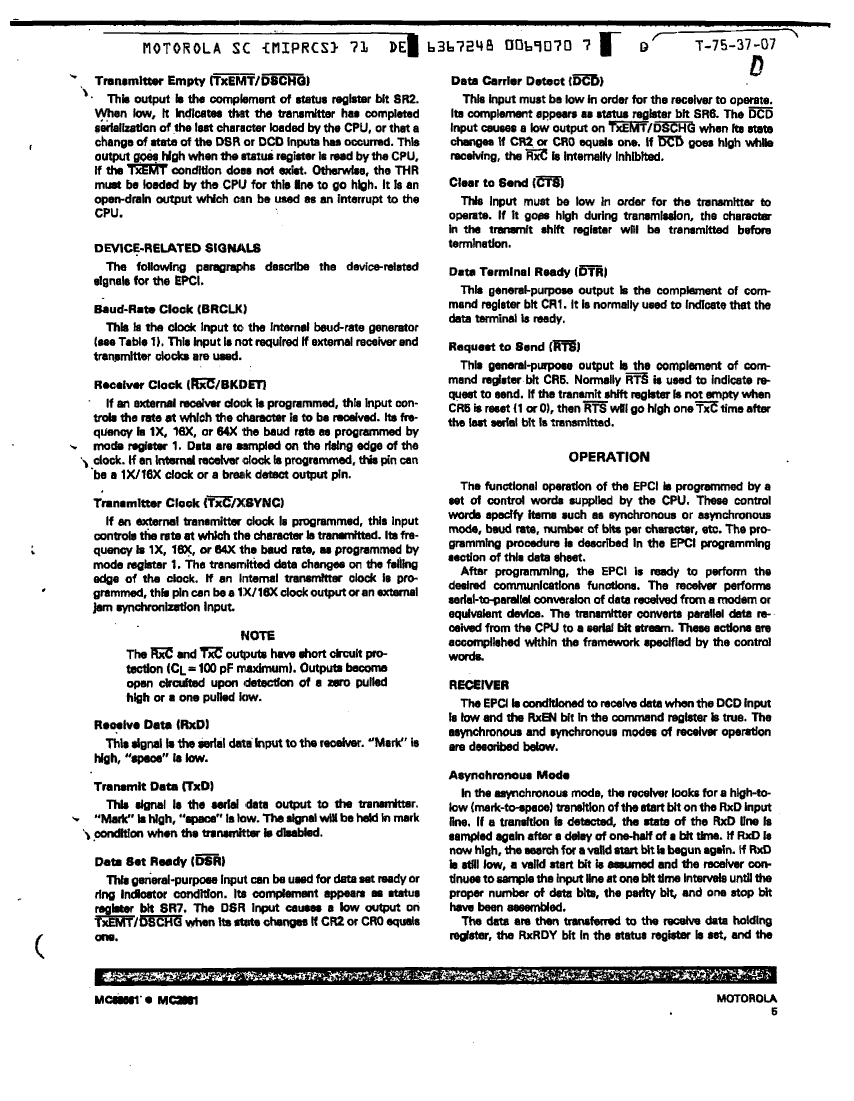

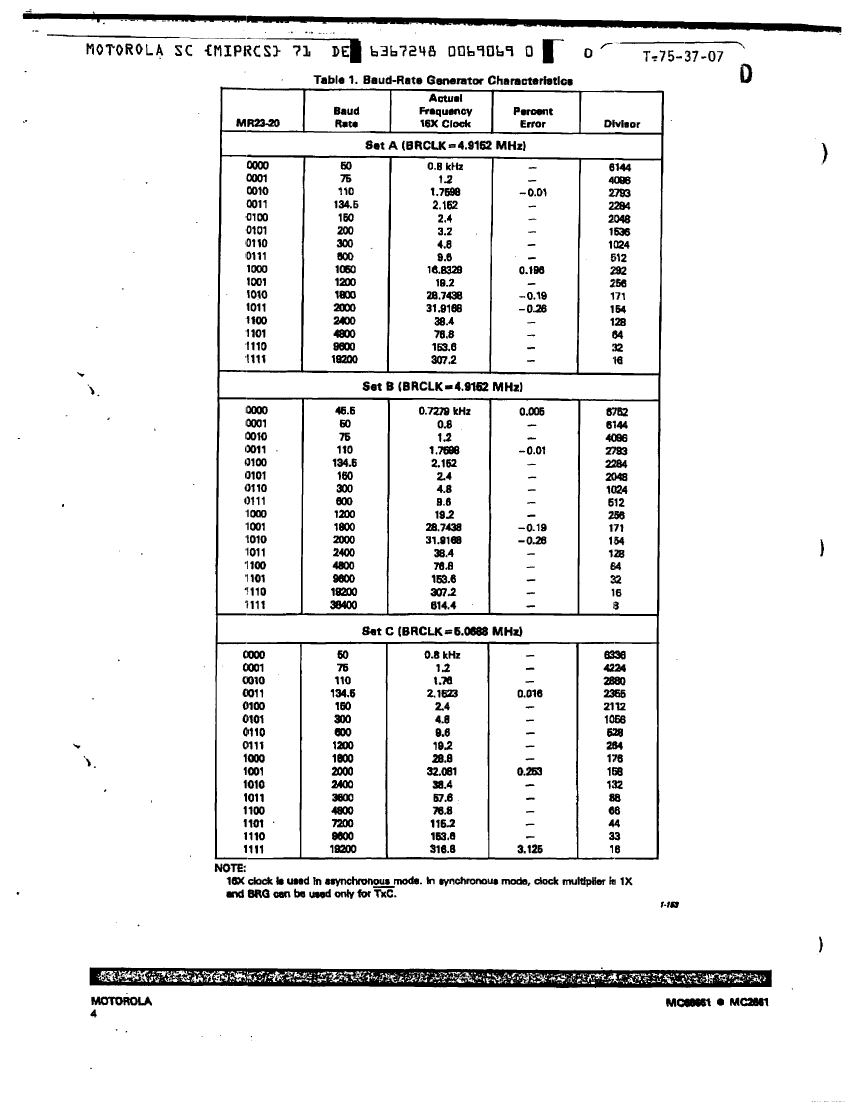

MC68661PA Overview

1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP28, 710-02

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
Address bus width	2
boundary scan	NO
Bus compatibility	MC68000
letter of agreement	ASYNC, BIT; SYNC, BYTE; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	8
JESD-30 code	R-PDIP-T28
length	36.83 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	1
Number of terminals	28
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	5.08 mm
Maximum slew rate	150 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
