Data Sheet
ASSR-3210, ASSR-3211, ASSR-3220
General-Purpose, Form A, Solid State Relay
(Photo MOSFET) (250V/0.2A/10Ω)
Description
The Broadcom
®
ASSR-32xx Series consists of an AlGaAs
infrared light-emitting diode (LED) input stage optically
coupled to a high-voltage output detector circuit. The
detector consists of a high-speed photovoltaic diode array
and driver circuitry to switch on/off two discrete high voltage
MOSFETs. The relay turns on (contact closes) with a
minimum input current of 3 mA through the input LED. The
relay turns off (contact opens) with an input voltage of 0.8V
or less.
The single channel configurations, ASSR-3210 and
ASSR-3211, are equivalent to 1 Form A Electromechanical
Relays (EMR), and the dual channel configuration, ASSR-
3220, is equivalent to 2 Form A EMR. They are available in
4-pin SO, 6-pin DIP, 8-pin DIP and Gull Wing Surface Mount
for DIP packages. Their electrical and switching
characteristics are specified over the temperature range of
–40°C to +85°C. They are used for general purpose
switching of signals and low power AC/DC loads.
ASSR-3211 enables AC/DC and DC-only output
connections. For DC-only connection, the output current, Io,
increases to 0.4A and the on-resistance, R(ON) reduces to
2.5.
CAUTION!
It is advised that normal static precautions be
taken in handling and assembly of this
component to prevent damage and/or
degradation which may be induced by ESD.
Features
Compact solid-state bidirectional signal switch
Single and dual channel normally-off Single-Pole-
Single-Throw (SPST) relay
250V output withstand voltage
0.2A or 0.4A current rating (See schematic for
ASSR-3211 connections A and B.)
Low input current: CMOS compatibility
Low on-resistance:
– 2Ω typical for DC-only
– 8Ω typical for AC/DC
High speed switching:
– 0.25 ms (T
ON
), 0.02 ms (T
OFF
) typical
High transient immunity: >1 kV/μs
High input-to-output insulation voltage (safety and
regulatory approvals)
– 3750 Vrms for 1 min per UL1577
– CSA component acceptance
Applications
Telecommunication switching
Data communications
Industrial controls
Medical
Security
EMR/Reed Relay replacement
Broadcom
AV02-0260EN
September 15, 2017
ASSR-3210, ASSR-3211, ASSR-3220
Data Sheet
General-Purpose, Form A, Solid State Relay
(Photo MOSFET) (250V/0.2A/10Ω)

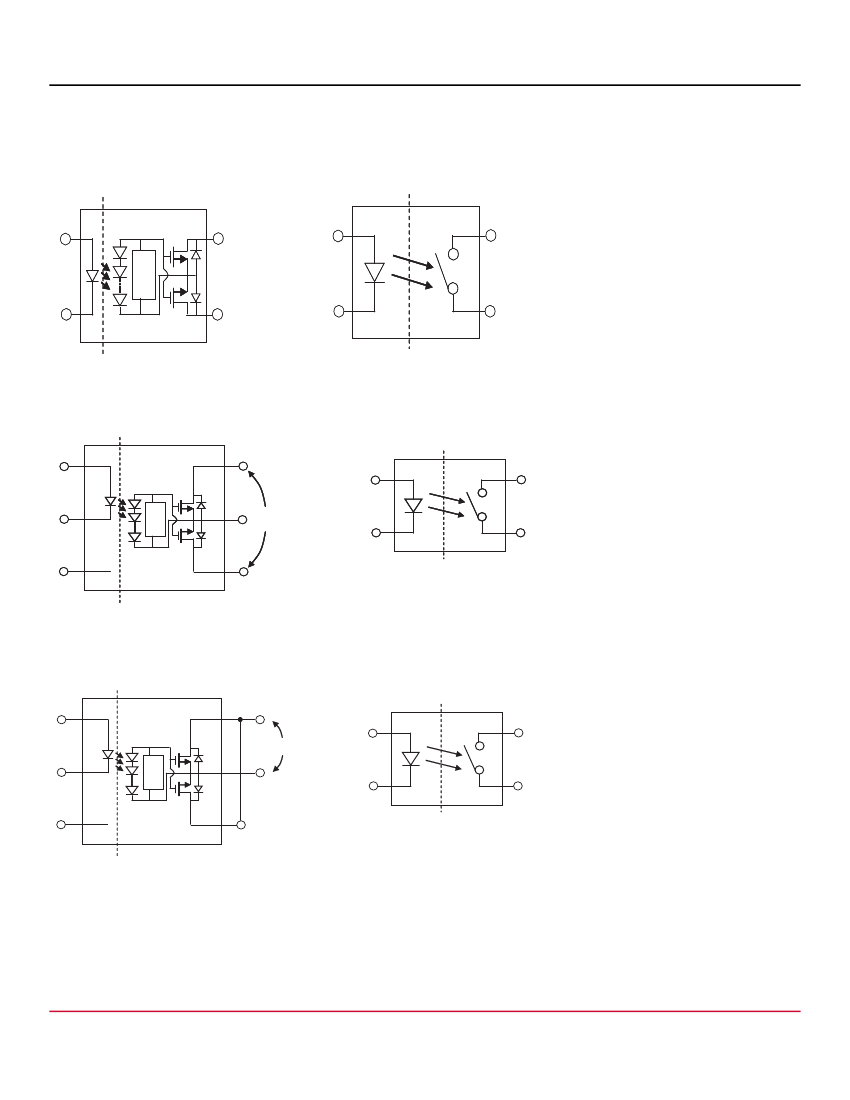

Functional Diagram
Opto-isolation
Truth Table
LED
Off
On
Output
Open
Close
1
Turn-off
Circuit
4
2
3
Single Channel, SPST Relay,
1 Form A in 4-Pin SO Package
Ordering Information
ASSR-32xx is UL Recognized with 3750 Vrms for 1 minute per UL1577 and is approved under CSA Component Acceptance
Notice #5.
Option
Part Number
ASSR-3210
ASSR-3211
RoHS Compliant
-003E
-503E
-001E
-301E
-501E
ASSR-3220
-002E
-302E
-502E
300-mil DIP-8
X
X
X
X
X
300-mil DIP-6
X
X
X
X
X
Package
SO-4
Surface Mount
X
X
X
Gull Wing
Tape & Reel
Quantity
100 units per tube
1500 units per reel
50 units per tube
50 units per tube
1000 units per reel
50 units per tube
50 units per tube
1000 units per reel
To order, choose a part number from the part number column and combine with the desired option from the option column
to form an order entry.
Example 1:
ASSR-3211-501E to order product of 300-mil DIP-6 Gull Wing Surface Mount package in Tape and Reel packaging and
RoHS Compliant.
Example 2:
ASSR-3220-002E to order product of 300-mil DIP-8 package in tube packaging and RoHS Compliant.
Option data sheets are available. Contact your Broadcom sales representative or authorized distributor for information.
Broadcom
AV02-0260EN
2
ASSR-3210, ASSR-3211, ASSR-3220
Data Sheet
General-Purpose, Form A, Solid State Relay
(Photo MOSFET) (250V/0.2A/10Ω)

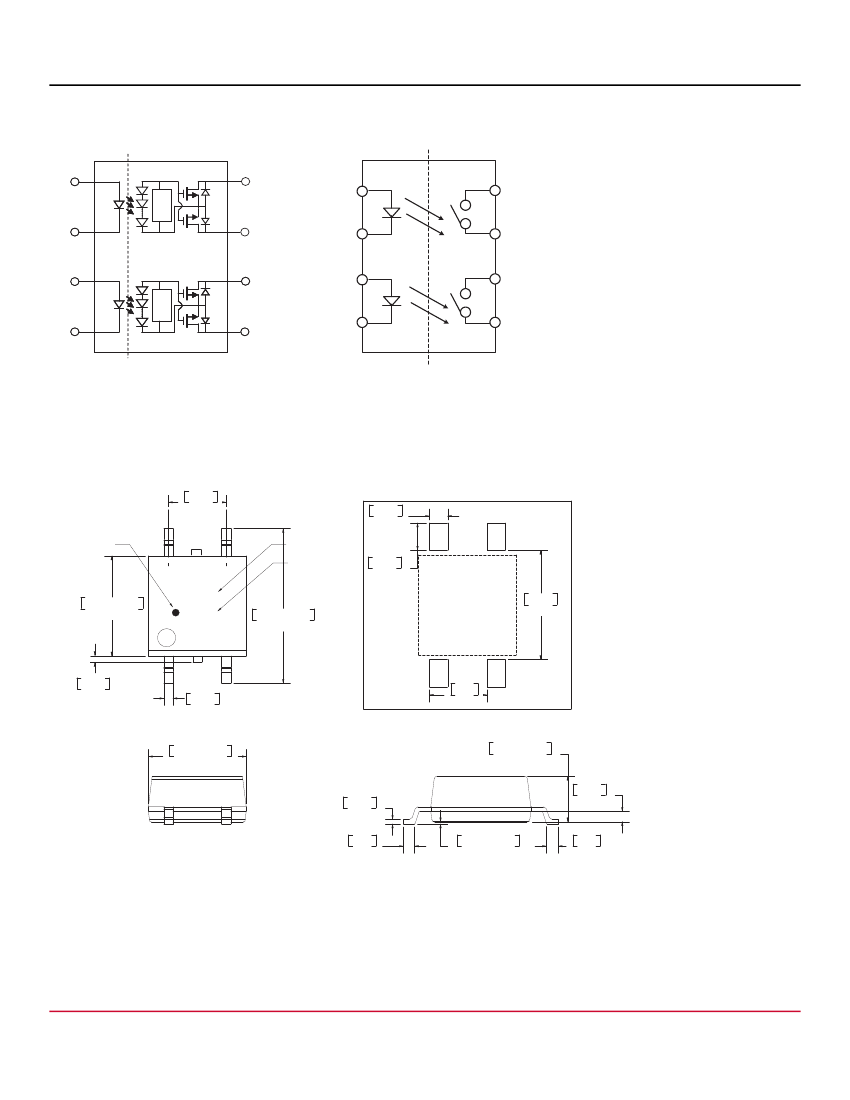

ASSR-3220
Opto-isolation
1
Turn-off
Circuit
Opto-isolation
8
1
8
2
7
Equivalent
Relay
Diagram
2
7
3
Turn-off
Circuit
6
3
6
4
5
4
5
Package Outline Drawings
ASSR-3210 4-Pin Small Outline Package
0.100
2.54
LEAD FREE
TYPE NUMBER
DATE CODE
xxxx
0.173±0.008
4.40±0.20
YWW
0.268±0.016
6.8±0.4
0.047
1.20
0.189
4.80
LAND PATTERN RECOMMENDATION
0.031
0.80
0.015
0.375
0.016
0.41
0.169±0.008
4.3 ±0.2
0.008
0.20
0.02
0.5
0.10
2.540
0.079±0.009
2.0±0.2
0.018
0.46
0.004±0.004
0.102±0.102
0.02
0.5
DIMENSIONS IN MILLIMETERS AND [INCHES]
OPTION NUMBER 500 AND UL RECOGNITION NOT MARKED
Broadcom
AV02-0260EN
4
ASSR-3210, ASSR-3211, ASSR-3220
Data Sheet
General-Purpose, Form A, Solid State Relay
(Photo MOSFET) (250V/0.2A/10Ω)
ASSR-3211 6-Pin DIP Package
9.65 ± 0.25
(0.380 ± 0.010)
LAND PATTERN RECOMMENDATION
6.35 ± 0.25
(0.250 ± 0.010)
10.9 (0.430)
1.27 (0.050)
2.0 (0.080)
9.65 ± 0.25
(0.380 ± 0.010)
1.78
(0.070)
MAX.
4.19
MAX.
(0.165)
0.635 ± 0.130
(0.025 ± 0.005)
7.62 ± 0.25
(0.300 ± 0.010)
0.20 (0.008)
0.30 (0.013)
2.29
(0.090)
2.54
(0.100)
TYP.
0.635 ± 0.25
(0.025 ± 0.010)
12° NOM.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
ASSR-3211 6-Pin DIP Package with Gull Wing Surface Mount Option 300
9.40 (0.370)
9.90 (0.390)
6
5
A XXXX
YYWW
PIN
ONE
DOT
1.78 (0.070) MAX.
1
2
RU
3
6.10 (0.240)
6.60 (0.260)
4
TYPE
NUMBER
DATE CODE
UL
RECOGNITION
7.36 (0.290)
7.88 (0.310)
LEAD FREE
0.20 (0.008)
0.33 (0.013)
5° TYP.
4.70 (0.185) MAX.
(0.020)
(0.040)
2.66 (0.105) MIN.
0.45 (0.018)
0.65 (0.025)
2.28 (0.090)
2.80 (0.110)
DIMENSIONS IN MILLIMETERS AND (INCHES).
2.16 (0.085)
2.54 (0.100)
Broadcom
AV02-0260EN
5
