FX2 Relay
108-98003
•
Apr. 10
Rev.
G
•
ECOC: JM10
AXICOM
Telecom-, Signal and RF Relays
108-98003 Rev. G
FX2 Relay
Disclaimer
While Tyco Electronics has made every reasonable effort
to ensure the accuracy of the information in this datasheet,
Tyco Electronics does not guarantee that it is error-free,
nor does Tyco Electronics make any other representati-
on, warranty or guarantee that the information is accurate,
correct, reliable or current. Tyco Electronics reserves the
right to make any adjustments to the information contai-
ned herein at any time without notice. Tyco Electronics
expressly disclaims all implied warranties (and all express
warranties, except as otherwise stated in this datasheet)
regarding the information contained herein, including but
not limited to any implied warranties or merchantability or
fitness for a particular purpose. It is recommended that
you test any new or replacement product before incorpo-
rating into a system.
The dimensions in this datasheet are for reference purpo-
se only and are subject to change without notice. Specifi-
cations are subject to change without notice.
Index
Dimensions
Coil Operating Range
Coil Data and Ordering Information
Contact Data
Insulation
General Data
Packing
4
5
6
7
8
8
9
2 of 11
UL 508
File No. E 111441
UL 60950
IEC/EN60950
IEC Ref. Cert. No. CH-3269
All specifications subject to change. Consult Tyco Electronics for latest specifications.

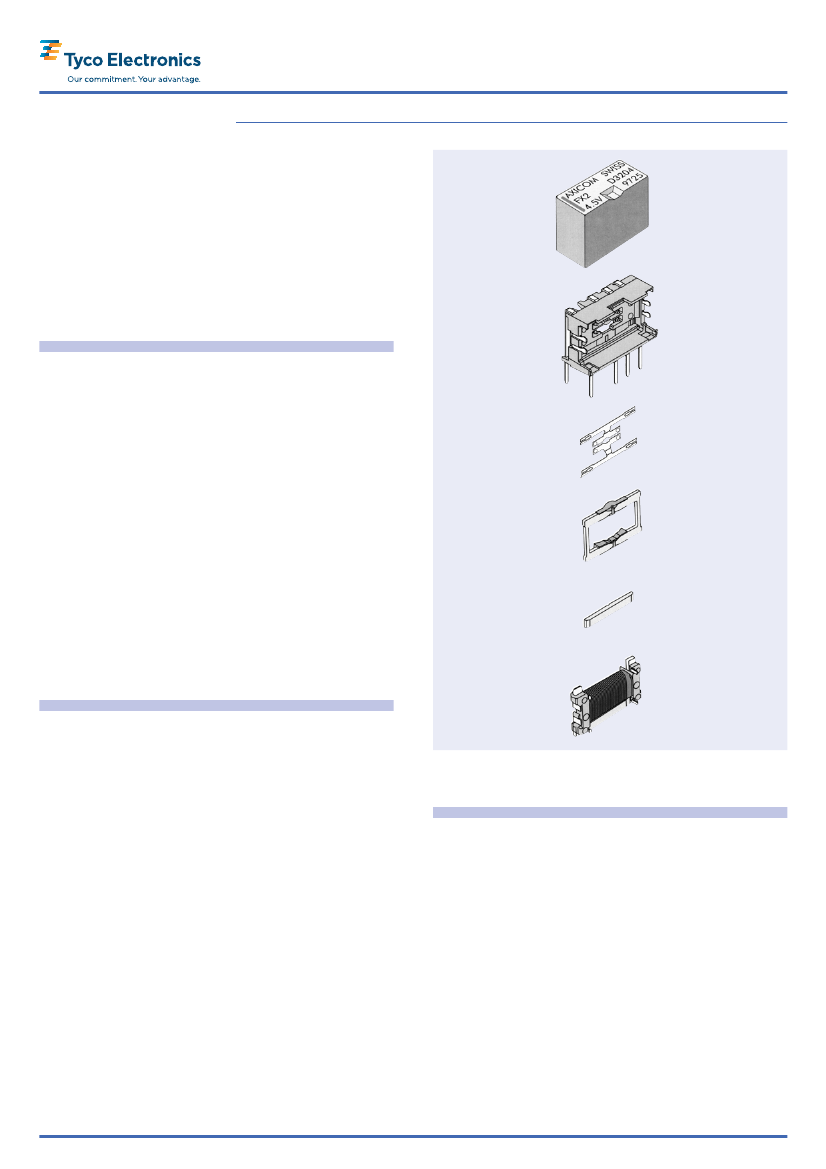

AXICOM
Telecom-, Signal and RF Relays
108-98003 Rev. G
FX2 Relay
2 pole telecom / signal relay
Through Hole Type (THT)
Polarized, latching or non-latching 1 coil
Relay types:
sensitive non lachting version with 1
coil high sensitive non latching version
with 1 coil, latching with 1 coil
ROHS compliant (Directive 2002/95/EC) as per
product date code 0342 / halogen free.
Features
•
•
•
•
•
•
•
•
Telecom/signal relay (dry circuit, test access, ringing)
Slim line 15 x 7.3 mm, 0.590 x 0.287 inch
Switching current 2 A
2 changeover contacts (2 form C / DPDT)
Bifurcated contacts
High sensitivity results in low nominal power consump-
tion 80 mW for high sensitive, 140 mW for sensitive
version
High dielectric characteristic
≤ 1800 Vrms also between open contact
High surge capability (1.2 / 50 µs and 10 / 700 µs)
meets
Telcordia GR 1089 and FCC Part 68
≤ 2500 V between open contacts
≤ 3500 V between coil and contacts
High mechanical shock
up to 300 G functional
up to 1500 G survival
Hermetically sealed (RT V)
•
•
Typical applications
• Communications equipment
linecard application - analog, ISDN, xDSL, PABX
Voice over IP
• Office and business equipment
• Measurement and control equipment
• Consumer electronics
Set top boxes, HiFi
• Medical equipment
Insulation category
Supplementary insulation according
Working voltage
Mains supply voltage
Repetitive peak voltage
Pollution degree
Flammability classification
Maximum operating temperature
IEC / EN 60950
≤ 300 Vrms
≤ 250 Vrms
2500 V
Internal: 1
External: 2
V-0
85 °C
All specifications subject to change. Consult Tyco Electronics for latest specifications.
3 of 11
AXICOM
Telecom-, Signal and RF Relays
108-98003 Rev. G
FX2 Relay

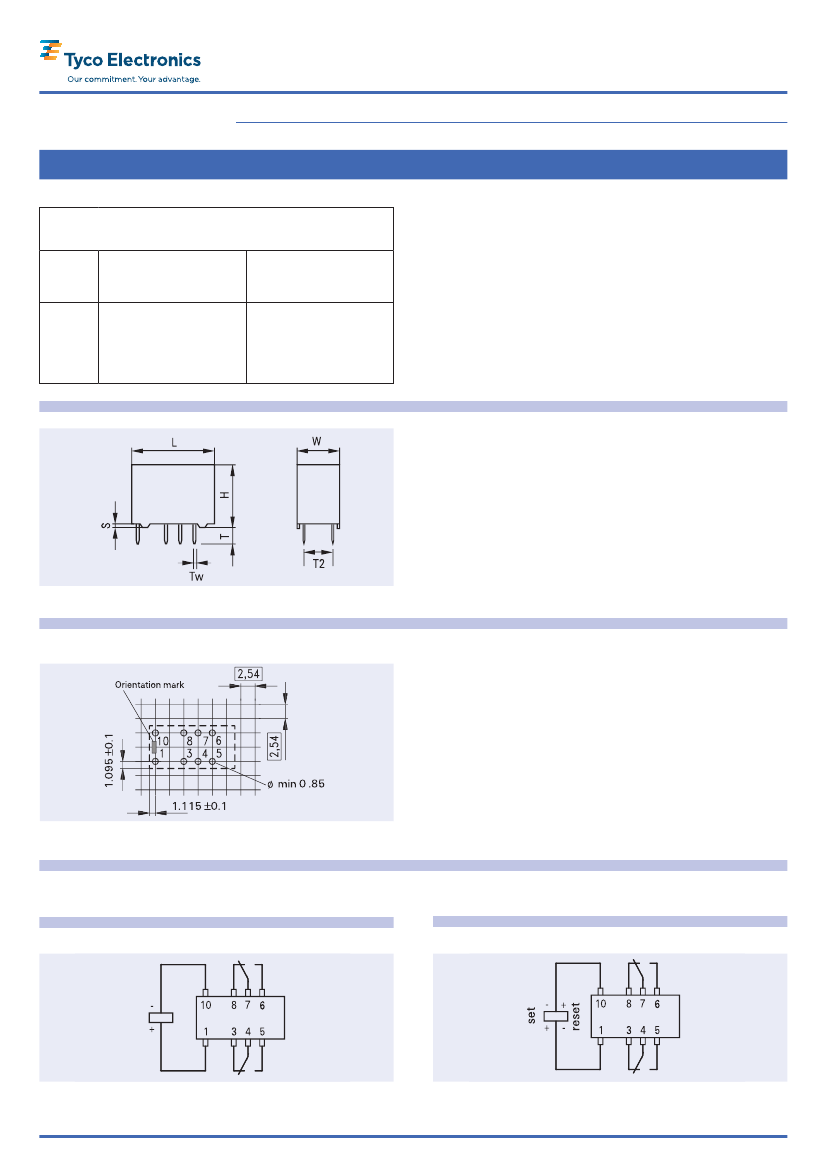

Dimensions
THT
mm
L
W
H
T
T1
T2
Tw
S
14.95 ± 0.05
7.30 ± 0.05
10.70 ± 0.05
3.30 ± 0.30
N/A
5.08 ± 0.15
0.50
0.30 ± 0.05
inch
0.588 ± 0.002
0.287 ± 0.002
0.421 ± 0.002
0.129 ± 0.012
N/A
0.199 ± 0.006
0.019
0.012 ± 0.002
Dimensions in mm
THT Version
Mounting hole layout
View onto the component side of the PCB (top view)
Terminal assignment
Relay – top view
Non-latching type
not energized condition
Latching type, 1 coil
reset condition
Contacts in reset position. Contact position might change
during transportation and must be reset before use.
All specifications subject to change. Consult Tyco Electronics for latest specifications.
4 of 11
AXICOM
Telecom-, Signal and RF Relays
108-98003 Rev. G
FX2 Relay

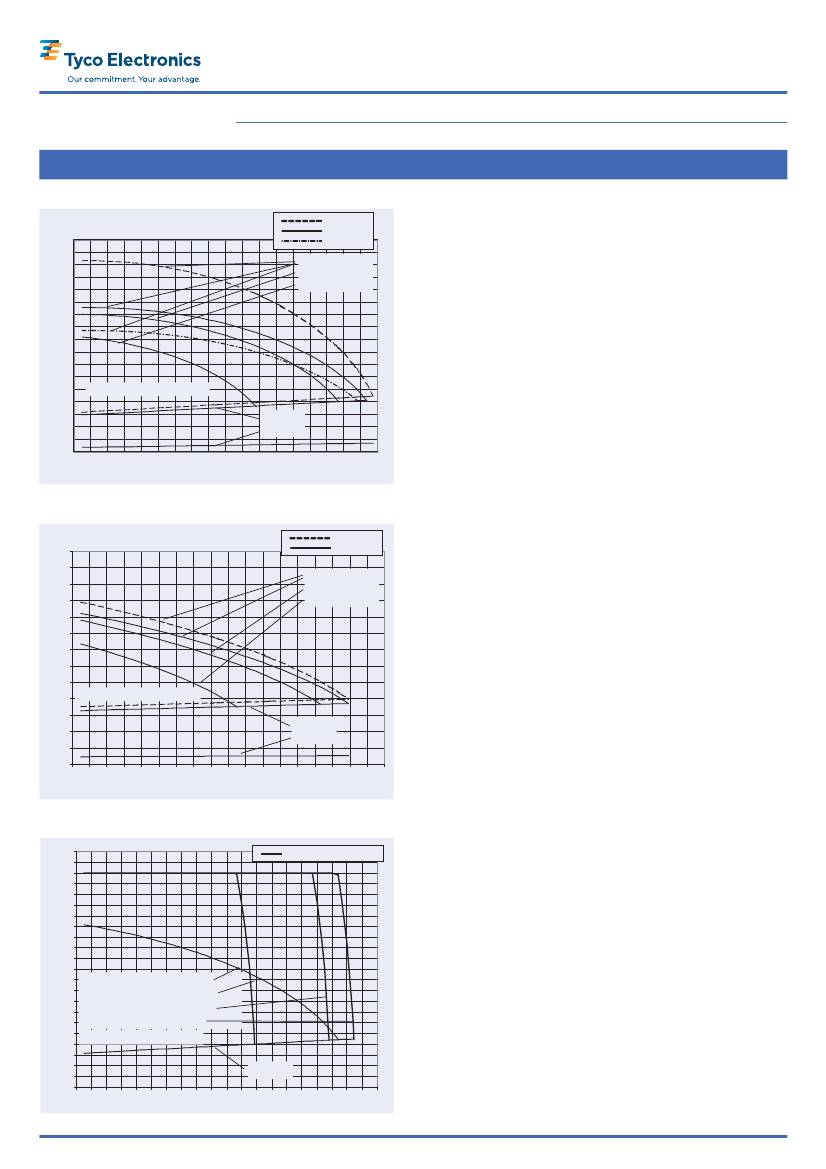

Coil Operating Range
80 mW
140 mW
200 mW
U
max.
at 0 A
U
max.
at 2 x 1 A
U
max.
at 2 x 2 A
3.4
3.2
3
2.8
2.6
Unom =
Umax. =
Uop. min. =
Urel. min. =
Coil Voltage [U/U
nom
]
2.4
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
-60
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100 110 120
Nominal coil voltage
Upper limit of the operative range of
the coil voltage (limiting voltage)
Lower limit of the operative range of the
coil voltage (reliable operate voltage)
For latching relays Uset min. resp. Ureset min.
Lower limit of the operative range of
the coil voltage (reliable release voltage)
U
nom.
nominal coil voltage
U
op. min.
U
rel. min.
Ambient Temperature [°C]
2.6
2.4
2.2
2.0
260 mW
300 mW
U
max.
at 0 A
U
max.
at 2 x 1 A
U
max.
at 2 x 2 A
Coil Voltage [U/U
nom
]
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
-60
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
U
nom.
nominal coil voltage
U
op. min.
U
rel. min.
Ambient Temperature [°C]
4.4
4.2
4
3.8
3.6
3.4
3.2
100 mW Latching
Coil Voltage [U/U
nom
]
3
2.8
2.6
2.4
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
-60 -50 -40 -30 -20 -10
0
10
20
30
40
50
U
max.
- 100 % coil duty at 0 A
U
max.
- 5 % coil duty at 2 x 2 A
U
max.
- 5 % coil duty at 2 x 1 A
U
max.
- 5 % coil duty at 0 A
U
nom.
nominal coil voltage
U
set min.
Ambient Temperature [°C]
60
70
80
90 100 110 120 130 140
All specifications subject to change. Consult Tyco Electronics for latest specifications.
5 of 11
