SMDA03
THRU
SMDA36
Technical Data
Data Sheet N0294, Rev. A

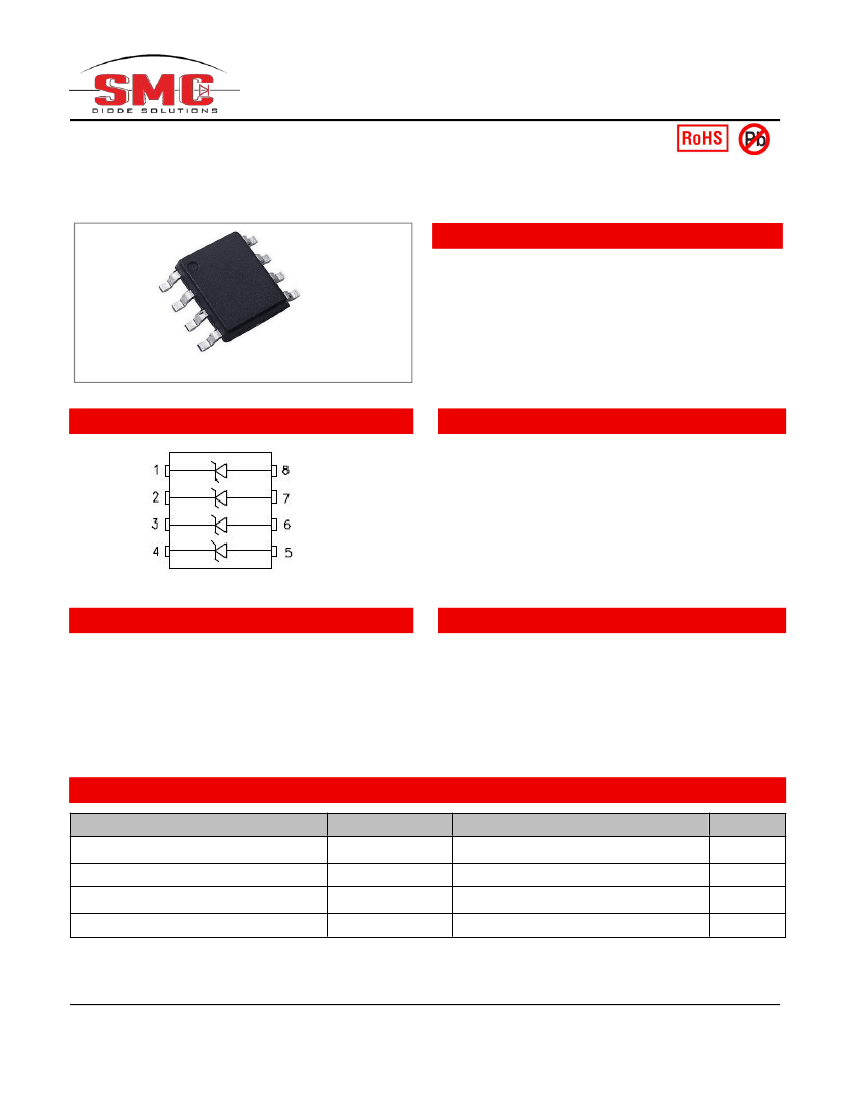

SMDA03 THRU SMDA36 TVS ARRAY SERIES
Description
The SMDAXX series of TVS array have been
designed to provide unidirectional protection for
sensitive electronics from damage due to voltage
transients caused by electrostatic discharge
(ESD), electrical fast transients (EFT), lightning
and other voltage-induced transient events. The
device can be used to protect combinations of
four unidirectional lines.
SO-8
Schematic & Pin Configuration
Features
Protects 3.3, 5, 12, 15, 24, 36 V Components
Unidirectional
Provides Electrically Isolated Protection
300 W @ 8/20 us
Protects 4 Lines
SO-8 Packaging
“-A” is an AEC-Q101 qualified device
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Mechanical Characteristics
SO-8 Surface Mount Package
Approximate Weight: 0.1 grams
PIN #1 Indicator: DOT on top of package
Packaging: Tubes or Tape & Reel per EIA
Standard 481
Application
RS-232 Data Lines
Microprocessor Based Equipment
Notebooks, Desktops, & Servers
LAN/WAN Equipment
Serial and Parallel Port
Peripherals
Absolute Maximum Ratings:
Parameter
Peak Pulse Power, 8/20 μs Wave shape
Operating Temperature
Storage Temperature
Lead Soldering Temperature
Symbol
P
T
J
T
stg
T
L
Value
300
-55 to +125
-55 to +150
260 (10 Sec.)
Units
W
C
C
C
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SMDA03
THRU
SMDA36
Technical Data
Data Sheet N0294, Rev. A
Electrical Characteristics
@25°C
Stand-off
Voltage
Vwm
(V)
Max
3.3
5.0
12.0
15.0
24.0
36.0
Breakdown
Voltage
V
BR
@1mA
(V)
Min
4
6
13.3
16.7
26.7
40.0
Clamping
Voltage
Vc
@1A
(V)
Max
7
9.8
19
24
43
51
Leakage
Current
I
R
@ Vwm
(uA)
Max
200
20
1
1
1
1
Capacitance
(f = 1MHz)
C
@ 0V
(pF)
Max
800
600
185
140
90
80
Part Number
SMDA03
SMDA05
SMDA12
SMDA15
SMDA24
SMDA36

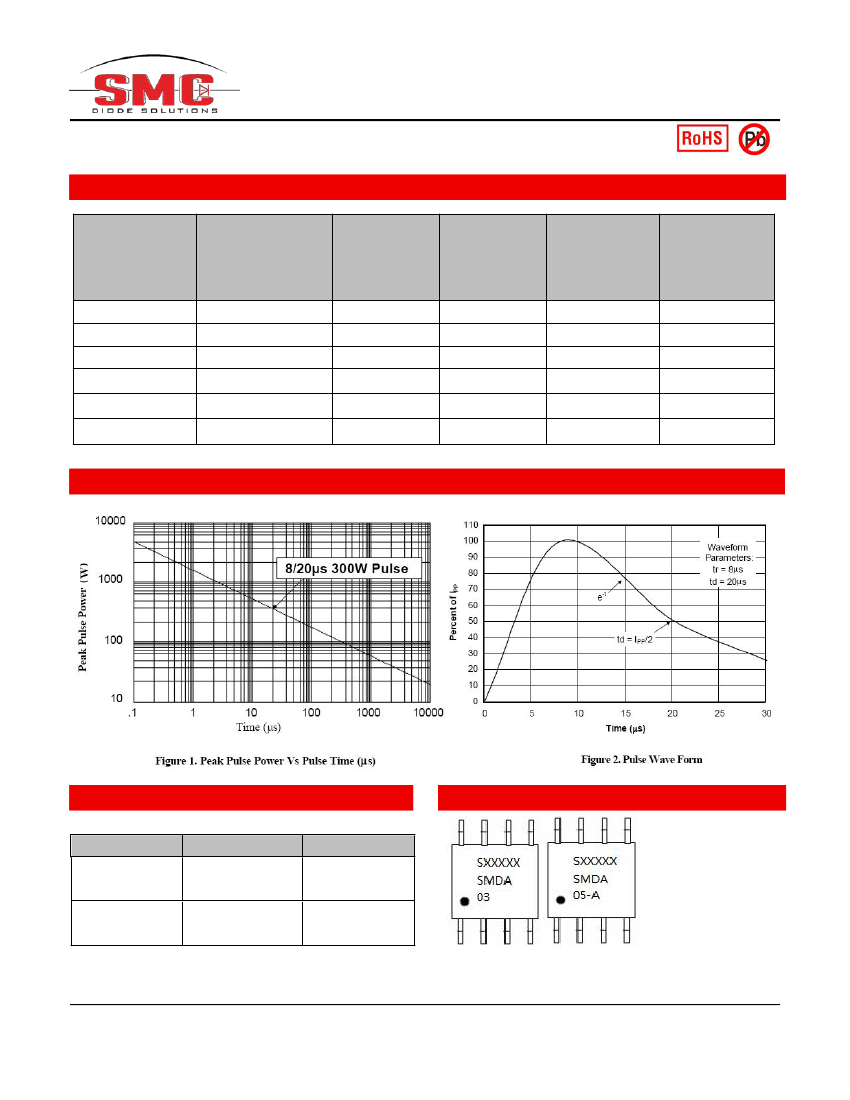

Ratings and Characteristics Curves
Ordering Information
Device
SMDA03
THRU
SMDA36
SMDA03TR
THRU
SMDA36TR
Marking Diagram
Shipping
2500pcs / reel
2500pcs / reel
Where XXXXX is YYWWL
SMDA03
-A
S
YY
WW
L
= Part Number
= AEC-Q101
=S
= Year
= Week
= Lot Number
Package
SO-8
(Pb-Free)
SO-8
(Pb-Free)
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SMDA03
THRU
SMDA36
Technical Data
Data Sheet N0294, Rev. A

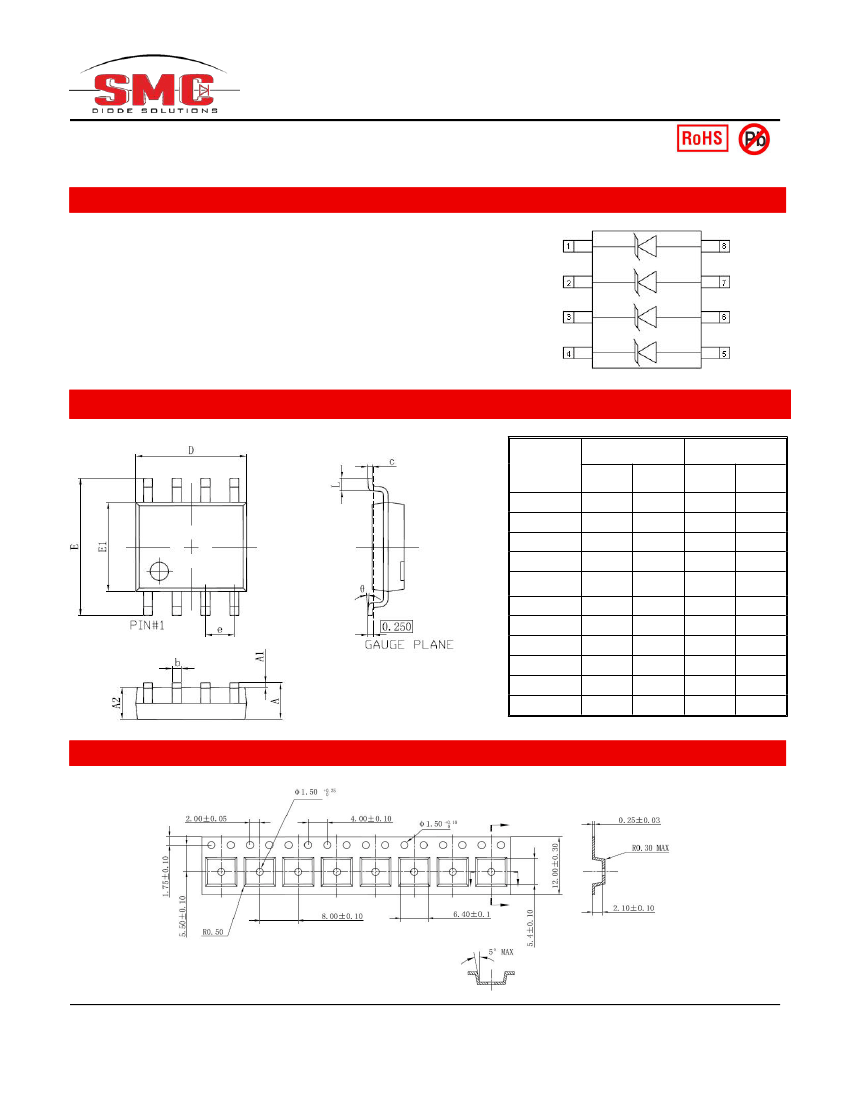

Circuit Diagram
The SMDAxx series of devices are designed to protect up to four data
lines. The devices are connected as follows:
✔
The SMDAxx are unidirectional devices and are designed for use on
line where the normal operating voltage is above ground. Pins 1, 2,
3, and 4 are connected to the protected lines. Pins 5, 6, 7, and 8
are connected to ground. The ground connections should be made
directly to the ground plane for best results. The path length is kept
as short as possible to reduce the effects of parasitic inductance in
the board traces.
Mechanical Dimensions SO-8
SYMBOL
A
A1
A2
b
c
D
e
E
E1
L
θ
Millimeters
MIN.
1.350
0.100
1.350
0.306
0.150
4.720
1.140
5.700
3.750
0.300
0°
MAX.
1.800
0.250
1.750
0.510
0.300
5.120
1.400
6.300
4.150
1.270
8°
Inches
MIN.
0.053
0.004
0.053
0.012
0.006
0.186
0.045
0.224
0.148
0.012
0°
MAX.
0.071
0.010
0.069
0.020
0.012
0.202
0.055
0.248
0.163
0.050
8°
Carrier Tape Specification SO-8
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SMDA03
THRU
SMDA36
Technical Data
Data Sheet N0294, Rev. A
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of
the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall
SMC Diode Solutions
be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s).
SMC Diode Solution
assumes no responsibility for any intellectual property
claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall
SMC Diode Solutions
be liable for any failure in a semiconductor device or any secondary damage resulting from use
at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or
SMC Diode Solutions.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
SMC
Diode Solutions.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations..
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
