SK810
Technical Data
Data Sheet N1375, Rev. A
SK810 SCHOTTKY RECTIFIER
Features
Small foot print,surface mountable
Very low forward Voltage Drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Green Products in Compliance the ROHS Directive
“-A” is an AEC-Q101 qualified device
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
SMC
Circuit Diagram
Applications
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive
Surge Current
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
Condition
-
50% duty cycle @T
C
=95°C, rectangular
wave form
8.3ms, Half Sine pulse, T
c
= 25
C
Max.
100
8
200
Units
V
A
A
Electrical Characteristics:
Characteristics
Forward Voltage Drop*
Reverse Current*
Junction Capacitance
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F1
V
F2
I
R1
I
R2
C
T
Condition
@ 8A, Pulse, T
J
= 25
C
@ 8A, Pulse, T
J
= 125
C
@V
R
= rated V
R,
T
J
= 25
C
@V
R
= rated V
R,
T
J
= 100
C
@V
R
= 5V, T
C
= 25
C,
f
SIG
= 1MHz
Typ.
0.74
0.61
0.007
-
280
Max.
0.80
0.70
1.0
20
400
Units
V
V
mA
mA
pF
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SK810
Technical Data
Data Sheet N1375, Rev. A
Thermal-Mechanical Specifications:
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Lead
Typical Thermal Resistance Junction to
Ambient
Approximate Weight
Characteristics
Symbol
T
J
T
stg
R
JL
R
JA
wt
Condition
-
-
Specification
-55 to +150
-55 to +150
20
84
Units
C
C
C/W
C/W
g
DC operation
DC operation
-
0.09
Ratings and Characteristics Curves
10000
Instantaneous Reverse Current (mA
)
10
1
0.1
0.01
0.001
0.0001
10
20
30
40
50
60
70
80
90
100
Pe r ce nt of Rate d Pe ak Re ve r s e V oltage (%)
TJ=125℃
Junction Capacitance (PF)
1000
TJ=25℃
100
TJ=25℃
10
0
5
10
15
20
25
30
35
40
Reverse Voltage (V)
Fig.1-Typical Junction Capacitance
100
Fig.2-Typical Values Of Reverse Current
Instantaneous Forward Current (A)
10
TJ=125℃
TJ=25℃
1
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
Forward Voltage Drop (V)
Fig.3-Typical Forward Voltage Drop Characteristics
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SK810
Technical Data
Data Sheet N1375, Rev. A

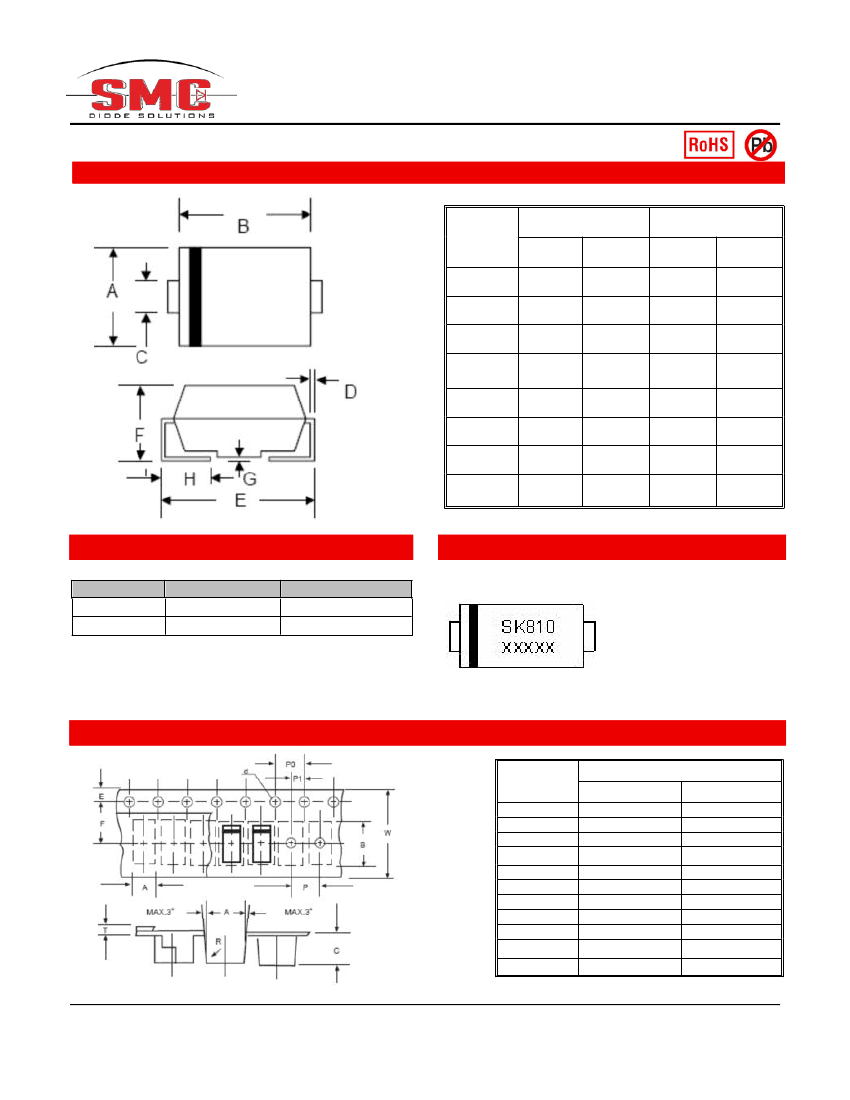

Mechanical Dimensions SMC
Millimeters
Min.
5.59
6.60
2.75
0.152
7.75
2.00
0.051
0.76
Max.
6.22
7.11
3.25
0.305
8.25
2.95
0.203
1.60
Inches
Min.
0.220
0.260
0.108
0.006
0.305
0.079
0.002
0.030
Max.
0.245
0.280
0.128
0.012
0.325
0.116
0.008
0.063
SYMBOL
A
B
C
D
E
F
G
H
Ordering Information
Device
SK810
SK810TR
SMC (Pb-Free)
SMC (Pb-Free)
Marking Diagram
3000pcs / reel
3000pcs / reel
Package
Shipping
Where XXXXX is YYWWL
SK
8
10
YY
WW
L
= Device Type
= Forward Current (8A)
= Reverse Voltage (100V)
= Year
= Week
= Lot Number
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
Carrier Tape Specification SMC
SYMBOL
A
B
C
d
E
F
P
P0
P1
T
W
5.90
8.20
2.40
1.40
1.40
7.60
7.90
3.90
3.90
-
15.80
Millimeters
Min.
Max.
6.10
8.40
2.60
1.60
1.60
7.70
8.10
4.10
4.10
0.600
16.20
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SK810
Technical Data
Data Sheet N1375, Rev. A
