AXICOM Signal Relays
108-98001 Rev. M
IM Relay
IM Relay

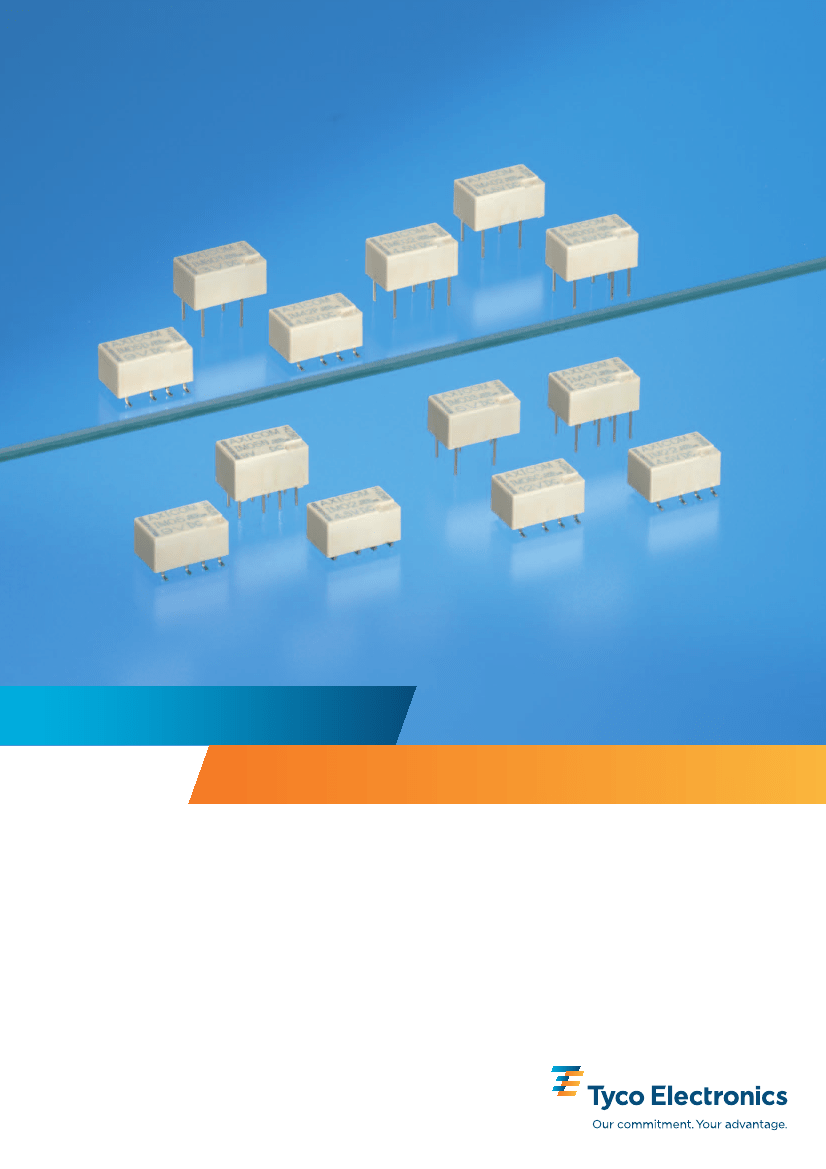

1 and 2 pole telecom/signal relay, polarized

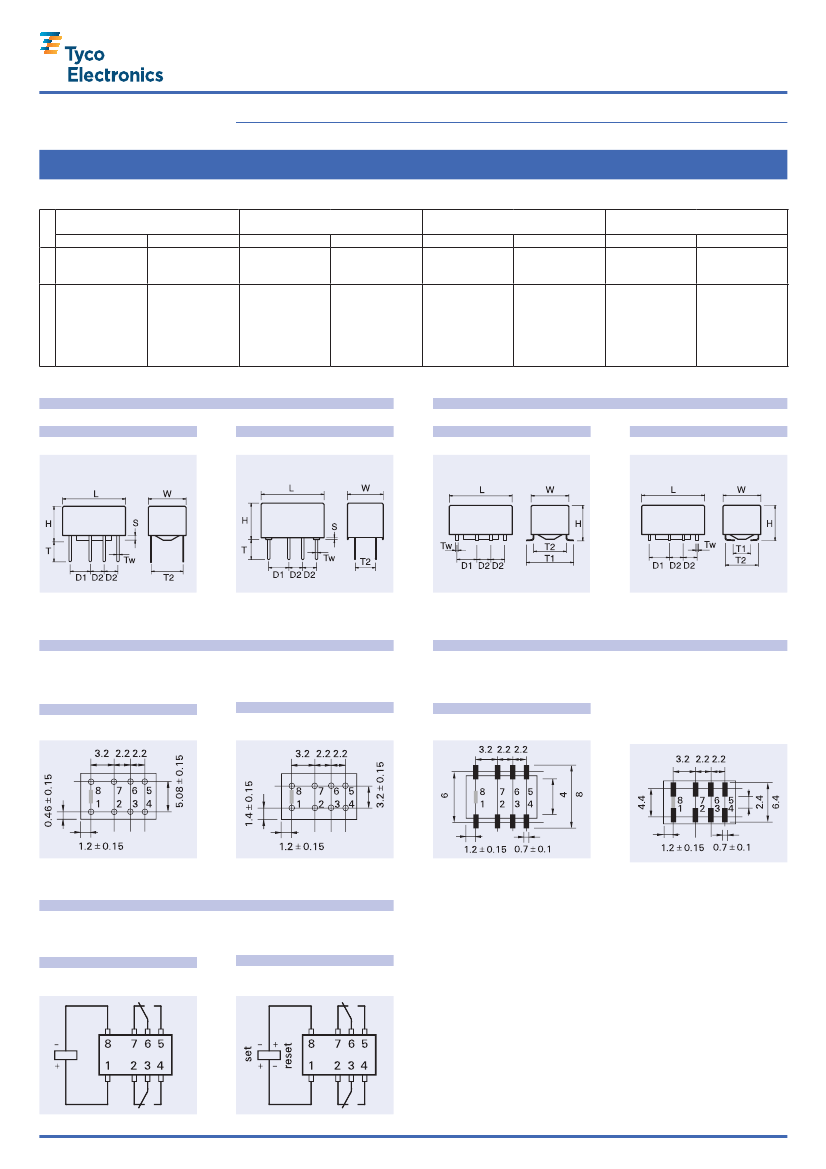

Through Hole Types (THT), standard version with
5.08 mm, narrow with 3.2 mm between the terminal rows
or Surface Mount Type (SMT)
Relay Types:
non – latching with 1 coil
latching with 1 coil
IM
IM-D
IM-E
IM-C
IM-A
IM-B
Typical Applications
-
-
-
-
-
-
-
Telecommunication
• Access and transmission equipment
• Optical Network Terminals
• Modems
Office and business equipment
Consumer electronics
Measurement and Test equipment
Industrial control
Medical equipment
Automotive applications
Configurations:
2 pole changeover / DPDT / 2 Form C
2 pole break / DPST NC / 2 Form B
2 pole make / DPST NO / 2 Form A
1 pole changeover / SPDT / 1 Form C
1 pole break / SPST NC / 1 Form B
1 pole make / SPST NO / 1 Form A
Versions
-
-
-
High Dielectric Version “C” Type
High Current Version “D” Type
High Contact Resistance Stability Version “P” Type
ROHS compliant (Directive 2002/95/EC) as per product
date code 0438 / Halogen free
Insulation Category
Supplementary insulation according IEC / EN 60950
Working voltage ≤ 300 Vrms
Mains supply voltage ≤ 250 Vrms
Repetitive peak voltage 2500 V
Pollution degree Internal: 1
External: 2
Flammability classification V-0
Maximum operating temperature 85 °C
Meets Australian Requirements between open contacts
Features
-
-
-
-
-
-
-
-
-
-
-
Minimum board-space 60 mm
2
Slim line 10 x 6 mm, 0.39 x 0.24 inch and
Low profile 5.65 mm, 0.222 inch
Switching power 60 W / 62.5 VA
Switching voltage 220 VDC / 250VAC
Switching current 2 / 5 A
Bifurcated contacts
Low coil power consumption
Latching version
• 100 mW
Non latching version
• 140 mW standard
• 100 mW high sensitive version
• 50 mW ultra high sensitive version
High dielectric and surge capability (1.2/50 µs and
10/700 µs) meets Telcordia GR1089, FCC Part 68
and ITU-T K20, K21 and K45 requirements
• up to 2500 Vrms between open contacts
• up to 3000 Vrms between coil and contacts
Meets 1500 Vrms (high dielectric version) between
open contacts as well as Australian clearance
requirements
High mechanical shock resistance up to 300G
functional and 500G survival
