MJE13006 datasheet, PDF - EEWORLD Datasheet

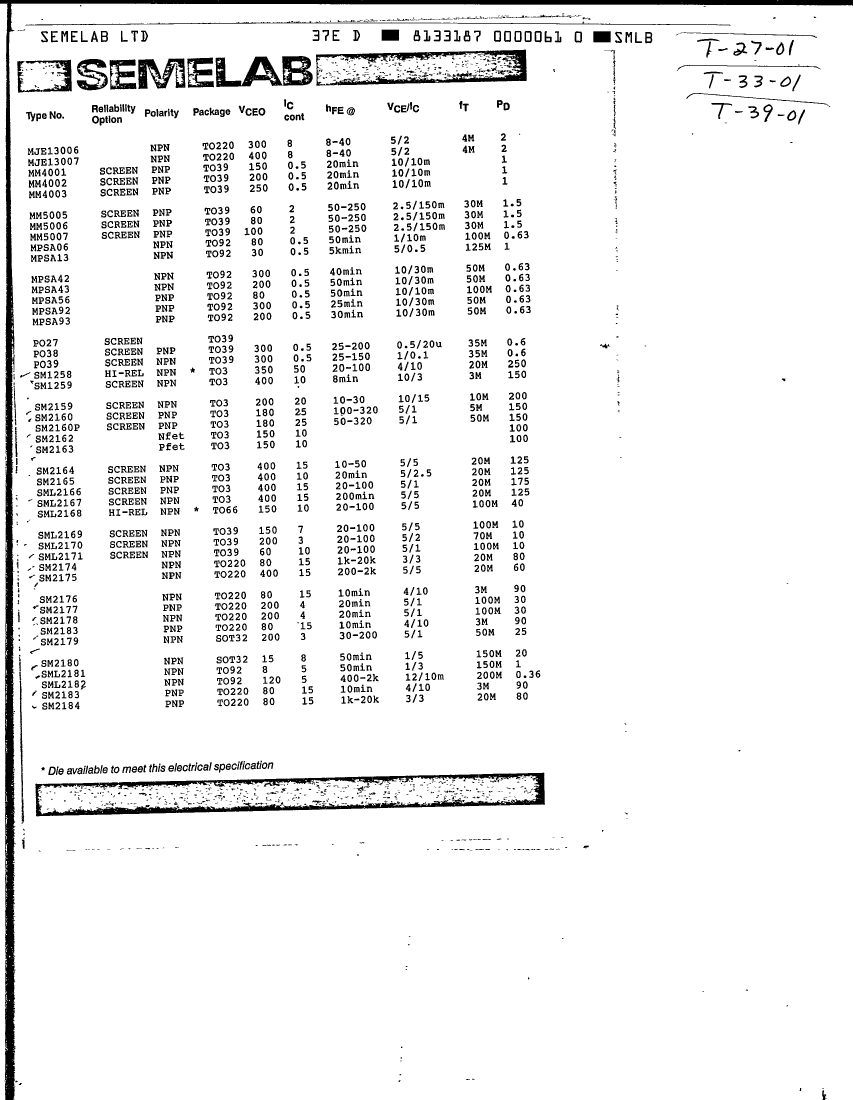

MJE13006: DescriptionTRANSISTOR,BJT,NPN,300V V(BR)CEO,8A I(C),TO-220AB; CategoryDiscrete semiconductor The transistor; File Size102KB，1 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

MJE13006 Overview

TRANSISTOR,BJT,NPN,300V V(BR)CEO,8A I(C),TO-220AB

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SEMELAB
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	8 A
Configuration	Single
Minimum DC current gain (hFE)	5
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	80 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	4 MHz

	MJE13006	MJE13007	MM4003	SM2175	SM2178
Description	TRANSISTOR,BJT,NPN,300V V(BR)CEO,8A I(C),TO-220AB	TRANSISTOR,BJT,NPN,400V V(BR)CEO,8A I(C),TO-220AB	TRANSISTOR,BJT,PNP,250V V(BR)CEO,500MA I(C),TO-205AD	TRANSISTOR,BJT,NPN,400V V(BR)CEO,15A I(C),TO-220	TRANSISTOR,BJT,NPN,200V V(BR)CEO,4A I(C),TO-220
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	8 A	8 A	0.5 A	15 A	4 A
Configuration	Single	Single	Single	Single	Single
Minimum DC current gain (hFE)	5	5	20	200	20
JESD-609 code	e0	e0	e0	e0	e0
Polarity/channel type	NPN	NPN	PNP	NPN	NPN
Maximum power dissipation(Abs)	80 W	80 W	5 W	60 W	30 W
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	SEMELAB	SEMELAB	SEMELAB	SEMELAB	-
Maximum operating temperature	150 °C	150 °C	175 °C	-	-
Nominal transition frequency (fT)	4 MHz	4 MHz	-	20 MHz	100 MHz
