Bulletin I2079 rev. B 04/00
SD1053C..L SERIES
FAST RECOVERY DIODES
Hockey Puk Version
Features
High power FAST recovery diode series
2.0 to 3.0 µs recovery time
High voltage ratings up to 3000V
High current capability
Optimized turn on and turn off characteristics
Low forward recovery
Fast and soft reverse recovery
Press-puk encapsulation
Case style conform to JEDEC DO-200AB (B-PUK)
Maximum junction temperature 150°C
920A
1050A
Typical Applications
Snubber diode for GTO
High voltage free-wheeling diode
Fast recovery rectifier applications
case style DO-200AB (B-PUK)
Major Ratings and Characteristics
Parameters
I
F(AV)
@ T
hs
I
F(RMS)
I
FSM
@ 50Hz
@ 60Hz
V
RRM
range
t
rr
@ T
J
T
J
SD1053C..L
S20
1050
55
1940
15000
15700
Units
A
°C
A
A
A
V
µs
°C
°C
S30
920
55
1700
13000
13610
1800 to 2500 1800 to 3000
2.0
25
- 40 to 150
3.0
25
www.irf.com
1

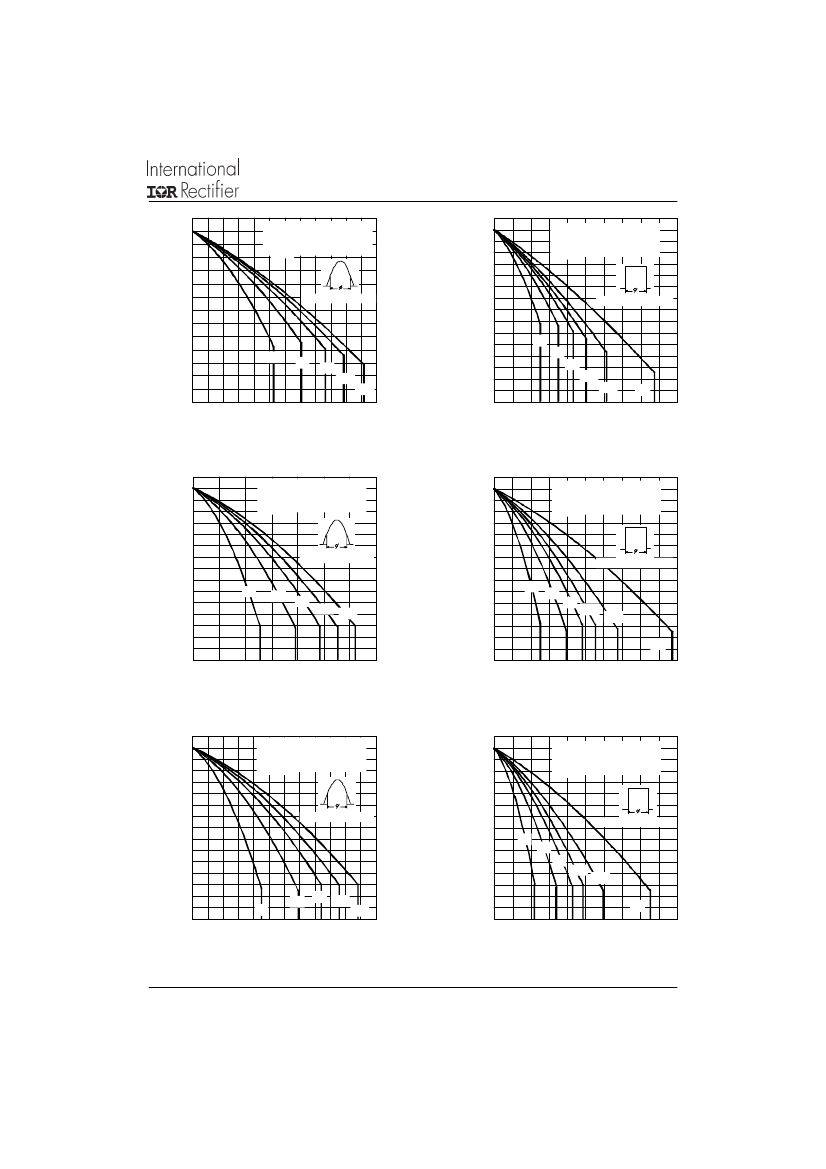

SD1053C..L Series
Bulletin I2079 rev. B 04/00
ELECTRICAL SPECIFICATIONS
Voltage Ratings
Voltage
Type number
Code
18
SD1053C..S20L
22
25
18
22
SD1053C..S30L
25
28
30
V
RRM
, maximum repetitive
peak reverse voltage
V
1800
2200
2500
1800
2200
2500
2800
3000
V
RSM
, maximum non-
repetitive peak rev. voltage
V
1900
2300
2600
1900
2300
2600
2900
3100
I
RRM
max.
@ T
J
= T
J
max.
mA
50
Forward Conduction
Parameter
I
F(AV)
Max. average forward current
@ heatsink temperature
I
F(RMS)
Max. RMS forward current
I
FSM
Max. peak, one-cycle forward,
non-repetitive surge current
SD1053C..L
S20
55 (85)
1940
15000
15700
12620
13210
S30
55 (85)
1700
13000
13610
10930
11450
845
772
598
546
8450
1.51
Units Conditions
A
°C
A
180° conduction, half sine wave
Double side (single side) cooled
@ 25°C heatsink temperature double side cooled
t = 10ms
t = 8.3ms
A
t = 10ms
t = 8.3ms
t = 10ms
t = 8.3ms
KA
2
s
t = 10ms
t = 8.3ms
KA
2
√s
No voltage
reapplied
100% V
RRM
reapplied
No voltage
reapplied
100% V
RRM
reapplied
Sinusoidal half wave,
Initial T
J
= T
J
max.
1050(450) 920(390)
I
2
t
Maximum I
2
t for fusing
1125
1027
796
727
I
2
√t
Maximum I
2
√t
for fusing
11250
1.34
t = 0.1 to 10ms, no voltage reapplied
(16.7% x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
max.
V
F(TO)1
Low level value of threshold
voltage
V
F(TO)2
High level value of threshold
voltage
r
f
1
V
1.48
1.67
(I >
π
x I
F(AV)
),T
J
= T
J
max.
(16.7% x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
max.
mΩ
0.33
1.90
0.45
2.26
V
(I >
π
x I
F(AV)
),T
J
= T
J
max.
I
pk
= 1500A, T
J
= T
J
max, t
p
= 10ms sinusoidal wave
Low level value of forward
slope resistance
0.37
0.50
r
f
2
High level value of forward
slope resistance
V
FM
Max. forward voltage drop
2
www.irf.com
SD1053C..L Series
Bulletin I2079 rev. B 04/00
Recovery Characteristics
Code
T
J
= 25
o
C
Typical t
(µs)
rr
Test conditions
I
pk
Max. values @ T
J
= 150 °C
V
r
di/dt
(A/µs)
100
100
t
rr
Q
rr
I
rr
@ 25% I
RRM
Square Pulse
(A)
1000
1000
(V)
- 50
- 50
@ 25% I
RRM
(µs)
4.0
4.5
(µC)
400
550
(A)
180
230
S20
S30
2.0
3.0
Thermal and Mechanical Specifications
Parameter
T
J
T
stg
SD1053C..L
S20
S30
-40 to 150
-40 to 150
0.073
0.031
14700
(1500)
255
DO-200AB(B-PUK)
Units
°C
K/W
N
(Kg)
g
Conditions
Max. junction operating temperature range
Max. storage temperature range
R
thJ-hs
Max. thermal resistance, case junction
to heatsink
F
wt
Mounting force, ± 10%
Approximate weight
Case style
DCoperation single side cooled
DCoperation double side cooled
See Outline Table
∆R
thJ-hs
Conduction
(The following table shows the increment of thermal resistence R
thJ-hs
when devices operate at different conduction angles than DC)
Sinusoidal conduction
Conduction angle
180°
120°
90°
60°
30°
Single Side Double Side
0.009
0.008
0.011
0.014
0.020
0.036
0.011
0.014
0.021
0.036
Rectangular conduction
Units
Single Side Double Side
0.006
0.006
0.011
0.015
0.021
0.036
0.011
0.015
0.022
0.036
K/W
Conditions
T
J
= T
J
max.
Ordering Information Table
Device Code
SD 105
1
1
2
3
4
5
6
7
-
-
-
-
-
-
-
Diode
Essential part number
3 = Fast recovery
2
3
3
C
4
30 S30
5
6
L
7
C = Ceramic Puk
Voltage code: Code x 100 = V
RRM
(See Voltage Ratings table)
t
rr
code
L = Puk Case DO-200AB(B-PUK)
www.irf.com
3
SD1053C..L Series
Bulletin I2079 rev. B 04/00

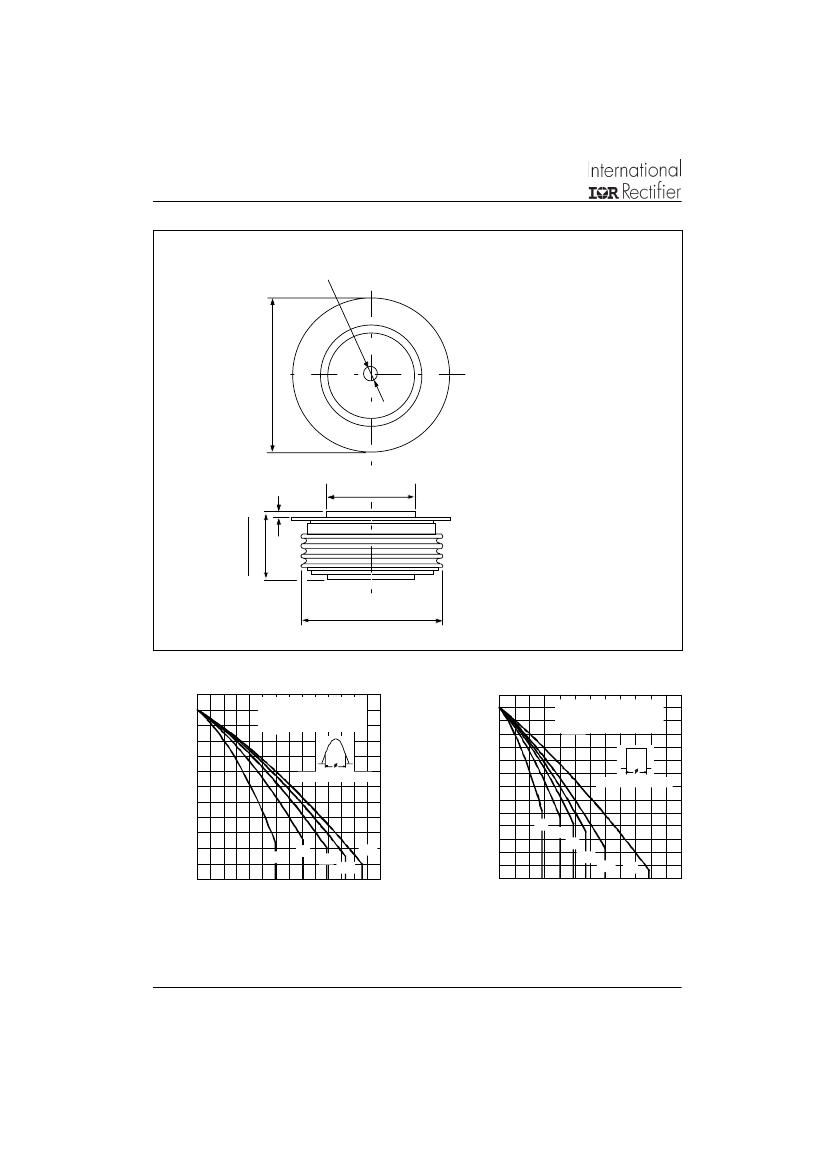

Outline Table
3.5(0.14) DIA. NOM. x
1.8(0.07) DEEP MIN.
BOTH ENDS
58 .5 (2.3 0) DIA. M AX .
0.8 (0.03)
BOTH ENDS
34 (1.34) DIA. MAX.
TWO PLACES
26 .9 ( 1.06)
25 .4 ( 1)
Conform to JEDEC DO-200AB (B-PUK)
All dimensions in millimeters (inches)
Quote between upper and lower
pole pieces has to be considered
after application of Mounting Force
(see Thermal and Mechanical
Specification)
53 (2.09) DIA. MAX.
M a x im u m A llo w a b le H e a tsin k T e m p e ra t u re (°C )
14 0
12 0
S D 1 0 5 3 C ..S2 0 L Se rie s
(S in g le S id e C o o le d )
R
thJ- hs
(D C ) = 0 .0 7 3 K / W
M a x im um A llo w a b le H e a tsin k Te m pe ra t u re (°C )
16 0
1 60
1 40
1 20
1 00
80
60
40
20
0
200
4 00
600
8 00
10 0 0
1 20 0
A v e ra g e F o rw a rd C u rre n t (A )
Fig. 2 - Current Ratings Characteristics
S D 1 0 5 3 C ..S2 0 L S e rie s
(S in gle Sid e C o o le d )
R
th J-hs
(D C ) = 0 .0 7 3 K / W
C o nduc tion A ng le
10 0
80
60
40
0
100
2 00
300
4 00
50 0
600
70 0
A v e ra g e Fo rw a rd C u rre n t ( A )
Fig. 1 - Current Ratings Characteristics
C o ndu ction Pe rio d
30 °
6 0°
9 0°
120 °
180 ° D C
3 0°
60°
9 0°
180 °
120 °
4
www.irf.com
SD1053C..L Series
Bulletin I2079 rev. B 04/00
Maxim um Allowable Heatsin k Tem perature ( °C)
160
140
120
100
80
60
40
20
0
100
200
300
400
500
600
Average Forw ard Curren t (A)
Fig. 3 - Current Ratings Characteristics
C o nduc tio n A ng le
Maxim um Allowable Heatsink Tem peratu re ( °C)
SD1053C..S30L Series
(Sing le Side Cooled)
R
th J-hs
(DC) = 0.073 K/W
160
140
120
100
C o ndu c tio n Pe rio d
SD1053C..S30L Series
(Sin gle Side Cooled)
R
thJ-hs
(DC) = 0.073 K/W
80
60
40
20
0
0
200
400
600
800
1000
Average Forward Current (A)
Fig. 4 - Current Ratings Characteristics
30°
60°
90°
120°
180°
DC
30°
60°
90°
120°
180°
M a x im u m A llo w a b le H e at sin k T e m p e ra t u re (°C )
160
140
120
100
Maximum Allowable Heatsink Tem perature (°C)
SD 1 0 5 3 C ..S 2 0 L S e rie s
(D o ub le S id e C o o le d )
R
th J-hs
(D C ) = 0 .0 3 1 K /W
160
140
120
100
80
60
40
20
0
0
400
30°
SD1053C..S20L Series
(Double Side Cooled)
R
thJ-h s
(DC) = 0.031 K/W
C o ndu ctio n A ng le
80
60
40
20
0
0
200
40 0
60 0
8 0 0 1 0 00 1 20 0 1 4 00
A v e ra g e F o r w a rd C u rre n t (A )
Fig. 5 - Current Ratings Characteristics
C o ndu ctio n P erio d
3 0°
6 0°
9 0°
60°
1 20° 180 °
90°
120°
180°
DC
800
1200
1600
2000
Average Forward Curren t (A)
Fig. 6 - Current Ratings Characteristics
Maxim um Allowab le Heatsin k Tem pera ture (°C)
160
140
120
100
Maximum Allowable Heatsink Temperature (°C)
SD1053C..S30L Series
(D ouble Side Cooled)
R
th J-hs
(DC) = 0.031 K/W
160
140
120
100
80
30°
60
40
20
0
0
400
800
1200
1600
2000
Average Forward Current (A)
Fig. 8 - Current Ratings Characteristics
C o ndu ctio n Pe rio d
SD 1053C..S30L Series
(Double Side Cooled)
R
th J- hs
(DC) = 0.031 K/W
C o nduc tio n A ng le
80
60
40
20
30°
0
0
200
400
600
800
Average Forward Current (A)
Fig. 7 - Current Ratings Characteristics
60°
90°
120°
180°
DC
60° 90° 120°
180°
1200
1000
www.irf.com
5
