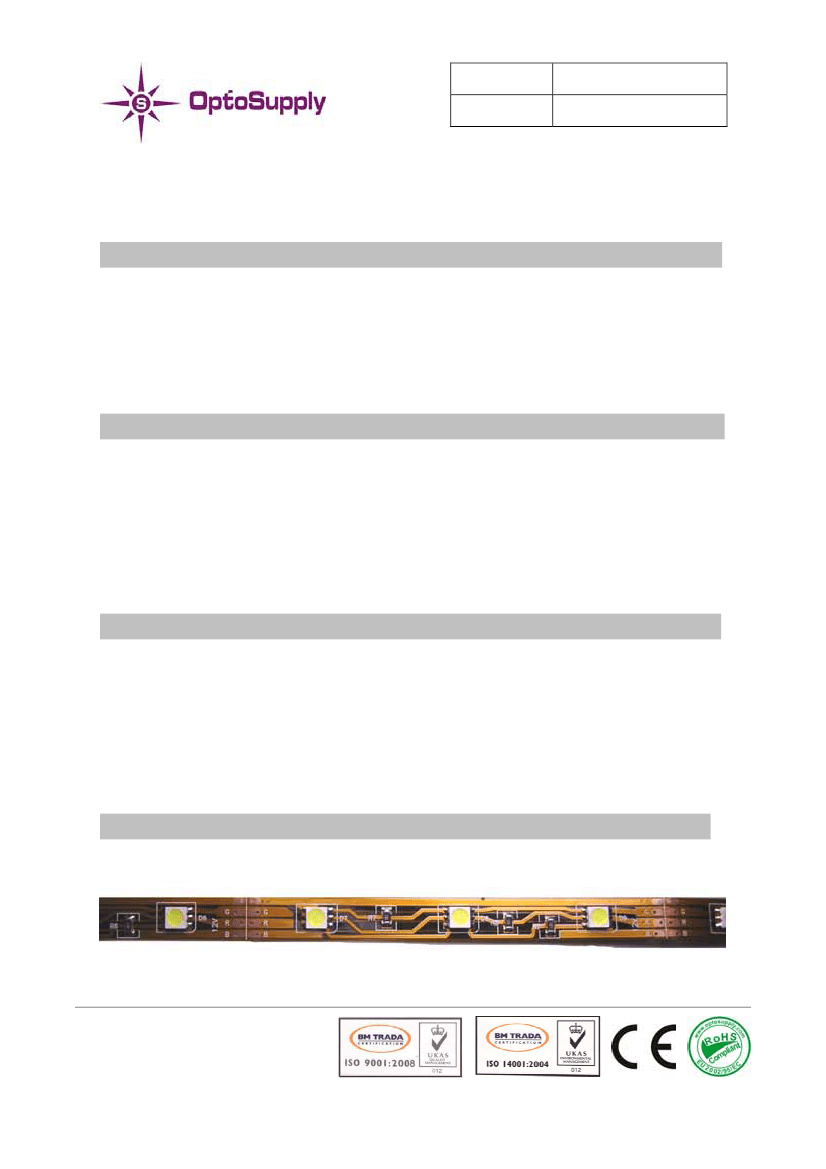

Model No.
REV.
OSMTXX
C5
PRODUCT SPECIFICATION FOR
LED Ribbon Light
Descriptions:
Linear separable LED strip on flexible printed circuit board with self-
adhesive back
Long life, easy installation
Voltages available 12VDC
LED Type: SMD LED, 5.0x5.0mm, 120deg
1
Features:
Available in red, orange, yellow, green, blue, white, etc
Directly use on line voltage
Low power consumption, high intensity
Energy saving
Excellent beam control
Long life
1
Application:
Channel letter signs
Indirect accent décor light
Large area back lighting
Under counter light
Decorate building’s contour
Substitute neon light
1
Product Picture:
1
LED & Application Technologies
1
Model No.
REV.
OSMTXX
C5
Device Selection Guide
Module No.
OSMTR5
OSMTO5
OSMTY5
OSMTG5
OSMTB5
OSMTW5
OSMTM5
OSMTK5
1
Dom. Wavelength Intensity / Per LED
(Typ.)
(Typ.)
625±5nm
605±5nm
590±5nm
525±5nm
470±5nm
X=0.27 ; Y=0.28
X=0.45 ; Y=0.41
X=0.45 ; Y=0.17
1120 mcd
1120 mcd
1120 mcd
3000 mcd
1560 mcd
7000 mcd
5000 mcd
1900 mcd
Color
Red
Orange
Yellow
Green
Blue
White
Warm White
Pink
Absolute Maximum Ratings(Ta=25℃)
Items
Operating Supply Range(DC)
Input Current (DC)
Power Dissipation
LED Light Source Temperature
Operating Temperature
Storage Temperature
1
Values
14
0.9
12.6
105
-10 ~ +40
-20 ~ +80
Symbol
Vidc
Ii
Pa
Tled
Tope
Tsto
Units
V
A
W
DegC
DegC
DegC
Typical Performance (Ta=25℃)
Items
LED Module Power
Input Voltage(DC)
Product Input Current
Beam Pattern
Total Length of Modules
(Including Pin)
LED Quantity of Every Meter
Net Weight
1
Min.
-
-
-
-
-
-
---
Symbol
Pm
Vi
If
BP
Lmod.
OTY
Wei.
Typ.
7.2
12
0.6
120
1000
30
12
Max.
12.6
14
0.9
-
-
-
---
Units
w
V
A
Deg
mm
PCS
g
