PS00XSS60 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> PS00XSS60

PS00XSS60: Description6A, 120/250VAC, MALE, MAINS POWER CONNECTOR; Categorysemiconductor Other integrated circuit (IC); File Size212KB，8 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Compare View All

PS00XSS60 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PS00XSS60	-	-	View	Buy Now

PS00XSS60 Overview

6A, 120/250VAC, MALE, MAINS POWER CONNECTOR

Preview

Download Datasheet

View All

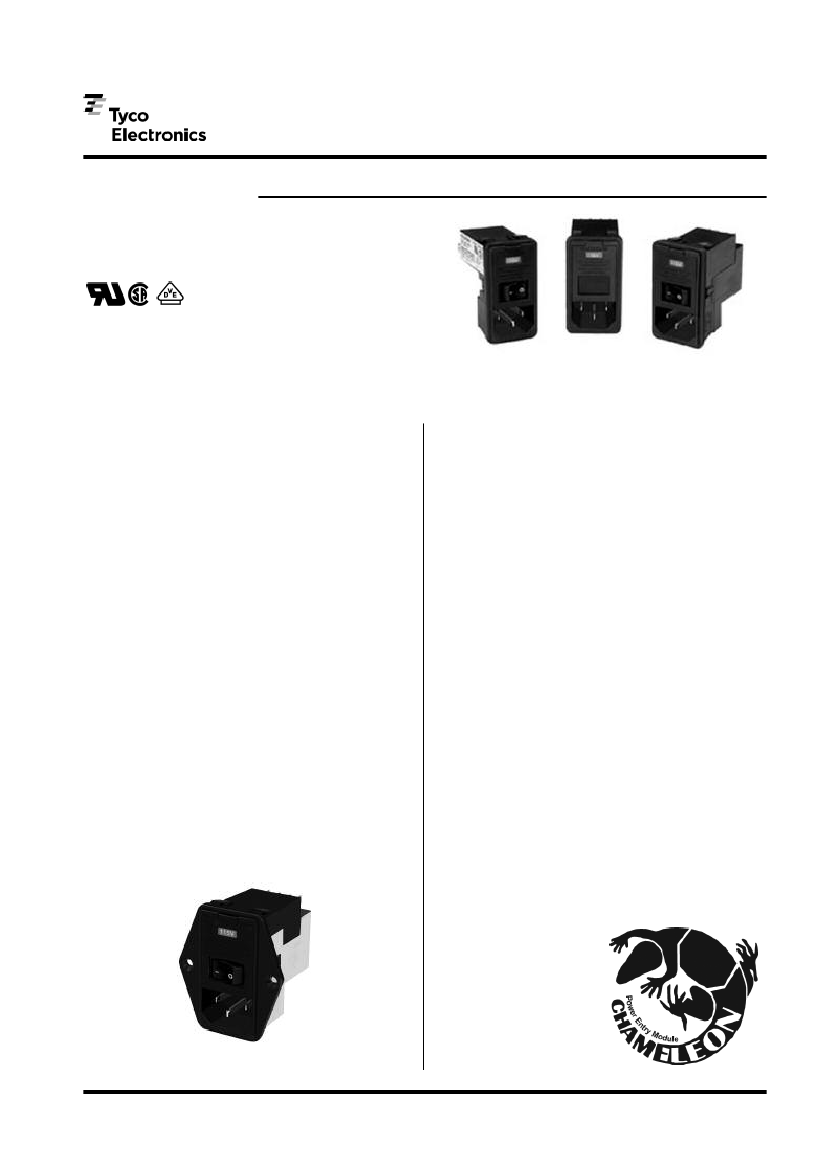

CORCOM Product Guide

The CHAMELEON Adaptable Module for General, High Performance or

Medical Applications

P Series

UL Recognized

CSA Certified

VDE Approved

PS Unfiltered

PS000SS30

PS Filtered

P Series

The P series power entry module offers fuller flexibility of

design in a more compact package.

As the first 10 amp module to provide all five power entry

functions in one compact design, the CHAMELEON

module readily adapts to its environment and the needs of

international markets.

• Snap-in or flange mounting

• IEC power line connector

• Both North American and European fusing capabilities

• Two voltage selections

• Optional DPST on/off switch

• Filtering options for general purpose, medical and

high-performance applications.

The CHAMELEON modules compact design and modular

construction will allow you to select the power entry

features you require — without altering the panel cutout.

And the Chameleon module, with adapters, will fit any

standard panel cutout.

The CHAMELEON module has four filter options.

S models

offer protection for general purpose applica-

tions where line-to-ground and line-to-line noise must be

controlled. The filters are designed to meet low leakage

requirements of VDE portable equipment. They are

available in current ratings of 3, 6 and 10 amps.

H models

provide susceptibility protection without leak-

age current associated with line-to-ground capacitors and

are designed to allow equipment to meet UL 544 for patient

care and non-patient care equipment.

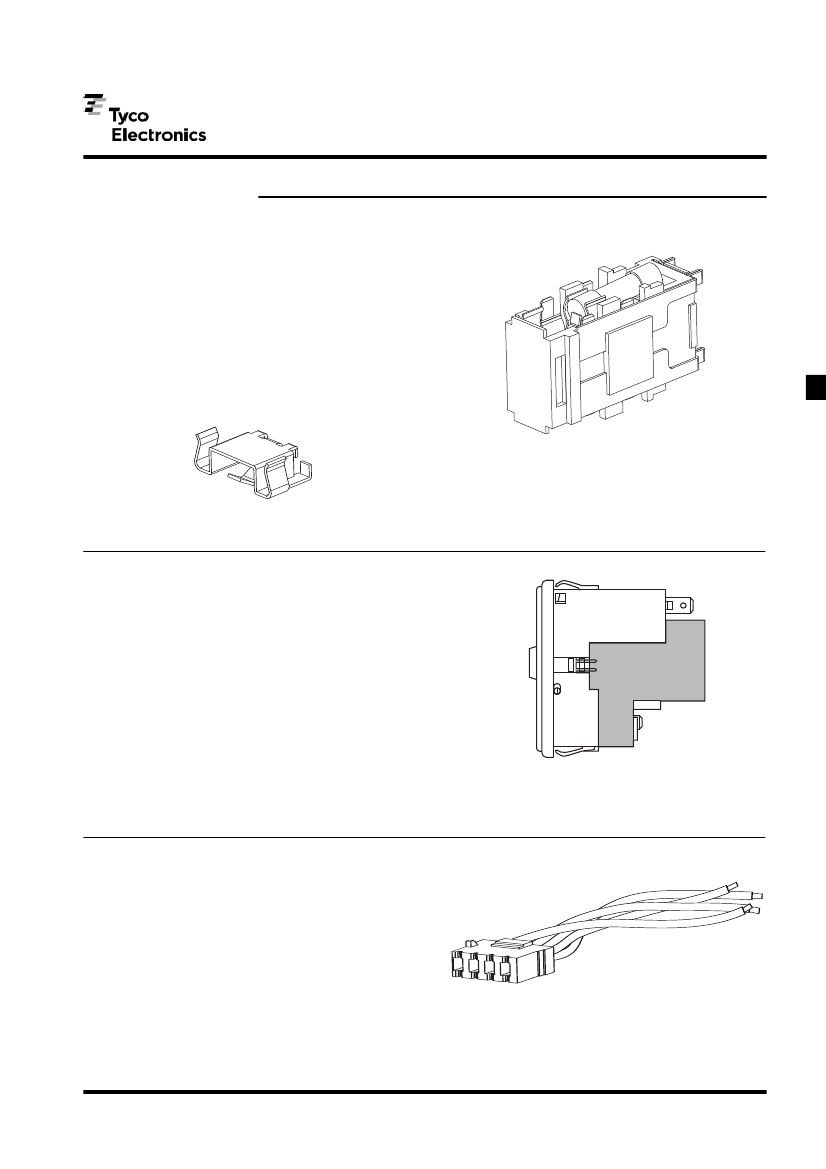

Also available is an interconnection block,

B models.

The block connects the voltage selection terminals of an

unfiltered CHAMELEON module with a switch and an IEC

connector to reduce external wiring.

L Models

– High performance medical filter versions that

are designed to help bring most digital equipment (includ-

ing switching power supplies) into compliance with

EN55022, Level B (as well as FCC part 15J, Class B)

conducted emissions limits while additionally allowing

equipment to meet UL544, UL2601and EN60601 for patient

care equipment and non-patient care equipment. They are

available with current ratings of 6 and 10 amps. High

performance versions are available with horizontal mount-

ing ears, single voltage, complete can shield with options

for switch, fuses and current ratings only. Extenders are

not available.

Z Models

– High performance filter versions are designed

to help bring most digital equipment (including switching

power supplies) into compliance with EN55022, Level B

(as well as FCC Part 15J, Class B) conducted emissions

limits. They are available with current ratings of 6 and 10

amps. High performance versions are available with

horizontal mounting ears, no extenders, single voltage,

complete can shield with options for switch, fuses and

current ratings only.

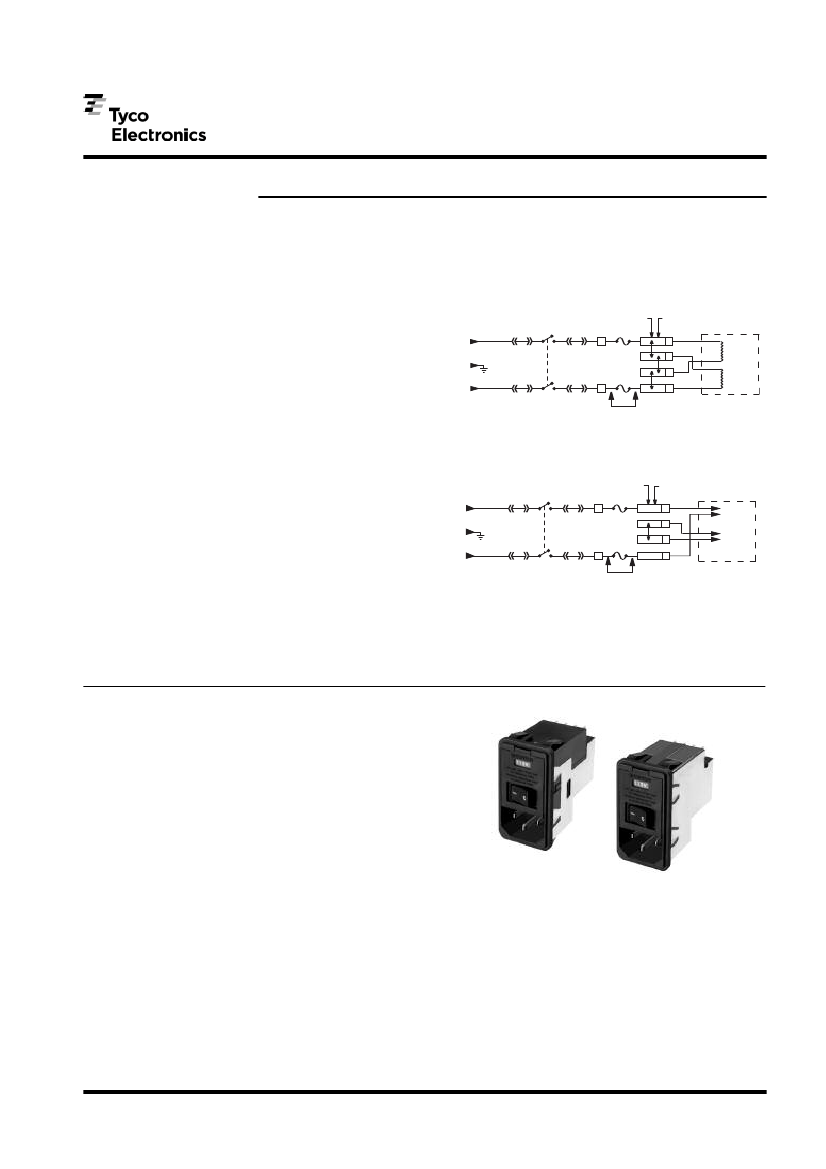

PE Filter with "A" Shield

132

Catalog 1654001

Revised 05-07

Dimensions are in inches and

millimeters unless otherwise

specified. Values in italics

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA Cust. Svc.: 1-800-468-2023

CORCOM Prods: 1-847-680-7400

Germany:

49-89-6089-0

www.corcom.com

www.tycoelectronics.com
