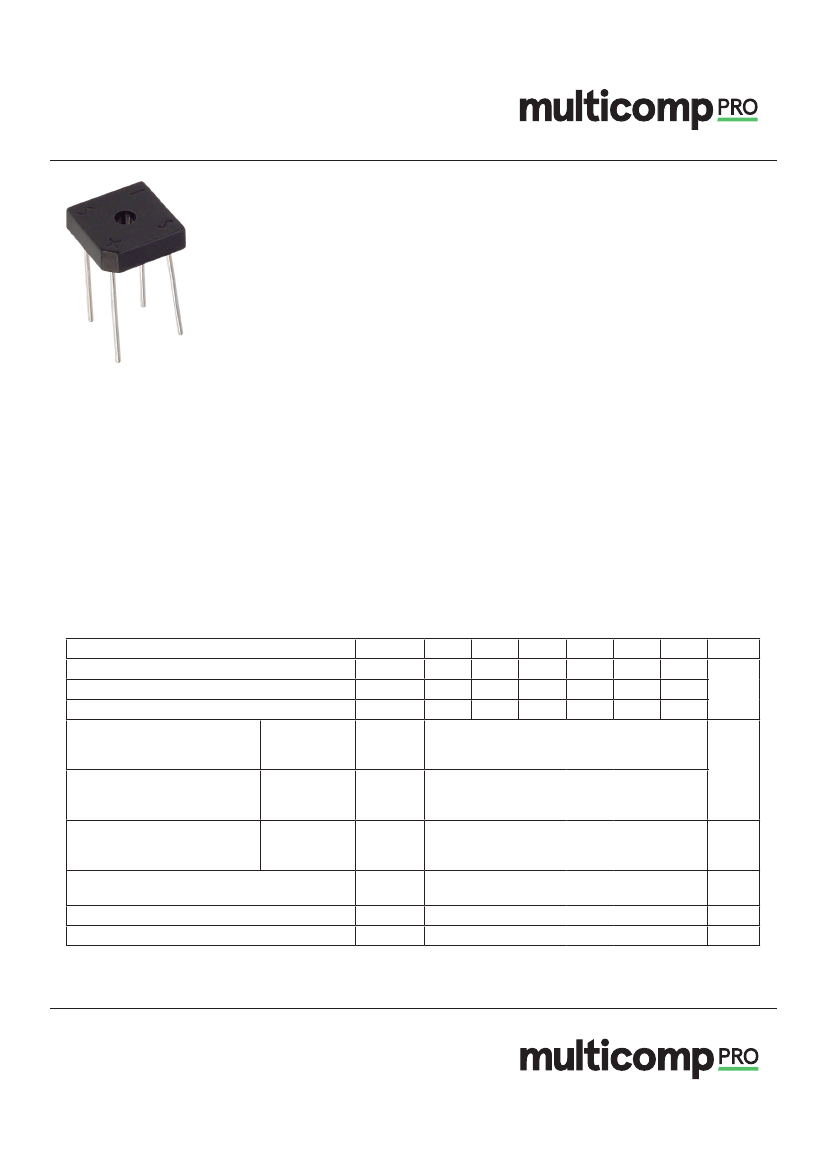

Bridge Rectifier
GBPC Series
Features:
•
•
•
•
•
•
•
Plastic material
Integrally moulded heatsink provide very low thermal resistance for maximum heat dissipation
Surge overload ratings from 300 to 400A
Terminals solderable per MIL-STD-202, method 208 (for wire type)
Typical I
r
less than 0.2μA
High temperature soldering guaranteed : 260°C / 10 seconds 0.375 inches (9.5mm) lead lengths (for wire type)
Isolated voltage from case to lead over 2,500V
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load
For capacitive load, derate current by 20%
Characteristics
Max. Recurrent Peak Reverse Voltage
Max. RMS Voltage
Max. DC Blocking Voltage
Maximum Average Forward
Rectified Current at T
c
= 55°C
Peak Forward Surge Current,
Single Sine-wave Superimposed
on Rated Load (JEDEC method)
Maximum Instantaneous
Forward Voltage Drop Per
Element at Specified Current
GBPC15
GBPC25
GBPC35
GBPC15
GBPC25
GBPC35
GBPC15 7.5 A
GBPC25 12.5 A
GBPC35 17.5 A
Symbol
V
rrm
V
rms
V
dc
I
(AV)
-01
100
70
100
-02
200
140
200
-04
400
280
400
15
25
35
300
300
400
1.1
5
1.5
-06
600
420
600
-08
800
560
800
-10
1,000
700
1,000
Units
V
A
I
fsm
V
f
I
r
R
θJC
T
j
,T
stg
V
mA
°C / W
°C
Maximum DC Reverse Current
at Rated DC Blocking Voltage per Element
Typical Thermal Resistance (Note 1)
Operating and Storage Temperature Range
Notes:
1. Thermal Resistance from Junction to Case
2. Suffix “W” - Wire Lead Structure
-50 to +150
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <1>
06/09/19
V1.0

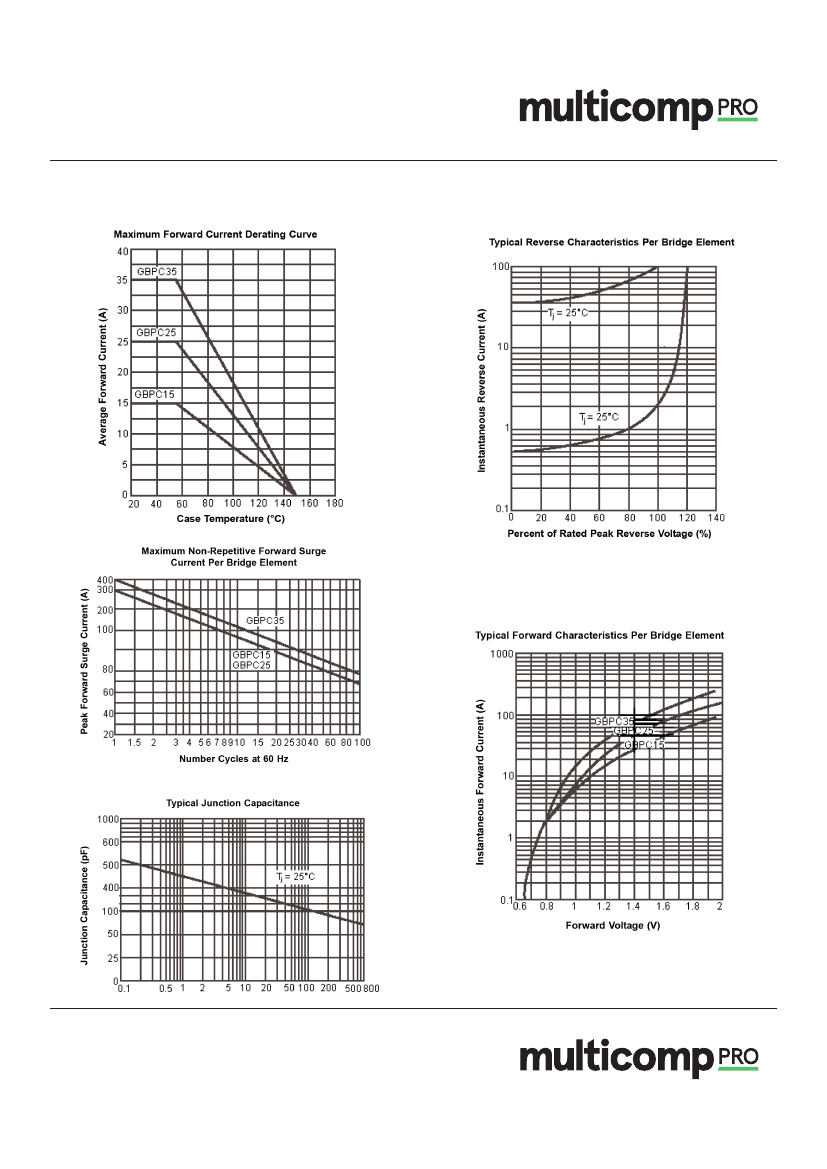

Bridge Rectifier
GBPC Series

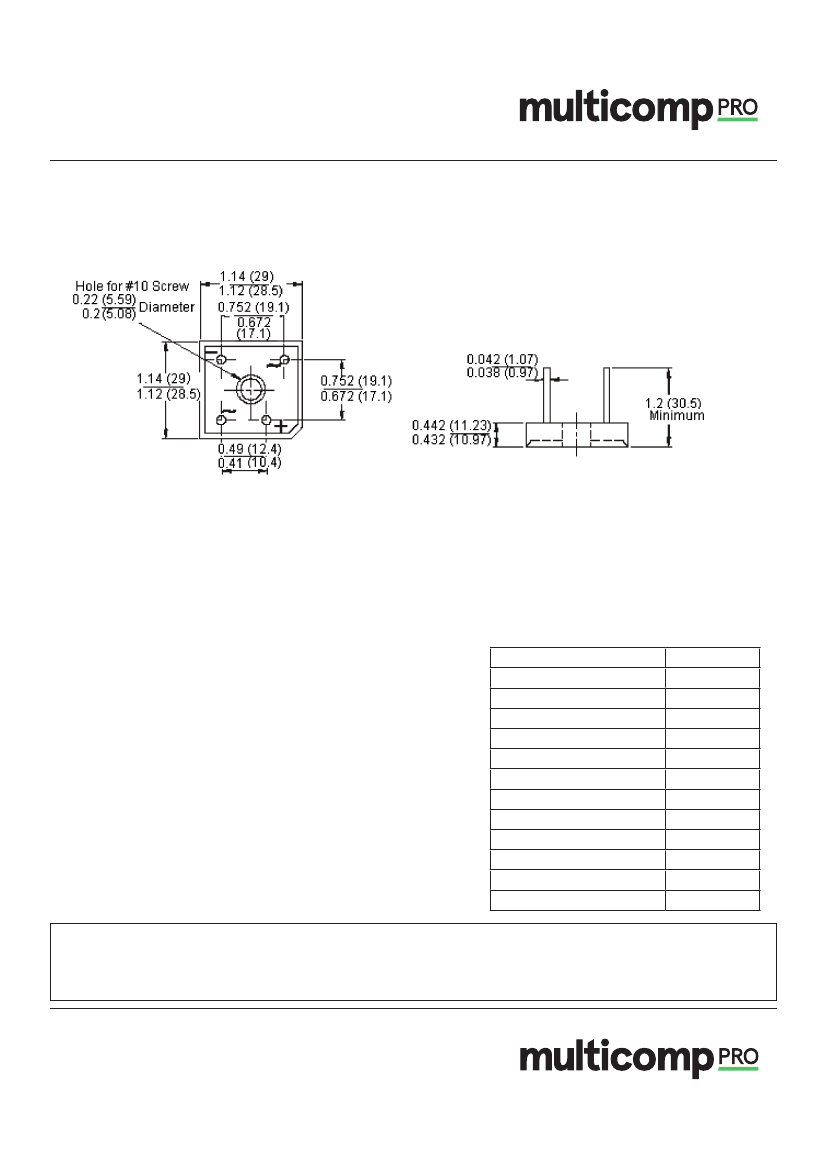

Dimensions:
Dimensions : Inches (Millimetres)
Part Number Table
Description
Bridge Rectifier, 15A, 200V
Bridge Rectifier, 25A, 100V
Bridge Rectifier, 25A, 200V
Bridge Rectifier, 25A, 400V
Bridge Rectifier, 25A, 600V
Bridge Rectifier, 25A, 800V
Bridge Rectifier, 25A, 1,000V
Bridge Rectifier, 35A, 200V
Bridge Rectifier, 35A, 400V
Bridge Rectifier, 35A, 600V
Bridge Rectifier, 35A, 800V
Bridge Rectifier, 35A, 1,000V
Part Number
GBPC1502W+
GBPC2501W+
GBPC2502W+
GBPC2504W+
GBPC2506W+
GBPC2508W+
GBPC2510W+
GBPC3502W+
GBPC3504W+
GBPC3506W+
GBPC3508W+
GBPC3510W+
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for
the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness,
any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make
any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or
where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its
negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <3>
06/09/19
V1.0
