RJ45-8L2-S: DescriptionTE CONNECTIVITY / CORCOM - RJ45-8L2-S - RJ45 MODULAR JACK; 8POS; 1 PORT; CategoryThe connector; File Size271KB，7 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet View All

RJ45-8L2-S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RJ45-8L2-S	-	-	View	Buy Now

RJ45-8L2-S Overview

TE CONNECTIVITY / CORCOM - RJ45-8L2-S - RJ45 MODULAR JACK; 8POS; 1 PORT

Preview

Download Datasheet

View All

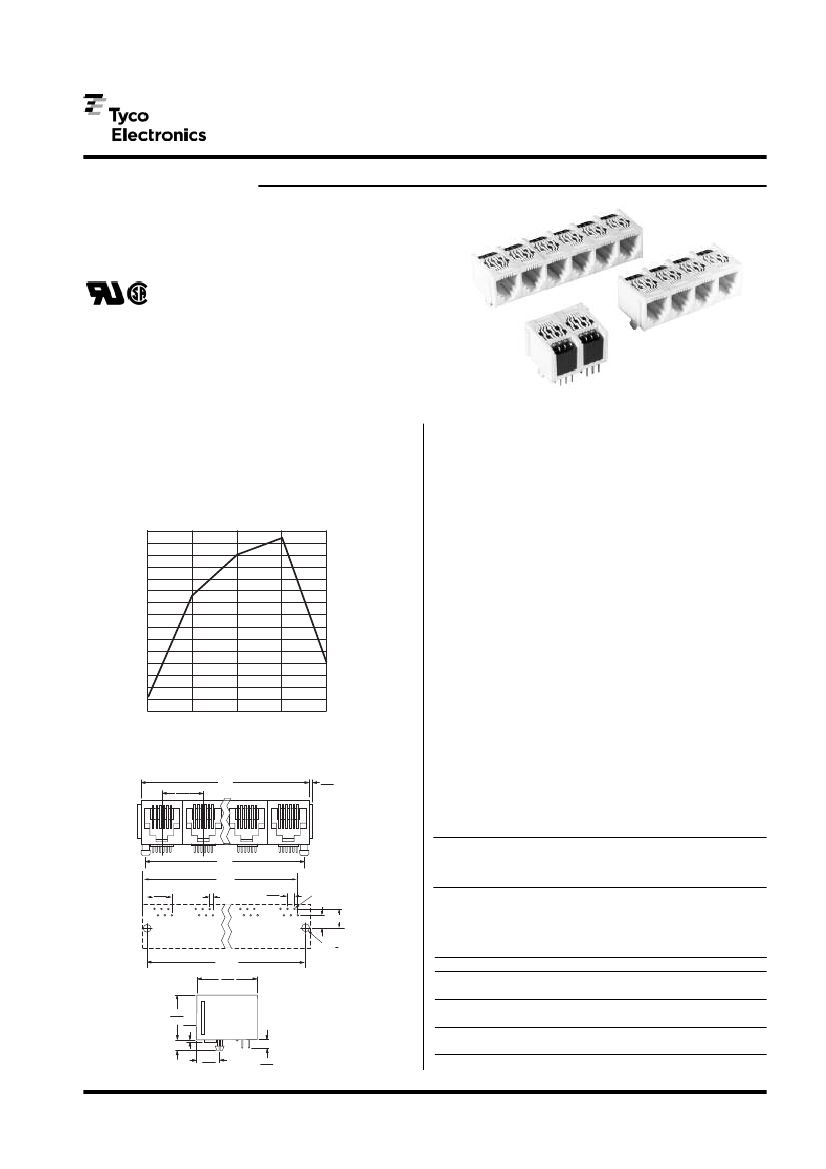

CORCOM Product Guide

Inductive Filtering Modular RJ Jacks

L Series

UL Recognized

CSA Certified

RJ11

RJ11 with

Block Filter

RJ45 with

Sleeve Filter

RJ45

Specifications

Contacts:

Material:

Plating:

Barrier underplating:

Resistance:

Initial:

After durability testing:

(500 mating cycles)

Ferrites:

Type:

Sleeves:

Block:

Shield Material:

Housing Material:

High resistivity, nickel zinc ceramic

Single-aperture cylinders

Multi-aperture rectangular prism

Tin-plated copper alloy

Glass-filled polyester (UL94V-0)

1000 VAC for

60 seconds

1 lb. minimum

20 lb. minimum

Phosphor Bronze

50 microinches gold

100 microinches nickel

20 milliohms max.

30 milliohms max.

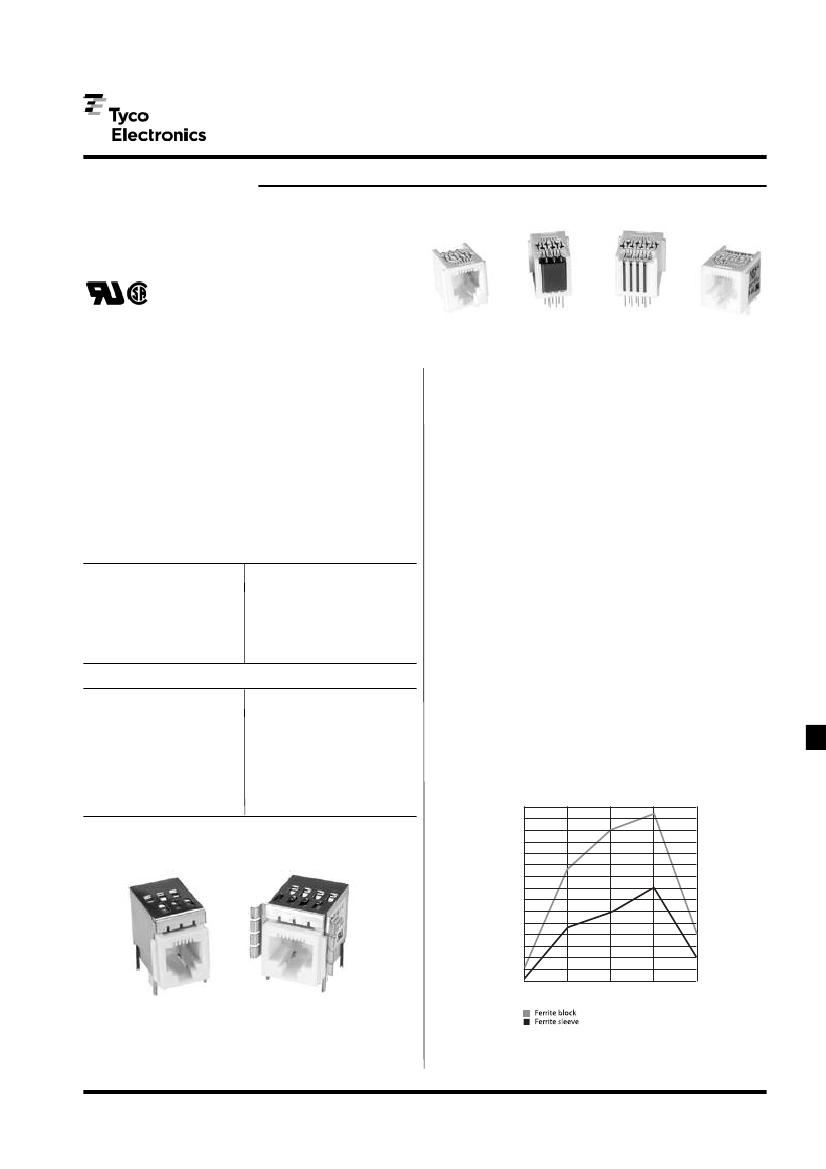

L Series

Inductive filtering in a direct retrofit to standard unfiltered

RJ11, RJ45, or handset jacks. Offered with standard ferrite

sleeve inductors or higher performance ferrite blocks, the L

series is available with or without a shield.

Part Numbers

Inductor Filter

RJH-4L-B

RJ11-2L-S

RJ11-2L-B

RJ11-4L-S

RJ11-4L-B

RJ11-6L-S

RJ11-6L-B

Inductor Filter and Shield

RJ11-2L2-B

RJ11-4L1-S

RJ11-4L1-B

RJ11-4L2-S

RJ11-4L2-B

RJ11-6L1-S

RJ11-6L1-B

RJ11-6L2-S

RJ11-6L2-B

RJ45-6L-S

RJ45-6L-B

RJ45-8L-S

RJ45-8L-B

Dielectric Withstanding Voltage:

Line-to-line and line-to-ground

Printed Circuit Board Retention:

Before soldering:

After soldering:

RJ45-6L1-S

RJ45-6L1-B

RJ45-6L2-S

RJ45-6L2-B

RJ45-8L1-S

RJ45-8L1-B

RJ45-8L2-S

RJ45-8L2-B

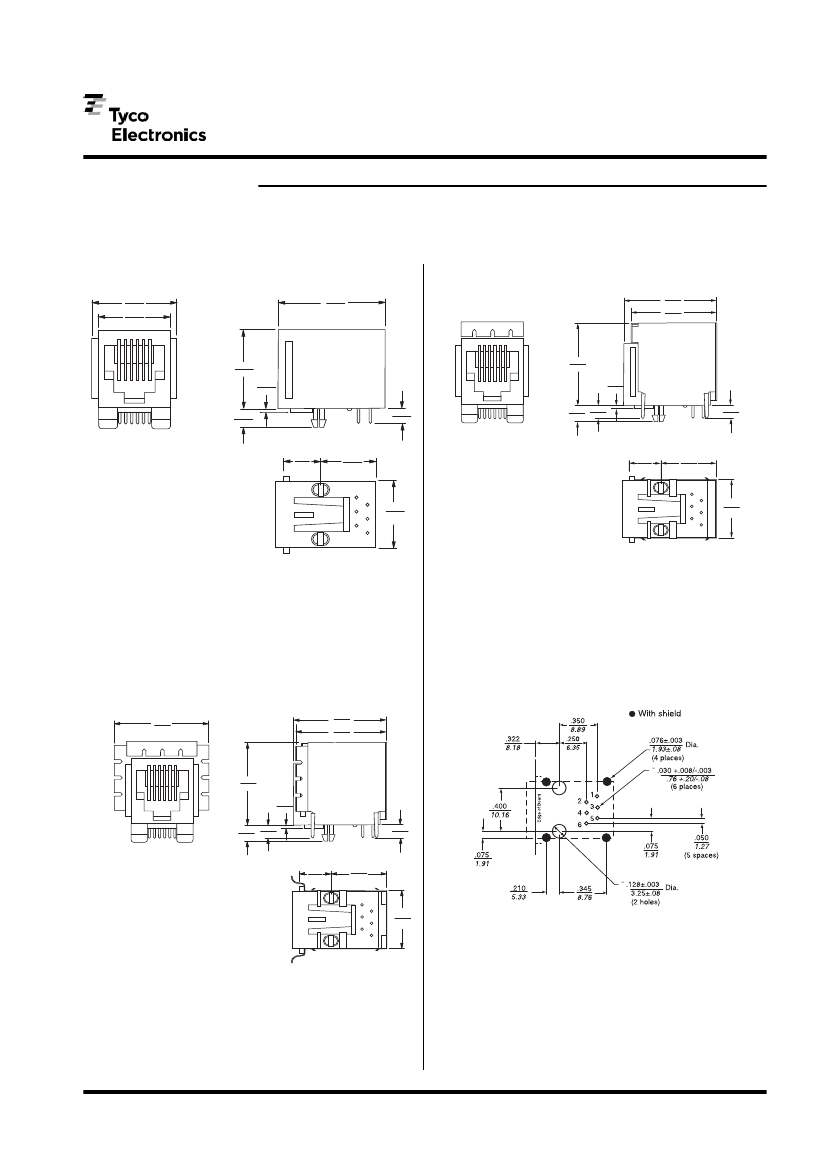

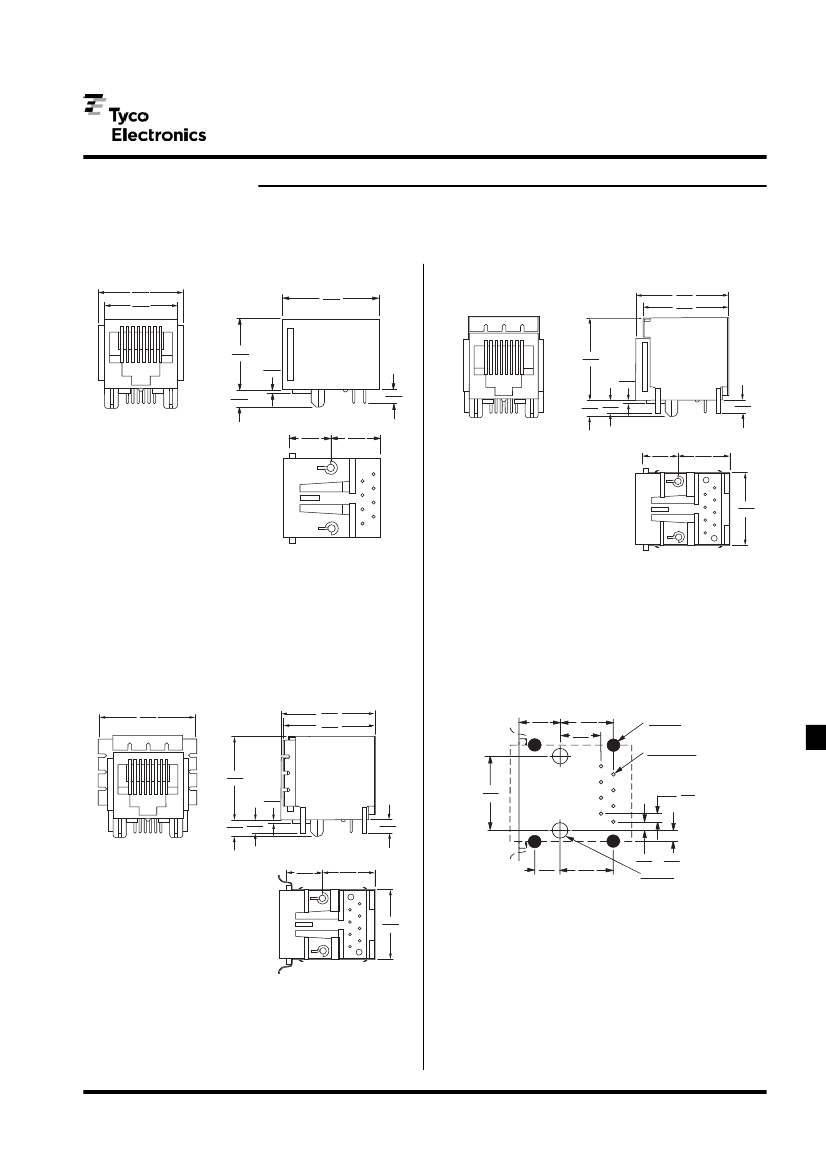

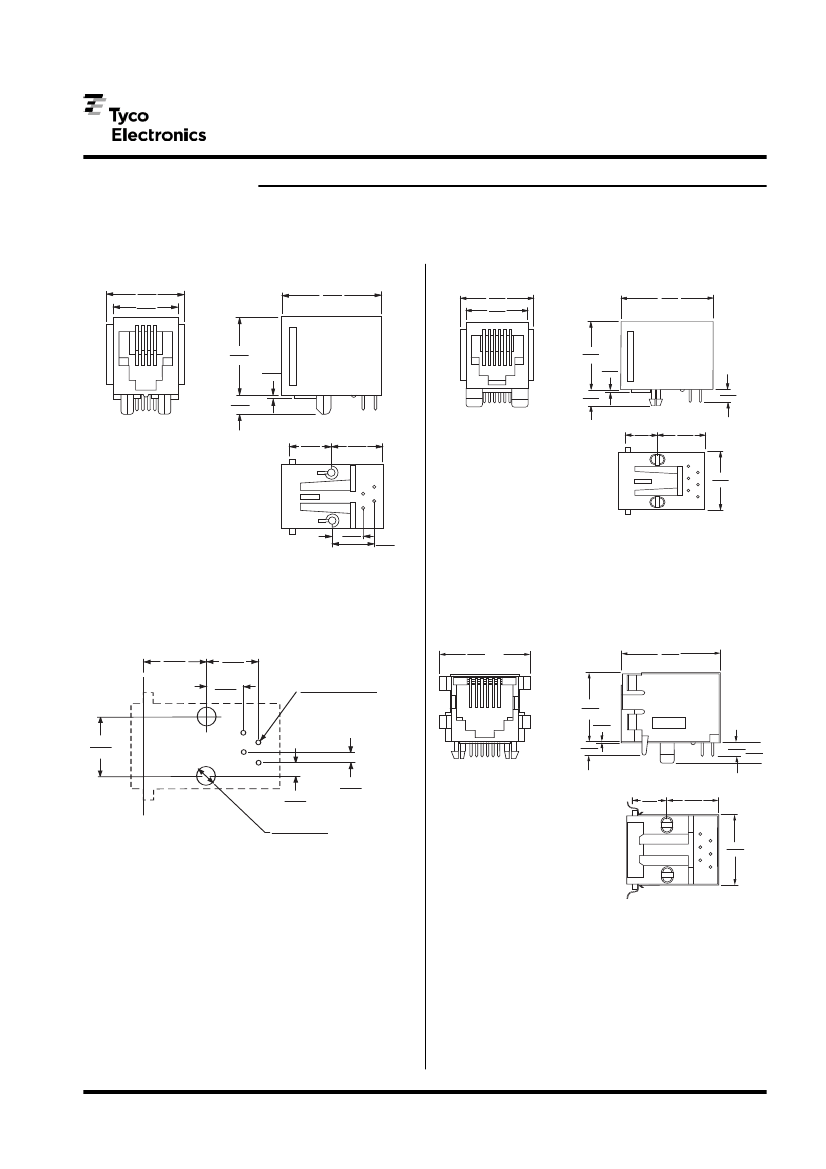

Model dimensions and PC board layout on pages 170 to 174.

Signal Line Products

Typical Impedance in Ohms

150

140

130

120

110

100

Impedance in Ohms

100

Frequency in MHz

200

500

Shield 2

Shield 1

See page 167 for the CORCOM new low profile RJ Jacks.

175

Catalog 1654001

Revised 05-07

Dimensions are in inches and

millimeters unless otherwise

specified. Values in italics

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA Cust. Svc.: 1-800-468-2023

CORCOM Prods: 1-847-680-7400

Germany:

49-89-6089-0

www.corcom.com

www.tycoelectronics.com
