FNL-U501B23WCSL datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> FNL-U501B23WCSL

FNL-U501B23WCSL: DescriptionSingle Color LED, Blue, Water Clear, T-1 3/4, 5mm, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size123KB，2 Pages; ManufacturerForge Europa Ltd

Download Datasheet Parametric View All

FNL-U501B23WCSL Overview

Single Color LED, Blue, Water Clear, T-1 3/4, 5mm, PLASTIC PACKAGE-2

FNL-U501B23WCSL Parametric

Parameter Name	Attribute value
Maker	Forge Europa Ltd
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	BLUE
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	600.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	25 deg

Preview

Download Datasheet

View All

5.0 mm / T1

Round High Performance Blue LED Lamps

Features:

• High intensity

• Blue diffused (CD) or Water clear (WC) epoxy

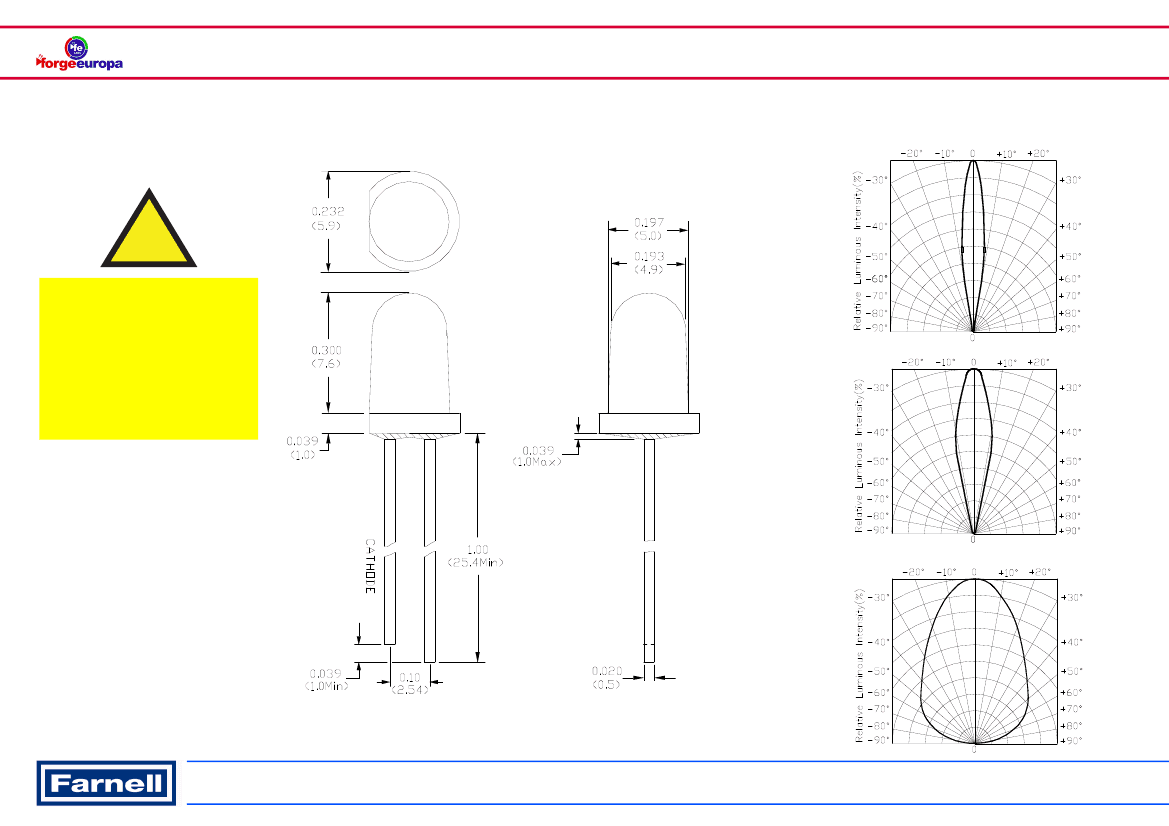

LED Lamp Package

Electro / Optical Characteristics I

= 20 mA

LED Part Number

Forge Europa

FNL-U500B23CDSL

FNL-U500B22CDSL

FNL-U501B23WCSL

FNL-U501B22WCSL

FNL-U500B23WCSL

FNL-U500B22WCSL

Units

Emitting

Colour

Blue

Epoxy

Type

Die

Material

InGaN/SiC

= 25 C

Wavelength

Forward Voltage V

typical

3.20

max

3.70

Luminous intensity I

min

mcd

typical

170

600

1100

Dominant



470

460

470

460

470

460

Luminous

Viewing

Flux



½

mlm

deg



Peak



Maximum Ratings Ta = 25 C

(

Derate above 25 C

)

Characteristic

Pulse Forward Current

DC Forward Current

Reverse Voltage

Power Dissipation

Operating Temperature

Storage Temperature

Lead soldering temperature

1.6 mm from body - max 3 seconds

= 100

A

Condition

0.1 duty cycle @ 1KHz

Symbol

opr

stg

Rating

100

- 20 to + 80

- 20 to + 100

240

Units



Note



Industry standard procedures

regarding static must be observed

when handling product produced



with blue die material.

Internet

uk.farnell.com Sales

Tel

08447 11 11 11 Sales

Fax

08447 11 11 12

Data Sheet F_FNL-U500XXXXSL

Issue 3 - Feb 2011 Sheet 1 of 2
