K1526AA-R-FREQ1 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> K1526AA-R-FREQ1

K1526AA-R-FREQ1: DescriptionCMOS/TTL Output Clock Oscillator, 2MHz Min, 33MHz Max, ROHS COMPLIANT, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN; CategoryPassive components oscillator; File Size290KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

K1526AA-R-FREQ1 Overview

CMOS/TTL Output Clock Oscillator, 2MHz Min, 33MHz Max, ROHS COMPLIANT, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN

K1526AA-R-FREQ1 Parametric

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	TAPE AND REEL; TUBE
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	25%
linearity	5%
Manufacturer's serial number	K1526AA
Installation features	SURFACE MOUNT
Maximum operating frequency	33 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/TTL
physical size	14.22mm x 9.14mm x 3.89mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

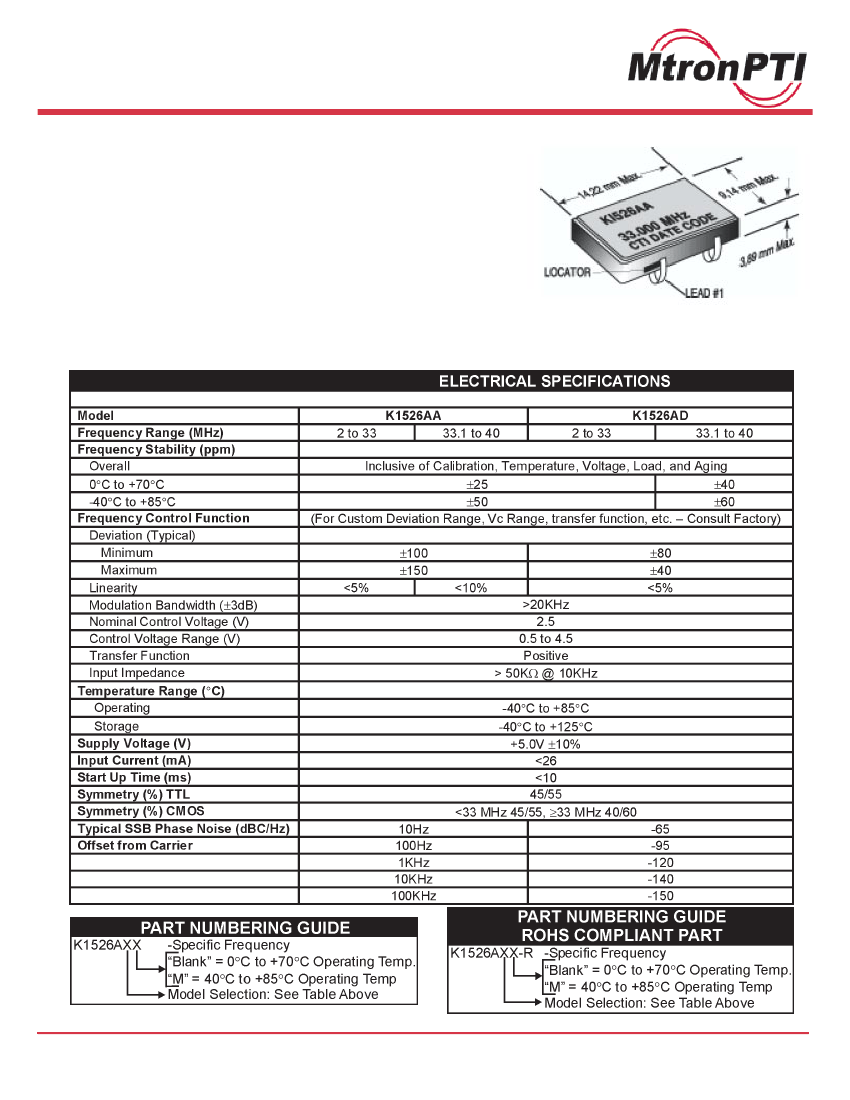

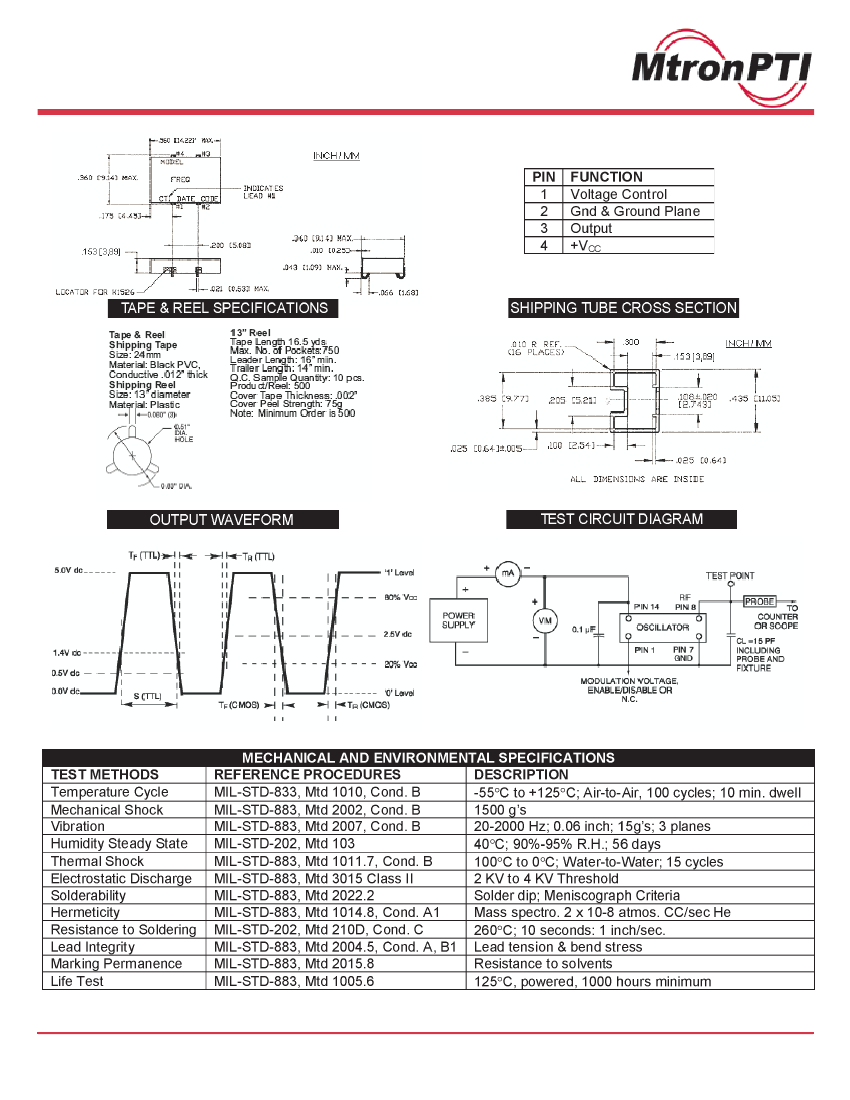

K1526A Series

5V 9x14mm Surface Mount Voltage Controlled Crystal Oscillator

•

Applications:

Phase-Locked Loops (PLL’s), Clock Recovery,

Reference Signal Tracking, Synthesizers, Frequency

Modulation/Demodulation

•

Ceramic Construction, Medal Lid

•

2.0 to 40 MHz Frequency Range

•

0.5V to 4.5 V Control Voltage

•

±25 ppm Stability

•

-40°C to +85°C Operating Temperature Option

•

Tape and Reel Available

•

Ground Shielded Top and Bottom

•

4-pin SOJ-20 Footprint

•

J-Leads Seam-sealed, Resistance Welded Hermetic Package

Not Recommended for New Designs. Refer to

K1570A & K1570AQH Series as an Alternative.

OBSOLETE

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

K1526AA-R-FREQ1 Related Products

	K1526AA-R-FREQ1	K1526ADM-R-FREQ1	K1526AA-FREQ1	K1526AD-R-FREQ1	K1526AD-FREQ2	K1526ADM-FREQ1	K1526ADM-FREQ2	K1526AA-FREQ2	K1526AA-R-FREQ2	K1526AAM-R-FREQ2
Description	CMOS/TTL Output Clock Oscillator, 2MHz Min, 33MHz Max, ROHS COMPLIANT, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN	CMOS/TTL Output Clock Oscillator, 2MHz Min, 33MHz Max, ROHS COMPLIANT, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN	CMOS/TTL Output Clock Oscillator, 2MHz Min, 33MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN	CMOS/TTL Output Clock Oscillator, 2MHz Min, 33MHz Max, ROHS COMPLIANT, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN	CMOS/TTL Output Clock Oscillator, 33.1MHz Min, 40MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN	CMOS/TTL Output Clock Oscillator, 2MHz Min, 33MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN	CMOS/TTL Output Clock Oscillator, 33.1MHz Min, 40MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN	CMOS/TTL Output Clock Oscillator, 33.1MHz Min, 40MHz Max, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN	CMOS/TTL Output Clock Oscillator, 33.1MHz Min, 40MHz Max, ROHS COMPLIANT, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN	CMOS/TTL Output Clock Oscillator, 33.1MHz Min, 40MHz Max, ROHS COMPLIANT, HERMETEIC, WELDED, CERAMIC, SOJ-20, 4-PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE	TAPE AND REEL; TUBE
Maximum control voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	150 ppm	80 ppm	150 ppm	80 ppm	80 ppm	80 ppm	80 ppm	150 ppm	150 ppm	150 ppm
frequency stability	25%	60%	25%	40%	40%	60%	60%	25%	25%	50%
linearity	5%	5%	5%	5%	5%	5%	5%	10%	10%	10%
Manufacturer's serial number	K1526AA	K1526AD	K1526AA	K1526AD	K1526AD	K1526AD	K1526AD	K1526AA	K1526AA	K1526AA
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	33 MHz	33 MHz	33 MHz	33 MHz	40 MHz	33 MHz	40 MHz	40 MHz	40 MHz	40 MHz
Minimum operating frequency	2 MHz	2 MHz	2 MHz	2 MHz	33.1 MHz	2 MHz	33.1 MHz	33.1 MHz	33.1 MHz	33.1 MHz
Maximum operating temperature	70 °C	85 °C	70 °C	70 °C	70 °C	85 °C	85 °C	70 °C	70 °C	85 °C
Oscillator type	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL
physical size	14.22mm x 9.14mm x 3.89mm	14.22mm x 9.14mm x 3.89mm	14.22mm x 9.14mm x 3.89mm	14.22mm x 9.14mm x 3.89mm	14.22mm x 9.14mm x 3.89mm	14.22mm x 9.14mm x 3.89mm	14.22mm x 9.14mm x 3.89mm	14.22mm x 9.14mm x 3.89mm	14.22mm x 9.14mm x 3.89mm	14.22mm x 9.14mm x 3.89mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	45/55 %	45/55 %	45/55 %	45/55 %	40/60 %	45/55 %	40/60 %	40/60 %	40/60 %	40/60 %
Maker	MtronPTI	-	MtronPTI	MtronPTI	MtronPTI	MtronPTI	MtronPTI	MtronPTI	MtronPTI	MtronPTI
