K1536CACFREQ1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> K1536CACFREQ1

K1536CACFREQ1: DescriptionCMOS Output Clock Oscillator, 2MHz Min, 55MHz Max; CategoryPassive components oscillator; File Size67KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

K1536CACFREQ1 Overview

CMOS Output Clock Oscillator, 2MHz Min, 55MHz Max

K1536CACFREQ1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	25%
JESD-609 code	e4
linearity	10%
Manufacturer's serial number	K1536C
Installation features	SURFACE MOUNT
Maximum operating frequency	55 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
physical size	11.68mm x 9.14mm x 3.84mm
longest rise time	5 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

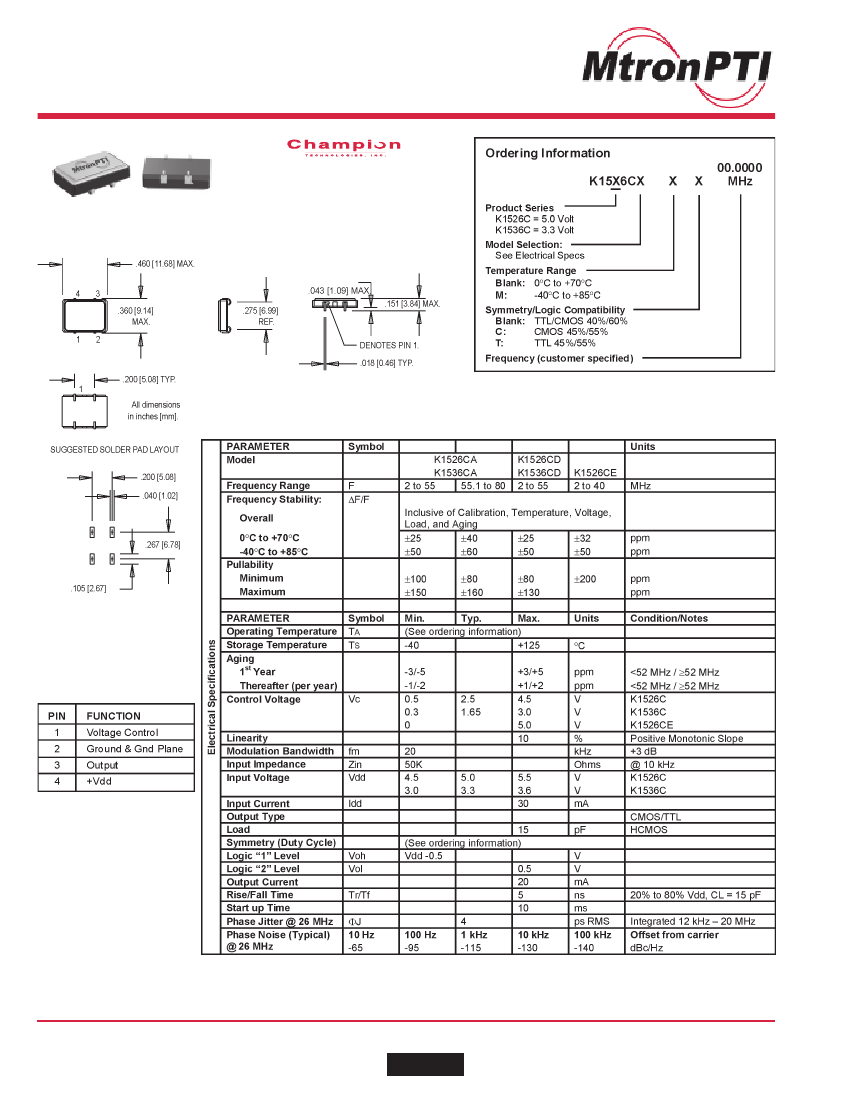

K1526C & K1536C Series

9x11 mm, 5.0 or 3.3 Volt, CMOS/TTL, VCXO

•

Former

Product

•

Phase-Locked Loops (PLL’s), Clock

Recovery, Reference Signal Tracking,

Synthesizers, Frequency Modulation/

Demodulation

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.
