NRELW221M35V10X12.5F datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> NRELW221M35V10X12.5F

Preview

NRELW221M35V10X12.5F: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 220uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size37KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NRELW221M35V10X12.5F Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 220uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

NRELW221M35V10X12.5F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
ESR	900 mΩ
JESD-609 code	e3
leakage current	0.231 mA
Manufacturer's serial number	NRE-LW
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	270 mA
surface mount	NO
Delta tangent	0.12
Terminal surface	MATTE TIN
Terminal shape	WIRE

Preview

Download Datasheet

View All

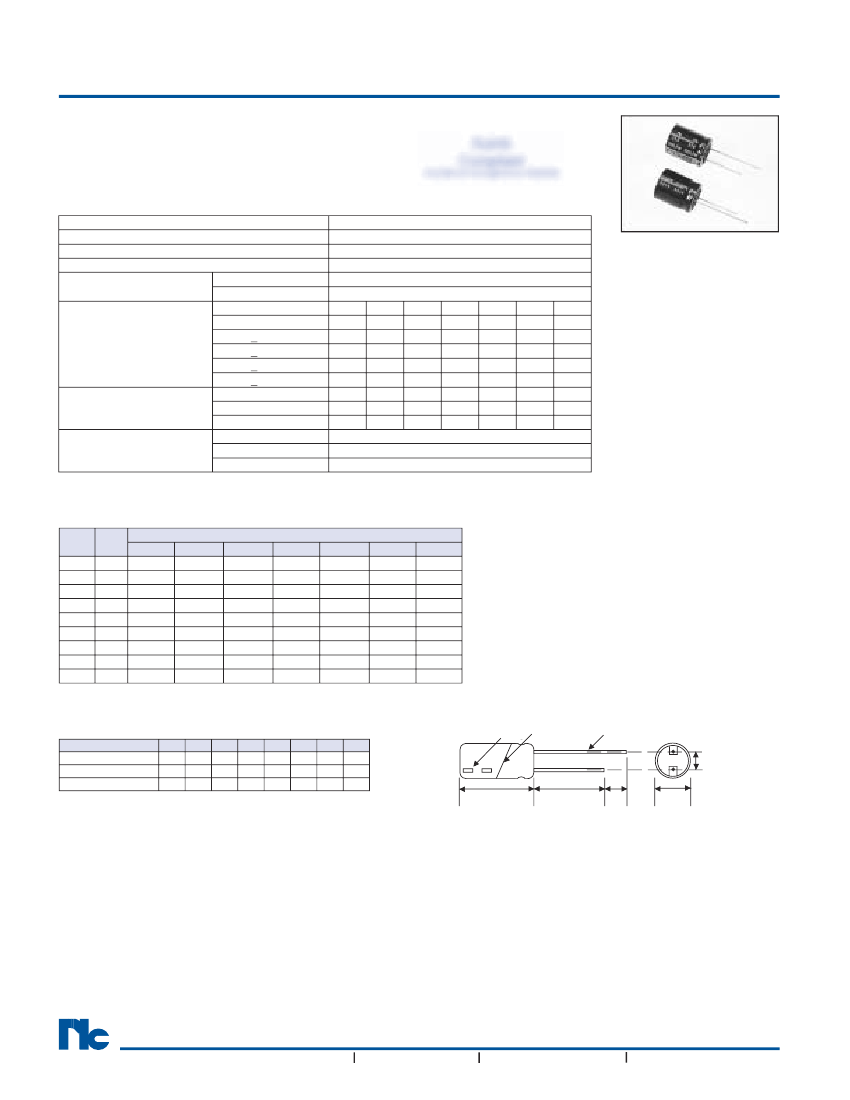

Miniature Aluminum Electrolytic Capacitors

LOW PROFILE, WIDE TEMPERATURE, RADIAL LEAD, POLARIZED

FEATURES

• LOW PROFILE APPLICATIONS

• WIDE TEMPERATURE 105

O

C

• HIGH STABILITY AND PERFORMANCE

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

After 1 min.

Max. Leakage

Current @ 20°C

After 2 min.

W.V. (Vdc)

S.V. (Vdc)

C < 1,000µF

Max. Tan

δ

@ 120Hz/20°C

C < 2,200µF

C < 3,300µF

C < 4,700µF

W.V. (Vdc)

Low Temperature Stability

Z-25°C/Z+20°C

Impedance Ratio @ 120Hz

Z-40°C/Z+20°C

Capactance Change

Load Life Test at Rated W.V.

Tan

δ

105°C 1,000 Hours

Leakage Current

10 ~ 100Vdc

47 ~ 4,700µF

-40 ~ +105°C

±20% (M)

0.03CV or 4µA whichever is greater

0.01CV or 3µA whichever is greater

10

16

25

35

50

63

100

13

20

32

44

63

79

125

0.20 0.16 0.14 0.12 0.10 0.09 0.08

0.22 0.18 0.16

-

0.24

-

0.26

-

10

16

25

35

50

63

100

3

2

8

6

4

3

Within 20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

NRE-LW Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

STANDARD PRODUCT AND CASE SIZE TABLE D

φ

x L (mm)

Cap

(µF)

47

100

220

330

470

1,000

2,200

3,300

4,700

Code

Working Voltage (Vdc)

10

16

25

35

50

63

100

470

-

10x12.5

101

-

10x12.5 16x16

221

-

10x12.5 10x12.5 16x16 16x21

331

-

10x12.5 12.5x16 16x16

16x21

-

471

-

10x12.5 12.5x16 16x16

16x21

-

102 12.5x15 16x16

16x21

-

222 16x16

16x21

-

332 16x21

-

472 18x21

-

LEAD SPACING AND DIAMETER (mm)

Case Dia. (Dφ)

Lead Dia. (Dφ)

Lead Spacing (F)

Dim.

α

5

0.5

2.0

0.5

6.3 8

10 12.5

0.5 0.6 0.6 0.6

2.5 3.5 5.0 5.0

0.5 0.5 0.5 0.5

16 18 22

0.8 0.8 0.8

7.5 7.5 10

0.5 0.5 1.0

Polarity Marking

Insulation Sleeve

dφ ± 0.05

F ± 0.5

L +

β

max.

15mm Min.

4mm

Min.

Dφ ±

α

®

106

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

Recommended Resources

Simple magnetizer circuit one a

Novel voice-controlled flowing water lantern controller circuit

Dynamic constant current load for testing fuel cell batteries

HC-1B ultrasonic hardness tester circuit

Negative power generator circuit composed of NAND gate

Demonstration circuit using dual flip-flops
